Top » Piese de schimb » PIESE HITACHI » H55SC

H55SC
[H55SC]
H55SC
Click pentru a mari
Imagini suplimentare
H55SC
Click pentru a mari

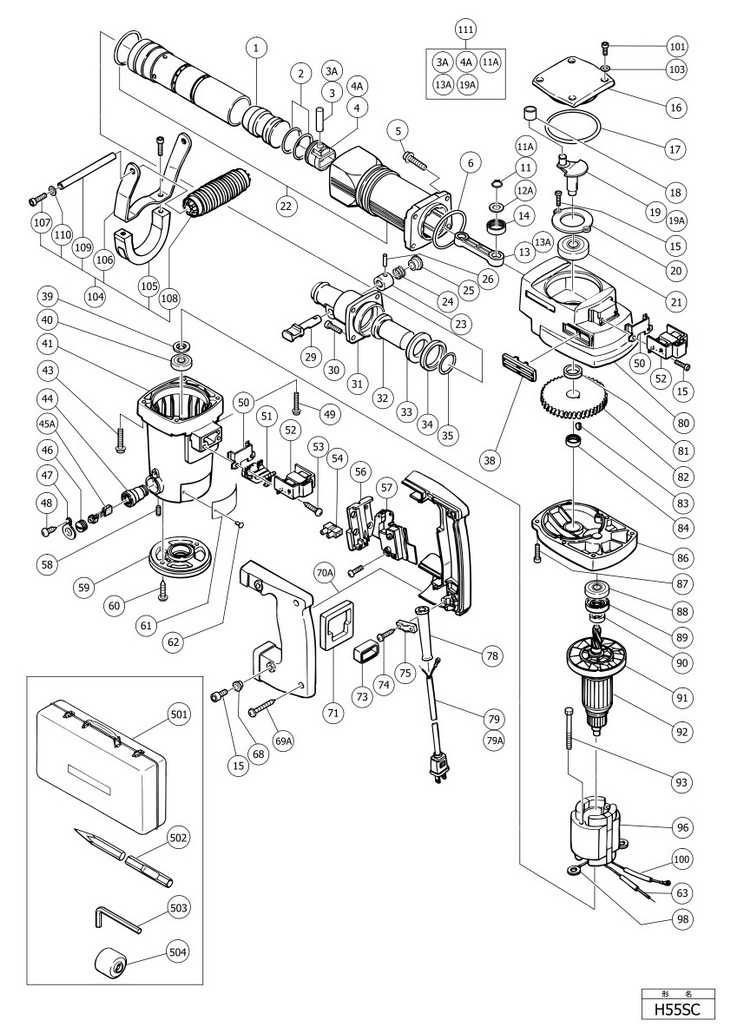

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 STRIKER (985455) 18789 RON
2 1 2 O-RING (A) FPM810 (985454) 3019 RON
3 1 1 PISTON PIN (985451) 3578 RON
3A 1 1 PISTON PIN (301509) Indisponibil Indisponibil
4 1 1 PISTON (985452) 15098 RON
4A 1 1 PISTON (317084) Indisponibil Indisponibil
5 1 4 HEX.SOCKET SCREW (990083) 1453 RON
6 1 1 O-RING (1AS-60) (956996) 297 RON
11 1 1 RETAINING RING FOR D12 (10 PCS) (939542) 1788 RON
11A 1 1 RETAINING RING FOR D14 (10 PCS) (939543) 2683 RON
12A 1 1 CRANK WASHER (985453) 2236 RON
13 1 1 985450 (985450) Indisponibil Indisponibil
13A 1 1 CONNECTING ROD (317082) 3690 RON
14 1 1 NEEDLE BEARING NTN RNA-NA4901V1 (985470) 15322 RON
15 1 8 SEAL LOCK HEX. SOCKET HD. BOLT M5X14 (OLD 315636) (984509) 1453 RON
16 1 1 CRANK COVER (986957) 22592 RON
17 1 1 O-RING (S-90) (877316) 2683 RON
18 1 1 INNER RACE (985467) 7828 RON
19 1 1 CRANK SHAFT (985444) 34112 RON
19A 1 1 CRANK SHAFT (319502) 37468 RON
20 1 1 BEARING COVER (985443) 382 RON
21 1 1 BALL BEARING 6204DDUCMPS2S (6204DD) 5927 RON
22 1 1 CYLINDER CASE (986941) 203786 RON
23 1 1 SPRING CASE (993241) 12079 RON
24 1 1 STOPPER SPRING (302096) 297 RON
25 1 1 STOPPER SLEEVE (993243) 6598 RON
26 1 1 NEEDLE ROLLER D4X20 (943364) 1453 RON
29 1 1 STOP LEVER (302095) 23934 RON
30 1 4 SEAL LOCK HEX. SOCKET HD. BOLT M8X25 (985479) 2683 RON
31 1 1 302120 - Indisponibil
32 1 1 302094 - Indisponibil
33 1 1 DAMPER WASHER (986943) 10513 RON
34 1 1 DAMPER (986942) 488 RON
35 1 1 O-RING (C) FPM810 (986946) 7828 RON
38 1 2 WIND GUIDE (B) (991713) 1453 RON
39 1 1 DUST WASHER (985436) 1453 RON
40 1 1 BALL BEARING 6200VVCMPS2S (6200VV) 3466 RON
41 1 1 985435 (985435) 62969 RON
43 1 2 HEX.SOCKET HD.BOLT M6X60 (W/FLANGE) (994085) 2236 RON
44 1 2 BRUSH HOLDER (OLD 961944Z) (983362) 5368 RON
45A 1 2 CARBON BRUSH A.S. TYPE (OLD 961946Z) (999071) 7045 RON
46 1 2 BRUSH CAP (961781) 2683 RON
47 1 2 CAP COVER (OLD 981959Z) (981959) 2348 RON
48 1 2 TAPPING SCREW D4X10 (BLACK) (302090) 1453 RON
49 1 2 HEX.SOCKET SCREW (994084) 1453 RON
50 1 2 GUIDE PLATE (980750) 12190 RON
51 1 1 INTERNAL WIRE HOLDER (OLD 983274Z) (985469) 6374 RON
52 1 2 HANDLE RUBBER (980727) 9282 RON
53 1 2 TAPPING SCREW D5X25 (W/WASHER) (985605) 894 RON
54 1 1 PILLAR TERMINAL (OLD 938307Z/512-31870-20)) (938307) 2571 RON
56 1 1 990082 - Indisponibil
57 1 1 SWITCH (A) (1P SCREW TYPE) W/O LOCK (992891) 14763 RON
58 1 2 HEX.SOCKET SET SCREW M5X8 (938477) 1453 RON
59 1 1 TAIL COVER (985437) 15881 RON
60 1 2 TAPPING SCREW D5X20 (W/FLANGE) BLACK (302089) 1453 RON
61 1 1 - Indisponibil
62 1 2 RIVET D2.5X4.8 (10 PCS) (OLD 949510Z) (949510) 1453 RON
63 1 1 - Indisponibil
68 1 4 DISTANCE PIECE (B) (991711) 1453 RON
69A 1 2 TAPPING SCREW D4X30 (W/FLANGE) BLACK (305490) 894 RON
70A 1 1 SIDE HANDLE (OLD 993238) (993254) 25612 RON
71 1 1 HANDLE PACKING (980751) 1788 RON
73 1 1 WIRE SUPPORT (985474) 2348 RON
74 1 2 TAPPING SCREW D4X20 (W/WASHER) (OLD 996255) (982095) 894 RON
75 1 1 CORD CLIP (960266) 894 RON
78 1 1 CORD ARMOR D10.7 (940778) 2124 RON
79 1 1 - Indisponibil
79A 1 1 500434Z - Indisponibil
80 1 1 986968 (986968) 100215 RON
81 1 1 DISTANCE RING (B) (985445) 2683 RON
82 1 1 FIRST GEAR (985446) 28967 RON
83 1 1 WOODRUFF KEY 3X13 (932815) 1788 RON
84 1 1 NEEDLE BEARING NTN BK1512 (985442) 6374 RON
86 1 1 GEAR COVER (985440) 45968 RON
87 1 4 SEAL LOCK HEX. SOCKET HD. BOLT M6X20 (OLD 986086) (992803) 1453 RON
88 1 1 BALL BEARING 6202DDUCMPS2S (OLD 956937) (6202DD) 4697 RON
89 1 1 OIL SEAL (FPM 807) (985439) 7269 RON
90 1 1 SLEEVE (985438) 13421 RON
91 1 1 FAN (985482) Indisponibil Indisponibil
92 1 1 985472U (985472U) 105360 RON
93 1 2 HEX.HD. TAPPING SCREW D5X70 (961400) 1453 RON
96 1 1 985471C - Indisponibil
98 1 2 BRUSH TERMINAL (OLD 976831) (937623) 894 RON
100 1 1 - Indisponibil
101 1 4 SEAL LOCK HEX. SOCKET HD. BOLT M5X16 (990079) 1453 RON
103 1 4 WASHER M5 (10 PCS) (949424) 1453 RON
104 1 1 986959 (986959) 45968 RON
105 1 1 HOLDER (A) (986960) 22144 RON
106 1 1 HOLDER (B) (986961) 9730 RON
107 1 4 HEX.SOCKET HD.BOLT M8X20 (10 PCS) (949656) 4585 RON
108 1 1 GRIP (944951) 5591 RON
109 1 1 SHAFT (986962) 10065 RON
110 1 2 WASHER (C) (986963) 1453 RON
111 1 1 CRANK SHAFT SET H55SA (319842) 54469 RON
501 1 1 302214 - Indisponibil
502 1 1 985430 - Indisponibil
503 1 1 HEX.BAR WRENCH 6MM (872422) 1117 RON
504 1 1 DUST COVER (985468) 382 RON
601 1 1 985431 - Indisponibil
602 1 1 985432 - Indisponibil
603 1 1 985433 - Indisponibil
604 1 1 CUTTER 2"X17" L (HEX.SHANK TYPE) (985434) 37468 RON
605 1 1 SERVICE KIT H55SA (986966) 62969 RON
606 1 1 GREASE (FG-6A) (30G) (4966375124375) Indisponibil Indisponibil
607 1 1 GREASE FOR HAMMER DRILL (JF-375) (70G) (308471) 8388 RON
