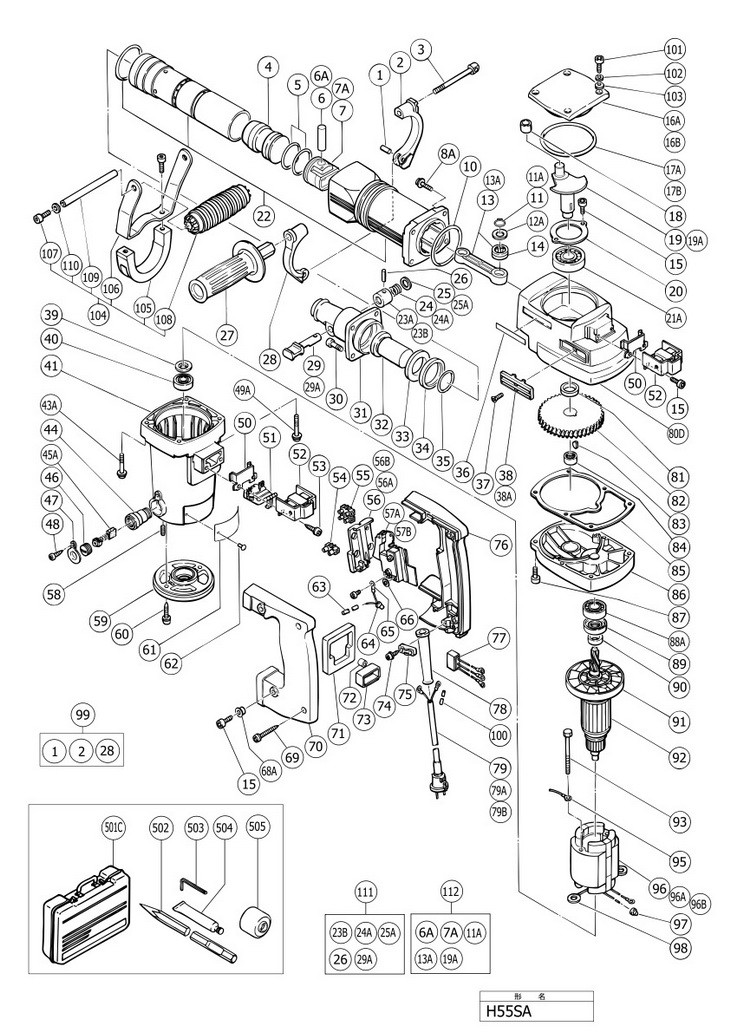

Top » Piese de schimb » PIESE HITACHI » H55SA H55SA [H55SA] Click pentru a mari Imagini suplimentare Click pentru a mari LISTA DE COMPONENTE: Numar Versiune Buc. in schema Denumire Pret/buc (Tva inclus) Cumpara 1 1 1 ROLL PIN D6X25 (10 PCS) (OLD 949747Z) (949747) 382 RON 2 1 1 HANDLE HOLDER (A) (985475) 7269 RON 3 1 1 HANDLE BOLT (985465) 382 RON 4 1 1 STRIKER (985455) 18789 RON 5 1 2 O-RING (A) FPM810 (985454) 3019 RON 6 1 1 PISTON PIN (985451) 3578 RON 6A 1 1 PISTON PIN (301509) Indisponibil Indisponibil 7 1 1 PISTON (985452) 15098 RON 7A 1 1 PISTON (317084) Indisponibil Indisponibil 8A 1 4 HEX.SOCKET SCREW (990083) 1453 RON 10 1 1 O-RING (1AS-60) (956996) 297 RON 11 1 1 RETAINING RING FOR D12 (10 PCS) (939542) 1788 RON 11A 1 1 RETAINING RING FOR D14 (10 PCS) (939543) 2683 RON 12A 1 1 CRANK WASHER (985453) 2236 RON 13 1 1 985450 (985450) Indisponibil Indisponibil 13A 1 1 CONNECTING ROD (317082) 3690 RON 14 1 1 NEEDLE BEARING NTN RNA-NA4901V1 (985470) 15322 RON 15 1 8 HEX.SOCKET HD.BOLT M5X14 (10 PCS) (949665) 2124 RON 16A 1 1 @CRANK COVER (985449) 22592 RON 16B 1 1 CRANK COVER (986957) 22592 RON 17A 1 1 O-RING (B) (S-80) (985448) 2348 RON 17B 1 1 O-RING (S-90) (877316) 2683 RON 18 1 1 INNER RACE (985467) 7828 RON 19 1 1 CRANK SHAFT (985444) 34112 RON 19A 1 1 CRANK SHAFT (319502) 37468 RON 20 1 1 BEARING COVER (985443) 382 RON 21A 1 1 BALL BEARING 6204DDUCMPS2S (6204DD) 5927 RON 22 1 1 CYLINDER CASE (986941) 203786 RON 23A 1 1 SPRING CASE (985466) 573 RON 23B 1 1 SPRING CASE (993241) 12079 RON 24 1 1 STOPPER SPRING (981937) 1453 RON 24A 1 1 STOPPER SPRING (302096) 297 RON 25 1 1 STOPPER WASHER (985463) 4361 RON 25A 1 1 STOPPER SLEEVE (993243) 6598 RON 26 1 1 NEEDLE ROLLER D4X20 (943364) 1453 RON 27 1 1 985477 (985477) 8276 RON 28 1 1 HANDLE HOLDER (B) (985476) 6822 RON 29 1 1 STOP LEVER (985462) 23934 RON 29A 1 1 STOP LEVER (302095) 23934 RON 30 1 4 SEAL LOCK HEX. SOCKET HD. BOLT M8X25 (985479) 2683 RON 31 1 1 FRONT COVER (986945) 105360 RON 32 1 1 SECOND HAMMER (986944) 5952 RON 33 1 1 DAMPER WASHER (986943) 10513 RON 34 1 1 DAMPER (986942) 488 RON 35 1 1 O-RING (C) FPM810 (986946) 7828 RON 36 1 1 957561 - Indisponibil 37 1 2 FLAT HD.SCREW M4X12 (10 PCS) (949323) 1453 RON 38 1 2 WIND GUIDE (980735) 297 RON 38A 1 2 WIND GUIDE (B) (991713) 1453 RON 39 1 1 DUST WASHER (985436) 1453 RON 40 1 1 BALL BEARING 6200VVCMPS2S (6200VV) 3466 RON 41 1 1 985435 (985435) 62969 RON 43A 1 2 HEX.SOCKET SCREW (994084) 1453 RON 44 1 2 BRUSH HOLDER (OLD 961944Z) (983362) 5368 RON 45A 1 2 CARBON BRUSH A.S. TYPE (OLD 961946Z) (999071) 7045 RON 46 1 2 BRUSH CAP (961781) 2683 RON 47 1 2 CAP COVER (OLD 981959Z) (981959) 2348 RON 48 1 2 TAPPING SCREW D4X10 (958715) 894 RON 49A 1 2 HEX.SOCKET HD.BOLT M6X60 (W/FLANGE) (994085) 2236 RON 50 1 2 GUIDE PLATE (980750) 12190 RON 51 1 1 INTERNAL WIRE HOLDER (OLD 983274Z) (985469) 6374 RON 52 1 2 HANDLE RUBBER (980727) 9282 RON 53 1 2 TAPPING SCREW D5X25 (W/WASHER) (985605) 894 RON 54 1 1 PILLAR TERMINAL (OLD 938307Z/512-31870-20)) (938307) 2571 RON 55 1 1 PILLAR TERMINAL (A) (958308Z) 5368 RON 56 1 1 SUPPORT (981869) 6151 RON *56 1 1 SUPPORT (A) (981986Z) 15434 RON 56B 1 1 990082 - Indisponibil *57A 1 1 SWITCH (2P PILLAR TYPE) W/O LOCK (981533Z) 13085 RON *57A 1 1 SWITCH (OLD 986958) (995398) Indisponibil Indisponibil 57B 1 1 SWITCH (A) (1P SCREW TYPE) W/O LOCK (992891) 14763 RON 58 1 2 HEX.SOCKET SCREW M5X12 (982169) 1453 RON 59 1 1 TAIL COVER (985437) 15881 RON 60 1 2 TAPPING SCREW D5X20 (W/WASHER) (985480) 1453 RON 61 1 1 - Indisponibil 62 1 2 RIVET D2.5X4.8 (10 PCS) (OLD 949510Z) (949510) 1453 RON 63 1 2 - Indisponibil 64 1 2 CONNECTOR 50092 (10 PCS) (OLD 939558) (959141) 382 RON 65 1 1 INTERNAL WIRE (983276Z) 1453 RON 66 1 1 WASHER M4 (10 PCS) (949423) 894 RON 68A 1 4 DISTANCE PIECE (B) (991711) 1453 RON 69 1 2 956636 - Indisponibil 70 1 1 HANDLE (B) (OLD 983273Z) (983273) 10960 RON 71 1 1 HANDLE PACKING (980751) 1788 RON 72 1 1 - Indisponibil 73 1 1 WIRE SUPPORT (985474) 2348 RON 74 1 2 TAPPING SCREW D4X16 (W/FLANGE) (984750) 1117 RON 75 1 1 CORD CLIP (960266) 894 RON *75 1 1 CORD CLIP (981987Z) 1453 RON 76 1 1 HANDLE (A) (OLD 983272Z) (983272) 11967 RON 77 1 1 NOISE SUPPRESSOR (994273) Indisponibil Indisponibil 78 1 1 CORD ARMOR D8.2 (OLD 958049Z) (958049) 894 RON *78 1 1 CORD ARMOR D10.7 (940778) 2124 RON *79 1 1 500390Z - Indisponibil *79 1 1 CORD FOR SWISS (500391Z) 27513 RON *79 1 1 500407Z - Indisponibil *79 1 1 500408Z - Indisponibil 79A 1 1 CORD 5M 2 X 1,5 H07RN-F (W/O PLUG) (500460Z) 25612 RON 79B 1 1 CORD FOR GBR 230V (500446Z) 23934 RON 80D 1 1 986968 (986968) 100215 RON 81 1 1 DISTANCE RING (B) (985445) 2683 RON 82 1 1 FIRST GEAR (985446) 28967 RON 83 1 1 WOODRUFF KEY 3X13 (932815) 1788 RON 84 1 1 NEEDLE BEARING NTN BK1512 (985442) 6374 RON 85 1 1 SEAL PACKING (985447) 2683 RON 86 1 1 GEAR COVER (985440) 45968 RON 87 1 4 HEX.SOKET HD.BOLT M6X20 (10 PCS) (949660) 3242 RON 88A 1 1 BALL BEARING 6202VVCMPS2S (6202VV) 4585 RON 89 1 1 OIL SEAL (FPM 807) (985439) 7269 RON 90 1 1 SLEEVE (985438) 13421 RON 91 1 1 FAN (985482) Indisponibil Indisponibil *92 1 1 985472U (985472U) 105360 RON *92 1 1 985472E (985472E) 9354 RON *92 1 1 ARMATURE 240 VOLT (OLD 985472H) (985472F) 9354 RON 93 1 2 HEX.HD. TAPPING SCREW D5X70 (961400) 1453 RON 95 1 1 INTERNAL WIRE (OLD 986152) (986277) 1453 RON *95 1 1 @ INTERNAL WIRE (OLD 980935Z) (971776) 1453 RON *95 1 1 @ INTERNAL WIRE (971825) 1453 RON *96 1 1 985471C - Indisponibil *96 1 1 985471E (985471E) 45968 RON *96 1 1 STATOR 110 VOLT (985471J) 45968 RON *96A 1 1 985471G - Indisponibil *96A 1 1 985471H (985471H) 45968 RON 96B 1 1 985471F (985471F) 45968 RON 97 1 1 CONNECTOR 50091 (10 PCS) (OLD 939557) (959140) 2236 RON 98 1 2 BRUSH TERMINAL (OLD 976831) (937623) 894 RON 99 1 1 985464 (985464) 13421 RON 100 1 2 - Indisponibil 101 1 4 SEAL LOCK HEX. SOCKET HD. BOLT M5X16 (990079) 1453 RON 102 1 4 SPRING WASHER M5 (10 PCS) (949454) 1117 RON 103 1 4 WASHER M5 (10 PCS) (949424) 1453 RON 104 1 1 986959 (986959) 45968 RON 105 1 1 HOLDER (A) (986960) 22144 RON 106 1 1 HOLDER (B) (986961) 9730 RON 107 1 4 HEX.SOCKET HD.BOLT M8X20 (10 PCS) (949656) 4585 RON 108 1 1 GRIP (944951) 5591 RON 109 1 1 SHAFT (986962) 10065 RON 110 1 2 WASHER (C) (986963) 1453 RON 111 1 1 310891 (310891) 4251 RON 112 1 1 CRANK SHAFT SET H55SA (319842) 54469 RON 501C 1 1 PLASTIC CASE (OLD 314176) (319783) 45968 RON 502 1 1 986947 - Indisponibil 503 1 1 HEX.BAR WRENCH 6MM (872422) 1117 RON 504 1 1 GREASE (FG-6A) (30G) (4966375124375) Indisponibil Indisponibil 505 1 2 DUST COVER (985468) 382 RON 601 1 1 GREASE FOR IMPACT DRILL (FG-6A) (500G) (980927) 4251 RON 602 1 1 986948 - Indisponibil 603 1 1 986949 - Indisponibil 604 1 1 986950 - Indisponibil 605 1 1 986951 - Indisponibil 606 1 1 986952 - Indisponibil 607 1 1 986953 - Indisponibil 608 1 1 986954 - Indisponibil 609 1 1 SIDE HANDLE (944457) 13644 RON 610 1 1 SERVICE KIT H55SA (986966) 62969 RON
