H50SA
[H50SA]
H50SA
Click pentru a mari
Imagini suplimentare
H50SA
Click pentru a mari

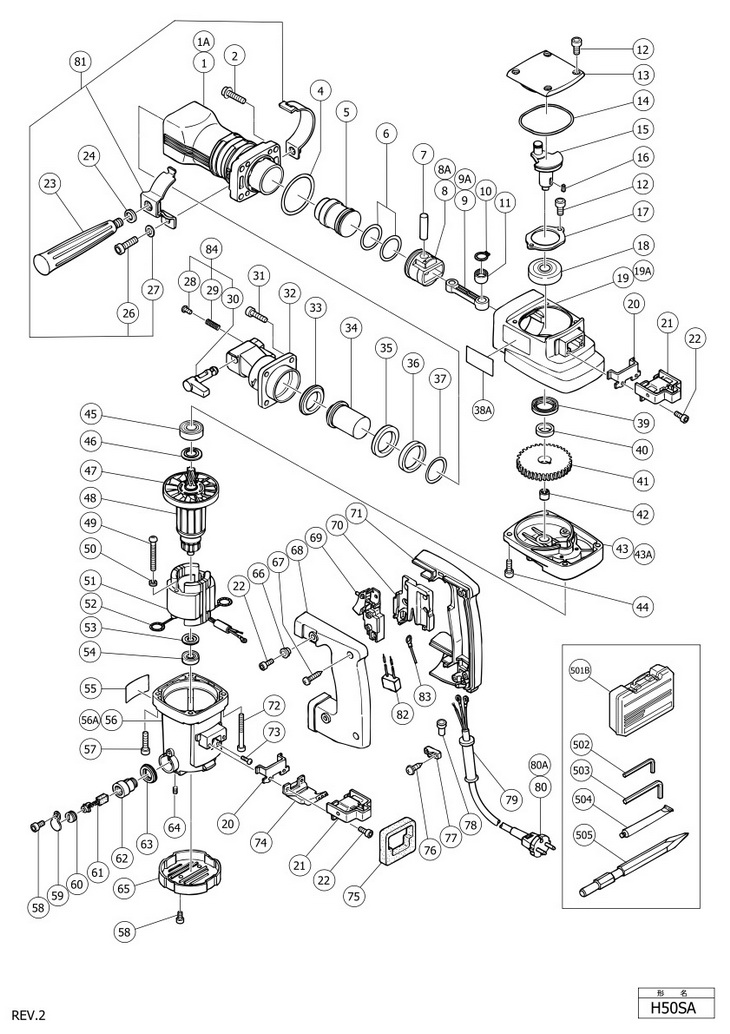

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 @ CYLINDER CASE H50SA (301511) 5101 RON
1A 1 1 332153 - Indisponibil
2 1 4 HEX.SOCKET HD.BOLT M8X30 (W/FLANGE) (995400) 1453 RON
4 1 1 O-RING (1AS-60) (956996) 297 RON
5 1 1 STRIKER (301510) 18454 RON
6 1 2 O-RING (A) FPM810 (985454) 3019 RON
7 1 1 PISTON PIN (301509) Indisponibil Indisponibil
8 1 1 PISTON (985452) 15098 RON
8A 1 1 PISTON (317084) Indisponibil Indisponibil
9 1 1 301508 (301508) 20691 RON
9A 1 1 322020 (322020) 5815 RON
10 1 1 RETAINING RING FOR D12 (10 PCS) (939542) 1788 RON
11 1 1 NEEDLE BEARING NSK TORR AJ50 1203 (980756) 6933 RON
12 1 6 SEAL LOCK HEX. SOCKET HD. BOLT M5X16 (990079) 1453 RON
13 1 1 301507 - Indisponibil
14 1 1 O-RING (S-75) (301506) 2348 RON
15 1 1 301504 - Indisponibil
16 1 1 FEATHER KEY 3X3X10 (940533) 1453 RON
17 1 1 BEARING COVER (985443) 382 RON
18 1 1 BALL BEARING 6204DDUCMPS2S (6204DD) 5927 RON
19 1 1 301503 - Indisponibil
19A 1 1 332152 - Indisponibil
20 1 2 GUIDE PLATE (980750) 12190 RON
21 1 2 HANDLE RUBBER (980727) 9282 RON
22 1 8 SEAL LOCK HEX. SOCKET HD. BOLT M5X14 (OLD 315636) (984509) 1453 RON
23 1 1 SIDE HANDLE (980020) 765 RON
24 1 1 SPRING WASHER M12 (10 PCS) (949463) 2236 RON
26 1 1 HEX.SOCKET HD.BOLT M8X25 (10 PCS) (949760) 4585 RON
27 1 1 SPRING WASHER M8 (10 PCS) (949457) 1453 RON
28 1 1 STOPPER PIN (980121) 6598 RON
29 1 1 301558 - Indisponibil
30 1 1 STOP LEVER (995395) 10960 RON
31 1 4 SEAL LOCK HEX. SOCKET HD. BOLT M8X25 (985479) 2683 RON
32 1 1 301514 - Indisponibil
33 1 1 DAMPER (B) (301513) 3242 RON
34 1 1 SECOND HAMMER (301512) 22592 RON
35 1 1 DAMPER WASHER (986943) 10513 RON
36 1 1 DAMPER (986942) 488 RON
37 1 1 O-RING (C) FPM810 (986946) 7828 RON
38A 1 1 301517 - Indisponibil
39 1 1 OIL SEAL (995403) 2348 RON
40 1 1 DISTANCE RING (C) (995402) 6822 RON
41 1 1 301505 - Indisponibil
42 1 1 NEEDLE BEARING (M661) (939299) 6933 RON
43 1 1 301502 - Indisponibil
43A 1 1 332154 - Indisponibil
44 1 2 SEAL LOCK HEX. SOCKET HD. BOLT M6X20 (OLD 986086) (992803) 1453 RON
45 1 1 BALL BEARING 6202VVCMPS2S (6202VV) 4585 RON
46 1 1 DUST WASHER (B) (980700) 894 RON
47 1 1 FAN (980740) 5368 RON
*48 1 1 @ ARMATURE 110-115 VOLT (360129C) 73035 RON
*48 1 1 360129D - Indisponibil
*48 1 1 360129E (360129E) 73035 RON
*48 1 1 360129F - Indisponibil
49 1 2 MACHINE SCREW M5X55 (10 PCS) (949233) 2348 RON
50 1 2 SPRING WASHER M5 (10 PCS) (949454) 1117 RON
*51 1 1 340162C - Indisponibil
*51 1 1 340162D - Indisponibil
*51 1 1 340162E (340162E) 34112 RON
*51 1 1 340162F - Indisponibil
52 1 2 BRUSH TERMINAL (930703) 2348 RON
53 1 1 @ DUST WASHER (A) (998550) 1453 RON
54 1 1 BALL BEARING 6000VVCMPS2S (6000VV) 4025 RON
55 1 1 - Indisponibil
56 1 1 301501 - Indisponibil
56A 1 1 332151 - Indisponibil
57 1 2 SEAL LOCK HEX. SOCKET HD. BOLT M6X30 (993496) 1453 RON
58 1 4 SEAL LOCK HEX. SOCKET HD. BOLT M5X10 (877839) 1453 RON
59 1 2 CAP COVER (980733) 1453 RON
60 1 2 BRUSH CAP (935829) 1453 RON
61 1 2 CARBON BRUSH (1 PAIR) (999043) 382 RON
62 1 2 BRUSH HOLDER (971001) Indisponibil Indisponibil
63 1 2 956127 - Indisponibil
64 1 2 HEX.SOCKET SET SCREW M5X8 (938477) 1453 RON
65 1 1 TAIL COVER (980732) 3578 RON
66 1 4 DISTANCE PIECE (B) (991711) 1453 RON
67 1 2 956636 - Indisponibil
68 1 1 HANDLE (B) (OLD 983273Z) (983273) 10960 RON
69 1 1 SWITCH (OLD 986958) (995398) Indisponibil Indisponibil
70 1 1 990082 - Indisponibil
71 1 1 HANDLE (A) (OLD 983272Z) (983272) 11967 RON
72 1 2 SEAL LOCK HEX. SOCKET BOLT M6X55 (301567) 2683 RON
73 1 1 949292 - Indisponibil
74 1 1 INTERNAL WIRE HOLDER (980754) 6374 RON
75 1 1 HANDLE PACKING (980751) 1788 RON
76 1 2 TAPPING SCREW D4X16 (W/FLANGE) (984750) 1117 RON
77 1 1 CORD CLIP (960266) 894 RON
78 1 1 CONNECTOR 50092 (10 PCS) (OLD 939558) (959141) 382 RON
*79 1 1 CORD ARMOR D8.2 (OLD 958049Z) (958049) 894 RON
*79 1 1 CORD ARMOR D10.7 (940778) 2124 RON
*80 1 1 500202Z - Indisponibil
*80 1 1 500393Z - Indisponibil
*80 1 1 500217Z - Indisponibil
*80 1 1 500449Z - Indisponibil
80A 1 1 500398Z - Indisponibil
80A 1 1 500428Z - Indisponibil
81 1 1 308064 (308064) 12638 RON
82 1 1 NOISE SUPPRESSOR GASKET (930039) 2683 RON
83 1 1 TERMINAL 50051 (10 PCS) (959144) 297 RON
84 1 1 995399 (995399) 15098 RON
501B 1 1 CASE (PLASTIC) (OLD 314167) NEW (319782) 45968 RON
502 1 1 HEX.BAR WRENCH 4MM (944458) 1229 RON
503 1 1 HEX.BAR WRENCH 6MM (872422) 1117 RON
504 1 1 @ BULL POINT 320MM (ROUND SHANK TYPE) (955613) 17894 RON
505 1 1 GREASE (FG-6A) (30G) (4966375124375) Indisponibil Indisponibil
601 1 1 GREASE FOR IMPACT DRILL (FG-6A) (500G) (980927) 4251 RON
602 1 1 GREASE (FG-6A) (30G) (4966375124375) Indisponibil Indisponibil
603 1 1 955614 - Indisponibil
604 1 1 980029 - Indisponibil
605 1 1 980030 - Indisponibil
606 1 1 980031 - Indisponibil
607 1 1 980032 - Indisponibil
608 1 1 980033 - Indisponibil
610 1 1 @ DRIFT KEY (944574) 5927 RON
611A 1 1 SYRINGE BELLOWS TYPE (OLD 944575) (318085) 3242 RON
612 1 1 955623 - Indisponibil
613 1 1 955624 - Indisponibil
614 1 1 955625 - Indisponibil
615 1 1 955183 - Indisponibil
616 1 1 RAMMER 140MM (955181) 83214 RON
617 1 1 980034 - Indisponibil
618 1 1 @ CUTTER W50X320L (955629) 32323 RON
619 1 1 GREASE FOR HAMMER DRILL (JF-375) (70G) (308471) 8388 RON
620 1 1 SYRINGE BLOW-OUT BULB TYPE (320859) 6374 RON
