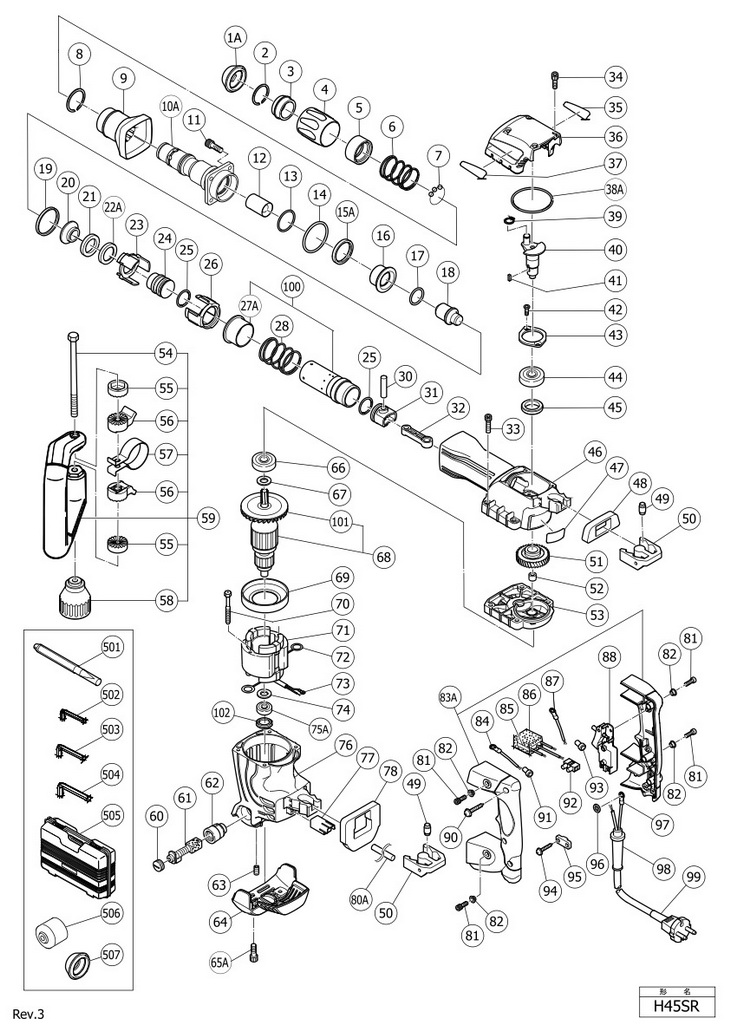

Top » Piese de schimb » PIESE HITACHI » H45SR H45SR [H45SR] Click pentru a mari Imagini suplimentare Click pentru a mari LISTA DE COMPONENTE: Numar Versiune Buc. in schema Denumire Pret/buc (Tva inclus) Cumpara 1A 1 1 FRONT CAP (B) (WITH HEXAGONAL HOLE) (322487) 3242 RON 2 1 1 O-RING (I.D.26) (320846) 2236 RON 3 1 1 SLEEVE (320847) 765 RON 4 1 1 GRIP (A) (320845) 4025 RON 5 1 1 BALL HOLDER (320848) 8835 RON 6 1 1 SPRING (A) (320849) 3242 RON 7 1 6 STEEL BALL D7.94 (944941) 1453 RON 8 1 1 O-RING (D35) (320850) 2236 RON 9 1 1 GRIP (B) (320851) 5368 RON 10A 1 1 320915 (320915) 10204 RON 11 1 4 PACKING BOLT (981942) 2236 RON 12 1 1 SLEEVE (320853) 10065 RON 13 1 1 O-RING (S-34) (980879) 1453 RON 14 1 1 O-RING (1AS-50) (990067) 2236 RON 15A 1 1 DAMPER (A) (OLD 320812) (322528) 2236 RON 16 1 1 HAMMER HOLDER (A) (320811) 20691 RON 17 1 1 O-RING (S-25) (319572) 2236 RON 18 1 1 SECOND HAMMER (320854) 18454 RON 19 1 1 DAMPER (C) (320817) 3242 RON 20 1 1 HAMMER HOLDER (B) (320814) 6933 RON 21 1 1 DAMPER (B) (320815) 3242 RON 22A 1 1 WASHER (OLD 320835) (322412) 2236 RON 23 1 1 HAMMER HOLDER (C) (320816) 2236 RON 24 1 1 STRIKER (320822) 6486 RON 25 1 2 O-RING (320823) 3242 RON 26 1 1 CYLINDER HOLDER (320818) 5368 RON 27A 1 1 SLEEVE (A) (OLD 320820) (321443) 1700 RON 28 1 1 SPRING (C) (320821) 3242 RON 30 1 1 PISTON PIN (320826) 4025 RON 31 1 1 PISTON (320824) Indisponibil Indisponibil 32 1 1 CONNECTING ROD (320825) 2236 RON 33 1 4 SEAL LOCK HEX. SOCKET HD. BOLT M6X45 (986940) 1453 RON 34 1 4 SEAL LOCK HEX. SOCKET HD. BOLT M4X12 (983162) Indisponibil Indisponibil 35 1 1 - Indisponibil 36 1 1 CRANK COVER (320831) 6374 RON 37 1 1 - Indisponibil 38A 1 1 O-RING (JAS02060) (878867) 3242 RON 39 1 1 RETAINING RING FOR D10 (10 PCS) (939540) 2683 RON 40 1 1 CRANK SHAFT (320829) 22144 RON 41 1 1 FEATHER KEY 4X4X10 (930511) 2348 RON 42 1 2 SEAL LOCK HEX. SOCKET FLAT HD. BOLT M5X12 (980760) 1453 RON 43 1 1 BEARING COVER (A) (980761) 6374 RON 44 1 1 BALL BEARING 6203DDUCMAV2S (6203DD) 5368 RON 45 1 1 OIL SEAL (310119) 3578 RON 46 1 1 CYLINDER CRANK CASE (320828) 37468 RON 47 1 1 - Indisponibil 48 1 1 HANDLE PACKING (A) (320837) 3242 RON 49 1 8 HANDLE DAMPER (310124) Indisponibil Indisponibil 50 1 2 TRANSATORY UNIT (310123) 7828 RON 51 1 1 FIRST GEAR (320830) 1700 RON 52 1 1 NEEDLE BEARING (M661) (939299) 6933 RON 53 1 1 GEAR COVER (320841) 22592 RON 54 1 1 BOLT M8 (317107) 3242 RON 55 1 2 HANDLE HOLDER (B) (317106) 3242 RON 56 1 2 HANDLE HOLDER (A) (317105) 4025 RON 57 1 1 BAND (OLD 317104) (320635) 5591 RON 58 1 1 GRIP (317108) 6598 RON 59 1 1 317103 (317103) Indisponibil Indisponibil 60 1 2 BRUSH CAP (935829) 1453 RON *61 1 2 CARBON BRUSH (1 PAIR) (999043) 382 RON *61 1 2 CARBON BRUSH A.S. TYPE (OLD 981612Z) (999073) 7269 RON 62 1 2 BRUSH HOLDER (971001) Indisponibil Indisponibil 63 1 2 HEX.SOCKET SET SCREW M5X8 (938477) 1453 RON 64 1 1 TAIL COVER (320834) 6151 RON 65A 1 2 SEAL LOCK HEX. SOCKET HD. BOLT M5X8 (321527) 2236 RON 66 1 1 BALL BEARING 6201DDUCMAV2S (6201DD) 4361 RON 67 1 1 DUST WASHER (B) (302429) Indisponibil Indisponibil *68 1 1 360571C (360571C) Indisponibil Indisponibil *68 1 1 360571E (360571E) 32882 RON *68 1 1 360571F (360571F) 32882 RON 69 1 1 FAN GUIDE (320832) 2236 RON 70 1 2 HD.TAPPINGSCREW D5X55 (OLD 956669) (953174) 894 RON *71 1 1 340519C (340519C) 18677 RON *71 1 1 340519H (340519H) 20579 RON *71 1 1 340519E (340519E) 20579 RON *71 1 1 340519F (340519F) 20579 RON 72 1 2 BRUSH TERMINAL (930703) 2348 RON 73 1 1 TERMINAL M4.0 (10 PCS) (930804) 297 RON 74 1 1 WASHER (A) (982631) 894 RON 75A 1 1 BALL BEARING 608DDMC2EPS2S (608DDM) 3914 RON 76 1 1 320833 (320833) 52679 RON 77 1 1 SLEEVE (B) (320836) 2236 RON 78 1 1 HANDLE PACKING (B) (320838) 4025 RON 80A 1 1 VINYL TUBE (I.D.9.5XTO.56X85) (326541) 2236 RON 81 1 4 SEAL LOCK HEX. SOCKET HD. BOLT M5X12 (991690) 1453 RON 82 1 4 DISTANCE PIECE (B) (991711) 1453 RON 83A 1 1 HANDLE (A+B) SET (OLD 320839+840) (329866) 11967 RON 84 1 1 INTERNAL WIRE (990861) 1453 RON *85 1 1 NOISE SUPPRESSOR (994273) Indisponibil Indisponibil *85 1 1 NOISE SUPPRESSOR GASKET (930039) 2683 RON 86 1 1 SUPPORT (B) (317492) 2236 RON 87 1 1 INTERNAL WIRE (981974) 2236 RON 88 1 1 SWITCH B (1P SCREW TYPE ) W/LOCK (306143) 8052 RON 90 1 3 TAPPING SCREW D4X25 (W/FLANGE) (307028) 1453 RON 91 1 1 CONNECTOR 50091 (10 PCS) (OLD 939557) (959140) 2236 RON 92 1 1 PILLAR TERMINAL (OLD 938307Z/512-31870-20)) (938307) 2571 RON 93 1 2 CONNECTOR 50092 (10 PCS) (OLD 939558) (959141) 382 RON 94 1 2 TAPPING SCREW D4X16 (W/FLANGE) (984750) 1117 RON 95 1 1 CORD CLIP (960266) 894 RON 96 1 1 WASHER M4 (10 PCS) (949423) 894 RON 97 1 1 TERMINAL (980063) 1117 RON *98 1 1 CORD ARMOR D8.8 (953327) Indisponibil Indisponibil *98 1 1 CORD ARMOR D10.1 (OLD 994565) (938051) 894 RON *99 1 1 500394Z - Indisponibil *99 1 1 @ CORD FOR SINZ KUW (500424Z) 16441 RON *99 1 1 500390Z - Indisponibil *99 1 1 @ CORD FOR THA (500239Z) 16553 RON *99 1 1 500408Z - Indisponibil *99 1 1 CORD 5M 2 X 1,0 W/PLUG 13A/250V FOR GBR (500440Z) 13197 RON 100 1 1 321442 (321442) 33777 RON 101 1 1 FAN (321640) 5368 RON 102 1 1 DUST SEAL (333143) 3242 RON 501 1 1 980752 - Indisponibil 502 1 1 HEX.BAR WRENCH 3MM (OLD 993822) (943277) 1229 RON 503 1 1 HEX.BAR WRENCH 4MM (944458) 1229 RON 504 1 1 HEX.BAR WRENCH 5MM (944459) 1788 RON 505 1 1 320842 (320842) 30645 RON 506 1 1 DUST COVER (985468) 382 RON 507 1 1 FRONT CAP (WITH ROUND HOLE) (320844) 3242 RON 601 1 1 234001 - Indisponibil 602 1 1 981922 - Indisponibil *603 1 1 980753 - Indisponibil *603 1 1 981923 - Indisponibil *604 1 1 @ CUTTER (982705) 32323 RON *604 1 1 981924 - Indisponibil *605 1 1 982710 - Indisponibil *605 1 1 SHANK 250L (955186) 25612 RON 606 1 1 955183 - Indisponibil 607 1 1 RAMMER 140MM (955181) 83214 RON *608 1 1 982702 - Indisponibil *608 1 1 981929 - Indisponibil *609 1 1 982703 - Indisponibil *609 1 1 ANCHOR ADAPTER NO.40 (981930) 21697 RON *610 1 1 982704 - Indisponibil *610 1 1 ANCHOR ADAPTER NO.50 (981931) 21697 RON 611A 1 1 EARTH ADAPTER D18X176 (OLD 980696) (323357) 1700 RON 613 1 1 @ DRIFT KEY (944574) 5927 RON 614 1 1 SYRINGE BELLOWS TYPE (OLD 944575) (318085) 3242 RON *615 1 1 982711 - Indisponibil *615 1 1 956126 - Indisponibil 616 1 1 GREASE (FG-6A) (30G) (4966375124375) Indisponibil Indisponibil 617 1 1 GREASE FOR HAMMER DRILL (JF-375) (70G) (308471) 8388 RON 618 1 1 GREASE FOR IMPACT DRILL (FG-6A) (500G) (980927) 4251 RON 619 1 1 CYLINDER CASE COVER (323131) 17447 RON 620 1 1 CYLINDER CASE COVER (323131) 17447 RON
