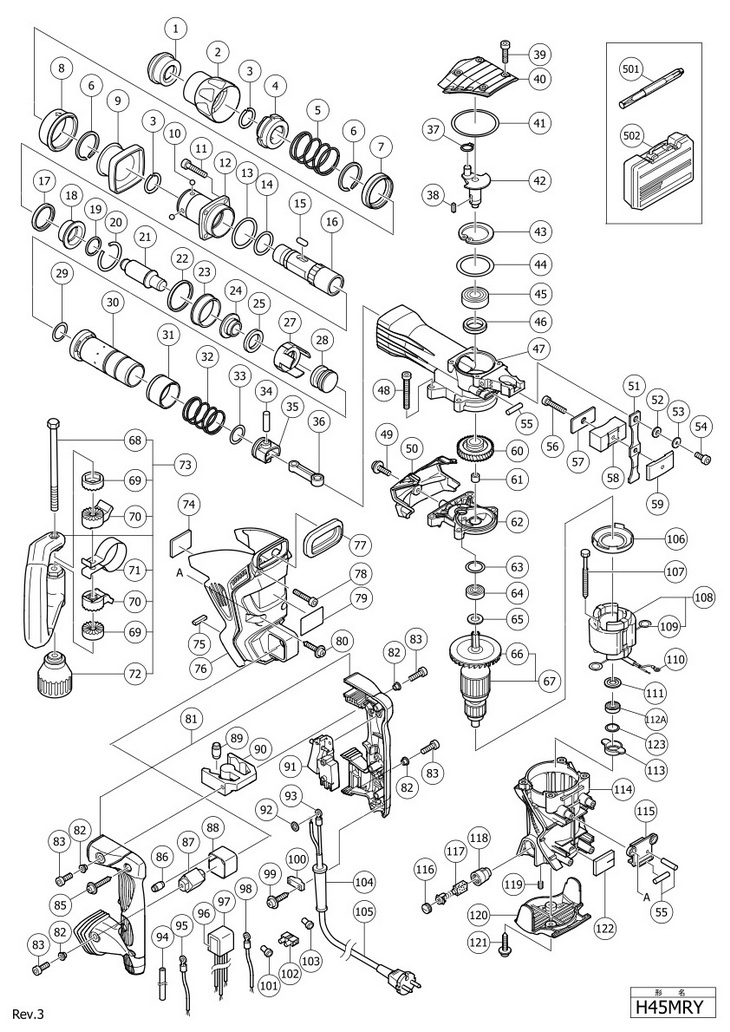

Top » Piese de schimb » PIESE HITACHI » H45MRY H45MRY [H45MRY] Click pentru a mari Imagini suplimentare Click pentru a mari LISTA DE COMPONENTE: Numar Versiune Buc. in schema Denumire Pret/buc (Tva inclus) Cumpara 1 1 1 FRONT CAP (315529) 3242 RON 2 1 1 GRIP (A) (320802) 5368 RON 3 1 2 RING (320803) 2236 RON 4 1 1 NEEDLE HOLDER (320804) 17895 RON 5 1 1 SPRING (320806) 5368 RON 6 1 2 RETAINING RING D42 (317088) 3242 RON 7 1 1 BALL HOLDER (320810) 8052 RON 8 1 1 GRIP (B) (320807) 3242 RON 9 1 1 GRIP (C) (320808) 4025 RON 10 1 4 STEEL BALL D6.35 (10 PCS) (959150) 1788 RON 11 1 4 PACKING BOLT (981942) 2236 RON 12 1 1 FRONT COVER (326494) 37468 RON 13 1 1 O-RING (1AS-50) (990067) 2236 RON 14 1 1 O-RING (S-34) (980879) 1453 RON 15 1 2 NEEDLE ROLLER D8X20 (313421) 4361 RON 16 1 1 RETAINER SLEEVE (320805) 47758 RON 17 1 1 DAMPER (A) (OLD 320812) (322528) 2236 RON 18 1 1 HAMMER HOLDER (A) (326379) 1700 RON 19 1 1 O-RING (S-25) (319572) 2236 RON 20 1 1 RING (B) (326380) 2236 RON 21 1 1 SECOND HAMMER (326381) 20691 RON 22 1 1 DAMPER (C) (326662) 3242 RON 23 1 1 SLEEVE (A) (326495) 3242 RON 24 1 1 HAMMER HOLDER (B) (320814) 6933 RON 25 1 1 DAMPER (B) (320815) 3242 RON 27 1 1 HAMMER HOLDER (C) (326382) 10065 RON 28 1 1 STRIKER (326383) 10065 RON 29 1 1 O-RING (325297) 3242 RON 30 1 1 CYLINDER (326496) 40823 RON 31 1 1 SLIDE SLEEVE (326497) 15881 RON 32 1 1 SPRING (B) (326498) 5368 RON 33 1 1 O-RING (325297) 3242 RON 34 1 1 PISTON PIN (324917) 4025 RON 35 1 1 PISTON (326384) 5368 RON 36 1 1 CONNECTING ROD (326385) Indisponibil Indisponibil 37 1 1 RETAINING RING FOR D10 (10 PCS) (939540) 2683 RON 38 1 1 FEATHER KEY 4X4X10 (930511) 2348 RON 39 1 4 SEAL LOCK HEX. SOCKET HD. BOLT M5X16 (990079) 1453 RON 40 1 1 CRANK COVER (326500) 5815 RON 41 1 1 O-RING (326501) 2236 RON 42 1 1 CRANK SHAFT (326499) 22592 RON 43 1 1 RETAINING RING FOR D40 HOLE (948391) 2236 RON 44 1 1 O-RING (S-40) (996363) 2236 RON 45 1 1 BALL BEARING 6203DDUCMAV2S (6203DD) 5368 RON 46 1 1 OIL SEAL (310119) 3578 RON 47 1 1 CYLINDER CRANK CASE (326502) 34112 RON 48 1 4 SEAL LOCK HEX. SOCKET HD. BOLT M6X45 (986940) 1453 RON 49 1 1 HEX.SOCKET HD.BOLT M5X12 (998471) 1453 RON 50 1 1 HOOD (326503) 4025 RON 51 1 1 LEAF SPRING (326386) 4025 RON 52 1 1 SPRING BUMPER (A) (326375) 2236 RON 53 1 1 WASHER (326477) 2236 RON 54 1 1 SEAL LOCK HEX. SOCKET HD. BOLT M4X10 (878356) 1453 RON 55 1 4 NEEDLE ROLLER (878418) 2236 RON 56 1 1 SEALLOCK HEX.SOCKET HD.BOLT M5X22 (317245) 2236 RON 57 1 1 RUBBER SHEET (C) (326515) 2236 RON 58 1 1 WEIGHT (B) (326508) 8388 RON 59 1 1 WEIGHT (A) (326507) 5368 RON 60 1 1 FIRST GEAR (320830) 1700 RON 61 1 1 NEEDLE BEARING (M661) (939299) 6933 RON 62 1 1 326510 (326510) 15881 RON 63 1 1 O-RING (S-32) (872767) 2236 RON 64 1 1 BALL BEARING 6201DDUCMAV2S (6201DD) 4361 RON 65 1 1 DUST WASHER (B) (302429) Indisponibil Indisponibil 66 1 1 FAN (321640) 5368 RON *67 1 1 360571C (360571C) Indisponibil Indisponibil *67 1 1 360571E (360571E) 32882 RON 68 1 1 BOLT M8 (317107) 3242 RON 69 1 2 HANDLE HOLDER (B) (317106) 3242 RON 70 1 2 HANDLE HOLDER (A) (317105) 4025 RON 71 1 1 BAND (OLD 317104) (320635) 5591 RON 72 1 1 GRIP (317108) 6598 RON 73 1 1 317103 (317103) Indisponibil Indisponibil 74 1 1 RUBBER SHEET (A) (326487) 2236 RON 75 1 1 SPRING BUMPER (B) (326376) 2236 RON 76 1 1 BACK COVER (326505) 10960 RON 77 1 1 BELLOWS (326378) 3242 RON 78 1 2 SEAL LOCK HEX. SOCKET HD. BOLT M5 (306061) 1453 RON 79 1 1 - Indisponibil 80 1 4 TAPPING SCREW D5X20 (W/FLANGE) BLACK (302089) 1453 RON 81 1 1 HANDLE (A+B) SET (326485) 12079 RON 82 1 4 DISTANCE PIECE (B) (991711) 1453 RON 83 1 4 SEAL LOCK HEX. SOCKET HD. BOLT M5X12 (991690) 1453 RON 85 1 3 TAPPING SCREW D4X25 (W/FLANGE) (307028) 1453 RON 86 1 4 HANDLE DAMPER (310124) Indisponibil Indisponibil 87 1 1 HANDLE SHAFT (326377) 4025 RON 88 1 1 HOLDER (326479) 3242 RON 89 1 4 HANDLE DAMPER (310124) Indisponibil Indisponibil 90 1 1 TRANSATORY UNIT (310123) 7828 RON 91 1 1 SWITCH B (1P SCREW TYPE ) W/LOCK (306143) 8052 RON 92 1 1 WASHER M4 (10 PCS) (949423) 894 RON 93 1 1 TERMINAL (980063) 1117 RON 94 1 1 VINYL TUBE (I.D.9.5XTO.56X85) (326541) 2236 RON 95 1 1 INTERNAL WIRE 75L (326509) 2236 RON 96 1 1 NOISE SUPPRESSOR (325566) 5927 RON 97 1 1 SUPPORT (B) (317492) 2236 RON 98 1 1 INTERNAL WIRE (994190) 1453 RON 99 1 2 TAPPING SCREW D4X16 (W/FLANGE) (984750) 1117 RON *100 1 1 CORD CLIP (960266) 894 RON *100 1 1 CORD CLIP (981987Z) 1453 RON 101 1 1 CONNECTOR 50091 (10 PCS) (OLD 939557) (959140) 2236 RON 102 1 1 PILLAR TERMINAL (OLD 938307Z/512-31870-20)) (938307) 2571 RON 103 1 1 CONNECTOR 50092 (10 PCS) (OLD 939558) (959141) 382 RON 104 1 1 CORD ARMOR D8.8 (953327) Indisponibil Indisponibil *105 1 1 500390Z - Indisponibil *105 1 1 CORD 5M 2 X1.0 HO7RN-F (W/O PLUG) (500454Z) 11184 RON *105 1 1 CORD FOR GBR 230V (500446Z) 23934 RON *105 1 1 CORD FOR SWISS (500391Z) 27513 RON *105 1 1 500434Z - Indisponibil 106 1 1 FAN GUIDE (321320) 3242 RON 107 1 2 HD.TAPPINGSCREW D5X55 (OLD 956669) (953174) 894 RON *108 1 1 340681C (340681C) 32323 RON *108 1 1 340681E (340681E) 40823 RON *108 1 1 340681G - Indisponibil 109 1 2 BRUSH TERMINAL (930703) 2348 RON 110 1 1 TERMINAL M4.0 (10 PCS) (930804) 297 RON 111 1 1 WASHER (A) (982631) 894 RON 112A 1 1 BALL BEARING 608DDMC2EPS2S (608DDM) 3914 RON 113 1 1 BEARING HOLDER (326484) 4025 RON 114 1 1 326481 (326481) 22144 RON 115 1 1 SPRING BASE (326506) 3242 RON 116 1 2 BRUSH CAP (935829) 1453 RON 117 1 2 CARBON BRUSH A.S. TYPE (OLD 981612Z) (999073) 7269 RON 118 1 2 BRUSH HOLDER (971001) Indisponibil Indisponibil 119 1 2 HEX.SOCKET SET SCREW M5X8 (938477) 1453 RON 120 1 1 TAIL COVER (326504) 5368 RON 121 1 2 TAPPING SCREW D5X20 (W/FLANGE) BLACK (302089) 1453 RON 122 1 1 COVER (326488) 2236 RON 123 1 1 DUST SEAL (333142) 3242 RON 501 1 1 313471 - Indisponibil 502 1 1 PLASTIC CARRYING CASE (326511) 66324 RON 601 1 1 GREASE (FG-6A) (30G) (4966375124375) Indisponibil Indisponibil 602 1 1 GREASE FOR HAMMER DRILL (JF-375) (70G) (308471) 8388 RON 603 1 1 GREASE FOR IMPACT DRILL (FG-6A) (500G) (980927) 4251 RON 604 1 1 313472 - Indisponibil 605 1 1 313473 - Indisponibil 606 1 1 313474 - Indisponibil 607 1 1 313475 - Indisponibil 608 1 1 313476 - Indisponibil 609 1 1 313478 - Indisponibil 610 1 1 313477 - Indisponibil 611 1 1 313479 - Indisponibil Puteti cumpara H45MRY in urmatoarele variante: Hitachi H45MRY
