H45FRV
[H45FRV]
H45FRV
Click pentru a mari
Imagini suplimentare
H45FRV
Click pentru a mari

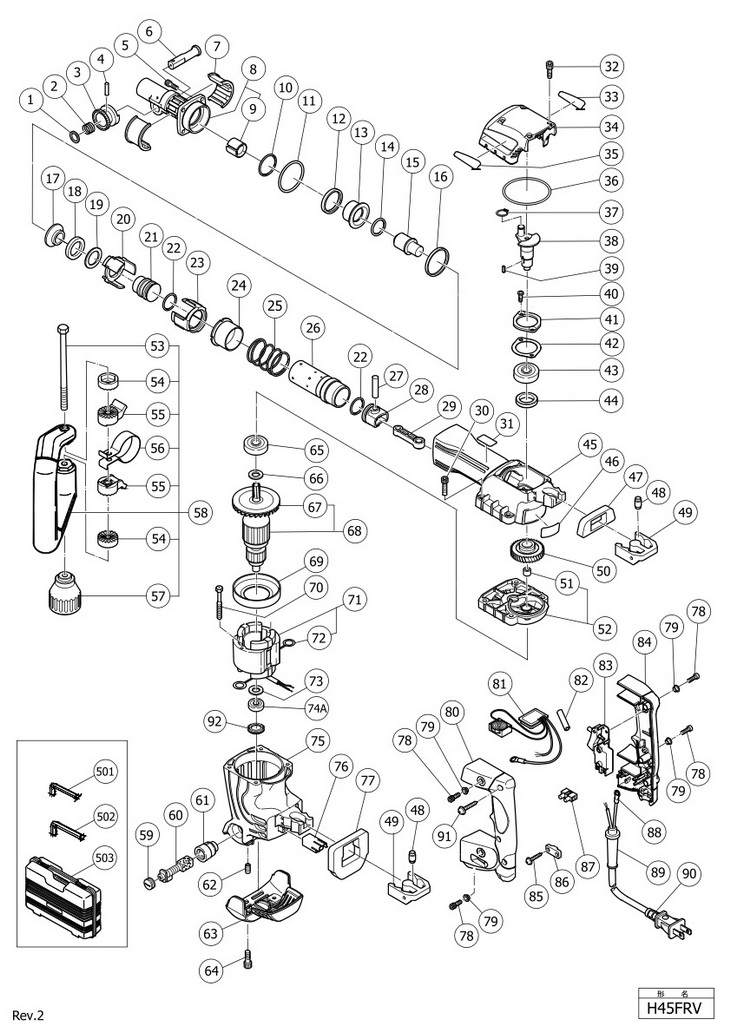

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 STOP WASHER (OLD 983280Z) (983277) 4361 RON
2 1 1 STOPPER SPRING (981937) 1453 RON
3 1 1 KNOB (A) (OLD 980723) (983241) 22592 RON
4 1 1 NEEDLE ROLLER D4X20 (943364) 1453 RON
5 1 4 PACKING BOLT (981942) 2236 RON
6 1 1 322347 - Indisponibil
7 1 2 322344 - Indisponibil
8 1 1 322345 - Indisponibil
9 1 1 322346 - Indisponibil
10 1 1 O-RING (S-34) (980879) 1453 RON
11 1 1 O-RING (1AS-50) (990067) 2236 RON
12 1 1 DAMPER (A) (OLD 320812) (322528) 2236 RON
13 1 1 HAMMER HOLDER (A) (320811) 20691 RON
14 1 1 O-RING (S-25) (319572) 2236 RON
15 1 1 322371 - Indisponibil
16 1 1 DAMPER (C) (320817) 3242 RON
17 1 1 HAMMER HOLDER (B) (320814) 6933 RON
18 1 1 DAMPER (B) (320815) 3242 RON
19 1 1 WASHER (OLD 320835) (322412) 2236 RON
20 1 1 HAMMER HOLDER (C) (320816) 2236 RON
21 1 1 STRIKER (320822) 6486 RON
22 1 2 O-RING (320823) 3242 RON
23 1 1 CYLINDER HOLDER (320818) 5368 RON
24 1 1 322372 - Indisponibil
25 1 1 SPRING (C) (320821) 3242 RON
26 1 1 322336 - Indisponibil
27 1 1 PISTON PIN (320826) 4025 RON
28 1 1 PISTON (320824) Indisponibil Indisponibil
29 1 1 CONNECTING ROD (320825) 2236 RON
30 1 4 SEAL LOCK HEX. SOCKET HD. BOLT M6X45 (986940) 1453 RON
31 1 1 - Indisponibil
32 1 4 SEAL LOCK HEX. SOCKET HD. BOLT M4X12 (983162) Indisponibil Indisponibil
33 1 1 - Indisponibil
34 1 1 CRANK COVER (320831) 6374 RON
35 1 1 - Indisponibil
36 1 1 O-RING (JAS02060) (878867) 3242 RON
37 1 1 RETAINING RING FOR D10 (10 PCS) (939540) 2683 RON
38 1 1 CRANK SHAFT (320829) 22144 RON
39 1 1 FEATHER KEY 4X4X10 (930511) 2348 RON
40 1 2 SEAL LOCK HEX. SOCKET FLAT HD. BOLT M5X12 (980760) 1453 RON
41 1 1 BEARING COVER (A) (980761) 6374 RON
42 1 1 322529 - Indisponibil
43 1 1 BALL BEARING 6203DDUCMAV2S (6203DD) 5368 RON
44 1 1 OIL SEAL (310119) 3578 RON
45 1 1 CYLINDER CRANK CASE (320828) 37468 RON
46 1 1 - Indisponibil
47 1 1 HANDLE PACKING (A) (320837) 3242 RON
48 1 8 HANDLE DAMPER (310124) Indisponibil Indisponibil
49 1 2 TRANSATORY UNIT (310123) 7828 RON
50 1 1 FIRST GEAR (320830) 1700 RON
51 1 1 NEEDLE BEARING (M661) (939299) 6933 RON
52 1 1 GEAR COVER (320841) 22592 RON
53 1 1 BOLT M8 (317107) 3242 RON
54 1 2 HANDLE HOLDER (B) (317106) 3242 RON
55 1 2 HANDLE HOLDER (A) (317105) 4025 RON
56 1 1 BAND (OLD 317104) (320635) 5591 RON
57 1 1 GRIP (317108) 6598 RON
58 1 1 317103 (317103) Indisponibil Indisponibil
59 1 2 BRUSH CAP (935829) 1453 RON
60 1 2 CARBON BRUSH A.S. TYPE (OLD 981612Z) (999073) 7269 RON
61 1 2 BRUSH HOLDER (971001) Indisponibil Indisponibil
62 1 2 HEX.SOCKET SET SCREW M5X8 (938477) 1453 RON
63 1 1 TAIL COVER (320834) 6151 RON
64 1 2 SEAL LOCK HEX. SOCKET HD. BOLT M5X8 (321527) 2236 RON
65 1 1 BALL BEARING 6201DDUCMAV2S (6201DD) 4361 RON
66 1 1 DUST WASHER (B) (302429) Indisponibil Indisponibil
67 1 1 FAN (321640) 5368 RON
68 1 1 360571U - Indisponibil
69 1 1 FAN GUIDE (320832) 2236 RON
70 1 2 HD.TAPPINGSCREW D5X55 (OLD 956669) (953174) 894 RON
71 1 1 340568G - Indisponibil
72 1 2 BRUSH TERMINAL (930703) 2348 RON
73 1 1 WASHER (A) (982631) 894 RON
74A 1 1 BALL BEARING 608DDMC2EPS2S (608DDM) 3914 RON
75 1 1 320833 (320833) 52679 RON
76 1 1 SLEEVE (B) (320836) 2236 RON
77 1 1 HANDLE PACKING (B) (320838) 4025 RON
78 1 4 SEAL LOCK HEX. SOCKET HD. BOLT M5X12 (991690) 1453 RON
79 1 4 DISTANCE PIECE (B) (991711) 1453 RON
80 1 1 322350 - Indisponibil
81 1 1 322348 - Indisponibil
82 1 1 VINYL TUBE (322530) 2236 RON
83 1 1 SWITCH B (1P SCREW TYPE ) W/LOCK (306143) 8052 RON
84 1 1 322349 - Indisponibil
85 1 2 TAPPING SCREW D4X16 (W/FLANGE) (984750) 1117 RON
86 1 1 CORD CLIP (960266) 894 RON
87 1 2 PILLAR TERMINAL (OLD 938307Z/512-31870-20)) (938307) 2571 RON
88 1 1 TERMINAL M4.0 (10 PCS) (930804) 297 RON
89 1 1 CORD ARMOR D8.8 (953327) Indisponibil Indisponibil
90 1 1 500434Z - Indisponibil
91 1 3 TAPPING SCREW D4X25 (W/FLANGE) (307028) 1453 RON
92 1 1 DUST SEAL (333143) 3242 RON
501 1 1 HEX.BAR WRENCH 4MM (944458) 1229 RON
502 1 1 HEX.BAR WRENCH 5MM (944459) 1788 RON
503 1 1 320842 (320842) 30645 RON
601 1 1 985383 - Indisponibil
602 1 1 985386 - Indisponibil
603 1 1 985384 - Indisponibil
604 1 1 985385 - Indisponibil
605 1 1 985381 - Indisponibil
606 1 1 985382 - Indisponibil
607 1 1 GREASE (FG-6A) (30G) (4966375124375) Indisponibil Indisponibil
608 1 1 GREASE FOR HAMMER DRILL (JF-375) (70G) (308471) 8388 RON
609 1 1 DUST COVER (993245) 5591 RON
610 1 1 CYLINDER CASE COVER (323131) 17447 RON
611 1 1 CYLINDER CASE COVER (323131) 17447 RON
