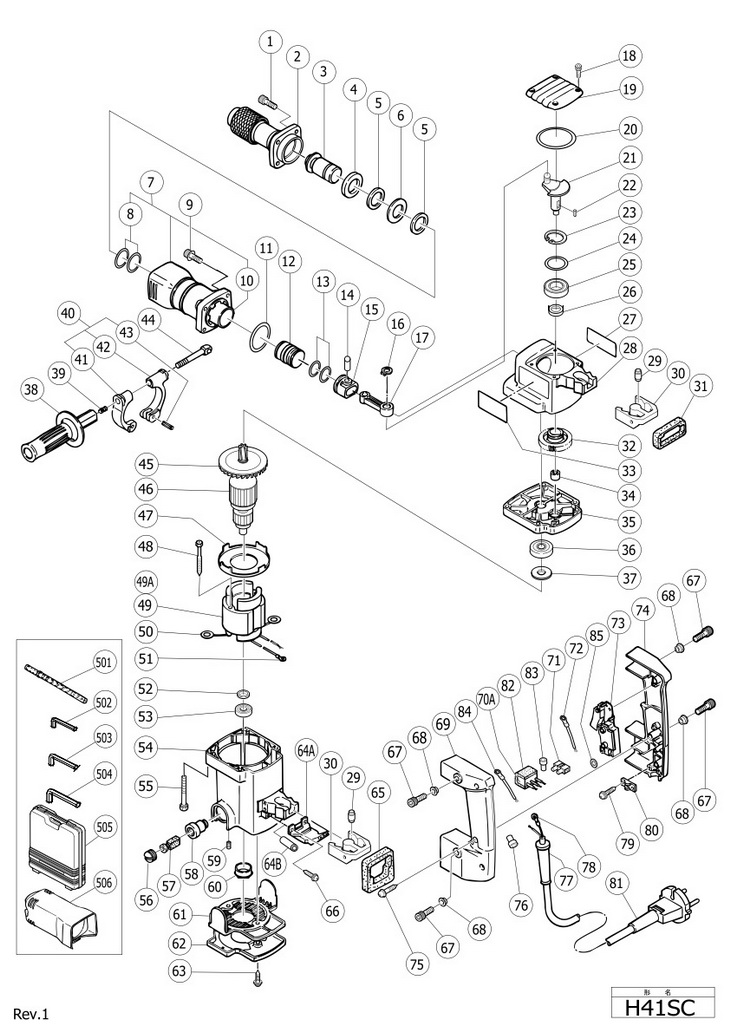

Top » Piese de schimb » PIESE HITACHI » H41SC H41SC [H41SC] Click pentru a mari Imagini suplimentare Click pentru a mari LISTA DE COMPONENTE: Numar Versiune Buc. in schema Denumire Pret/buc (Tva inclus) Cumpara 1 1 4 NYLOCK HIGH TENSION BOLT M7X25 (OLD 991696) (993040) 2348 RON 2 1 1 FRONT COVER SET (316041) 5101 RON 3 1 1 SECOND HAMMER (991708) 22592 RON 4 1 1 DAMPER WASHER (991695) 488 RON 5 1 2 DAMPER (983235) 382 RON 6 1 1 WASHER (983236) 2683 RON 7 1 1 310109 (310109) 88359 RON 8 1 2 O-RING (A) (983234) 573 RON 9 1 4 NYLOCK BOLT M7X25 W/FLANGE (993041) 1453 RON 10 1 1 CYLINDER (310110) 62969 RON 11 1 1 O-RING (S-48) (980715) 2348 RON 12 1 1 STRIKER (310112) 9842 RON 13 1 2 O-RING (986104) 1453 RON 14 1 1 PISTON PIN (980708) 2348 RON 15 1 1 PISTON (310113) 6598 RON 16 1 1 RETAINING RING FOR D10 (10 PCS) (939540) 2683 RON 17 1 1 CONNECTING ROD (310114) Indisponibil Indisponibil 18 1 4 SEAL LOCK HEX. SOCKET HD. BOLT M4X12 (983162) Indisponibil Indisponibil 19 1 1 CRANK COVER (310115) 6374 RON 20 1 1 O-RING (S-55) (980744) 2683 RON 21 1 1 CRANK SHAFT (310116) 25612 RON 22 1 1 FEATHER KEY 4X4X10 (930511) 2348 RON 23 1 1 RETAINING RING FOR D40 HOLE (948391) 2236 RON 24 1 1 O-RING (S-40) (996363) 2236 RON 25 1 1 BALL BEARING 6203DDUCMAV2S (6203DD) 5368 RON 26 1 1 OIL SEAL (310119) 3578 RON 27 1 1 - Indisponibil 28 1 1 CRANK CASE (310117) 22144 RON 29 1 8 HANDLE DAMPER (310124) Indisponibil Indisponibil 30 1 2 TRANSATORY UNIT (310123) 7828 RON 31 1 1 HANDLE PACKING (A) (310126) 1453 RON 32 1 1 FIRST GEAR (310120) 17783 RON 33 1 1 - Indisponibil 34 1 1 NEEDLE BEARING (M661) (939299) 6933 RON 35 1 1 310129 (310129) 18789 RON 36 1 1 BALL BEARING 6201VVCMPS2S (6201VV) 4249 RON 37 1 1 WASHER (B) (971736) 1453 RON 38 1 1 SIDE HANDLE (981870) 8276 RON 39 1 1 SPRING (672612) 1453 RON 40 1 1 980657 (980657) 8388 RON 41 1 1 HANDLE HOLDER (B) (OLD 980659Z) (980659) 488 RON 42 1 1 HANDLE HOLDER (A) (OLD 980658Z) (980658) 488 RON 43 1 1 ROLL PIN D6X22 (10 PCS) (949875) 382 RON 44 1 1 HANDLE BOLT (971785) 3578 RON 45 1 1 FAN (310130) 4025 RON *46 1 1 360360U (360360U) 78180 RON *46 1 1 360360E (360360E) 66324 RON *46 1 1 360360F (360360F) 66324 RON 47 1 1 FAN GUIDE (980931) 3578 RON 48 1 2 HEX.HD. TAPPING SCREW D5X50 (953121) 894 RON *49 1 1 340317E (340317E) 40823 RON *49 1 1 340317F (340317F) 40823 RON *49 1 1 340317G (340317G) 40823 RON *49 1 1 340326H (340326H) 49323 RON *49 1 1 340326K (340326K) 49323 RON 49A 1 1 340326J (340326J) 40823 RON 50 1 2 BRUSH TERMINAL (930703) 2348 RON 51 1 1 TERMINAL M4.0 (10 PCS) (930804) 297 RON 52 1 1 WASHER (A) (982631) 894 RON 53 1 1 BALL BEARING 608VVMC2EPS2L (608VVM) 4025 RON 54 1 1 310146 (310146) Indisponibil Indisponibil 55 1 4 HEX.SOCKET HD.BOLT (W/FLANGE) (980951) 1453 RON 56 1 2 BRUSH CAP (935829) 1453 RON 57 1 2 CARBON BRUSH (1 PAIR) (999043) 382 RON *57 1 2 CARBON BRUSH A.S. TYPE (OLD 981612Z) (999073) 7269 RON 58 1 2 BRUSH HOLDER (971001) Indisponibil Indisponibil 59 1 2 HEX.SOCKET SET SCREW M5X8 (938477) 1453 RON 60 1 1 BEARING BUSH (B) (310111) 5591 RON 61 1 1 314130 (314130) 6374 RON 62 1 1 PLATE FOR TAIL COVER (314262) 2348 RON 63 1 2 TAPPING SCREW D4X16 (W/FLANGE) (BLACK) (307811) 894 RON 64A 1 1 INTERNAL WIRE HOLDER (310424) 6151 RON 64B 1 1 VINYL TUBE (319363) 2236 RON 65 1 1 HANDLE PACKING (B) (310125) 2236 RON 66 1 2 TAPPING SCREW D5X20 (W/WASHER) (985480) 1453 RON 67 1 4 SEAL LOCK HEX. SOCKET HD. BOLT M5X12 (991690) 1453 RON 68 1 4 DISTANCE PIECE (B) (991711) 1453 RON 69 1 1 HANDLE (B) (310142) 8835 RON 70 1 1 997174 - Indisponibil *70 1 1 NOISE SUPPRESSOR (994273) Indisponibil Indisponibil 70A 1 1 NOISE SUPPRESSOR (325566) 5927 RON 71 1 1 PILLAR TERMINAL (OLD 938307Z/512-31870-20)) (938307) 2571 RON 72 1 1 INTERNAL WIRE (981974) 2236 RON 73 1 1 SWITCH (A) (1P SCREW TYPE) W/O LOCK (992891) 14763 RON 74 1 1 HANDLE (A) (310141) 9282 RON 75 1 3 TAPPING SCREW D4X25 (W/FLANGE) (307028) 1453 RON 76 1 2 CONNECTOR 50092 (10 PCS) (OLD 939558) (959141) 382 RON *77 1 1 CORD ARMOR D10.1 (OLD 994565) (938051) 894 RON *77 1 1 CORD ARMOR D8.8 (953327) Indisponibil Indisponibil 78 1 1 TERMINAL (980063) 1117 RON 79 1 2 TAPPING SCREW D4X16 (W/FLANGE) (984750) 1117 RON 80 1 1 CORD CLIP (960266) 894 RON *81 1 1 @ CORD FOR THA (500239Z) 16553 RON *81 1 1 500235Z - Indisponibil *81 1 1 500394Z - Indisponibil *81 1 1 @ CORD FOR SINZ KUW (500424Z) 16441 RON *81 1 1 500408Z - Indisponibil *81 1 1 500390Z - Indisponibil *81 1 1 CORD 5M 2 X 1,0 W/PLUG 13A/250V FOR GBR (500440Z) 13197 RON *81 1 1 500408Z - Indisponibil 82 1 1 SUPPORT (B) (930153) 894 RON 83 1 1 CONNECTOR 50091 (10 PCS) (OLD 939557) (959140) 2236 RON 84 1 1 INTERNAL WIRE (990861) 1453 RON 85 1 1 WASHER M4 (10 PCS) (949423) 894 RON 501 1 1 980752 - Indisponibil 502 1 1 HEX.BAR WRENCH 3MM (OLD 993822) (943277) 1229 RON 503 1 1 HEX.BAR WRENCH 4MM (944458) 1229 RON 504 1 1 HEX.BAR WRENCH 5MM (944459) 1788 RON 505 1 1 PLASTIC CARRYING CASE (310131) 30645 RON 506 1 1 CYLINDER CASE COVER (310132) 12638 RON 601 1 1 980753 - Indisponibil 602 1 1 234001 - Indisponibil 623A 1 1 SYRINGE BELLOWS TYPE (OLD 944575) (318085) 3242 RON 626 1 1 CYLINDER CASE COVER (310132) 12638 RON 627 1 1 GREASE (FG-6A) (30G) (4966375124375) Indisponibil Indisponibil 628 1 1 GREASE FOR HAMMER DRILL (JF-375) (70G) (308471) 8388 RON 629 1 1 GREASE FOR IMPACT DRILL (FG-6A) (500G) (980927) 4251 RON 631 1 1 SERVICE KIT H41SA (313291) 54469 RON 632 1 1 SYRINGE BLOW-OUT BULB TYPE (320859) 6374 RON 633 1 1 EARTH ADAPTER D18X176 (OLD 980696) (323357) 1700 RON
