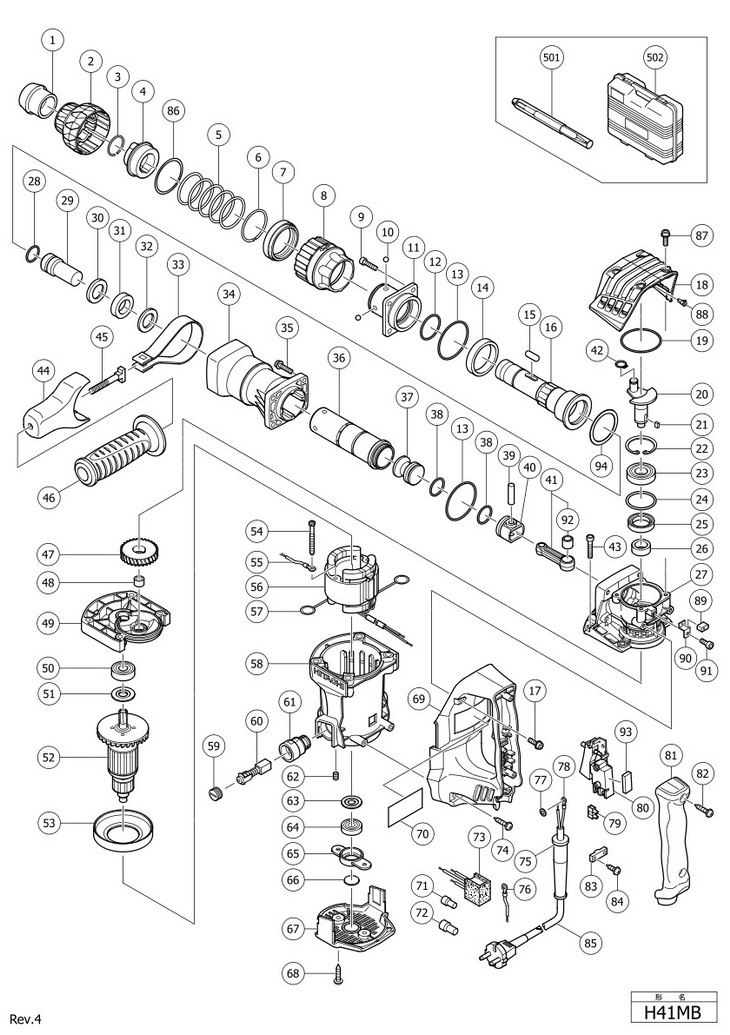

Top » Piese de schimb » PIESE HITACHI » H41MB H41MB [H41MB] Click pentru a mari Imagini suplimentare Click pentru a mari LISTA DE COMPONENTE: Numar Versiune Buc. in schema Denumire Pret/buc (Tva inclus) Cumpara 1 1 1 FRONT CAP (333259) 2460 RON 2 1 1 GRIP (A) (333258) 2795 RON 3 1 1 STOPPER RING (318590) 2236 RON 4 1 1 NEEDLE HOLDER (331539) 10065 RON 5 1 1 SPRING (A) (333256) 2460 RON 6 1 1 STOPPER RING (333255) 1341 RON 7 1 1 BALL HOLDER (320810) 8052 RON 8 1 1 GRIP (B) (333254) 2460 RON 9 1 4 PACKING BOLT (981942) 2236 RON 10 1 4 STEEL BALL D6.35 (10 PCS) (959150) 1788 RON 11 1 1 FRONT COVER (333248) 15210 RON 12 1 1 O-RING (S-34) (980879) 1453 RON 13 1 2 O-RING (S-48) (980715) 2348 RON 14 1 1 RETAINER DAMPER (333249) 3690 RON 15 1 2 NEEDLE ROLLER D8X20 (331536) 1453 RON 16 1 1 RETAINER SLEEVE (333250) 2848 RON 17 1 2 HEX.SOCKET HD.BOLT (994192) 894 RON 18 1 1 CRANK COVER (333260) 488 RON 19 1 1 CYLINDER O-RING (B) (878713) 2683 RON 20 1 1 CRANK SHAFT (333244) 11296 RON 21 1 1 FEATHER KEY 4X4X8 (980809) 894 RON 22 1 1 RETAINING RING FOR D40 HOLE (948391) 2236 RON 23 1 1 BALL BEARING 6203DDUCMAV2S (6203DD) 5368 RON 24 1 1 O-RING (S-40) (996363) 2236 RON 25 1 1 OIL SEAL (310119) 3578 RON 26 1 1 DISTANCE RING (333245) 2795 RON 27 1 1 CRANK CASE (333243) 17335 RON 28 1 1 O-RING (C) (313396) 4025 RON 29 1 1 SECOND HAMMER NEW DEC (334218) 8052 RON 30 1 1 DAMPER WASHER (331224) 3690 RON 31 1 1 DAMPER (321835) 5368 RON 32 1 1 DAMPER HOLDER (331225) 3690 RON 33 1 1 BAND (333261) 3690 RON 34 1 1 CYLINDER CASE (333251) 14092 RON 35 1 4 HEX.SOCKET HD.BOLT (W/FLANGE) (991712) 1453 RON 36 1 1 CYLINDER (333252) 13085 RON 37 1 1 STRIKER (333253) 6374 RON 38 1 2 O-RING (986104) 1453 RON 39 1 1 PISTON PIN (980708) 2348 RON 40 1 1 PISTON (326369) 3242 RON 41 1 1 CONNECTING ROD (OLD 333247) cod vechi 334220 (750049 ) 8611 RON 42 1 1 RETAINING RING FOR D10 (10 PCS) (939540) 2683 RON 43 1 4 SEAL LOCK HEX. SOCKET HD. BOLT M6X35 (324056) 2236 RON 44 1 1 MOUNT (333262) 3690 RON 45 1 1 HANDLE BOLT (333227) 8611 RON 46 1 1 SIDE HANDLE (330209) 8835 RON 47 1 1 FIRST GEAR (333246) 12079 RON 48 1 1 NEEDLE BEARING (M661) (939299) 6933 RON 49 1 1 333268 (333268) 14092 RON 50 1 1 BALL BEARING 6201DDUCMAV2S (6201DD) 4361 RON 51 1 1 DUST WASHER (B) (302429) Indisponibil Indisponibil *52 1 1 ARMATURE 110-115 VOLT (360903C) 39145 RON *52 1 1 360903U - Indisponibil *52 1 1 360903G - Indisponibil *52 1 1 ARMATURE 220-230 VOLT (360903E) 39145 RON *52 1 1 360903F - Indisponibil 53 1 1 FAN GUIDE (331252) 2795 RON 54 1 2 HEX.HD. TAPPING SCREW D5X50 (953121) 894 RON 55 1 1 INTERNAL WIRE (990861) 1453 RON *56 1 1 340788A - Indisponibil *56 1 1 340788B (340788B) 23598 RON *56 1 1 340788C - Indisponibil *56 1 1 340788D - Indisponibil *56 1 1 340788F (340788F) 23598 RON *56 1 1 340788E - Indisponibil *56 1 1 340788G - Indisponibil *56 1 1 340788H - Indisponibil 57 1 2 BRUSH TERMINAL (930703) 2348 RON 58 1 1 333267 (333267) 13085 RON 59 1 2 BRUSH CAP (945161) 1453 RON 60 1 2 CARBON BRUSH (1 PAIR) (999043) 382 RON 61 1 2 BRUSH HOLDER (958900) 5368 RON 62 1 2 HEX.SOCKET SET SCREW M5X8 (938477) 1453 RON 63 1 1 WASHER (A) (982631) 894 RON 64 1 1 BALL BEARING 608VVMC2EPS2L (608VVM) 4025 RON 65 1 1 BEARING HOLDER (331254) 2795 RON 66 1 1 DUST SEAL (333263) 1341 RON 67 1 1 TAIL COVER (333264) 3690 RON 68 1 2 TAPPING SCREW D5X20 (W/FLANGE) BLACK (302089) 1453 RON 69 1 1 HANDLE (333265) 7828 RON 70 1 1 - Indisponibil 71 1 1 CONNECTOR 50091 (10 PCS) (OLD 939557) (959140) 2236 RON 72 1 1 CONNECTOR 50092 (10 PCS) (OLD 939558) (959141) 382 RON 73 1 1 NOISE SUPPRESSOR (331203) 4025 RON 74 1 2 TAPPING SCREW D5X20 (W/FLANGE) BLACK (302089) 1453 RON *75 1 1 CORD ARMOR D8.2 (OLD 958049Z) (958049) 894 RON *75 1 1 CORD ARMOR D10.7 (940778) 2124 RON 76 1 1 INTERNAL WIRE (981974) 2236 RON 77 1 1 WASHER M4 (10 PCS) (949423) 894 RON *78 1 1 TERMINAL (980063) 1117 RON *78 1 1 TERMINAL M4.0 (10 PCS) (930804) 297 RON 79 1 1 PILLAR TERMINAL (OLD 938307Z/512-31870-20)) (938307) 2571 RON 80 1 1 SWITCH B (1P SCREW TYPE ) W/LOCK (306143) 8052 RON 81 1 1 HANDLE COVER (331205) 6374 RON 82 1 2 TAPPING SCREW D4X25 (W/FLANGE) (307028) 1453 RON 83 1 1 CORD CLIP (960266) 894 RON 84 1 2 TAPPING SCREW D4X16 (W/FLANGE) (984750) 1117 RON *85 1 1 500390Z - Indisponibil *85 1 1 500434Z - Indisponibil *85 1 1 500235Z - Indisponibil *85 1 1 500408Z - Indisponibil *85 1 1 @ CORD FOR SINZ KUW (500424Z) 16441 RON *85 1 1 500477Z - Indisponibil *85 1 1 @ CORD FOR THA (500239Z) 16553 RON *85 1 1 CORD 5M 2 X1.0 HO7RN-F (W/O PLUG) (500454Z) 11184 RON *85 1 1 CORD FOR GBR 230V (500446Z) 23934 RON *85 1 1 CORD FOR SWISS (500391Z) 27513 RON *85 1 1 500457Z - Indisponibil *85 1 1 CORD 5M 2 X 1,0 W/PLUG 13A/250V FOR GBR (500440Z) 13197 RON *85 1 1 500475Z - Indisponibil *85 1 1 500487Z - Indisponibil 86 1 1 WASHER (FW) NEW DEC (333688) 1341 RON 87 1 4 HEX.SOCKET HD.BOLTM5X14 (W/FLANGE) (998485) 1453 RON 88 1 1 VALVE (995396) 2683 RON 89 1 1 FELT NEW DEC (334217) 2460 RON 90 1 1 VALVE COVER NEW DEC (334216) 1341 RON 91 1 1 SEAL LOCK HEX. SOCKET HD. BOLT M4X8 (877838) 1453 RON 92 1 1 NEEDLE BEARING NEW DEC (334219) 4137 RON 93 1 1 SUPPORT (B) NEW DEC (325910) 2236 RON 94 1 1 334636 - Indisponibil 501 1 1 313471 - Indisponibil 502 1 1 PLASTIC CARRYING CASE (333266) 20579 RON 601 1 1 GREASE (FG-6A) (30G) (4966375124375) Indisponibil Indisponibil 602 1 1 GREASE FOR HAMMER DRILL (JF-375) (70G) (308471) 8388 RON 603 1 1 GREASE FOR IMPACT DRILL (FG-6A) (500G) (980927) 4251 RON 604 1 1 313472 - Indisponibil 605 1 1 313473 - Indisponibil 606 1 1 313474 - Indisponibil 607 1 1 313475 - Indisponibil 608 1 1 313476 - Indisponibil 609 1 1 313477 - Indisponibil 610 1 1 313478 - Indisponibil 611 1 1 313479 - Indisponibil
