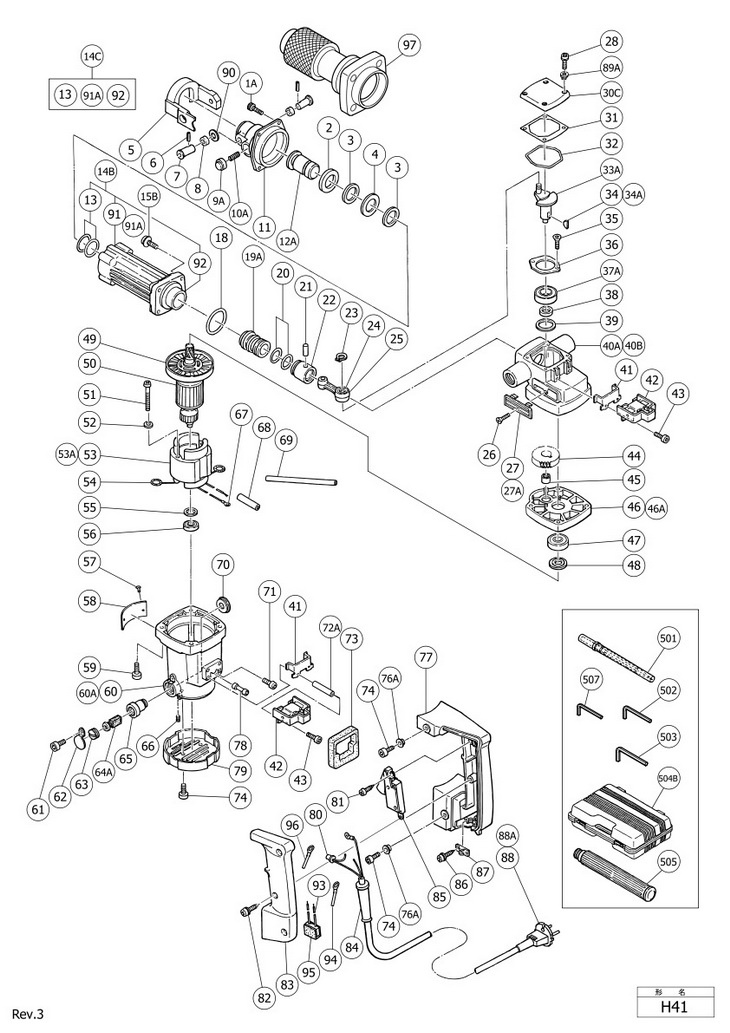

Top » Piese de schimb » PIESE HITACHI » H41 H41 [H41] Click pentru a mari Imagini suplimentare Click pentru a mari LISTA DE COMPONENTE: Numar Versiune Buc. in schema Denumire Pret/buc (Tva inclus) Cumpara 1A 1 4 NYLOCK HIGH TENSION BOLT M7X25 (OLD 991696) (993040) 2348 RON 2 1 1 DAMPER WASHER (991695) 488 RON 3 1 2 DAMPER (983235) 382 RON 4 1 1 WASHER (983236) 2683 RON 5 1 1 RETAINER (990131) 22592 RON 6 1 2 ROLL PIN D4X20 (991697) 1453 RON 7 1 2 RETAINER PIN (990135) 7828 RON 8 1 2 DAMPER (B) (990134) 2348 RON 9A 1 1 PUSHING BUTTON (990133) 6374 RON 10A 1 1 SET SPRING (OLD 990132) NEW JAN (331239) 1453 RON 11 1 1 FRONT COVER (991693) 57824 RON 12A 1 1 SECOND HAMMER (991708) 22592 RON 13 1 2 O-RING (A) (983234) 573 RON 14B 1 1 991707 - Indisponibil 14C 1 1 332149 - Indisponibil 15B 1 4 NYLOCK BOLT M7X25 W/FLANGE (993041) 1453 RON 18 1 1 O-RING (S-48) (980715) 2348 RON 19A 1 1 STRIKER (991706) 7269 RON 20 1 2 O-RING (986104) 1453 RON 21 1 1 PISTON PIN (980708) 2348 RON 22 1 1 PISTON (981885) 12079 RON 23 1 1 RETAINING RING FOR D12 (10 PCS) (939542) 1788 RON 24 1 1 NEEDLE BEARING NSK TORR AJ50 1203 (980756) 6933 RON 25 1 1 CONNECTING ROD (980707) 22592 RON 26 1 2 FLAT HD.SCREW M4X10 (10 PCS) (949322) 1453 RON 27 1 2 WIND GUIDE (980735) 297 RON 27A 1 2 WIND GUIDE (B) (991713) 1453 RON 28 1 4 SEAL LOCK HEX. SOCKET HD. BOLT M4X12 (983162) Indisponibil Indisponibil 30C 1 1 CRANK COVER (OLD 981968) (993903) 5927 RON 31 1 1 SEAL PACKING (980749) 1453 RON 32 1 1 O-RING (S-55) (980744) 2683 RON 33A 1 1 991718 - Indisponibil 34 1 1 WOODRUFF KEY 3X13 (932815) 1788 RON 34A 1 1 FEATHER KEY 3X3X10 (940533) 1453 RON 35 1 2 SEAL LOCK HEX. SOCKET FLAT HD. BOLT M5X12 (980760) 1453 RON 36 1 1 BEARING COVER (A) (980761) 6374 RON 37A 1 1 BALL BEARING 6203DDUCMAV2S (6203DD) 5368 RON 38 1 1 COLLAR (980706) 6598 RON 39 1 1 OIL SEAL (A) (971745) 382 RON 40A 1 1 991715 (991715) 24493 RON 40B 1 1 332148 - Indisponibil 41 1 2 GUIDE PLATE (980750) 12190 RON 42 1 2 HANDLE RUBBER (980727) 9282 RON 43 1 4 SEAL LOCK HEX. SOCKET HD. BOLT M5X14 (OLD 315636) (984509) 1453 RON 44 1 1 @ FIRST GEAR (980704) 8388 RON 45 1 1 NEEDLE BEARING (M661) (939299) 6933 RON 46 1 1 983282 (983282) 16329 RON 46A 1 1 332147 - Indisponibil 47 1 1 BALL BEARING 6202VVCMPS2S (6202VV) 4585 RON 48 1 1 DUST WASHER (B) (980700) 894 RON 49 1 1 FAN (980740) 5368 RON *50 1 1 983250C - Indisponibil *50 1 1 983250E (983250E) 44067 RON *50 1 1 983250F - Indisponibil 51 1 2 MACHINE SCREW M5X55 (10 PCS) (949233) 2348 RON 52 1 2 SPRING WASHER M5 (10 PCS) (949454) 1117 RON *53 1 1 983244C - Indisponibil *53 1 1 983244E (983244E) 17335 RON *53 1 1 983244F - Indisponibil 53A 1 1 983244G - Indisponibil 54 1 2 BRUSH TERMINAL (930703) 2348 RON 55 1 1 DUST WASHER (A) (980698) 1453 RON 56 1 1 BALL BEARING 608VVMC2EPS2L (608VVM) 4025 RON 57 1 2 RIVET D2.5X4.8 (10 PCS) (OLD 949510Z) (949510) 1453 RON 58 1 1 - Indisponibil 59 1 4 SEAL LOCK HEX. SOCKET HD. BOLT M6X45 (986940) 1453 RON 60 1 1 980697 (980697) 2848 RON 60A 1 1 332146 - Indisponibil 61 1 2 SEAL LOCK HEX. SOCKET HD. BOLT M5X10 (877839) 1453 RON 62 1 2 CAP COVER (980733) 1453 RON 63 1 2 BRUSH CAP (935829) 1453 RON 64A 1 2 CARBON BRUSH A.S. TYPE (OLD 981612Z) (999073) 7269 RON 65 1 2 BRUSH HOLDER (971001) Indisponibil Indisponibil 66 1 2 HEX.SOCKET SET SCREW M5X8 (938477) 1453 RON 67 1 1 TERMINAL M4.0 (10 PCS) (930804) 297 RON 68 1 1 - Indisponibil 69 1 1 - Indisponibil 70 1 2 956127 - Indisponibil 71 1 1 949292 - Indisponibil 72A 1 1 VINYL TUBE (319363) 2236 RON 73 1 1 HANDLE PACKING (980751) 1788 RON 74 1 6 SEAL LOCK HEX. SOCKET HD. BOLT M5X12 (991690) 1453 RON 76A 1 4 DISTANCE PIECE (B) (991711) 1453 RON 77 1 1 @ HANDLE (980763) 10736 RON 78 1 1 - Indisponibil 79 1 1 TAIL COVER (980732) 3578 RON 80 1 2 CONNECTOR 50092 (10 PCS) (OLD 939558) (959141) 382 RON 81 1 2 TAPPING SCREW D4X12 (954017) 894 RON 82 1 3 956636 - Indisponibil 83 1 1 980764 - Indisponibil 84 1 1 CORD ARMOR D8.2 (OLD 958049Z) (958049) 894 RON *84 1 1 CORD ARMOR D10.7 (940778) 2124 RON 85 1 1 SWITCH (1P SCREW TYPE) W/O LOCK (956433) 11184 RON 86 1 2 TAPPING SCREW D4X16 (W/FLANGE) (984750) 1117 RON 87 1 1 CORD CLIP (960266) 894 RON 88 1 1 500202Z - Indisponibil 88 1 1 500428Z - Indisponibil *88 1 1 500393Z - Indisponibil 88A 1 1 500398Z - Indisponibil 88A 1 1 500471Z - Indisponibil 89A 1 4 DISTANCE PIECE (990146) 1453 RON 90 1 1 991701 - Indisponibil 91 1 1 991710 - Indisponibil 91A 1 1 332150 - Indisponibil 92 1 1 991709 - Indisponibil 93 1 1 NOISE SUPPRESSOR GASKET (930039) 2683 RON *93 1 1 NOISE SUPPRESSOR (311935) 3242 RON 94 1 1 TERMINAL (980063) 1117 RON 95 1 1 930196 - Indisponibil *95 1 1 SUPPORT (B) (930153) 894 RON 96 1 1 INTERNAL WIRE (981974) 2236 RON 97 1 1 FRONT COVER SET (316041) 5101 RON 501 1 1 980752 - Indisponibil 502 1 1 HEX.BAR WRENCH 4MM (944458) 1229 RON 503 1 1 HEX.BAR WRENCH 5MM (944459) 1788 RON 504B 1 1 PLASTIC CARRYING CASE (333145) 31428 RON 505 1 1 SIDE HANDLE (944457) 13644 RON 507 1 1 HEX.BAR WRENCH 3MM (OLD 993822) (943277) 1229 RON 601 1 1 GREASE (FG-6A) (30G) (4966375124375) Indisponibil Indisponibil 602 1 1 980753 - Indisponibil 603 1 1 980752 - Indisponibil 604 1 1 980753 - Indisponibil 605 1 1 981925 - Indisponibil 606 1 1 981926 - Indisponibil 607 1 1 @ CUTTER (982705) 32323 RON 608 1 1 982711 - Indisponibil 609 1 1 982710 - Indisponibil 610 1 1 955183 - Indisponibil 611 1 1 RAMMER 140MM (955181) 83214 RON 612 1 1 982702 - Indisponibil 613 1 1 982703 - Indisponibil 614 1 1 982704 - Indisponibil 616 1 1 @ DRIFT KEY (944574) 5927 RON 617A 1 1 EARTH ADAPTER D18X176 (OLD 980696) (323357) 1700 RON 618A 1 1 SYRINGE BELLOWS TYPE (OLD 944575) (318085) 3242 RON 619 1 1 GREASE FOR IMPACT DRILL (FG-6A) (500G) (980927) 4251 RON 620 1 1 980734 - Indisponibil 622 1 1 GREASE FOR HAMMER DRILL (JF-375) (70G) (308471) 8388 RON 623 1 1 981922 - Indisponibil 624 1 1 SYRINGE BLOW-OUT BULB TYPE (320859) 6374 RON
