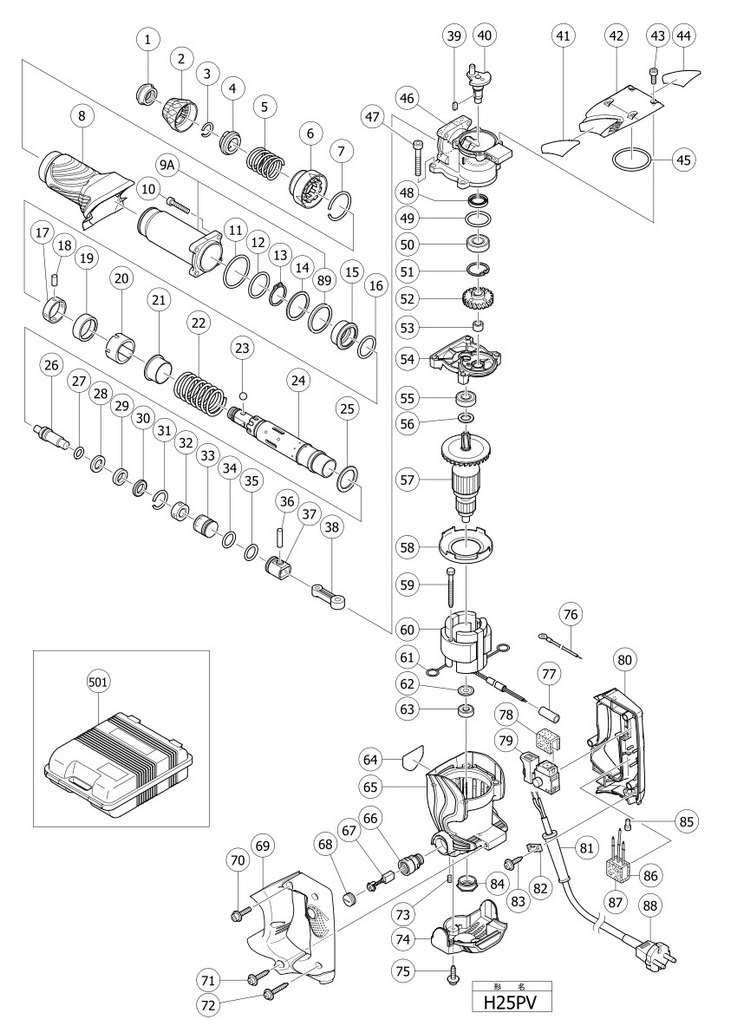

Top » Piese de schimb » PIESE HITACHI » H25PV H25PV [H25PV] Click pentru a mari Imagini suplimentare Click pentru a mari LISTA DE COMPONENTE: Numar Versiune Buc. in schema Denumire Pret/buc (Tva inclus) Cumpara 1 1 1 FRONT CAP (323078) 3242 RON 2 1 1 GRIP (323077) 4025 RON 3 1 1 STOPPER RING (306340) 1788 RON 4 1 1 BALL HOLDER (323076) 16441 RON 5 1 1 RETAINER SPRING (323075) 3242 RON 6 1 1 LOCK SLEEVE (323074) 5368 RON 7 1 1 RING (A) (323073) 2236 RON 8A 1 1 335208 - Indisponibil 9A 1 1 325256 (325256) 20691 RON 10 1 4 SEAL LOCK HEX. SOCKET HD. BOLT M6X22 (321313) 2236 RON 11 1 1 O-RING (S-46) (882874) 2236 RON 12 1 1 O-RING (S-36) (984483) 2236 RON 13 1 1 RETAINING RING FOR D28 SHAFT (962553) 1453 RON 14 1 1 WASHER (323071) 3242 RON 15 1 1 CYLINDER HOLDER (323069) 18678 RON 16 1 1 O-RING (A) (323070) 2236 RON 17 1 1 NEEDLE HOLDER (323080) 18118 RON 18 1 4 NEEDLE ROLLER (991449) 1453 RON 19 1 1 NEEDLE COVER (323081) 4025 RON 20 1 1 SLIDE SLEEVE (B) (323065) 4025 RON 21 1 1 SLIDE SLEEVE (A) (323064) 18789 RON 22 1 1 SPRING (A) (323067) 3242 RON 23 1 2 STEEL BALL D7.0 (10 PCS) (959156) 2236 RON 24 1 1 CYLINDER (323056) 129071 RON 25 1 1 THRUST WASHER (323068) 3242 RON 26 1 1 SECOND HAMMER (323057) 12190 RON 27 1 1 O-RING (C) (323058) 3242 RON 28 1 1 DAMPER WASHER (323059) 6151 RON 29 1 1 DAMPER (323060) 3242 RON 30 1 1 DAMPER HOLDER (323061) 5591 RON 31 1 1 STOPPER RING (323062) 2236 RON 32 1 1 SLIDE RING (323063) 11519 RON 33 1 1 STRIKER (323066) 9842 RON 34 1 1 O-RING (I.D.19.2) (319577) 3242 RON 35 1 1 O-RING (I.D.19.2) (319577) 3242 RON 36 1 1 PISTON PIN (319581) 2236 RON 37 1 1 PISTON (319580) 3242 RON 38 1 1 CONNECTING ROD (319585) 3242 RON 39 1 1 FEATHER KEY 3X3X8 (944109) 2012 RON 40 1 1 CRANK SHAFT (323054) 25612 RON 41 1 1 - Indisponibil 42 1 1 CRANK CASE COVER (323079) 8052 RON 43 1 4 SEAL LOCK HEX. SOCKET HD. BOLT M4X12 (983162) Indisponibil Indisponibil 44 1 1 - Indisponibil 45 1 1 O-RING (S-48) (980715) 2348 RON 46 1 1 CRANK CASE (323053) 34112 RON 47 1 4 HEX.SOCKET HD.BOLT M6X35 (10 PCS) (949692) 382 RON 48 1 1 OIL SEAL (B) (981851) 2683 RON 49 1 1 O-RING (S-32) (872767) 2236 RON 50 1 1 BALL BEARING 6002DDUCMPS2S (6002DD) 4920 RON 51 1 1 RETAINING RING D32 HOLE (948001) 1453 RON 52 1 1 FIRST GEAR (323055) 20691 RON 53 1 1 NEEDLE BEARING (M661) (939299) 6933 RON 54 1 1 GEAR COVER (323084) 15881 RON 55 1 1 BALL BEARING 6001DDUCMPS2S (OLD 980925) (6001DD) 4585 RON 56 1 1 WASHER (B) (971736) 1453 RON *57 1 1 @ARMATURE 110-115 VOLT (360660C) 64647 RON *57 1 1 ARMATURE 220-230 VOLT (360660E) 64647 RON *57 1 1 360660F - Indisponibil 58 1 1 FAN GUIDE (323083) 3242 RON 59 1 2 HEX.HD. TAPPING SCREW D5X40 (980864) 1453 RON *60 1 1 340593C (340593C) 5952 RON *60 1 1 340593E (340593E) 5952 RON *60 1 1 340593F - Indisponibil 61 1 2 BRUSH TERMINAL (930703) 2348 RON 62 1 1 WASHER (A) (982631) 894 RON 63 1 1 BALL BEARING 608VVMC2EPS2L (608VVM) 4025 RON 64 1 1 - Indisponibil 65 1 1 323082 (323082) 37468 RON 66 1 2 BRUSH HOLDER (958900) 5368 RON 67 1 2 CARBON BRUSH (1 PAIR) (999056) 5368 RON 68 1 2 BRUSH CAP (945161) 1453 RON 70 1 2 HEX.SOCKET HD.BOLT (994192) 894 RON 71 1 2 TAPPING SCREW D5X20 (W/FLANGE) BLACK (302089) 1453 RON 72 1 3 TAPPING SCREW D4X25 (W/FLANGE) (307028) 1453 RON 73 1 2 HEX.SOCKET SET SCREW M5X8 (938477) 1453 RON 74 1 1 TAIL COVER (323085) 11519 RON 75 1 2 TAPPING SCREW D4X16 (W/FLANGE) (BLACK) (307811) 894 RON 76 1 1 INTERNAL WIRE (994190) 1453 RON 77 1 1 VINYL TUBE (321322) 2236 RON 78 1 1 SUPPORT (B) (317492) 2236 RON 79 1 1 SWITCH (1P PILLAR TYPE) (323086) 25612 RON 81 1 1 CORD ARMOR D8.8 (953327) Indisponibil Indisponibil 82 1 1 CORD CLIP (960266) 894 RON 83 1 2 TAPPING SCREW D4X16 (W/FLANGE) (984750) 1117 RON 84 1 1 BEARING BUSH (B) (310111) 5591 RON 85 1 1 CONNECTOR 50091 (10 PCS) (OLD 939557) (959140) 2236 RON 86 1 1 NOISE SUPPRESSOR (994273) Indisponibil Indisponibil 87 1 1 SUPPORT (B) (317492) 2236 RON *88 1 1 500390Z - Indisponibil *88 1 1 CORD FOR GBR 230V (500446Z) 23934 RON *88 1 1 CORD 5M 2 X1.0 HO7RN-F (W/O PLUG) (500454Z) 11184 RON *88 1 1 500439Z - Indisponibil 89 1 1 DAMPER (A) (325257) 3242 RON 90 1 1 335207 - Indisponibil 501 1 1 PLASTIC CARRYING CASE H25PV (323090) 30645 RON 601 1 1 GREASE (FG-6A) (30G) (4966375124375) Indisponibil Indisponibil 602 1 1 GREASE FOR HAMMER DRILL (JF-375) (70G) (308471) 8388 RON 603 1 1 GREASE FOR IMPACT DRILL (FG-6A) (500G) (980927) 4251 RON 604 1 1 303046 - Indisponibil Puteti cumpara H25PV in urmatoarele variante: Hitachi H25PV
