Top » Piese de schimb » PIESE HITACHI » GNC40

GNC40
[GNC40]
GNC40
Click pentru a mari
Imagini suplimentare
GNC40
Click pentru a mari

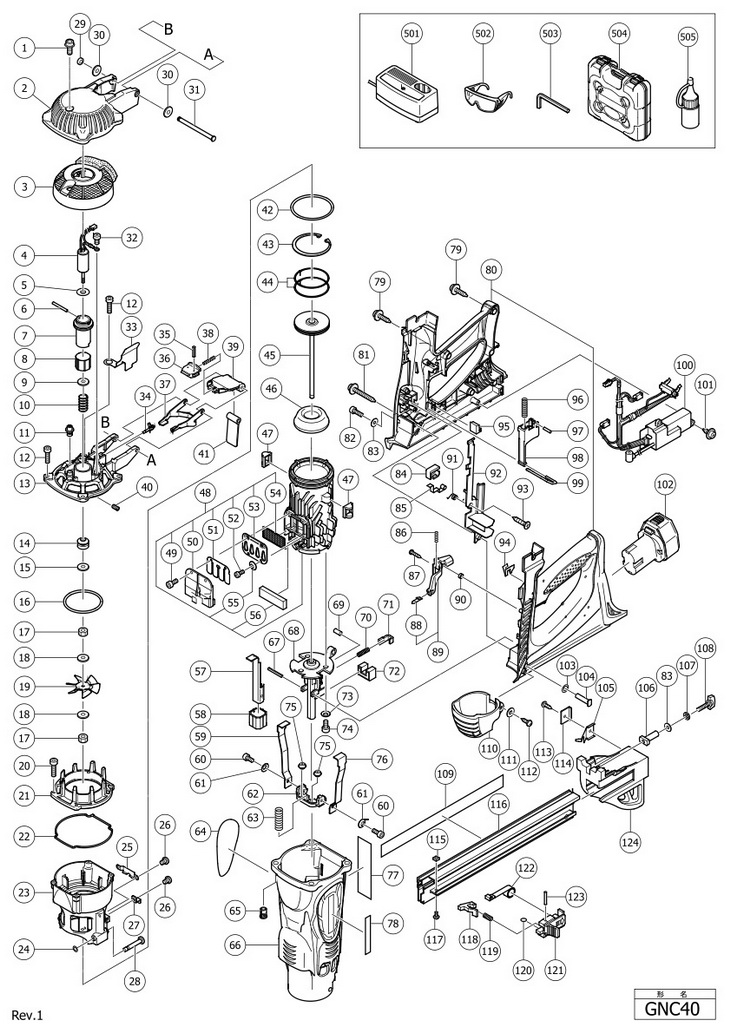

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 HEX.SOCKET HD.BOLT M5X12 (W/FLANGE) (996399) 894 RON
2 1 1 TOP COVER CARAT GFN3490 (886598) 5927 RON
3 1 1 886129 (886129) 12973 RON
4 1 1 MOTOR NR90GC/NR90GR (885309) 50889 RON
5 1 1 RUBBER WASHER (885313) 2236 RON
6 1 1 ROLL PIN D2.5X25 (885318) 2236 RON
7 1 1 MOTOR MOUNT (885310) 6374 RON
8 1 1 MOUNT SLEEVE (885314) 2236 RON
9 1 1 SHAFT WASHER (885320) 2236 RON
10 1 1 887630 - Indisponibil
11 1 1 SPARK PLUG (A) (885333) 3242 RON
12 1 4 887472 - Indisponibil
13 1 1 CYLINDER HEAD (885308) 12973 RON
14 1 1 SHAFT COVER (886470) 1453 RON
15 1 1 WASHER (886471) 1453 RON
16 1 1 O-RING (I.D 59.92) (885316) 4025 RON
17 1 2 887479 - Indisponibil
18 1 2 WASHER M4 (10 PCS) (949423) 894 RON
19 1 1 FAN (885311) 4025 RON
20 1 4 HEX.SOCKET HD.BOLT M4X16 (10 PCS) (949754) 2348 RON
21 1 1 CHAMBER HEAD (885294) 6822 RON
22 1 1 GASKET (B) (886133) 2236 RON
23 1 1 CHAMBER (885296) 14315 RON
24 1 2 PLUNGER O-RING (878607) 1453 RON
25 1 1 CHAMBER LOCK PLATE (885297) 3242 RON
26 1 3 887480 - Indisponibil
27 1 1 SWITCH PLATE (885306) 2236 RON
28 1 2 PIN (A) (OLD 885921) (886484) 2236 RON
29 1 1 SHAFT RING (880319) 2236 RON
30 1 2 887454 - Indisponibil
31 1 1 SHAFT (885277) 3242 RON
32 1 1 887480 - Indisponibil
33 1 1 WIRING PLATE (886253) 2236 RON
34 1 1 ADAPTER (886313) 1453 RON
35 1 2 887484 - Indisponibil
36 1 1 887483 - Indisponibil
37 1 1 CELL LEVER (A) (886141) 5368 RON
38 1 1 887485 - Indisponibil
39 1 1 887486 - Indisponibil
40 1 2 HEX. SOCKET SET SCREW M4X5 (886314) 1453 RON
41 1 1 CELL RUBBER (A) (886131) 2236 RON
42 1 1 O-RING (I.D 66.27) (885283) 5368 RON
43 1 1 RETAINING RING (885285) 2236 RON
44 1 2 PISTON RING (A) (886132) 6151 RON
45 1 1 887616 - Indisponibil
46 1 1 PISTON BUMPER (885289) 5591 RON
47 1 2 CHAMBER STOP RUBBER (OLD 885790) (885284) 2236 RON
48 1 1 886465 (886465) 58271 RON
49 1 2 SEAL LOCK HEX. SOCKET HD. BOLT M4X10 (886241) 2236 RON
50 1 1 BUFFER COVER (886467) 2236 RON
51 1 1 LEAD VALVE (885290) 2236 RON
52 1 2 887481 - Indisponibil
53 1 1 BUFFER PLATE (A) (886468) 3242 RON
54 1 1 MESH (885292) 3242 RON
55 1 2 BELLEVILLE SPRING H8 (886319) 1453 RON
56 1 1 MUFFLER (885288) 8835 RON
57 1 1 887614 - Indisponibil
58 1 1 NOSE CAP NC40G (885692) 2795 RON
59 1 1 887625 - Indisponibil
60 1 2 887622 - Indisponibil
61 1 2 BELLEVILLE SPRING M5 (886243) 1453 RON
62 1 1 887626 - Indisponibil
63 1 2 PUSHING LEVER SPRING (886245) 2236 RON
64 1 1 - Indisponibil
65 1 4 SCREW M5 (885304) 2236 RON
66 1 1 HOUSING (886469) 1700 RON
67 1 1 887621 - Indisponibil
68 1 1 887618 - Indisponibil
69 1 1 887619 - Indisponibil
70 1 1 SPRING (A) (885706) 1453 RON
71 1 1 887620 - Indisponibil
72 1 1 887615 - Indisponibil
73 1 3 BELLEVILLE SPRING M5 (886243) 1453 RON
74 1 3 887623 - Indisponibil
75 1 2 SPRING GUIDE (885707) 3019 RON
76 1 1 887627 - Indisponibil
77 1 1 INSULATOR SHEET (885307) 2236 RON
78 1 1 887649 - Indisponibil
79 1 6 TAPPING SCREW D4X20 (W/FLANGE) BLACK (302086) 1453 RON
80 1 1 887648 - Indisponibil
81 1 1 887477 - Indisponibil
82 1 1 887624 - Indisponibil
83 1 2 WASHER (876205) 1453 RON
84 1 1 SWITCH MOUNT (B) (886473) 2236 RON
85 1 1 SWITCH ARM (885347) 2236 RON
86 1 1 SPRING (885518) 2236 RON
87 1 1 TAPPING SCREW D3 (885714) 2236 RON
88 1 1 TENSION PLATE (886257) 3242 RON
89 1 1 886147 (886147) 5368 RON
90 1 1 SLEEVE (886463) 2795 RON
91 1 1 LOCK BAR SPRING (885337) 2236 RON
92 1 1 WIRING COVER (885339) 3242 RON
93 1 1 FLAT HD TAPPING SCREW D4 (885346) 2236 RON
94 1 1 LEVER STOPPER (886138) 3242 RON
95 1 1 PRISM (886474) 2795 RON
96 1 1 TRIGGER SPRING (OLD 885336) (885828) 2236 RON
97 1 1 ROLL PIN D2.5X10 (10 PCS) (949551) 2236 RON
98 1 1 TRIGGER (885335) 2795 RON
99 1 1 887617 - Indisponibil
100 1 1 WIRING (B) (886461) 51896 RON
101 1 2 887476 - Indisponibil
102 1 2 - Indisponibil
103 1 1 WASHER (B) (885712) 1453 RON
104 1 1 SHAFT (B) (885711) 5815 RON
105 1 1 886990 - Indisponibil
106 1 1 SHAFT (C) (885713) 6262 RON
107 1 1 SPRING WASHER M5 (10 PCS) (949454) 1117 RON
108 1 1 887629 - Indisponibil
109 1 1 - Indisponibil
110 1 1 DUST COVER (885695) 9394 RON
111 1 2 WASHER (875246) 894 RON
112 1 2 TAPPING SCREW D4X12 (W/FLANGE) BLACK (325083) 2236 RON
113 1 1 887628 - Indisponibil
114 1 1 886991 - Indisponibil
115 1 1 SQUARE NUT M6 (319166) 2236 RON
116 1 1 MAGAZINE (886475) 17671 RON
117 1 1 HEX. SOCKET HD. BOLT M6X7 (W/BUTTON) (884215) 4025 RON
118 1 1 NAIL FEEDER (A) (886477) 5815 RON
119 1 1 SPRING (B) (886478) 1453 RON
120 1 1 O-RING (1AP-3) (873093) 1453 RON
121 1 1 NAIL FEEDER (B) (886476) 2795 RON
122 1 1 RIBBON SPRING (881755) 3242 RON
123 1 1 PIN D3X20 (10 PCS) (949890) 2348 RON
124 1 1 MAGAZINE COVER (886479) 6710 RON
501 1 1 - Indisponibil
502 1 1 875769 - Indisponibil
503 1 1 887463 - Indisponibil
504 1 1 887647 - Indisponibil
505 1 1 886602 - Indisponibil
