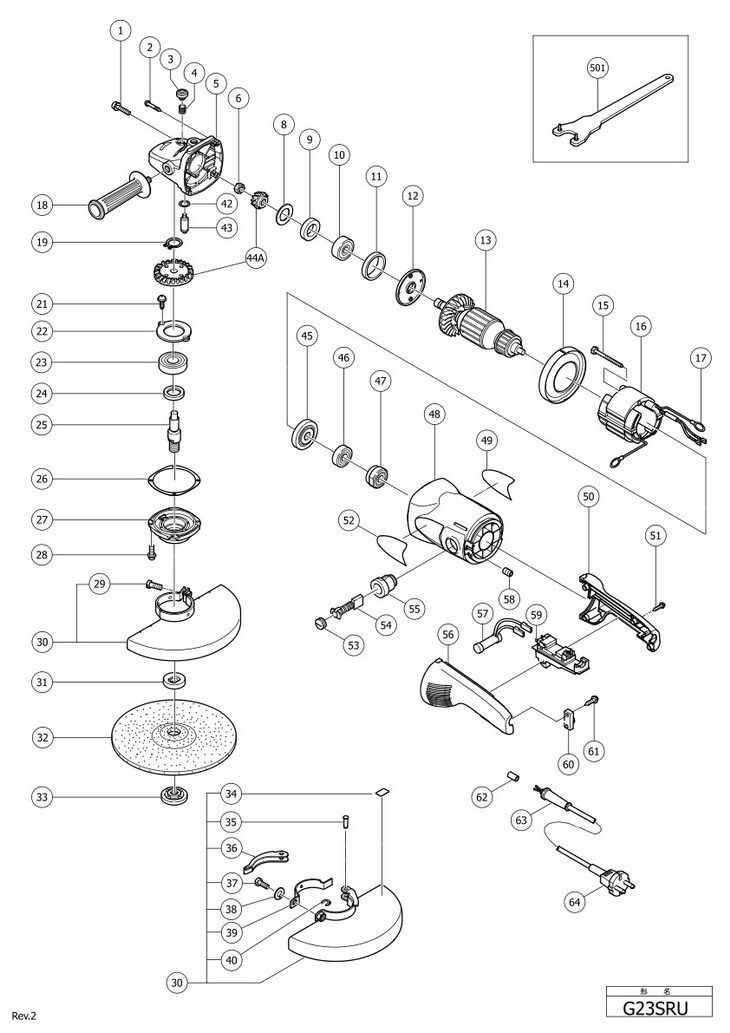

Top » Piese de schimb » PIESE HITACHI » G23SRU G23SRU [G23SRU] Click pentru a mari Imagini suplimentare Click pentru a mari LISTA DE COMPONENTE: Numar Versiune Buc. in schema Denumire Pret/buc (Tva inclus) Cumpara 1 1 2 315636 - Indisponibil 2 1 4 TAPPING SCREW D5X35 (W/FLANGE) BLACK (323209) 1788 RON 3 1 1 PUSH BUTTON (306888) 894 RON 4 1 1 SPRING (320219) 1453 RON 5 1 1 320217 (320217) 10624 RON 6 1 1 SPECIAL NUT M10 (320226) 1453 RON 8 1 1 SEAL WASHER (320221) 1453 RON 9 1 1 FELT PACKING (320222) 1453 RON 10 1 1 BALL BEARING 6301VVCMPS2S (6301VV) 573 RON 11 1 1 RUBBER RING (B) (994208) 1117 RON 12 1 1 BEARING COVER (A) (320220) 2124 RON 13 1 1 ARMATURE 220-240 VOLT (360762E) 25052 RON 14 1 1 FAN GUIDE (320215) 1453 RON 15 1 2 HEX .HD. TAPPING SCREW D5X60 (961501) 894 RON 16 1 1 340664E (340664E) 17895 RON 17 1 2 BRUSH TERMINAL (OLD 958032Z) (958032) 894 RON 18 1 1 SIDE HANDLE FOR M14 (OLD 321542) (937981) 4920 RON 19 1 1 RETAINING RING FOR D12 (10 PCS) (939542) 1788 RON 21 1 2 MACHINE SCREW M5X10 (10 PCS) (949236) 1453 RON 22 1 1 BEARING COVER (B) (320229) 1453 RON 23 1 1 BALL BEARING 6302VVCMPS2S (6302VV) 6262 RON 24 1 1 FELT PACKING (B) (990852) 894 RON 25 1 1 SPINDLE (320234) 488 RON 26 1 1 SEAL PLATE (320228) Indisponibil Indisponibil 27 1 1 PACKING GLAND (320227) 3466 RON 28 1 4 HEX.SOCKET HD.BOLT (994192) 894 RON 29 1 1 BOLT M8X22 (306887) 1341 RON *30 1 1 306120 (306120) 7157 RON *30 1 1 321547 (321547) 12190 RON 31 1 1 WHEEL NUT M14X2 (937909Z) 573 RON 32 1 1 316825 - Indisponibil 33 1 1 WHEEL WASHER (A) (Cod Vechi: 937907Z) (376202) 5032 RON 34 1 1 LABEL (311492) 1229 RON 35 1 1 SET PIN (321546) 2124 RON 36 1 1 LEVER (321545) 2124 RON 37 1 1 BOLT M8X22 (306887) 1341 RON 38 1 1 SPRING WASHER M8 (10 PCS) (949457) 1453 RON 39 1 1 SET PIECE (321544) 1341 RON 40 1 1 RETAINING RING (E-TYPE) (673489) 1117 RON 42 1 1 O-RING (320218) 1453 RON 43 1 1 LOCK PIN (306890) 2012 RON 44A 1 1 330032 (330032) 12973 RON 45 1 1 DUST SEAL (320216) 1453 RON 46 1 1 BALL BEARING 6000VVCMPS2S (6000VV) 4025 RON 47 1 1 BEARING BUSH ASSY (321536) 5480 RON 48 1 1 325640 (325640) 30868 RON 49 1 1 - Indisponibil 50 1 1 HANDLE (B) (OLD 326021) (325641) 6262 RON 51 1 4 TAPPING SCREW D4X16 (W/FLANGE) BLACK (305812) 894 RON 52 1 1 - Indisponibil 53 1 2 BRUSH CAP (940540) 1229 RON *54 1 1 CARBON BRUSH (1 PAIR) (999044) 382 RON *54 1 1 CARBON BRUSH A.S. TYPE (OLD 937943Z) (999074) 6710 RON 55 1 2 BRUSH HOLDER (OLD 974567) (980487) 4137 RON 56 1 1 HANDLE (A) (OLD 326020) (325642) 5815 RON 57 1 1 RESISTOR (320236) 5815 RON 58 1 2 HEX.SOCKET SET SCREW M5X8 (938477) 1453 RON 59 1 1 SWITCH W/SAFETY LOCK (320235) 19461 RON 60 1 1 CORD CLIP (960266) 894 RON 61 1 2 TAPPING SCREW D4X16 (W/FLANGE) (984750) 1117 RON 62 1 2 TUBE (D) (981373) 1341 RON 63 1 1 CORD ARMOR D10.7 (940778) 2124 RON *64 1 1 500247Z - Indisponibil *64 1 1 CORD FOR SUI (500248Z) 22033 RON 501 1 1 WRENCH (325491) Indisponibil Indisponibil 601 1 1 PIPE HANDLE SET (OLD 322141) (323993) 40823 RON 602 1 2 BOLT M14 (985597) 297 RON 603 1 1 SUPER WHEEL WASHER (310337) 11967 RON 604 1 1 CUTTING WHEEL GUARD 230 MM W/O BASE (332797) 16441 RON Puteti cumpara G23SRU in urmatoarele variante: Hitachi G23SRU Pachet special G23SRU - AT54
