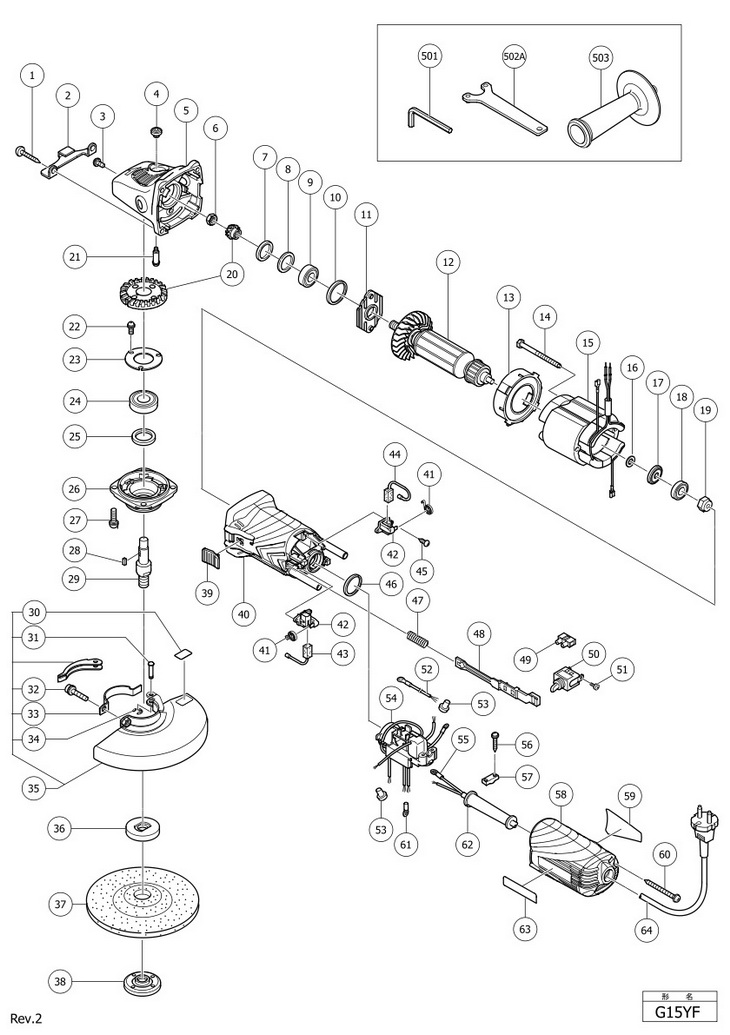

Top » Piese de schimb » PIESE HITACHI » G15YF G15YF [G15YF] Click pentru a mari Imagini suplimentare Click pentru a mari LISTA DE COMPONENTE: Numar Versiune Buc. in schema Denumire Pret/buc (Tva inclus) Cumpara 1 1 4 TAPPING SCREW D5X25 BLACK (320523) 1788 RON 2 1 1 STOP PIECE (331931) 2795 RON 3 1 2 SEAL LOCK SCREW M4X10 (W/SP WASHER) (303255) 894 RON 4 1 1 PUSHING BUTTON (301944) 894 RON 5 1 1 321737 (321737) 19461 RON 6 1 1 SPECIAL NUT M6 (309191) 1117 RON 7 1 1 SEAL RING (A) (308543) 894 RON 8 1 1 WASHER (C) (980866) 894 RON 9 1 1 BALL BEARING 629T12DDC3PS2-L (629T12) 4137 RON 10 1 1 RUBBER RING (OLD 994299) (957754) 1453 RON 11 1 1 BEARING COVER (321734) 1453 RON 12 1 1 ARMATURE 230-240 VOLT (360870E) 2848 RON 13 1 1 FAN GUIDE (321732) 1453 RON 14 1 2 HEX.HD. TAPPING SCREW D4X70 (982021) 894 RON 15 1 1 STATOR 220-240 VOLT (340749E) 15210 RON 16 1 1 THRUST WASHER (311737) 894 RON 17 1 1 DUST SEAL (A) (311435) 894 RON 18 1 1 BALL BEARING 608VVMC2EPS2L (608VVM) 4025 RON 19 1 1 MAGNET (325475) 3690 RON 20 1 1 311486 (311486) 21697 RON 21 1 1 LOCK PIN (301943) 2348 RON 22 1 3 SEAL LOCK SCREW M4X8 (W/SP WASHER) (991207) 894 RON 23 1 1 BEARING COVER (B) (936680) 894 RON 24 1 1 BALL BEARING 6201DDUCMAV2S (6201DD) 4361 RON 25 1 1 FELT PACKING (308546) 894 RON 26 1 1 PACKING GLAND (308545) 6151 RON 27 1 4 SEAL LOCK SCREW M5X16 (W/WASHER) (307046) 894 RON 28 1 1 FEATHER KEY 3X3X8 (944109) 2012 RON 29 1 1 SPINDLE (A) (994301) 956 RON 30 1 1 LABEL (311492) 1229 RON 31 1 1 SET PIN (311744) 1229 RON 32 1 1 HEX. SOCKET HD. BOLT M5X20 (W/WASHERS) (316107) 2236 RON 33 1 1 SET PIECE (B) (311491) 3466 RON 34 1 1 RETAINING RING (E-TYPE) FOR D2.5 (874759) 894 RON 35 1 1 311490 (311490) 16776 RON 36 1 1 WHEEL WASHER (376067) 488 RON 37 1 1 316823 - Indisponibil 38 1 1 WHEEL NUT M14 NEW OLD 937818Z cod vechi 994324 (339579) 2347 RON 39 1 1 SLIDE SWITCH KNOB (330810) 1341 RON 40 1 1 HOUSING SET (330808) 5815 RON 41 1 2 SPRING (308536) 2236 RON 42 1 2 CARBON BRUSH HOLDER (308535) 5032 RON 43 1 1 CARBON BRUSH (999088) 382 RON 44 1 1 CARBON BRUSH A.S. TYPE (OLD 999087) (999076) 956 RON 45 1 4 TAPPING SCREW D3X10 (306945) 894 RON 46 1 1 RUBBER RING (OLD 997511) (995662) 894 RON 47 1 1 SPRING (314429) Indisponibil Indisponibil 48 1 1 SLIDE BAR (330811) 1341 RON 49 1 1 PILLAR TERMINAL (OLD 938307Z/512-31870-20)) (938307) 2571 RON 50 1 1 SWITCH (1P SOLDER TYPE) (314603) 3578 RON 51 1 2 MACHINE SCREW (W/WASHER) M3,5X6 (305499) 1229 RON 52 1 1 INTERNAL WIRE (331932) 2460 RON 53 1 2 CONNECTOR 50091 (10 PCS) (OLD 939557) (959140) 2236 RON 54 1 1 CONTROLLER 220-240 VOLT (330816) 30421 RON 55 1 1 TERMINAL (980063) 1117 RON 56 1 2 TAPPING SCREW D4X16 (W/FLANGE) (984750) 1117 RON 57 1 1 CORD CLIP (OLD 994566) (937631) 894 RON 58 1 1 TAIL COVER (330814) 4137 RON 59 1 1 - Indisponibil 60 1 2 TAPPING SCREW D4X50 (W/FLANGE) BLACK (331933) 1341 RON 61 1 1 TERMINAL (311741) 894 RON 62 1 1 CORD ARMOR D8.8 (953327) Indisponibil Indisponibil 63 1 1 - Indisponibil *64 1 1 500234Z - Indisponibil *64 1 1 500247Z - Indisponibil 501 1 1 HEX.BAR WRENCH 4MM (944458) 1229 RON 502A 1 1 WRENCH (938332Z) 2460 RON 503 1 1 SIDE HANDLE (VIBRATION-ABSORBING) (325496) 9730 RON 601 1 1 SUPER WHEEL WASHER (310338) 11967 RON 602 1 1 CUTTING WHEEL GUARD 150 MM WITH BASE NEW (332793) 171574 RON 603 1 1 CUTTING WHEEL GUARD 150 MM W/O BASE NEW (332794) 9354 RON
