Top » Piese de schimb » PIESE HITACHI » G15SA2

G15SA2
[G15SA2]
G15SA2
Click pentru a mari
Imagini suplimentare
G15SA2
Click pentru a mari

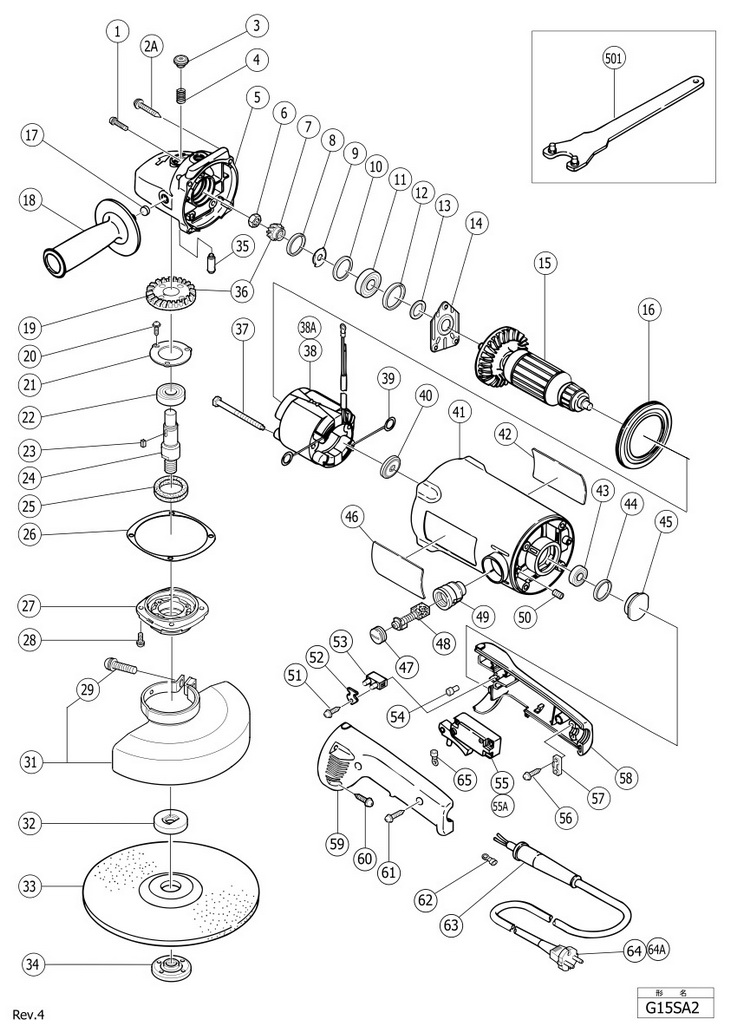

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 3 SEAL LOCK SCREW M4X10 (W/SP WASHER) (303255) 894 RON
2A 1 4 333713 - Indisponibil
3 1 1 PUSH BUTTON (306888) 894 RON
4 1 1 SPRING (306889) 894 RON
5 1 1 315048 (315048) 17335 RON
6 1 1 LOCK NUT M8 (10 PCS) (OLD 949568Z) (949568) 1453 RON
7 1 1 315075 - Indisponibil
8 1 1 SEAL RING (315055) 1341 RON
9 1 1 WASHER (B) (315056) 1341 RON
10 1 1 WASHER (A) (315054) 1341 RON
11 1 1 BALL BEARING 6200DDCMPS2L (6200DD) 4697 RON
12 1 1 RUBBER RING (A) (315053) 1341 RON
13 1 1 FELT PACKING (B) (315052) 1341 RON
14 1 1 BEARING COVER (B) (315051) 2460 RON
*15 1 1 ARMATURE 110-115 VOLT (360433U) 45073 RON
*15 1 1 ARMATURE 220-230 VOLT (360433E) 37244 RON
16 1 1 FAN GUIDE (315046) 1341 RON
17 1 1 FELT WASHER (315049) 1453 RON
18 1 1 SIDE HANDLE (OLD 954672) (994322) 3690 RON
19 1 1 315076 - Indisponibil
20 1 3 SEAL LOCK SCREW M4X10 (W/SP WASHER) (987201) 1453 RON
21 1 1 BEARING COVER (A) (937077) 894 RON
22 1 1 BALL BEARING 6202DDUCMPS2S (OLD 956937) (6202DD) 4697 RON
23 1 1 FEATHER KEY 3X3X10 (940533) 1453 RON
*24 1 1 SPINDLE (315088) 6822 RON
*24 1 1 315065 - Indisponibil
25 1 1 FELT PACKING (A) (315062) 1341 RON
26 1 1 SEAL PACKING (315060) 1341 RON
27 1 1 PACKING GLAND (315061) 5815 RON
28 1 4 315636 - Indisponibil
29 1 1 MACHINE SCREW (W/WASHER) (10PCS) (995096) 1453 RON
31 1 1 320866 - Indisponibil
*32 1 1 WHEEL WASHER (A) (Cod Vechi: 937907Z) (376202) 5032 RON
32A 1 1 334456 - Indisponibil
33 1 1 316823 - Indisponibil
*34 1 1 WHEEL NUT M14X2 (937909Z) 573 RON
*34 1 1 994155 - Indisponibil
35 1 1 LOCK PIN (315050) 2460 RON
36 1 1 315074 - Indisponibil
37 1 2 HEX .HD. TAPPING SCREW D5X60 (961501) 894 RON
*38 1 1 340383E (340383E) 14092 RON
38A 1 1 340383J - Indisponibil
39 1 2 BRUSH TERMINAL (930703) 2348 RON
40 1 1 DUST SEAL (315047) 2460 RON
41 1 1 315090 (315090) 17335 RON
42 1 1 - Indisponibil
43 1 1 BALL BEARING 608VVMC2EPS2L (608VVM) 4025 RON
44 1 1 RUBBER RING (315637) 2236 RON
45 1 1 BEARING BUSHING (315069) 3690 RON
46 1 1 - Indisponibil
47 1 2 BRUSH CAP (945161) 1453 RON
48 1 2 CARBON BRUSH (1 PAIR) (999043) 382 RON
49 1 2 BRUSH HOLDER (958900) 5368 RON
50 1 2 HEX.SOCKET SET SCREW M4X6 (985114) 1453 RON
51 1 1 TAPPING SCREW D4X12 (W/FLANGE) (305720) 1453 RON
52 1 1 315086 - Indisponibil
53 1 1 PILLAR TERMINAL (OLD 938307Z/512-31870-20)) (938307) 2571 RON
54 1 1 CONNECTOR 50091 (10 PCS) (OLD 939557) (959140) 2236 RON
55 1 1 SWITCH W/LOCK (1P SCREW TYPE) (313278) 14539 RON
55A 1 1 SWITCH W/O LOCK (1P SCREW TYPE) (315101) 13197 RON
56 1 2 TAPPING SCREW D4X16 (W/FLANGE) (984750) 1117 RON
57 1 1 CORD CLIP (OLD 994566) (937631) 894 RON
58 1 1 HANDLE (A) (315063) 5368 RON
59 1 1 HANDLE (B) (315064) 4585 RON
60 1 4 TAPPING SCREW D5X20 (W/FLANGE) BLACK (302089) 1453 RON
61 1 2 TAPPING SCREW D4X20 (W/FLANGE) BLACK (302086) 1453 RON
62 1 1 TERMINAL (980063) 1117 RON
*63 1 1 CORD ARMOR D8.8 (953327) Indisponibil Indisponibil
*63 1 1 CORD ARMOR D10.1 (OLD 994565) (938051) 894 RON
*64 1 1 @ CORD (500212Z) 9282 RON
*64 1 1 500234Z - Indisponibil
*64 1 1 @ CORD 2,5M 2 X 1.0 H05VV-F W/PLUG 13A/250V (OLD 500223Z) (500423Z) 12862 RON
64A 1 1 323974 - Indisponibil
65 1 1 TERMINAL (311741) 894 RON
501A 1 1 WRENCH (325491) Indisponibil Indisponibil
601 1 1 306914 - Indisponibil
602 1 1 306915 - Indisponibil
603 1 1 306916 - Indisponibil
604 1 1 @ WASHER (FOR DIAMOND WHEEL) (983885) 3242 RON
605 1 1 HANDLE JOINT (994309) 10065 RON
606 1 1 SUPER WHEEL WASHER (310337) 11967 RON
607 1 1 CUTTING WHEEL GUARD 150 MM WITH BASE NEW (332791) 17667 RON
608 1 1 CUTTING WHEEL GUARD 150 MM W/O BASE NEW (332792) 10204 RON
