Top » Piese de schimb » PIESE HITACHI » G13YC2

G13YC2
[G13YC2]
G13YC2
Click pentru a mari
Imagini suplimentare
G13YC2
Click pentru a mari

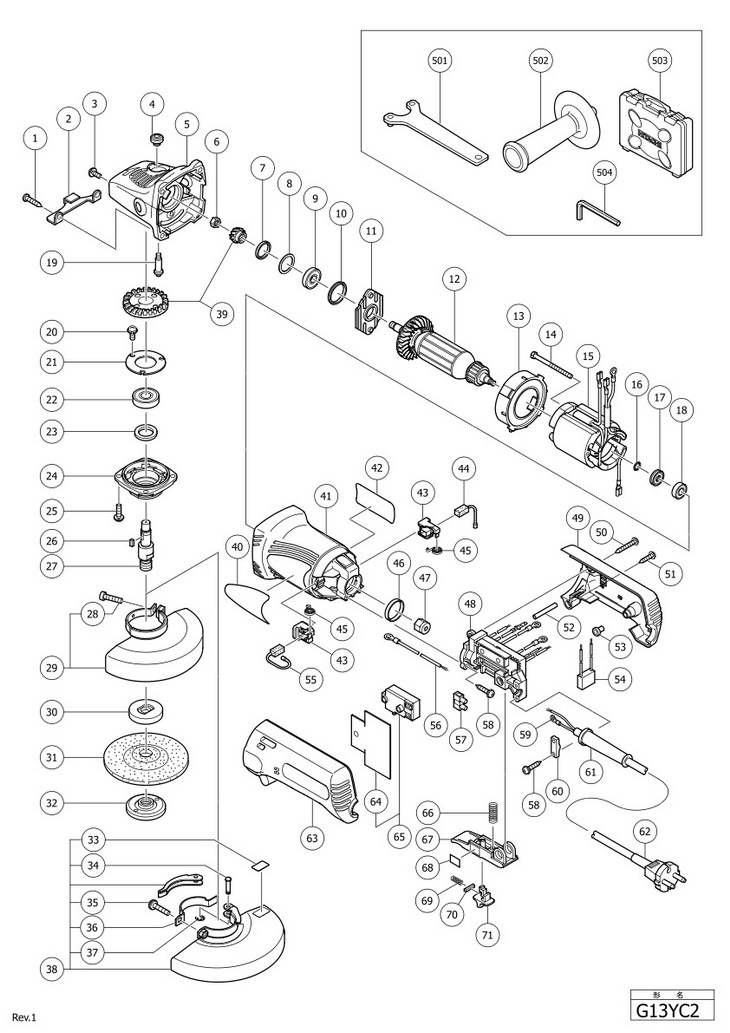

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 4 937807 - Indisponibil
2 1 1 STOP PIECE (331931) 2795 RON
3 1 2 SEAL LOCK SCREW M4X10 (W/SP WASHER) (303255) 894 RON
4 1 1 PUSHING BUTTON (301944) 894 RON
5 1 1 321737 (321737) 19461 RON
6 1 1 NUT M8 (10 PCS) (949558) 1453 RON
7 1 1 SEAL RING (A) (308543) 894 RON
8 1 1 WASHER (C) (980866) 894 RON
9 1 1 BALL BEARING 629T12DDC3PS2-L (629T12) 4137 RON
10 1 1 RUBBER RING (OLD 994299) (957754) 1453 RON
11 1 1 BEARING COVER (321734) 1453 RON
*12 1 1 360869C - Indisponibil
*12 1 1 ARMATURE 230-240 VOLT (360869E) 2848 RON
13 1 1 FAN GUIDE (321732) 1453 RON
14 1 2 HEX.HD. TAPPING SCREW D4X70 (982021) 894 RON
*15 1 1 340823C - Indisponibil
*15 1 1 STATOR 230-240 VOLT NEW FEB (340823E) 12190 RON
16 1 1 THRUST WASHER (311737) 894 RON
17 1 1 DUST SEAL (A) (311435) 894 RON
18 1 1 BALL BEARING 608VVMC2EPS2L (608VVM) 4025 RON
19 1 1 LOCK PIN (301943) 2348 RON
20 1 3 SEAL LOCK SCREW M4X8 (W/SP WASHER) (991207) 894 RON
21 1 1 BEARING COVER (B) (936680) 894 RON
22 1 1 BALL BEARING 6201DDUCMAV2S (6201DD) 4361 RON
23 1 1 FELT PACKING (308546) 894 RON
24 1 1 PACKING GLAND (308545) 6151 RON
25 1 4 SEAL LOCK SCREW M5X16 (W/WASHER) (307046) 894 RON
26 1 1 FEATHER KEY 3X3X8 (944109) 2012 RON
27 1 1 SPINDLE (A) (994301) 956 RON
28 1 1 HEX.SOCKET HD BOLT M5X20 (10 PCS) (949757) 297 RON
29 1 1 333537 - Indisponibil
30 1 1 WHEEL WASHER (376067) 488 RON
31 1 1 316822 - Indisponibil
32 1 1 WHEEL NUT M14 NEW OLD 937818Z cod vechi 994324 (339579) 2347 RON
33 1 1 LABEL (311492) 1229 RON
34 1 1 SET PIN (311744) 1229 RON
35 1 1 HEX. SOCKET HD. BOLT M5X20 (W/WASHERS) (316107) 2236 RON
36 1 1 SET PIECE (B) (311491) 3466 RON
37 1 1 RETAINING RING (E-TYPE) FOR D2.5 (874759) 894 RON
38 1 1 311742 (311742) 13421 RON
39 1 1 GEAR AND PINION SET (329054) 12638 RON
40 1 1 - Indisponibil
41 1 1 HOUSING (321731) 6822 RON
42 1 1 - Indisponibil
43 1 2 BRUSH HOLDER (317810) 4025 RON
44 1 1 CARBON BRUSH A.S. TYPE (OLD 999087) (999076) 956 RON
45 1 2 SPRING (308536) 2236 RON
46 1 1 RUBBER RING (321733) Indisponibil Indisponibil
47 1 1 MAGNET (318721) Indisponibil Indisponibil
*48 1 1 334272 - Indisponibil
*48 1 1 CONTROLLER 230-240 VOLT NEW FEB (334273) 11184 RON
49 1 1 334504 - Indisponibil
50 1 2 TAPPING SCREW D4X35 (W/FLANGE) BLACK (303694) 894 RON
51 1 1 TAPPING SCREW D4X20 (W/FLANGE) BLACK (OLD 305095) (301653) 894 RON
52 1 1 334505 - Indisponibil
53 1 1 CONNECTOR 50091 (10 PCS) (OLD 939557) (959140) 2236 RON
54 1 1 NOISE SUPPRESSOR GASKET (930039) 2683 RON
55 1 1 CARBON BRUSH (999088) 382 RON
56 1 1 334508 - Indisponibil
57 1 1 PILLAR TERMINAL (OLD 938307Z/512-31870-20)) (938307) 2571 RON
58 1 3 TAPPING SCREW D4X16 (W/FLANGE) (984750) 1117 RON
59 1 1 TERMINAL (980063) 1117 RON
60 1 1 CORD CLIP (960266) 894 RON
61 1 1 CORD ARMOR D8.8 (953327) Indisponibil Indisponibil
*62 1 1 500234Z - Indisponibil
*62 1 1 500247Z - Indisponibil
*62 1 1 500439Z - Indisponibil
*62 1 1 CORD 2,5M 2 X 1.0 H05VV-F W/PLUG 13A/250V GBR (500435Z) 12638 RON
*62 1 1 CORD FOR GBR 110 VOLT (500463Z) 13085 RON
63 1 1 TAIL COVER (A) (321738) 3466 RON
64 1 1 DUST SEAL (308553) 894 RON
65 1 1 SWITCH (OLD 308400) (321099) 6710 RON
66 1 1 SPRING (OLD 961981Z) (983595) 894 RON
67 1 1 PADDLE LEVER (308554) 2348 RON
*68 1 1 LEVER ACTION SEAL (308558) 1453 RON
*68 1 1 LEVER ACTION SEAL (308557) 1453 RON
69 1 1 SPRING (F) (301631) 1117 RON
70 1 1 FEATHER KEY 3X3X15 (982696) 894 RON
*71 1 1 LOCK LEVER (308556) 1677 RON
*71 1 1 LOCK LEVER (308555) 1677 RON
501 1 1 WRENCH (938332Z) 2460 RON
*502 1 1 SIDE HANDLE (OLD 954672) (994322) 3690 RON
*502 1 1 SIDE HANDLE (VIBRATION-ABSORBING) (325496) 9730 RON
503 1 1 PLASTIC CARRYING CASE (937828L/323712) (325515) 18230 RON
504 1 1 HEX.BAR WRENCH 4MM (944458) 1229 RON
601 1 1 SUPER WHEEL WASHER (310338) 11967 RON
602 1 1 PLASTIC CARRYING CASE (937828L/323712) (325515) 18230 RON
603 1 1 CUTTING WHEEL GUARD 125 MM WITH BASE (332787) 115538 RON
604 1 1 CUTTING WHEEL GUARD 125 MM W/O BASE (332788) 45968 RON
605 1 1 994325 - Indisponibil
606 1 1 307007 - Indisponibil
607 1 1 994326 - Indisponibil
608 1 1 994327 - Indisponibil
609 1 1 994328 - Indisponibil
610 1 1 994329 - Indisponibil
611 1 1 @ DIAMOND BLADE DSW125U (310392) 10204 RON
