Top » Piese de schimb » PIESE HITACHI » G13VA

G13VA
[G13VA]
G13VA
Click pentru a mari
Imagini suplimentare
G13VA
Click pentru a mari

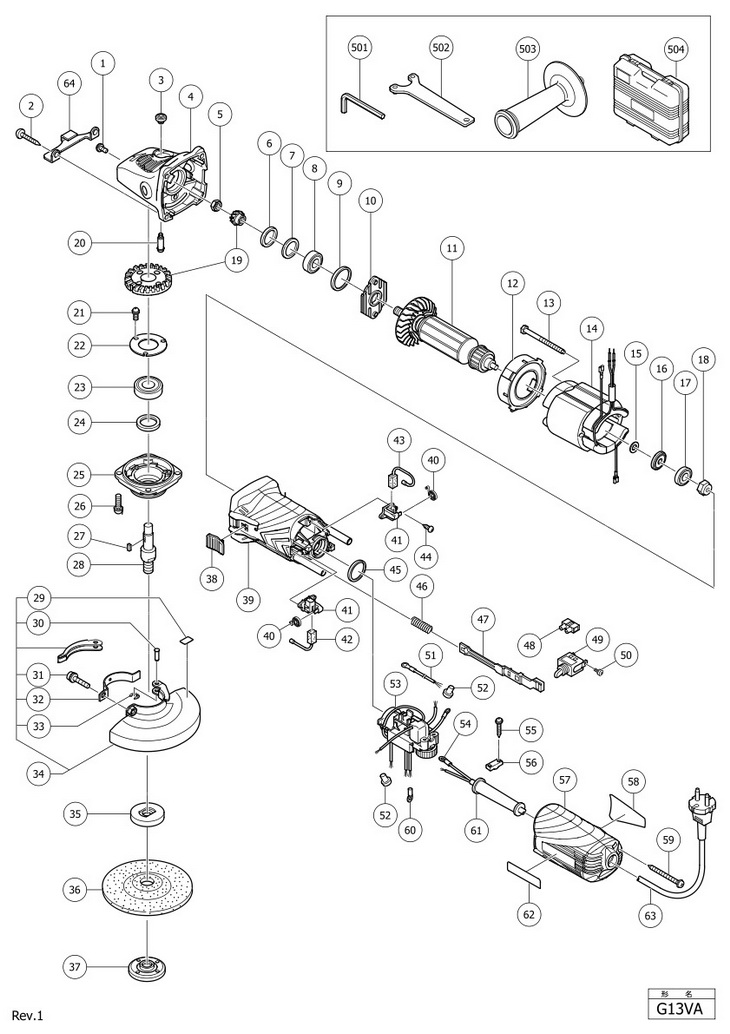

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 2 SEAL LOCK SCREW M4X10 (W/SP WASHER) (303255) 894 RON
2 1 4 TAPPING SCREW D5X25 BLACK (320523) 1788 RON
3 1 1 PUSHING BUTTON (301944) 894 RON
4 1 1 321737 (321737) 19461 RON
5 1 1 NUT M8 (10 PCS) (949558) 1453 RON
6 1 1 SEAL RING (A) (308543) 894 RON
7 1 1 WASHER (C) (980866) 894 RON
8 1 1 BALL BEARING 629T12DDC3PS2-L (629T12) 4137 RON
9 1 1 RUBBER RING (OLD 994299) (957754) 1453 RON
10 1 1 BEARING COVER (321734) 1453 RON
*11 1 1 360869C - Indisponibil
*11 1 1 360869U - Indisponibil
*11 1 1 ARMATURE 230-240 VOLT (360869E) 2848 RON
12 1 1 FAN GUIDE (321732) 1453 RON
13 1 2 HEX.HD. TAPPING SCREW D4X70 (982021) 894 RON
*14 1 1 340749C - Indisponibil
*14 1 1 340749D - Indisponibil
*14 1 1 STATOR 220-240 VOLT (340749E) 15210 RON
15 1 1 THRUST WASHER (311737) 894 RON
16 1 1 DUST SEAL (A) (311435) 894 RON
17 1 1 BALL BEARING 608VVMC2EPS2L (608VVM) 4025 RON
18 1 1 MAGNET (325475) 3690 RON
19 1 1 GEAR AND PINION SET (329054) 12638 RON
20 1 1 LOCK PIN (301943) 2348 RON
21 1 3 SEAL LOCK SCREW M4X8 (W/SP WASHER) (991207) 894 RON
22 1 1 BEARING COVER (B) (936680) 894 RON
23 1 1 BALL BEARING 6201DDUCMAV2S (6201DD) 4361 RON
24 1 1 FELT PACKING (308546) 894 RON
25 1 1 PACKING GLAND (308545) 6151 RON
26 1 4 SEAL LOCK SCREW M5X16 (W/WASHER) (307046) 894 RON
27 1 1 FEATHER KEY 3X3X8 (944109) 2012 RON
*28 1 1 SPINDLE (A) (994301) 956 RON
*28 1 1 SPINDLE (B) (994302) 956 RON
29 1 1 LABEL (311492) 1229 RON
30 1 1 SET PIN (311744) 1229 RON
31 1 1 HEX. SOCKET HD. BOLT M5X20 (W/WASHERS) (316107) 2236 RON
32 1 1 SET PIECE (B) (311491) 3466 RON
33 1 1 RETAINING RING (E-TYPE) FOR D2.5 (874759) 894 RON
34 1 1 311742 (311742) 13421 RON
*35 1 1 WHEEL WASHER (376067) 488 RON
35A 1 1 334456 - Indisponibil
36 1 1 316822 - Indisponibil
*37 1 1 WHEEL NUT M14 NEW OLD 937818Z cod vechi 994324 (339579) 2347 RON
*37 1 1 WHEEL NUT 5/8"-11UNC (937923P) Indisponibil Indisponibil
38 1 1 SLIDE SWITCH KNOB (330810) 1341 RON
39 1 1 HOUSING SET (330808) 5815 RON
40 1 2 SPRING (308536) 2236 RON
41 1 2 CARBON BRUSH HOLDER (308535) 5032 RON
42 1 1 CARBON BRUSH (999088) 382 RON
43 1 1 CARBON BRUSH A.S. TYPE (OLD 999087) (999076) 956 RON
44 1 4 TAPPING SCREW D3X10 (306945) 894 RON
45 1 1 RUBBER RING (OLD 997511) (995662) 894 RON
46 1 1 SPRING (314429) Indisponibil Indisponibil
47 1 1 SLIDE BAR (330811) 1341 RON
48 1 1 PILLAR TERMINAL (OLD 938307Z/512-31870-20)) (938307) 2571 RON
49 1 1 SWITCH (1P SOLDER TYPE) (314603) 3578 RON
50 1 2 MACHINE SCREW (W/WASHER) M3,5X6 (305499) 1229 RON
51 1 1 INTERNAL WIRE (331932) 2460 RON
52 1 2 CONNECTOR 50091 (10 PCS) (OLD 939557) (959140) 2236 RON
*53 1 1 330812 - Indisponibil
*53 1 1 CONTROLLER 220-240 VOLT (330813) 30421 RON
54 1 1 TERMINAL (980063) 1117 RON
55 1 2 TAPPING SCREW D4X16 (W/FLANGE) (984750) 1117 RON
56 1 1 CORD CLIP (OLD 994566) (937631) 894 RON
57 1 1 TAIL COVER (330809) 4137 RON
58 1 1 - Indisponibil
59 1 2 TAPPING SCREW D4X50 (W/FLANGE) BLACK (331933) 1341 RON
60 1 1 TERMINAL (311741) 894 RON
61 1 1 CORD ARMOR D8.8 (953327) Indisponibil Indisponibil
62 1 1 - Indisponibil
*63 1 1 500234Z - Indisponibil
*63 1 1 500247Z - Indisponibil
*63 1 1 500439Z - Indisponibil
*63 1 1 500434Z - Indisponibil
*63 1 1 CORD 2,5M 2 X 1.0 H05VV-F W/PLUG 13A/250V GBR (500435Z) 12638 RON
*63 1 1 CORD 3M 2 X 1,0 H05VV-F W/PLUG 16A CEE FORM 2P+E FOR GBR (500461Z) 13085 RON
*63 1 1 CORD 2,5M 2 X 1.0 H05VV-F (OLD 500395Z) (500447Z) 5480 RON
64 1 1 STOP PIECE (331931) 2795 RON
501 1 1 HEX.BAR WRENCH 4MM (944458) 1229 RON
502 1 1 WRENCH (938332Z) 2460 RON
*503 1 1 SIDE HANDLE (VIBRATION-ABSORBING) (325496) 9730 RON
*503 1 1 SIDE HANDLE (OLD 954672) (994322) 3690 RON
504 1 1 PLASTIC CARRYING CASE (NEW 325515) (323712) 8163 RON
*601 1 1 937825Z - Indisponibil
*601 1 1 @ RUBBER PAD (938317) 7381 RON
*602 1 1 WASHER NUT (937826Z) 5815 RON
*602 1 1 @ WASHER NUT (938318) 6374 RON
603 1 1 314062 - Indisponibil
604 1 1 314063 - Indisponibil
605 1 1 314064 - Indisponibil
606 1 1 314065 - Indisponibil
607 1 1 314066 - Indisponibil
608 1 1 314067 - Indisponibil
609 1 1 314068 - Indisponibil
610 1 1 314069 - Indisponibil
611 1 1 314070 - Indisponibil
612 1 1 314071 - Indisponibil
613 1 1 314072 - Indisponibil
614 1 1 @ WHEEL WASHER (994312) 5927 RON
615 1 1 SUPER WHEEL WASHER (310338) 11967 RON
616 1 1 CUTTING WHEEL GUARD 125 MM WITH BASE (332787) 115538 RON
617 1 1 CUTTING WHEEL GUARD 125 MM W/O BASE (332788) 45968 RON
