Top » Piese de schimb » PIESE HITACHI » G13SR3

G13SR3
[G13SR3]
G13SR3
Click pentru a mari
Imagini suplimentare
G13SR3
Click pentru a mari

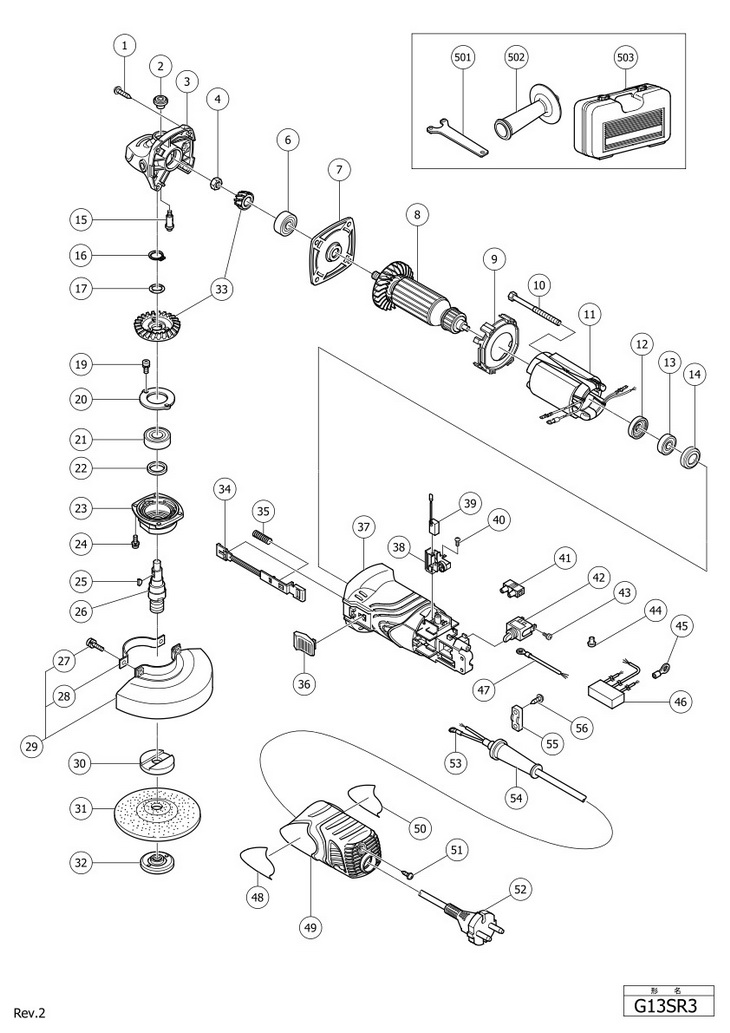

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 4 TAPPING SCREW D4X25 (W/FLANGE) (307028) 1453 RON
2 1 1 PUSHING BUTTON (301944) 894 RON
3 1 1 327891 (327891) 5591 RON
4 1 1 SPECIAL NUT M6 (309191) 1117 RON
6 1 1 BALL BEARING 628VVC2PS-L (628VVC) 4697 RON
7 1 1 BEARING HOLDER (327887) 1453 RON
8 1 1 ARMATURE 220-240 VOLT (360799E) 10624 RON
9 1 1 FAN GUIDE (327886) 1453 RON
10 1 2 HEX.HD. TAPPING SCREW D4X65 (963712) 894 RON
*11 1 1 STATOR 220-230 VOLT (340702E) 8276 RON
*11 1 1 340702F - Indisponibil
12 1 1 DUST SEAL (4966375318422) 1453 RON
13 1 1 BALL BEARING 626VVMC2ERPS2S (626VVM) 3690 RON
14 1 1 RUBBER BUSHING (4966375226161) 894 RON
15 1 1 LOCK PIN (301943) 2348 RON
16 1 1 RETAINING RING FOR D11 SHAFT (316487) 2236 RON
17 1 1 WAVE WASHER (316486) 2236 RON
19 1 2 SEAL LOCK SCREW M4X10 (W/SP WASHER) (987201) 1453 RON
20 1 1 BEARING COVER (316490) 2236 RON
21 1 1 BALL BEARING 6201VVCMPS2S (6201VV) 4249 RON
22 1 1 FELT PACKING (301946) 894 RON
23 1 1 PACKING GLAND COD VECHI 316489 (333838) 4696 RON
24 1 4 MACHINE SCREW (W/SP.WASHER) M4X12 (951039) 1453 RON
25 1 1 WOODRUFF KEY (302047) 1453 RON
26 1 1 SPINDLE (327896) 4025 RON
26A 1 1 334919 - Indisponibil
27 1 2 MACHINE SCREW M5X16 (308386) 1453 RON
28 1 1 SET PLATE (301949) 894 RON
29 1 1 319116 (319116) 956 RON
30 1 1 WHEEL WASHER (376067) 488 RON
31 1 1 316822 - Indisponibil
32 1 1 WHEEL NUT M14 NEW OLD 937818Z cod vechi 994324 (339579) 2347 RON
33 1 1 GEAR ASS?Y (OLD 327889/327890) (327888) 6822 RON
34 1 1 SLIDE BAR (327893) Indisponibil Indisponibil
35 1 1 SPRING (314429) Indisponibil Indisponibil
36 1 1 SLIDE KNOB (314428) 1117 RON
37 1 1 327885 (327885) 5032 RON
38 1 2 BRUSH HOLDER ASS?Y (327895) Indisponibil Indisponibil
*39 1 2 CARBON BRUSH (1 PAIR) (999005) 3466 RON
40 1 4 TAPPING SCREW D3X8 (328210) 1453 RON
41 1 1 PILLAR TERMINAL (OLD 938307Z/512-31870-20)) (938307) 2571 RON
42 1 1 SWITCH (1P SOLDER TYPE) (314603) 3578 RON
43 1 2 MACHINE SCREW (W/WASHER) M3,5X6 (305499) 1229 RON
44 1 1 CONNECTOR 50091 (10 PCS) (OLD 939557) (959140) 2236 RON
45 1 1 TERMINAL (980063) 1117 RON
46 1 1 NOISE SUPPRESSOR (994273) Indisponibil Indisponibil
47 1 1 INTERNAL WIRE (328509) 1453 RON
48 1 1 - Indisponibil
49 1 1 TAIL COVER (327894) 5368 RON
50 1 1 - Indisponibil
51 1 1 TAPPING SCREW D4X16 (W/FLANGE) (BLACK) (307811) 894 RON
*52 1 1 500409Z - Indisponibil
*52 1 1 @ CORD 2,5M 2 X 1.0 H05VV-F W/PLUG 13A/250V (OLD 500223Z) (500423Z) 12862 RON
*52 1 1 500439Z - Indisponibil
*52 1 1 CORD 2,5M 2 X 1.0 H05VV-F (OLD 500395Z) (500447Z) 5480 RON
*52 1 1 500468Z - Indisponibil
53 1 1 TERMINAL (980063) 1117 RON
54 1 1 CORD ARMOR D8.8 (953327) Indisponibil Indisponibil
55 1 1 CORD CLIP (OLD 994566) (937631) 894 RON
56 1 2 TAPPING SCREW D4X16 (W/FLANGE) (984750) 1117 RON
501 1 1 WRENCH (938332Z) 2460 RON
502 1 1 SIDE HANDLE (318312) Indisponibil Indisponibil
503 1 1 PLASTIC CARRYING CASE G10SR3, G12SR3 & G13SR3 (319375) 12414 RON
601 1 1 314062 - Indisponibil
602 1 1 314063 - Indisponibil
603 1 1 314064 - Indisponibil
604 1 1 314065 - Indisponibil
605 1 1 314066 - Indisponibil
606 1 1 314067 - Indisponibil
607 1 1 314068 - Indisponibil
608 1 1 314069 - Indisponibil
609 1 1 314070 - Indisponibil
610 1 1 314071 - Indisponibil
611 1 1 314072 - Indisponibil
612 1 1 WASHER NUT (937826Z) 5815 RON
613 1 1 937825Z - Indisponibil
614 1 1 333840 - Indisponibil

Puteti cumpara G13SR3 in urmatoarele variante:
Hitachi G13SR3
