Top » Piese de schimb » PIESE HITACHI » G10SR2

G10SR2
[G10SR2]
G10SR2
Click pentru a mari
Imagini suplimentare
G10SR2
Click pentru a mari

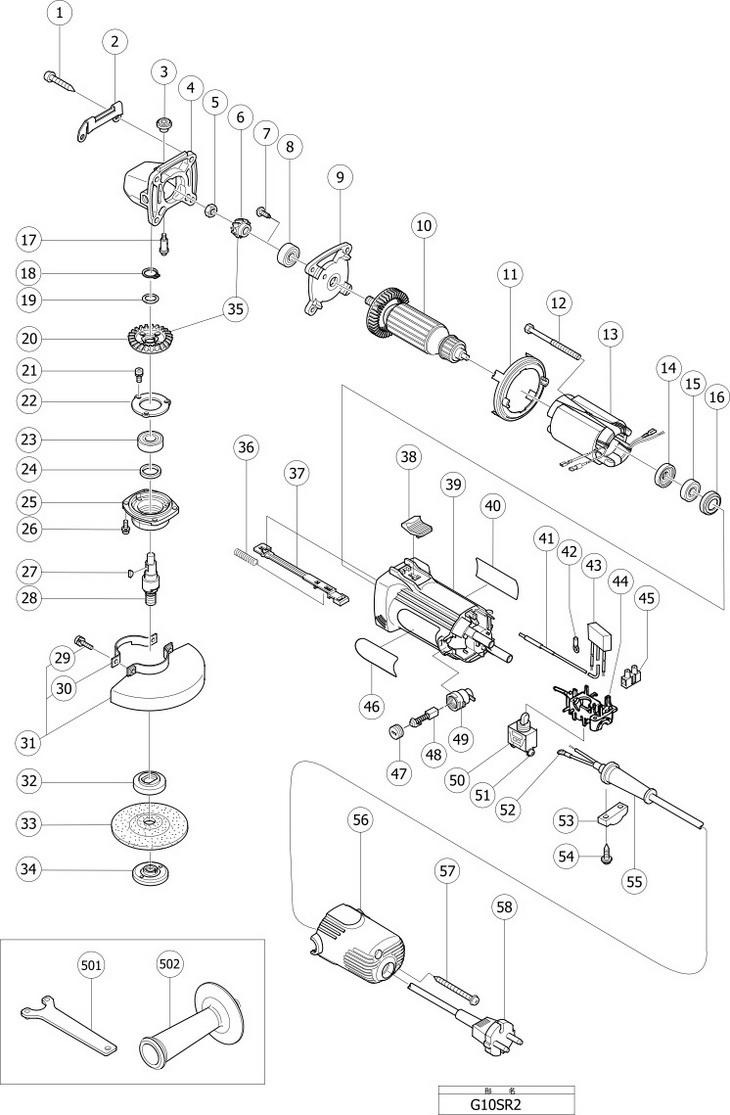

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 4 TAPPING SCREW D5X25 BLACK (320523) 1788 RON
2 1 1 GUARD PLATE (302149) 2236 RON
3 1 1 PUSHING BUTTON (301944) 894 RON
4 1 1 314125 (314125) 8388 RON
5 1 1 SPECIAL NUT M6 (309191) 1117 RON
6 1 1 PINION (321724) 4025 RON
7 1 2 SLOTTED HD.SCREW SEAL LOCK M4X10 (OLD 301936) (314430) 1453 RON
8 1 1 BALL BEARING 608VVMC2EPS2L (608VVM) 4025 RON
9 1 1 INNER COVER (301935) 2795 RON
*10 1 1 ARMATURE 110 VOLT (360605C) 23486 RON
*10 1 1 360605U - Indisponibil
*10 1 1 360605E (360605E) 19572 RON
11 1 1 FAN GUIDE (306840) 1677 RON
12 1 2 HEX.HD. TAPPING SCREW D4X65 (963712) 894 RON
*13 1 1 340552C (340552C) 9282 RON
*13 1 1 340552D - Indisponibil
*13 1 1 340552E (340552E) 11296 RON
*13 1 1 340552F - Indisponibil
14 1 1 DUST SEAL (4966375318422) 1453 RON
15 1 1 BALL BEARING 626VVMC2ERPS2S (626VVM) 3690 RON
16 1 1 RUBBER BUSHING (4966375226161) 894 RON
17 1 1 LOCK PIN (301943) 2348 RON
18 1 1 RETAINING RING FOR D11 SHAFT (316487) 2236 RON
19 1 1 WAVE WASHER (316486) 2236 RON
20 1 1 GEAR (321725) Indisponibil Indisponibil
21 1 3 SEAL LOCK SCREW M4X10 (W/SP WASHER) (987201) 1453 RON
22 1 1 BEARING COVER (B) (938058) 894 RON
23 1 1 BALL BEARING 6001VVCMPS2L (6001VV) 4361 RON
24 1 1 FELT PACKING (301946) 894 RON
25 1 1 PACKING GLAND (301947) Indisponibil Indisponibil
26 1 4 SEAL LOCK SCREW M4X12 (W/SP WASHER) (987203) 1453 RON
27 1 1 WOODRUFF KEY (302047) 1453 RON
*28 1 1 SPINDLE (321727) 4025 RON
*28 1 1 321728 - Indisponibil
29 1 2 MACHINE SCREW M5X16 (308386) 1453 RON
30 1 1 SET PLATE (301949) 894 RON
31 1 1 301948 (301948) 3914 RON
*32 1 1 WHEEL WASHER (320497) 3914 RON
*32 1 1 WHEEL WASHER (937834Z) 9059 RON
33 1 1 316820 - Indisponibil
*34 1 1 WHEEL NUT (C) (321795) 2795 RON
*34 1 1 312048 - Indisponibil
35 1 1 321723 (321723) Indisponibil Indisponibil
36 1 1 SPRING (314429) Indisponibil Indisponibil
37 1 1 SLIDE BAR (314427) 1117 RON
38 1 1 SLIDE KNOB (314428) 1117 RON
39 1 1 321721 (321721) 6374 RON
40 1 1 - Indisponibil
41 1 1 EARTH TERMINAL (314854) 1453 RON
42 1 1 TERMINAL (980063) 1117 RON
43 1 1 NOISE SUPPRESSOR (994273) Indisponibil Indisponibil
44 1 1 SWITCH HOLDER (314432) 1788 RON
45 1 1 PILLAR TERMINAL (OLD 938307Z/512-31870-20)) (938307) 2571 RON
46 1 1 - Indisponibil
47 1 2 BRUSH CAP (936551) 1229 RON
48 1 2 CARBON BRUSH (1 PAIR) (999021) 382 RON
49 1 2 BRUSH HOLDER (313777) 2012 RON
50 1 1 SWITCH (1P SOLDER TYPE) (314603) 3578 RON
51 1 2 MACHINE SCREW (W/WASHER) M3,5X6 (305499) 1229 RON
52 1 1 TERMINAL (980063) 1117 RON
53 1 1 CORD CLIP (OLD 994566) (937631) 894 RON
54 1 2 TAPPING SCREW D4X16 (W/FLANGE) (984750) 1117 RON
55 1 1 CORD ARMOR D8.8 (953327) Indisponibil Indisponibil
56 1 1 TAIL COVER (321726) 4585 RON
57 1 2 TAPPING SCREW D4X45 (W/FLANGE) (301815) 1453 RON
58 1 1 500470Z - Indisponibil
*58 1 1 500409Z - Indisponibil
*58 1 1 500439Z - Indisponibil
*58 1 1 CORD 3M 2 X 1,0 H05VV-F W/PLUG 16A CEE FORM 2P+E FOR GBR (500461Z) 13085 RON
*58 1 1 CORD 2,5M 2 X 1.0 H05VV-F W/PLUG 13A/250V GBR (500435Z) 12638 RON
*58 1 1 CORD FOR USA/CAN (500240Z) 6486 RON
501 1 1 WRENCH (OLD 936522) (313933) 5032 RON
*502 1 1 SIDE HANDLE (OLD 956633) (302142) 4249 RON
*502 1 1 SIDE HANDLE (318312) Indisponibil Indisponibil
601 1 1 314051 - Indisponibil
602 1 1 314052 - Indisponibil
603 1 1 314053 - Indisponibil
604 1 1 314054 - Indisponibil
605 1 1 @SANDING DISCS 100MM CP36 (10 PCS) (OLD 939004) (314055) 10289 RON
606 1 1 314056 - Indisponibil
607 1 1 314057 - Indisponibil
608 1 1 314058 - Indisponibil
609 1 1 @SANDING DISCS 100MM CP80 (10 PCS) (OLD 939008) (314059) 9059 RON
610 1 1 314060 - Indisponibil
611 1 1 314061 - Indisponibil
*612 1 1 WASHER NUT (935513) 3578 RON
*612 1 1 313173 - Indisponibil
613 1 1 @ WASHER (936548) 3578 RON
614 1 1 RUBBER PAD 100MM (936558Z) 5815 RON
615 1 1 @ GUIDE BASE (302098) 5815 RON
616A 1 1 DUST COLLECTION ADAPTER DISC GRINDER (OLD 986381) (323918) 20691 RON
