Top » Piese de schimb » PIESE HITACHI » G10SF2

G10SF2
[G10SF2]
G10SF2
Click pentru a mari
Imagini suplimentare
G10SF2
Click pentru a mari

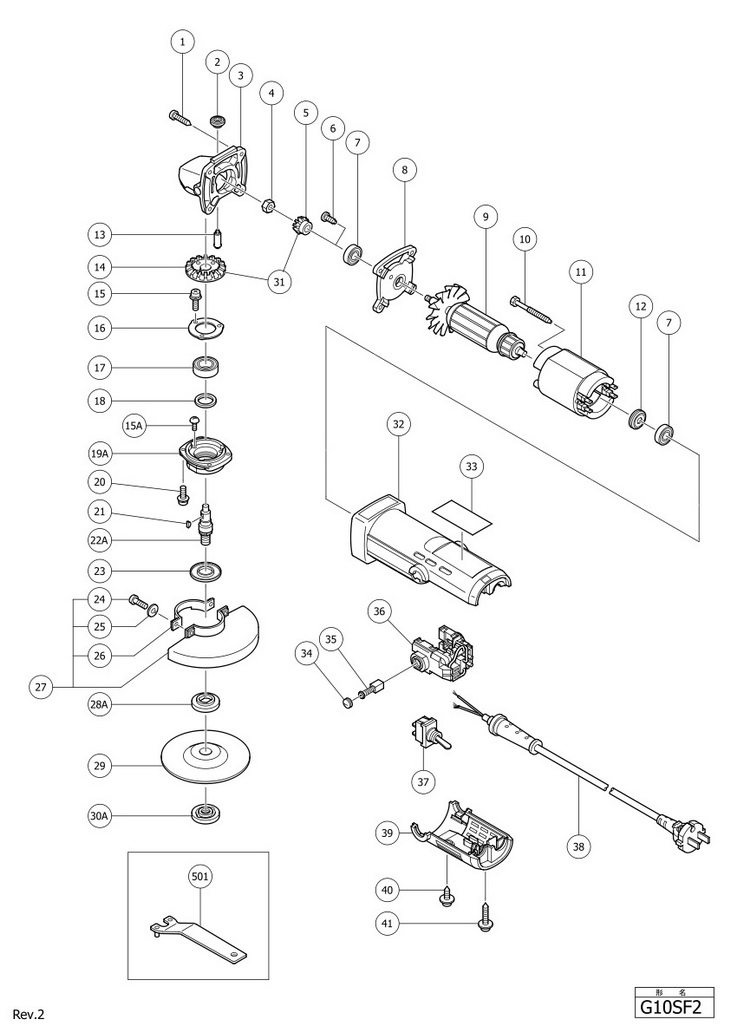

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 4 937807 - Indisponibil
2 1 1 PUSHING BUTTON (301944) 894 RON
3 1 1 303078 (303078) 6374 RON
4 1 1 SPECIAL NUT M7 (301941) 894 RON
5 1 1 PINION (301939) 10513 RON
6 1 2 301936 - Indisponibil
7 1 2 BALL BEARING 608VVMC2EPS2L (608VVM) 4025 RON
8 1 1 INNER COVER (301935) 2795 RON
9 1 1 360464E - Indisponibil
10 1 2 HEX.HD. TAPPING SCREW D4X65 (963712) 894 RON
11 1 1 STATOR 220-230 VOLT (OLD 340167G) (340428E) 9842 RON
12 1 1 DUST SEAL (315877) 1453 RON
13 1 1 LOCK PIN (301943) 2348 RON
14 1 1 GEAR (301940) 13197 RON
15 1 3 SEAL LOCK SCREW M4X10 (W/SP WASHER) (997263) 1453 RON
15A 1 3 SLOTTED HD.SCREW SEAL LOCK M4X8 (323556) 1341 RON
16 1 1 BEARING COVER (B) (938058) 894 RON
17 1 1 BALL BEARING 6001VVCMPS2L (6001VV) 4361 RON
18 1 1 FELT PACKING (301946) 894 RON
19A 1 1 PACKING GLAND (328198) 3019 RON
20 1 4 SEAL LOCK SCREW M4X12 (W/SP WASHER) (307127) 1453 RON
21 1 1 WOODRUFF KEY 2.5X8 (940220) 1788 RON
22A 1 1 SPINDLE (302046) 5815 RON
23 1 1 FRINGER (301945) 1453 RON
24 1 2 MACHINE SCREW M5X16 (10 PCS) (949239) 1453 RON
25 1 2 SPRING WASHER M5 (10 PCS) (949454) 1117 RON
26 1 1 SET PLATE (301949) 894 RON
27 1 1 301948 (301948) 3914 RON
28A 1 1 WHEEL WASHER (320497) 3914 RON
29 1 1 316820 - Indisponibil
30A 1 1 WHEEL NUT (C) (321795) 2795 RON
31 1 1 301938 (301938) 22592 RON
32 1 1 315876 - Indisponibil
33 1 1 - Indisponibil
34 1 2 BRUSH CAP (936551) 1229 RON
35 1 2 CARBON BRUSH (1 PAIR) (999021) 382 RON
36 1 1 315880 - Indisponibil
37 1 1 SNAP SWITCH (303082) 5815 RON
38 1 1 315879 - Indisponibil
39 1 1 303080 - Indisponibil
40 1 1 TAPPING SCREW D4X16 (W/FLANGE) (BLACK) (307811) 894 RON
41 1 1 TAPPING SCREW D4X12 (W/FLANGE) (309470) 894 RON
501 1 1 WRENCH (OLD 936522) (313933) 5032 RON
