Top » Piese de schimb » PIESE HITACHI » G10SD2

G10SD2
[G10SD2]
G10SD2
Click pentru a mari
Imagini suplimentare
G10SD2
Click pentru a mari

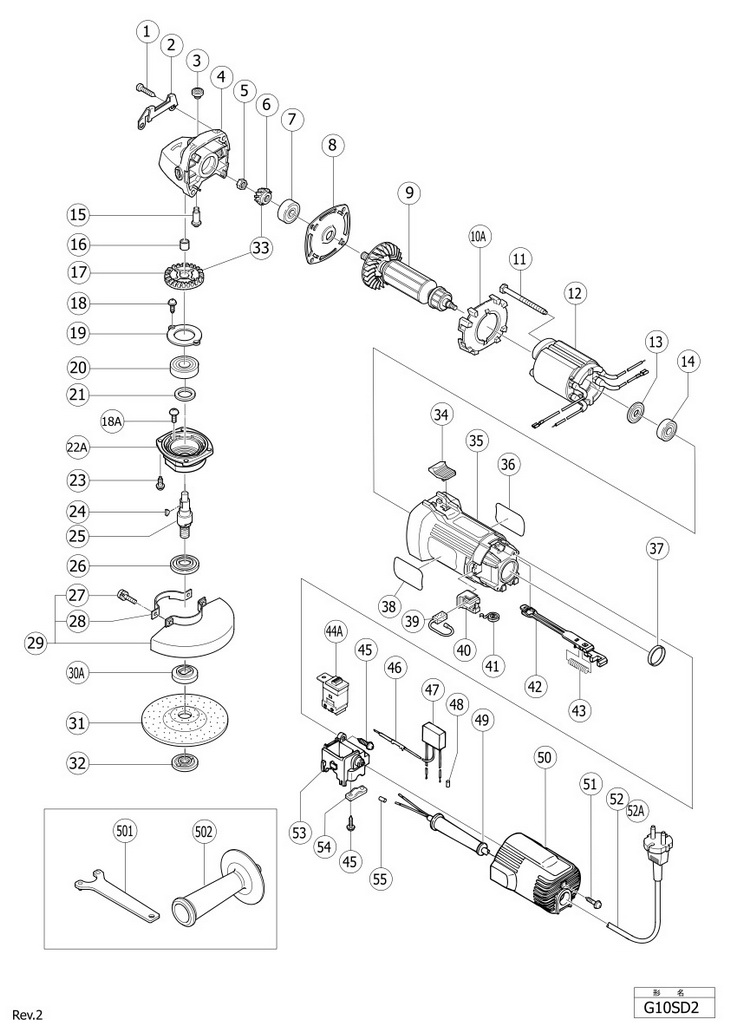

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 4 937807 - Indisponibil
2 1 1 GUARD PLATE (317807) 1341 RON
3 1 1 PUSHING BUTTON (301944) 894 RON
4 1 1 316484 (316484) 1232 RON
5 1 1 SPECIAL NUT M7 (301941) 894 RON
6 1 1 PINION (317820) 12638 RON
7 1 1 BALL BEARING 628VVC2PS-L (628VVC) 4697 RON
8 1 1 BEARING HOLDER (316480) 2460 RON
*9 1 1 ARMATURE 110 VOLT (360497C) 15769 RON
*9 1 1 ARMATURE 220-230 VOLT (360497E) 17335 RON
*9 1 1 ARMATURE 230-240 VOLT (360497F) 17335 RON
10A 1 1 FAN GUIDE (319898) 1341 RON
11 1 2 HEX.HD. TAPPING SCREW D4X70 (982021) 894 RON
*12 1 1 STATOR (A) 110V (340441C) 7940 RON
*12 1 1 STATOR (A) 220V-230V (340441E) 9730 RON
*12 1 1 STATOR (A) 240V (340441F) 9730 RON
13 1 1 DUST SEAL (315877) 1453 RON
14 1 1 BALL BEARING 608VVMC2EPS2L (608VVM) 4025 RON
15 1 1 LOCK PIN (301943) 2348 RON
16 1 1 NEEDLE BEARING (HK0709) (673422) Indisponibil Indisponibil
17 1 1 GEAR (317821) 13197 RON
18 1 2 SEAL LOCK SCREW M4X10 (W/SP WASHER) (997263) 1453 RON
18A 1 2 SLOTTED HD.SCREW SEAL LOCK M4X8 (323556) 1341 RON
19 1 1 BEARING COVER (316490) 2236 RON
20 1 1 BALL BEARING 6201DDUCMAV2S (6201DD) 4361 RON
21 1 1 FELT PACKING (301946) 894 RON
22A 1 1 333838 - Indisponibil
23 1 4 SEAL LOCK SCREW M4X12 (W/SP WASHER) (307127) 1453 RON
24 1 1 WOODRUFF KEY (302047) 1453 RON
25 1 1 @ SPINDLE (317822) 6710 RON
26 1 1 FRINGER (301945) 1453 RON
27 1 2 MACHINE SCREW M5X16 (308386) 1453 RON
28 1 1 SET PLATE (301949) 894 RON
29 1 1 301948 (301948) 3914 RON
30A 1 1 WHEEL WASHER (320497) 3914 RON
31 1 1 316820 - Indisponibil
32 1 1 WHEEL NUT (C) (321795) 2795 RON
33 1 1 317819 (317819) 22033 RON
34 1 1 SLIDE KNOB (314428) 1117 RON
35 1 1 HOUSING (317802) 765 RON
36 1 1 - Indisponibil
37 1 1 RUBBER RING (OLD 997511) (995662) 894 RON
38 1 1 - Indisponibil
39 1 2 CARBON BRUSH (999088) 382 RON
40 1 2 BRUSH HOLDER (317810) 4025 RON
41 1 2 SPRING (308536) 2236 RON
42 1 1 SLIDE BAR (317806) 1341 RON
43 1 1 SPRING (314429) Indisponibil Indisponibil
44A 1 1 321208 - Indisponibil
45 1 3 TAPPING SCREW D4X16 (W/FLANGE) (984750) 1117 RON
46 1 1 EARTH TERMINAL (314854) 1453 RON
47 1 1 NOISE SUPPRESSOR (994273) Indisponibil Indisponibil
48 1 2 TUBE (D) (981373) 1341 RON
49 1 1 CORD ARMOR D8.8 (953327) Indisponibil Indisponibil
50 1 1 TAIL COVER (317808) 4585 RON
51 1 1 TAPPING SCREW D4X16 (W/FLANGE) (BLACK) (307811) 894 RON
*52 1 1 500455Z - Indisponibil
*52 1 1 500409Z - Indisponibil
*52 1 1 500237Z - Indisponibil
*52 1 1 500439Z - Indisponibil
*52 1 1 @ CORD 2,5M 2 X 1.0 H05VV-F W/PLUG 13A/250V (OLD 500223Z) (500423Z) 12862 RON
52A 1 1 CORD 3M 2 X 1,0 H05VV-F W/PLUG 16A CEE FORM 2P+E FOR GBR (500461Z) 13085 RON
53 1 1 SWITCH HOLDER (317811) 2460 RON
54 1 1 CORD CLIP (OLD 994566) (937631) 894 RON
55 1 2 TUBE (D) (981373) 1341 RON
501 1 1 WRENCH (OLD 936522) (313933) 5032 RON
502 1 1 SIDE HANDLE (OLD 956633) (302142) 4249 RON
601 1 1 RUBBER PAD 100MM (936558Z) 5815 RON
602 1 1 WASHER NUT (935513) 3578 RON
603 1 1 @ WASHER (936548) 3578 RON
604 1 1 314051 - Indisponibil
605 1 1 314052 - Indisponibil
606 1 1 314053 - Indisponibil
607 1 1 314054 - Indisponibil
608 1 1 @SANDING DISCS 100MM CP36 (10 PCS) (OLD 939004) (314055) 10289 RON
609 1 1 314056 - Indisponibil
610 1 1 314057 - Indisponibil
611 1 1 314058 - Indisponibil
612 1 1 @SANDING DISCS 100MM CP80 (10 PCS) (OLD 939008) (314059) 9059 RON
613 1 1 314060 - Indisponibil
614 1 1 314061 - Indisponibil
615 1 1 @ GUIDE BASE (302098) 5815 RON
616A 1 1 DUST COLLECTION ADAPTER DISC GRINDER (OLD 986381) (323918) 20691 RON
617A 1 1 PLASTIC CARRYING CASE (937828L/323712) (325515) 18230 RON
