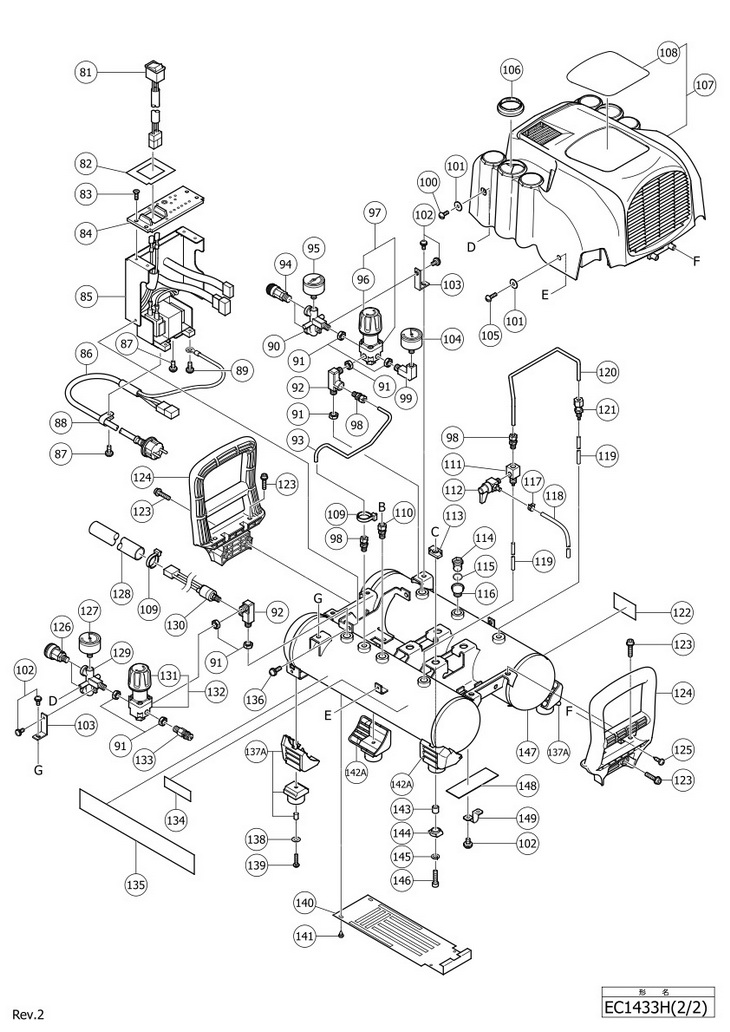

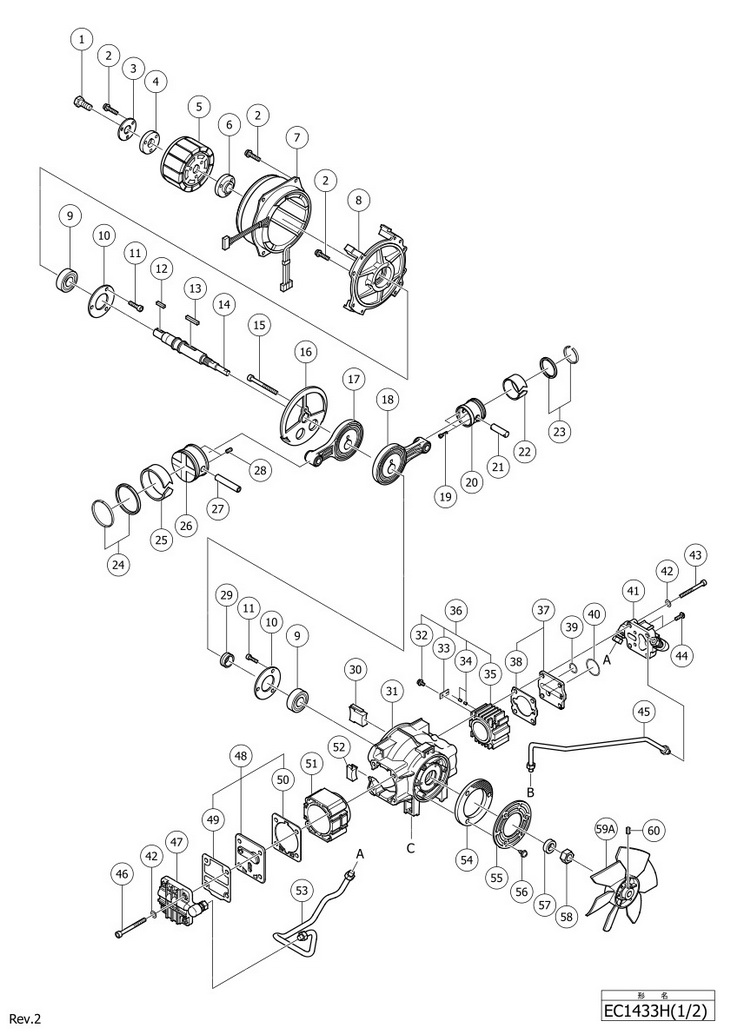

Top » Piese de schimb » PIESE HITACHI » EC1433H EC1433H [EC1433H] Click pentru a mari Imagini suplimentare Click pentru a mari Click pentru a mari LISTA DE COMPONENTE: Numar Versiune Buc. in schema Denumire Pret/buc (Tva inclus) Cumpara 1 1 1 BOLT M8X16 (10 PCS) (OLD 949622Z) (949622) 2236 RON 2 1 13 HEX.SOCKET HD.BOLT M6X22 (971392) 1453 RON 3 1 1 ROTOR COVER (886800) 3242 RON 4 1 1 ROTOR FLANGE (B) (886799) 5368 RON 5 1 1 ROTOR (887742) 45968 RON 6 1 1 ROTOR FLANGE (A) (886798) 9282 RON 7 1 1 STATOR 220-230 VOLT (340787E) 18517 RON 8 1 1 STATOR HOLDER (887236) 18789 RON 9 1 2 6204LL - Indisponibil 10 1 2 BEARING COVER (886784) 3242 RON 11 1 6 SEAL LOCK HEX. SOCKET HD. BOLT M5X16 (990079) 1453 RON 12 1 1 FEATHER KEY 5X5X20 (886797) 2236 RON 13 1 1 KEY 5X5X32 (887283) 2236 RON 14 1 1 SHAFT (887253) 18230 RON 15 1 1 SEAL LOCK HEX. SOCKET HD. BOLT M6X35 (324056) 2236 RON 16 1 1 FLY WHEEL (887245) 5815 RON 17 1 1 CONNECTING ROD (L) (887238) 49323 RON 18 1 1 CONNECTING ROD (H) (887237) 45968 RON 19 1 2 HEX. SOCKET HD. BOLT M3 (886781) 3242 RON 20 1 1 PISTON (H) (887241) 14092 RON 21 1 1 PISTON PIN (H) (887255) 573 RON 22 1 1 CYLINDER PLATE (886835) 4025 RON 23 1 1 PISTON RING (H) SET (887603) 13756 RON 24 1 1 PISTON RING (L) SET (887602) 20691 RON 25 1 1 RIDER RING (887266) 18789 RON 26 1 1 PISTON (L) (887242) 11519 RON 27 1 1 PISTON PIN (L) (887254) 4025 RON 28 1 2 HEX.SOCKET SCREW M4X8 (963383) 1453 RON 29 1 1 SPACER (D) (887256) 4025 RON 30 1 1 BUSHING (H) (887250) 3242 RON 31 1 1 CRANK CASE (887235) 32323 RON 32 1 1 HEX.SOCKET HD.BOLT (W/FLANGE) M4X6 (305735) 894 RON 33 1 1 CYLINDER COVER (887592) 2236 RON 34 1 2 FILTER (A) (887593) 2236 RON 35 1 1 CYLINDER (H) (887249) 35790 RON 36 1 1 887607 (887607) 40823 RON 38 1 1 PACKING (H1) (886821) 8388 RON 39 1 1 O-RING (A) (887275) 3242 RON 40 1 1 O-RING (B) (887276) 4025 RON 41 1 1 CYLINDER HEAD (H) (887606) 28967 RON 42 1 8 WASHER M8 (10 PCS) (949426) 1453 RON 43 1 4 HEX. SOCKET HD. BOLT M8X85 (887028) 3242 RON 44 1 2 MACHINE SCREW (W/SP.WASHER) M4X12 (951039) 1453 RON 45 1 1 PIPE (B) (887609) 14875 RON 46 1 4 HEX. SOCKET HD. BOLT M8X80 (887599) 3242 RON 47 1 1 CYLINDER HEAD (L) (887605) 25612 RON 48 1 1 886819 (886819) 52679 RON 49 1 1 PACKING (L2) (886816) 4025 RON 50 1 1 PACKING (L1) (886815) 3242 RON 51 1 1 CYLINDER (L) (887591) 45968 RON 52 1 1 BUSHING (L) (887251) 3242 RON 53 1 1 PIPE (A) (887608) 15434 RON 54 1 1 FILTER (886785) 5368 RON 55 1 1 FILTER COVER (886786) 3242 RON 56 1 3 TAP TIGHT M4 (W/BOLT WASHER) (887015) 2236 RON 57 1 1 SPACER (C) (886790) 4025 RON 58 1 1 NUT M16 (LEFT HAND) (886791) 2236 RON 59A 1 1 887925 - Indisponibil 60 1 1 HEX.SOCKET SCREW M6X8 (958257) 1453 RON 81 1 1 887578 (887578) 7269 RON 82 1 1 OPERATION PANEL SHEET (887743) 3242 RON 83 1 4 FLAT HD.SCREW M4X12 (10 PCS) (949323) 1453 RON 84 1 1 CONTROL PANEL HOLDER (886745) 3242 RON 85 1 1 CONTROL BOX (887582) 258033 RON *86 1 1 887579 (887579) 25612 RON *86 1 1 887580 (887580) 27289 RON 87 1 2 SCREW M5X16 (W/WASHERS) BLACK (887021) 2236 RON 88 1 1 NYLON CLIP (886748) 2236 RON 89 1 1 MACHINE SCREW M5 (W/WASHERS) (887744) 4025 RON 90 1 1 SOCKET HOLDER (A) (887279) 17559 RON 91 1 8 G 1/4 NUT (887274) 2236 RON 92 1 2 SENSOR HOLDER (887247) 18678 RON 93 1 1 PIPE (D) (887262) 6151 RON 94 1 2 AIR SOCKET (EURO) (887745) 20691 RON 95 1 1 PRESSURE GAUGE (A) EUROPE (887575) 22592 RON 96 1 1 REGULATOR HANDLE (GRAY) (887468) 6151 RON 97 1 1 887268 (887268) 54469 RON 98 1 3 FITTING CONNECTOR (IN.) (887277) 4025 RON 99 1 1 FITTING ELBOW (E) (887248) 9282 RON 100 1 2 TRUSS HD. SCREW M4X8 BLACK (887017) 2236 RON 101 1 4 WASHER (875246) 894 RON 102 1 6 MACHINE SCREW M4X12 (W/WASHERS) BLACK (935196) 1453 RON 103 1 2 FRAME (DG) (887594) 2236 RON 104 1 1 PRESSURE GAUGE (C) EUROPE (887577) 22592 RON 105 1 2 TRUSS HD. SCREW M4X12 BLACK (887018) 2236 RON 106 1 2 RUBBER COVER (887001) 3242 RON 107 1 1 887748 (887748) 35790 RON 108 1 1 - Indisponibil 109 1 2 @WIRE BAND (310480) 1453 RON 110 1 1 FITTING CONNECTOR (IN.) (887278) 5368 RON 111 1 1 FITTING DRAIN (B) (887282) 5368 RON 112 1 1 BALL VALVES (887595) 1700 RON 113 1 4 MOUNT RUBBER (A) (886794) 2236 RON 114 1 1 PLUG (A) (887321) 3242 RON 115 1 1 O-RING (A) (306326) 297 RON 116 1 1 FITTING ELBOW (C) (887320) 6933 RON 117 1 1 HOSE BAND NEW JULY (887023) 2236 RON 118 1 1 TUBE (A) (887007) 573 RON 119 1 2 TUBE (886763) 5368 RON 120 1 1 PIPE (C) (887261) 6151 RON 121 1 1 FITTING DRAIN (A) (IN.) (887281) 5368 RON 122 1 1 - Indisponibil 123 1 8 HEX.SOCKET HD BOLT M6X25 (878854) 1453 RON 124 1 2 HANDLE (886809) 6933 RON 125 1 4 TAPPING SCREW D4X16 (W/FLANGE) (BLACK) (307811) 894 RON 126 1 2 AIR SOCKET (B) (886758) 23934 RON 127 1 1 PRESSURE GAUGE (B) EUROPE (887576) 22592 RON 128 1 1 VINYL TUBE (887746) 12526 RON 129 1 1 SOCKET HOLDER (B) (887280) 17559 RON 130 1 1 PRESSURE SWITCH (887747) 66324 RON 131 1 1 REGULATOR HANDLE (RED) (887469) 6151 RON 132 1 1 REGULATOR (B) (887269) 66324 RON 133 1 1 RELIEF VALVE (887267) 28967 RON 134 1 1 - Indisponibil 135 1 1 - Indisponibil 136 1 2 MACHINE SCREW M5X12 BLACK (996247) 1453 RON 137A 1 2 RUBBER FOOT SET (887540) 12526 RON 138 1 4 WASHER (998987) 1453 RON 139 1 4 MACHINE SCREW M5X22 (W/SP.WASHER) (887596) 2236 RON 140 1 1 UNDER COVER (887252) 8388 RON 141 1 4 TAP TIGHT M4 (W/BOLT WASHER) (887015) 2236 RON 142A 1 2 RUBBER FOOT SET (887539) 12526 RON 143 1 4 COLLAR (886795) 3242 RON 144 1 4 MOUNT RUBBER (B) (886772) 2236 RON 145 1 4 BOLT WASHER M5 (10 PCS) (OLD 949431Z) (949431) 1453 RON 146 1 4 SEAL LOCK HEX. SOCKET HD. BOLT M8 (886796) 2236 RON 147 1 1 AIR TANK (887246) 264855 RON 148 1 1 RUBBER SHEET (886747) 4025 RON 149 1 1 CORD CLIP (887013) 3242 RON
