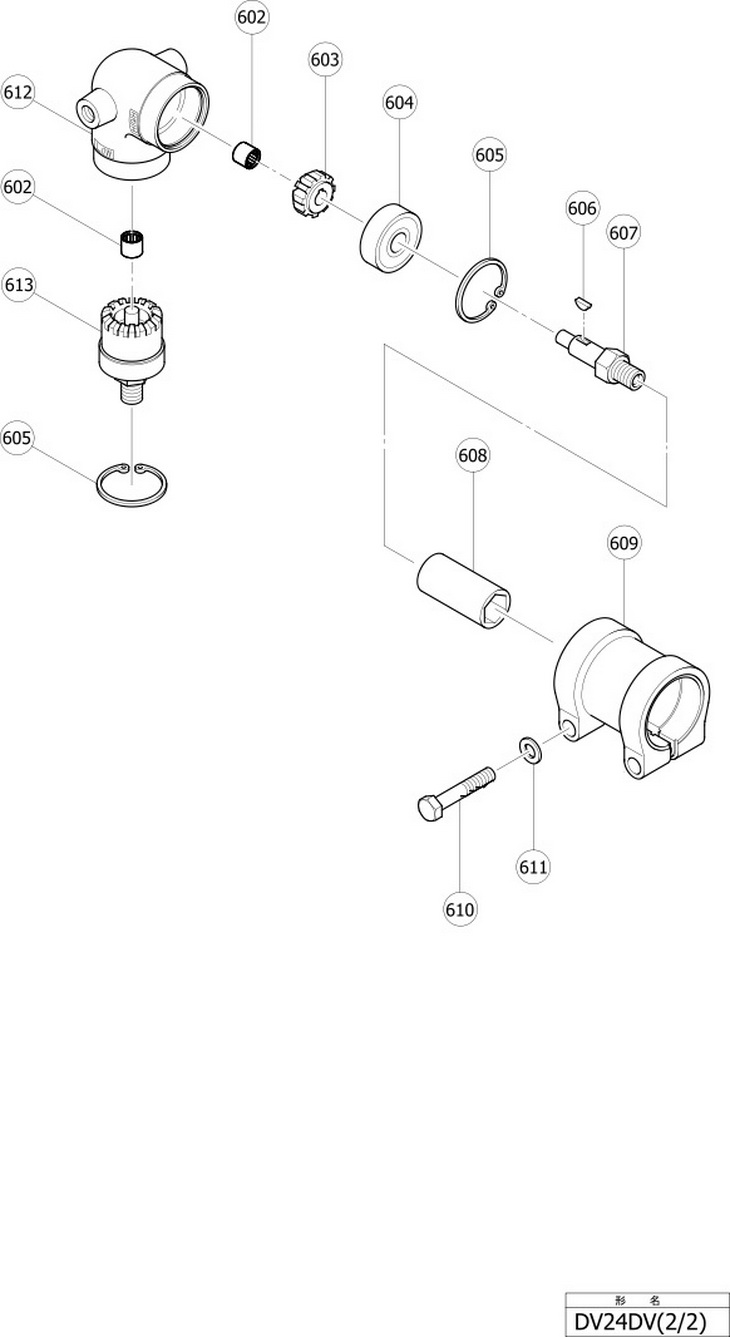

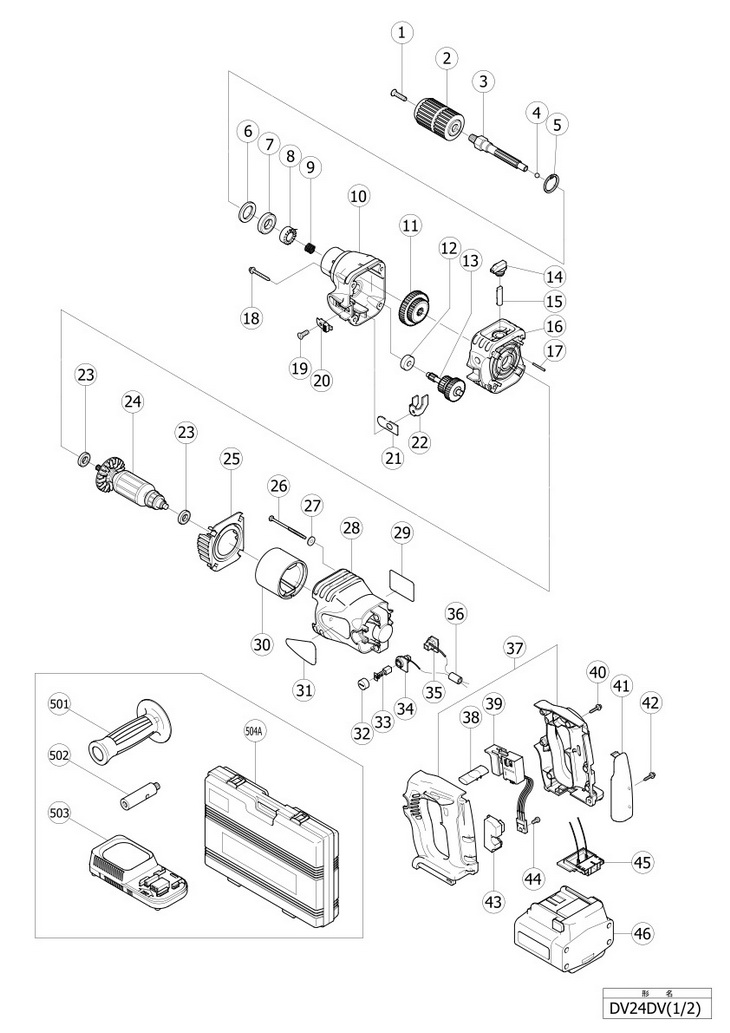

Top » Piese de schimb » PIESE HITACHI » DV24DV DV24DV [DV24DV] Click pentru a mari Imagini suplimentare Click pentru a mari Click pentru a mari LISTA DE COMPONENTE: Numar Versiune Buc. in schema Denumire Pret/buc (Tva inclus) Cumpara 1 1 1 995344 - Indisponibil 2 1 1 315966 - Indisponibil 3 1 1 SPINDLE (319792) 15098 RON 4 1 1 STEEL BALL D6.35 (10 PCS) (959150) 1788 RON 5 1 1 RETAINING RING D32 HOLE (948001) 1453 RON 6 1 1 @WASHER (319794) 2236 RON 7 1 1 BALL BEARING 6002VVCMPS2L (6002VV) 4920 RON 8 1 1 RATCHET (A) (319795) 4025 RON 9 1 1 SPRING (A) (OLD 984101Z) (984101) 894 RON 10 1 1 @GEAR COVER (319793) 18789 RON 11 1 1 GEAR (319796) 12862 RON 12 1 1 METAL (935522) 2460 RON 13 1 1 SECOND PINION (319797) 15322 RON 14 1 1 CHANGE LEVER (319801) 3019 RON 15 1 1 CHANGE SHAFT (319802) 4025 RON 16 1 1 INNER COVER (319787) 2550 RON 17 1 1 NEEDLE D2.5X25.8 (316271) 1453 RON 18 1 4 TAPPING SCREW D5X65 W/FLANGE (319803) 2236 RON 19 1 1 SEAL LOCK FL.HD.SCREW M4X14 BLACK (319955) 2236 RON 20 1 1 SHIFT PLATE (319799) 4025 RON 21 1 1 SEAL PLATE (319800) 3242 RON 22 1 1 SHIFT ARM (319798) 3019 RON 23 1 2 BALL BEARING 608VVMC2EPS2L (608VVM) 4025 RON 24 1 1 360553 (360553) 29750 RON 25 1 1 @ FAN GUIDE (319788) 3242 RON 26 1 2 HEX.HD. TAPPING SCREW D4X60 (960108) 1453 RON 27 1 2 WASHER (B) (319956) 1453 RON 28 1 1 HOUSING (319808) 9730 RON 29 1 1 - Indisponibil 30 1 1 MAGNET (319846) 15322 RON 31 1 1 - Indisponibil 32 1 2 BRUSH CAP (319847) Indisponibil Indisponibil 33 1 2 CARBON BRUSH (1 PAIR) (OLD 999058) (999068) 4025 RON 34 1 1 BRUSH HOLDER (A) (319813) 5591 RON 35 1 1 BRUSH HOLDER (B) (319814) 5591 RON 36 1 1 FERRITE CORE (318247) 1453 RON 37 1 1 HANDLE (A+B) SET (319809) 13085 RON 38 1 1 PUSHING BUTTON (319760) Indisponibil Indisponibil 39 1 1 DC-SPEED CONTROL SWITCH (319811) 23152 RON 40 1 4 TAPPING SCREW D4X30 (W/FLANGE) BLACK (305490) 894 RON 41 1 1 GRIP COVER (319790) 5368 RON 42 1 2 TAPPING SCREW D4X25 (304035) 894 RON 43 1 1 HEAT SINK (319812) 2795 RON 44 1 1 MACHINE SCREW M3X12 (W/WASHERS) (993963) 1453 RON 45 1 1 TERMINAL SUPPORT (319894) 7940 RON *46 1 1 319805 - Indisponibil *46 1 1 319806 - Indisponibil *46 1 1 319807 - Indisponibil 501 1 1 SIDE HANDLE FOR M10 (981205) 488 RON 502 1 1 HANDLE JOINT (319791) 4025 RON 503 1 1 - Indisponibil 504A 1 1 PLASTIC CARRYING CASE (OLD 319815) (324313) 45968 RON 601 1 1 319528 (319528) 116768 RON 602 1 2 NEEDLE BEARING (HK0810) (670714) 5368 RON 603 1 1 @ PINION (986149) 15434 RON 604 1 1 BALL BEARING 6301VVCMPS2S (6301VV) 573 RON 605 1 2 RETAINING RING FOR D37 HOLE (986147) 1453 RON 606 1 1 @WOODRUFF KEY 3X10 (932819) 1788 RON 607 1 1 @ SPINDLE (986146) 20691 RON 608 1 1 COUPLING (986143) 5591 RON 609 1 1 @ JOINT SLEEVE (986142) 15881 RON 610 1 2 @ BOLT M8X45 (10 PCS) (949632) 297 RON 611 1 2 WASHER M8 (10 PCS) (949426) 1453 RON 612 1 1 986144 (986144) 28967 RON 613 1 1 @ SPINDLE AND GEAR SET (986156) 45968 RON 614 1 1 WRENCH 13/17MM (OLD 974604) (949168) 6598 RON 622 1 1 971670 - Indisponibil 624 1 1 GREASE (SEP-3A) (100G) (NEW 714831) (930035) Indisponibil Indisponibil
