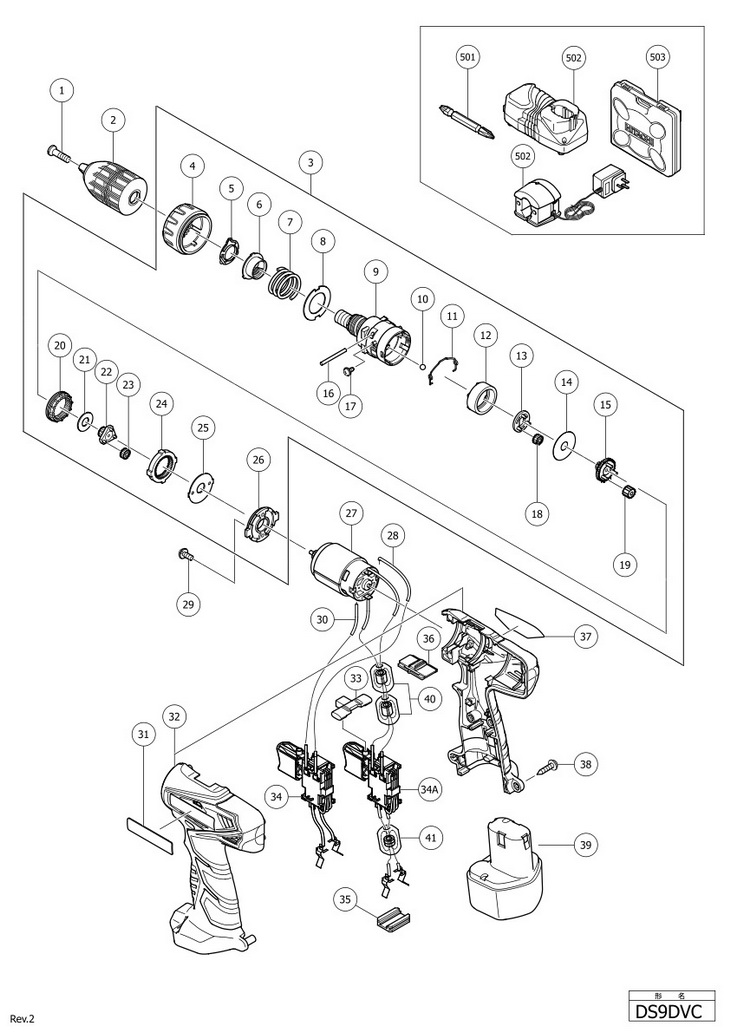

Top » Piese de schimb » PIESE HITACHI » DS9DVC DS9DVC [DS9DVC] Click pentru a mari Imagini suplimentare Click pentru a mari LISTA DE COMPONENTE: Numar Versiune Buc. in schema Denumire Pret/buc (Tva inclus) Cumpara 1 1 1 SPECIAL SCREW M5X25 (LEFT HAND) (325616) 1229 RON 2 1 1 DRILL CHUCK 10MM DS10DFL/D10VST (331602) 17671 RON 3 1 1 331324 (331324) 1998 RON 4 1 1 CLUTCH DIAL (331587) 3242 RON 5 1 1 CLICK SPRING (329579) 2236 RON 6 1 1 NUT (331582) 2236 RON 7 1 1 SPRING (331583) 2236 RON 8 1 1 THRUST PLATE (331584) 2236 RON 9 1 1 GEAR CASE (331585) 7381 RON 10 1 6 STEEL BALL (306936) 1453 RON 11 1 1 SHIFT ARM (331586) 2236 RON 12 1 1 RING GEAR (331592) 3242 RON 13 1 1 CARRIER (331589) 2236 RON 14 1 1 WASHER (B) (331593) 2236 RON 15 1 1 PINION (C) (331590) 4025 RON 16 1 2 NEEDLE (331588) 2236 RON 17 1 2 SCREW SET D2X3.5 (2 PCS) (330579) 2236 RON 18 1 3 PLANET GEAR (C) SET (3 PCS) (331591) 2236 RON 19 1 3 PLANET GEAR (B) SET (3 PCS) (331595) 2236 RON 20 1 1 SLIDE RING GEAR (331594) 3242 RON 21 1 1 WASHER (C) (331599) 2236 RON 22 1 1 PINION (B) (331596) 2236 RON 23 1 3 PLANET GEAR (A) SET (3 PCS) (331597) 2236 RON 24 1 1 FIRST RING GEAR (331598) 3242 RON 25 1 1 WASHER (A) (331600) 2236 RON 26 1 1 MOTOR SPACER (331601) 2236 RON 27 1 1 MOTOR NEW OCT (333129) 7493 RON 28 1 1 INTERNAL WIRE (B) (306040) 894 RON 29 1 2 MACHINE SCREW M3X8 (10 PCS) (949203) 1453 RON 30 1 1 INTERNAL WIRE (B) BLACK 90L (324121) 1453 RON 31 1 1 - Indisponibil 32 1 1 HOUSING SET (A+B) NEW OCT (333127) 8947 RON 33 1 1 PUSHING BUTTON (329181) 1453 RON 34 1 1 SWITCH TERMINAL (332038) Indisponibil Indisponibil 34A 1 1 334884 - Indisponibil 35 1 1 TERMINAL SUPPORT (A) (315141) 1453 RON 36 1 1 SHIFT KNOB (331332) 1453 RON 37 1 1 - Indisponibil 38 1 8 TAPPING SCREW D3X16 (313687) 894 RON 39 1 2 BCC912 BATTERY 9,6V 1.2Ah Ni-Cd (332086) 27513 RON 40 1 1 334862 - Indisponibil 41 1 1 334883 - Indisponibil 501 1 1 983006 - Indisponibil 502 1 1 - Indisponibil 502 1 1 - Indisponibil 503 1 1 323950 - Indisponibil
