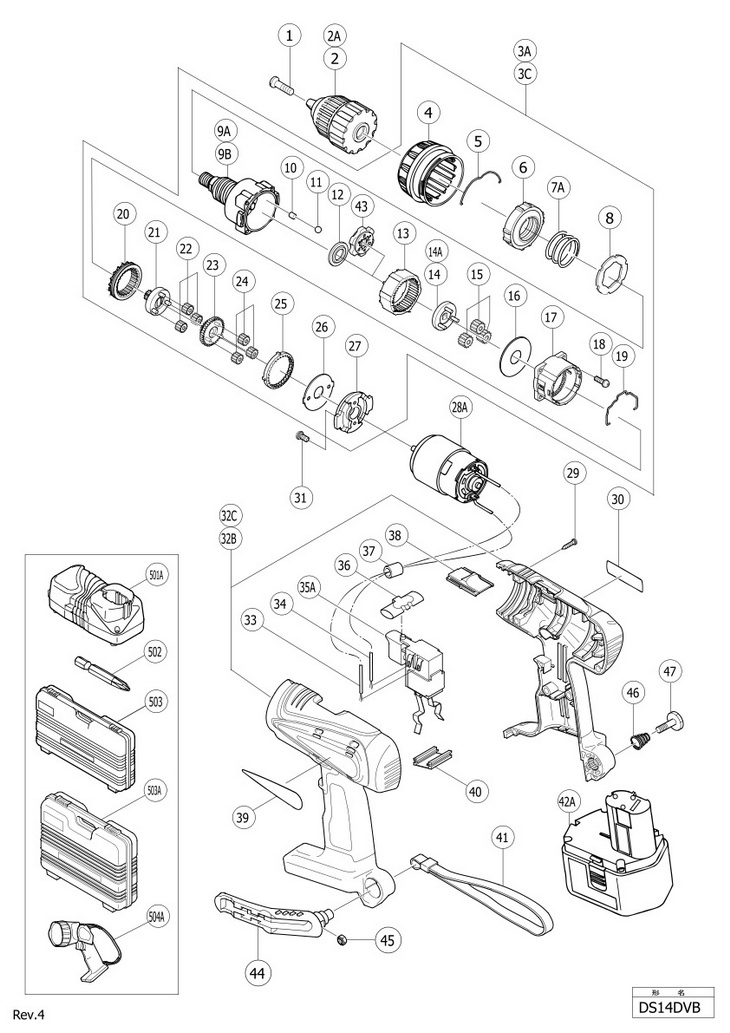

Top » Piese de schimb » PIESE HITACHI » DS14DVB DS14DVB [DS14DVB] Click pentru a mari Imagini suplimentare Click pentru a mari LISTA DE COMPONENTE: Numar Versiune Buc. in schema Denumire Pret/buc (Tva inclus) Cumpara 1 1 1 SPECIAL SCREW M6X23 (LEFT HAND) (311959) Indisponibil Indisponibil 2 1 1 319766 - Indisponibil 2A 1 1 320684 - Indisponibil 3A 1 1 323017 (323017) 32882 RON 3C 1 1 323013 (323013) 44290 RON 4 1 1 CAP (319755) 5368 RON 5 1 1 CLICK SPRING (319754) 3242 RON 6 1 1 NUT (319743) 2236 RON 7A 1 1 SPRING (323015) 3242 RON 8 1 1 THRUST WASHER (319741) 2236 RON 9A 1 1 FRONT CASE (OLD 319740) (323018) 1700 RON 9B 1 1 323014 (323014) 1700 RON 10 1 6 ROLLER (319744) 2236 RON 11 1 6 STEEL BALL (306936) 1453 RON 12 1 1 SPACER WASHER (319746) 2236 RON 13 1 1 RING GEAR (319745) 3242 RON 14 1 1 CARRIER (319747) 3242 RON 14A 1 1 CARRIER (320929) 3242 RON 15 1 3 PLANET GEAR (C) SET (3 PCS) (319769) 2236 RON 16 1 1 WASHER (A) (312704) 2683 RON 17 1 1 REAR CASE (319748) 3242 RON 18 1 4 SCREW SET D3X12 (4 PCS) (312712) 2683 RON 19 1 1 SHIFT ARM (319753) 3242 RON 20 1 1 SLIDE RING GEAR (319750) 4025 RON 21 1 1 PINION (C) (319749) 3242 RON 22 1 3 PLANET GEAR (B) SET (3 PCS) (319768) 2236 RON 23 1 1 PINION (B) (319751) 3242 RON 24 1 3 PLANET GEAR (A) SET (3 PCS) (319767) 2236 RON 25 1 1 FIRST RING GEAR (319752) 4025 RON 26 1 1 WASHER (B) (312716) 2683 RON 27 1 1 MOTOR SPACER (316955) 4025 RON 28A 1 1 320144 (320144) 1998 RON 29 1 8 TAPPING SCREW D3X16 (991672) 1453 RON 30 1 1 - Indisponibil 31 1 2 MACHINE SCREW M4X6 (W/SP.WASHER) (317333) 2236 RON 32B 1 1 HOUSING + CASE (OLD 319785 + 322611) (322734) 17671 RON 32C 1 1 HOUSING SET (A+B) (OLD 319785) (322502) 13756 RON 33 1 1 INTERNAL WIRE BLACK 100L (319759) 1453 RON 33 1 1 INTERNAL WIRE BLACK 160L (320159) 1453 RON 34 1 1 INTERNAL WIRE RED 130L (319758) 1453 RON 35A 1 1 DC-SPEED CONTROL SWITCH (OLD 319786) (320145) 1615 RON 36 1 1 PUSHING BUTTON (319760) Indisponibil Indisponibil 37 1 1 FERRITE CORE (318247) 1453 RON 38 1 1 SHIFT KNOB (318234) 1453 RON 39 1 1 - Indisponibil 40 1 1 TERMINAL SUPPORT (A) (315141) 1453 RON 41 1 1 STRAP (BLACK) (OLD 317320) (306952) 4025 RON *42 1 1 EB14B BATTERIJ 14,4 VOLT 2.0Ah Ni-Cd (315130) 66660 RON *42 1 1 315129 - Indisponibil *42 1 1 315128 - Indisponibil *42 1 1 318372 - Indisponibil 42A 1 1 322633 - Indisponibil 42A 1 1 EB1426H BATTERY 14.4V 2.6Ah Ni-MH (322883) 73259 RON 43 1 1 LOCK RING (320928) 6822 RON 44 1 1 320287 (320287) 4025 RON 45 1 1 V-LOCK NUT M5 (320288) 2236 RON 46 1 1 HOOK SPRING (319926) 2236 RON 47 1 1 SPECIAL SCREW M5 (A) (320881) 2236 RON 501A 1 1 - Indisponibil 502 1 1 DRIVER BIT NO:2 L=55MM (318236) 3242 RON 503 1 1 PLASTIC CARRYING CASE (327727) 13085 RON 503A 1 1 PLASTIC CASE (OLD 319770) (322611) 13085 RON 504A 1 1 - Indisponibil 601 1 1 WRENCH 14MM (873929) 3131 RON
