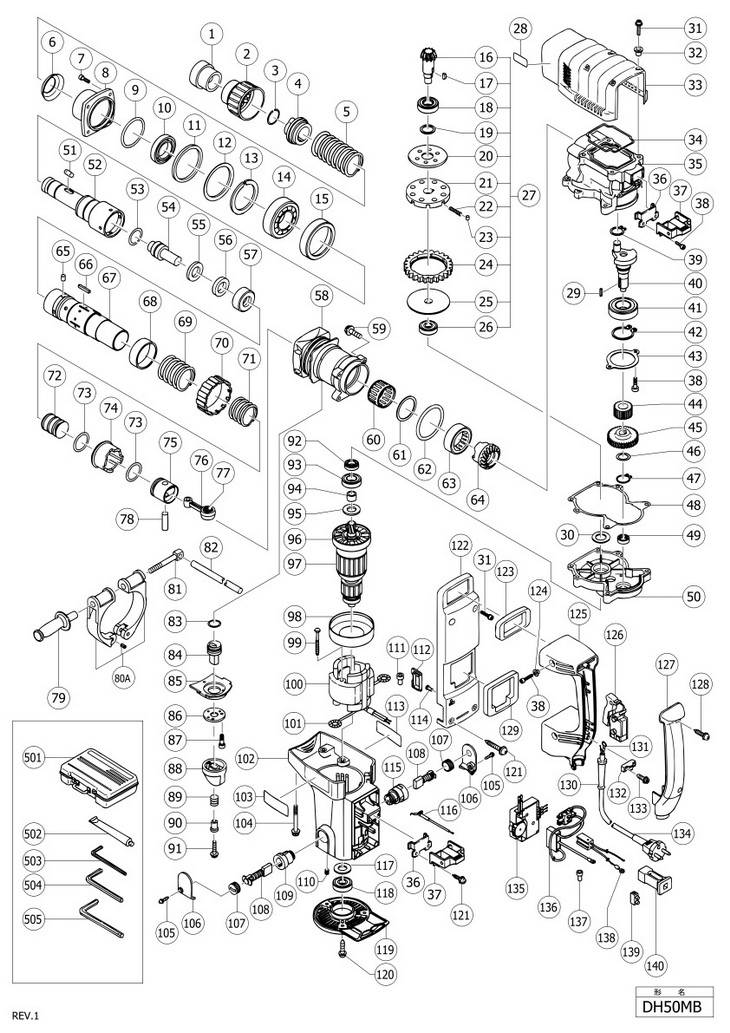

Top » Piese de schimb » PIESE HITACHI » DH50MB DH50MB [DH50MB] Click pentru a mari Imagini suplimentare Click pentru a mari LISTA DE COMPONENTE: Numar Versiune Buc. in schema Denumire Pret/buc (Tva inclus) Cumpara 1 1 1 FRONT CAP (313415) 3578 RON 2 1 1 GRIP (318608) 6151 RON 3 1 1 STOPPER RING (318590) 2236 RON 4 1 1 NEEDLE HOLDER (313413) 10960 RON 5 1 1 RETAINER SPRING (313419) 297 RON 6 1 1 SPRING HOLDER (318589) 4025 RON 7 1 4 NYLOCK HEX. SOCKET HD.BOLT M8X25 (880810) 1453 RON 8 1 1 FRONT COVER (318587) 14763 RON 9 1 1 O-RING (S-70) (878863) 2348 RON 10 1 1 OIL SEAL (NBR710) (318588) 5368 RON 11 1 1 URETHANE RING (318586) 5368 RON 12 1 1 URETHANE RING HOLDER (318585) 3242 RON 13 1 1 RETAINING RING D40 (318582) 4025 RON 14 1 1 BALL BEARING 6008CM (6008CM) 7716 RON 15 1 1 SLEEVE (318581) 1700 RON 16 1 1 BEVEL PINION (318551) 20691 RON 17 1 1 FEATHER KEY 3X3X8 (944109) 2012 RON 18 1 1 BALL BEARING 6202DDUCMPS2S (OLD 956937) (6202DD) 4697 RON 19 1 1 WASHER (313058) 1453 RON 20 1 1 WASHER (A) (318552) 5368 RON 21 1 1 GEAR HOLDER (318554) 6933 RON 22 1 8 SPRING (C) (318555) 6598 RON 23 1 8 NEEDLE PIN D6X6 (313057) 3578 RON 24 1 1 SECOND GEAR (318553) 22144 RON 25 1 1 SPACER (318556) 11184 RON 26 1 1 BALL BEARING 629VVMC2EPS2L (629VVM) 3914 RON 27 1 1 318550 (318550) 73035 RON 28 1 1 - Indisponibil 29 1 2 FEATHER KEY 5X5X15 (945072) 1788 RON 30 1 1 BEARING WASHER (C) (944525) 1453 RON 31 1 6 NYLOCK BOLT M5X16 W/FLANGE (313082) 1453 RON 32 1 4 DISTANCE PIECE (B) (991711) 1453 RON 33 1 1 CRANK CASE COVER (318584) 13756 RON 34 1 1 RUBBER SEAL (313084) 2683 RON 35 1 1 CRANK CASE (318543) 25612 RON 36 1 2 GUIDE PLATE (980750) 12190 RON 37 1 2 HANDLE RUBBER (980727) 9282 RON 38 1 8 NYLOCK HEX. SOCKET HD.BOLT M5X16 (878181) 1453 RON 39 1 1 RETAINING RING FOR D12 (10 PCS) (939542) 1788 RON 40 1 1 CRANK SHAFT (318544) 25612 RON 41 1 1 BALL BEARING 6205DDUCMPS2S (6205DD) 5815 RON 42 1 1 RETAINING RING FOR D25 SHAFT (965469) 1453 RON 43 1 1 BEARING COVER (318548) 2236 RON 44 1 1 SECOND PINION (318545) 9059 RON 45 1 1 FIRST GEAR (318546) 14092 RON 46 1 1 THRUST WASHER (318547) 2236 RON 47 1 1 RETAINING RING FOR D17 SHAFT (967261) 1453 RON 48 1 1 SEAL PACKING (318549) 2236 RON 49 1 1 NEEDLE BEARING (M661) (939299) 6933 RON 50 1 1 GEAR COVER (318595) 22592 RON 51 1 2 NEEDLE ROLLER D8X20 (313421) 4361 RON 52 1 1 RETAINER SLEEVE (318580) 73035 RON 53 1 1 O-RING (986104) 1453 RON 54 1 1 SECOND HAMMER (318564) 22144 RON 55 1 1 DAMPER WASHER (318565) 6486 RON 56 1 1 DAMPER (318566) 4025 RON 57 1 1 DAMPER HOLDER (318567) 8388 RON 58 1 1 CYLINDER CASE (318568) 25612 RON 59 1 4 NYLOCK BOLT M6X35 W/FLANGE (318451) 2236 RON 60 1 1 NEEDLE BEARING (318560) 1232 RON 61 1 1 CYLINDER WASHER (OLD 981973Z) (981973) 297 RON 62 1 1 O-RING (D) (985779) 2348 RON 63 1 1 NEEDLE BEARING (318659) 22592 RON 64 1 1 BEVEL GEAR (318559) 35790 RON 65 1 4 NEEDLE PIN D6X6 (313057) 3578 RON 66 1 2 FEATHER KEY 3X3X20 (971750) 1453 RON 67 1 1 CYLINDER (318558) 6802 RON 68 1 1 SLEEVE (A) (318583) 4025 RON 69 1 1 LOCK SPRING (318563) 4025 RON 70 1 1 LOCK SLEEVE (318562) 5368 RON 71 1 1 CLUTCH SPRING (318631) 3242 RON 72 1 1 STRIKER (318630) 18789 RON 73 1 1 O-RING (D) (318917) 5368 RON 74 1 1 CLUTCH (318561) 32323 RON 75 1 1 PISTON (985772) 30645 RON 76 1 1 318557 (318557) 25612 RON 77 1 1 NEEDLE BEARING NSK TORR AJ50 1203 (980756) 6933 RON 78 1 1 PISTON PIN (955593) 297 RON 79 1 1 SIDE HANDLE (318574) 18454 RON 80A 1 1 HANDLE HOLDER (OLD 318575) (331096) 6933 RON 81 1 1 HANDLE BOLT (318576) 5927 RON 82 1 1 STOPPER ROD (971786) 488 RON 83 1 1 O-RING (P-16) (873095) 894 RON 84 1 1 LEVER SHAFT (318577) 956 RON 85 1 1 UNDER COVER (318578) 4025 RON 86 1 1 SHAFT COVER (313411) 2348 RON 87 1 2 HEX.SOCKET HD BOLT M4X12 W/WASHER (318579) 2236 RON 88 1 1 LEVER (313410) 3578 RON 89 1 1 SPRING (307605) 1788 RON 90 1 1 SLEEVE (313424) 2348 RON 91 1 1 NYLOCK BOLT M5X25 W/FLANGE (313077) 488 RON 92 1 1 OIL SEAL (FPM807) (318596) 5368 RON 93 1 1 BALL BEARING 6203VVCMPS2S (6203VV) 5368 RON 94 1 1 SLEEVE (B) (318597) 10065 RON 95 1 1 DUST WASHER (318594) 2236 RON 96 1 1 FAN (318918) 6598 RON *97 1 1 360520U (360520U) Indisponibil Indisponibil *97 1 1 360520D - Indisponibil *97 1 1 360520E (360520E) 144395 RON *97 1 1 360520F (360520F) 144395 RON 98 1 1 FAN GUIDE (318633) 488 RON 99 1 2 HEX.HD. TAPPING SCREW D5X50 (953121) 894 RON *100 1 1 340463C (340463C) 56146 RON *100 1 1 340463D - Indisponibil *100 1 1 340463E (340463E) 56146 RON *100 1 1 340463F (340463F) 56146 RON *100 1 1 340463G - Indisponibil 101 1 2 BRUSH TERMINAL (OLD 958032Z) (958032) 894 RON 102 1 1 318607 (318607) 40823 RON 103 1 1 - Indisponibil 104 1 6 NYLOCK BOLT M6X40 W/FLANGE (318570) 5368 RON 105 1 2 TAPPING SCREW D4X16 (W/FLANGE) (BLACK) (307811) 894 RON 106 1 2 BRUSH CAP COVER (318599) 3242 RON 107 1 2 BRUSH CAP (940540) 1229 RON 108 1 2 CARBON BRUSH A.S. TYPE (999077) 956 RON 109 1 1 BRUSH HOLDER (OLD 974567) (980487) 4137 RON 110 1 2 HEX.SOCKET SET SCREW M5X8 (938477) 1453 RON 111 1 3 CONNECTOR 50092 (10 PCS) (OLD 939558) (959141) 382 RON 112 1 1 DIAL FRAME (313948) 1788 RON 113 1 1 - Indisponibil 114 1 1 PRISM (318632) 2236 RON 115 1 1 BRUSH HOLDER (318593) 11184 RON 116 1 1 - Indisponibil 117 1 1 BEARING WASHER (944954) 1453 RON 118 1 1 BALL BEARING 6201VVCMPS2S (6201VV) 4249 RON 119 1 1 TAIL COVER (318598) 22592 RON 120 1 3 TAPPING SCREW D5X16 (W/FLANGE) (303273) 1453 RON 121 1 4 TAPPING SCREW D5X25 (W/FLANGE) BLACK (305558) 894 RON 122 1 1 318571 (318571) 12638 RON 123 1 1 HANDLE PACKING (A) (318572) 2236 RON 124 1 4 DISTANCE PIECE (B) (991711) 1453 RON 125 1 1 HANDLE (318601) 15993 RON 126 1 1 SWITCH (C) 2P SCREW TYPE W/O LOCK (313093) 5480 RON 127 1 1 HANDLE COVER (318602) 15658 RON 128 1 2 TAPPING SCREW D4X20 (W/FLANGE) BLACK (OLD 305095) (301653) 894 RON 129 1 1 HANDLE PACKING (B) (318573) 2236 RON *130 1 1 CORD ARMOR D10.7 (940778) 2124 RON *130 1 1 CORD ARMOR D8.2 (OLD 958049Z) (958049) 894 RON *131 1 1 TERMINAL (992810) 1453 RON *131 1 1 TERMINAL (980063) 1117 RON *131 1 1 TERMINAL M4.0 (10 PCS) (930804) 297 RON *132 1 1 CORD CLIP (960266) 894 RON *132 1 1 CORD CLIP (981987Z) 1453 RON 133 1 2 TAPPING SCREW D4X16 (W/FLANGE) (984750) 1117 RON *134 1 1 500390Z - Indisponibil *134 1 1 CORD FOR GBR 230V (500446Z) 23934 RON *134 1 1 500434Z - Indisponibil *134 1 1 500408Z - Indisponibil *134 1 1 CORD FOR SWISS (500391Z) 27513 RON *134 1 1 CORD 5M 2 X 1,5 H07RN-F (W/O PLUG) (500460Z) 25612 RON *135 1 1 CONTROLLER CIRCUIT 220-240 VOLT (318605) 107037 RON *135 1 1 CONTROLLER CIRCUIT 110-127 VOLT (318591) 107037 RON *135 1 1 318606 - Indisponibil *136 1 1 PLUG (A) (313092) 382 RON *136 1 1 PLUG (A) (OLD 313144) (313142) 10960 RON 137 1 1 CONNECTOR 50092 (10 PCS) (OLD 939558) (959141) 382 RON *138 1 1 PLUG (B) (318648) 8052 RON *138 1 1 318600 - Indisponibil *138 1 1 318649 - Indisponibil 139 1 1 PILLAR TERMINAL (OLD 938307Z/512-31870-20)) (938307) 2571 RON 140 1 1 PLUG HOLDER (318603) 3242 RON 501 1 1 CASE (PLASTIC) (318646) 45968 RON 502 1 1 GREASE (FG-6A) (30G) (4966375124375) Indisponibil Indisponibil 503 1 1 HEX.BAR WRENCH 4MM (944458) 1229 RON 504 1 1 HEX.BAR WRENCH 5MM (944459) 1788 RON 505 1 1 HEX.BAR WRENCH 6MM (872422) 1117 RON 601 1 1 317483 - Indisponibil 602 1 1 317484 - Indisponibil 603 1 1 317485 - Indisponibil 604 1 1 317486 - Indisponibil 605 1 1 317487 - Indisponibil 606 1 1 313448 - Indisponibil 607 1 1 313449 - Indisponibil 608 1 1 313450 - Indisponibil 609 1 1 313451 - Indisponibil 610 1 1 313452 - Indisponibil 611 1 1 313453 - Indisponibil 612 1 1 313454 - Indisponibil 613 1 1 313455 - Indisponibil 614 1 1 313456 - Indisponibil 615 1 1 313457 - Indisponibil 616 1 1 313458 - Indisponibil 617 1 1 313459 - Indisponibil 618 1 1 313460 - Indisponibil 619 1 1 313461 - Indisponibil 620 1 1 313462 - Indisponibil 621 1 1 313463 - Indisponibil 622 1 1 944460 - Indisponibil 623 1 1 944461 - Indisponibil 624 1 1 993038 - Indisponibil 625 1 1 944462 - Indisponibil 626 1 1 944500 - Indisponibil 627 1 1 944463 - Indisponibil 629 1 1 COTTER (944477) 4361 RON 630 1 1 313465 - Indisponibil 631 1 1 CORE BIT 25MM (955994) 64647 RON 632 1 1 955995 - Indisponibil 633 1 1 955996 - Indisponibil 634 1 1 CORE BIT 35MM (955998) 88359 RON 635 1 1 956000 - Indisponibil 636 1 1 955154 - Indisponibil 637 1 1 959706 - Indisponibil 638 1 1 955155 - Indisponibil 639 1 1 959707 - Indisponibil 640 1 1 956002 - Indisponibil 641 1 1 959708 - Indisponibil 642 1 1 959709 - Indisponibil 643 1 1 955157 - Indisponibil 644 1 1 956004 - Indisponibil 645 1 1 959710 - Indisponibil 646 1 1 955159 - Indisponibil 647 1 1 956006 - Indisponibil 648 1 1 956728 - Indisponibil 649 1 1 318531 - Indisponibil 650 1 1 318532 - Indisponibil 651 1 1 GUIDE PLATE 32MM (FOR CORE BIT) (955997) 4361 RON 652 1 1 @ GUIDE PLATE 35MM (FOR CORE BIT) (955999) 4361 RON 653 1 1 956001 - Indisponibil 654 1 1 955166 - Indisponibil 655 1 1 950475 - Indisponibil 656 1 1 955167 - Indisponibil 657 1 1 950476 - Indisponibil 658 1 1 956003 - Indisponibil 659 1 1 950477 - Indisponibil 660 1 1 950478 - Indisponibil 661 1 1 955168 - Indisponibil 662 1 1 956005 - Indisponibil 663 1 1 950479 - Indisponibil 664 1 1 955169 - Indisponibil 665 1 1 956007 - Indisponibil 666 1 1 @ GUIDE PLATE 150MM FOR CORE BIT (956743) 22592 RON 667 1 1 318530 - Indisponibil 668 1 1 @ CENTER PIN (B) D32,D35 CORE BIT (956009) 28184 RON 669 1 1 955165 - Indisponibil 670 1 1 313466 - Indisponibil 671 1 1 CORE BIT SHANK (A) SDS-MAX (313467) 74825 RON 672 1 1 DRILL CHUCK 13VLD-D (NEW 752056) (321813) 37468 RON 673 1 1 CHUCK WRENCH 10G (OLD 879355) (930515) 488 RON 674 1 1 313468 - Indisponibil 675 1 1 CH. ANCHOR ADAPTER 1/2" SDS-MAX (313469) 28967 RON 676 1 1 CH. ANCHOR ADAPTER 3/4" SQUARE SDS-MAX (313470) 32323 RON 677 1 1 313471 - Indisponibil 678 1 1 313472 - Indisponibil 679 1 1 313473 - Indisponibil 680 1 1 313474 - Indisponibil 681 1 1 313475 - Indisponibil 682 1 1 313476 - Indisponibil 683 1 1 313477 - Indisponibil 684A 1 1 313478 - Indisponibil 685 1 1 313479 - Indisponibil 687 1 1 SYRINGE BELLOWS TYPE (OLD 944575) (318085) 3242 RON 688 1 1 GREASE FOR HAMMER DRILL (JF-375) (70G) (308471) 8388 RON 689 1 1 GREASE FOR IMPACT DRILL (FG-6A) (500G) (980927) 4251 RON 690 1 1 SYRINGE BLOW-OUT BULB TYPE (320859) 6374 RON
