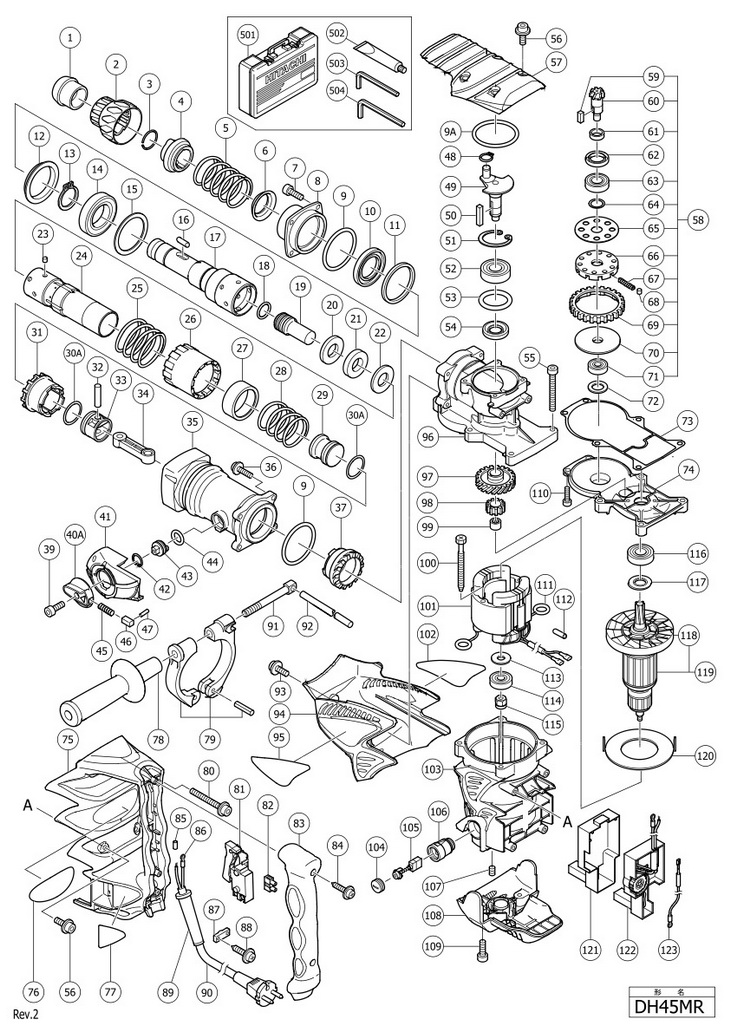

Top » Piese de schimb » PIESE HITACHI » DH45MR DH45MR [DH45MR] Click pentru a mari Imagini suplimentare Click pentru a mari LISTA DE COMPONENTE: Numar Versiune Buc. in schema Denumire Pret/buc (Tva inclus) Cumpara 1 1 1 FRONT CAP (321306) 3242 RON 2 1 1 GRIP (321305) 4025 RON 3 1 1 STOPPER RING (318590) 2236 RON 4 1 1 NEEDLE HOLDER (321304) Indisponibil Indisponibil 5 1 1 RETAINER SPRING (321303) 4025 RON 6 1 1 SPRING HOLDER (A) (321302) 4025 RON 7 1 4 PACKING BOLT (981942) 2236 RON 8 1 1 FRONT COVER (321300) 13197 RON 9 1 2 O-RING (1AS-60) (956996) 297 RON 9A 1 1 O-RING (JAS02060) (878867) 3242 RON 10 1 1 OIL SEAL (321301) 5368 RON 11 1 1 RUBBER RING (325229) 3242 RON 12 1 1 URETHANE RING HOLDER (OLD 313406) (315868) 3242 RON 13 1 1 RETAINING RING FOR D35 SHAFT (948131) 2236 RON 14 1 1 BALL BEARING 6007DDUAV2S (6007DD) 8052 RON 15 1 1 BEARING WASHER (321297) 3242 RON 16 1 2 NEEDLE ROLLER D8X20 (313421) 4361 RON 17 1 1 RETAINER SLEEVE (324919) 57824 RON 18 1 1 O-RING (C) (324921) 3242 RON 19 1 1 SECOND HAMMER (324920) 9282 RON 20 1 1 DAMPER WASHER (324922) 5368 RON 21 1 1 DAMPER (324923) 3242 RON 22 1 1 DAMPER HOLDER (324924) 5368 RON 23 1 4 NEEDLE PIN D6X6 (313057) 3578 RON 24 1 1 CYLINDER (324925) 5101 RON 25 1 1 LOCK SPRING (324930) 2236 RON 26 1 1 LOCK SLEEVE (324931) 4025 RON 27 1 1 SPRING HOLDER (B) (324927) 5368 RON 28 1 1 CLUTCH SPRING (324928) 2236 RON 29 1 1 STRIKER (324926) 5927 RON 30A 1 2 O-RING (325297) 3242 RON 31 1 1 CLUTCH (324929) 32323 RON 32 1 1 PISTON PIN (324917) 4025 RON 33 1 1 PISTON (324915) 5368 RON 34 1 1 CONNECTING ROD (324916) Indisponibil Indisponibil 35 1 1 324932 (324932) Indisponibil Indisponibil 36 1 4 HEX.SOCKET HD.BOLT (W/FLANGE) (991712) 1453 RON 37 1 1 BEVEL GEAR (324933) 25612 RON 39 1 1 SEAL LOCK HEX. SOCKET HD. BOLT M4X12 (983162) Indisponibil Indisponibil 40A 1 1 CHANGE LEVER (OLD 321309) (331545) 2795 RON 41 1 1 LEVER HOLDER (324935) Indisponibil Indisponibil 42 1 1 RETAINING RING FOR D20 HOLE (311229) 1453 RON 43 1 1 LEVER SHAFT (324934) 13197 RON 44 1 1 O-RING (P-16) (873095) 894 RON 45 1 1 LEVER SPRING (321310Hitachi) 2236 RON 46 1 1 PUSHING BUTTON (321311) 2236 RON 47 1 1 PIN D2X10 (321312) 2236 RON 48 1 1 RETAINING RING FOR D10 (10 PCS) (939540) 2683 RON 49 1 1 CRANK SHAFT (324909) 22592 RON 50 1 1 FEATHER KEY 3X3X20 (971750) 1453 RON 51 1 1 RETAINING RING FOR D40 HOLE (948391) 2236 RON 52 1 1 BALL BEARING 6203DDUCMAV2S (6203DD) 5368 RON 53 1 1 O-RING (S-40) (996363) 2236 RON 54 1 1 OIL SEAL (A) (971745) 382 RON 55 1 4 SEAL LOCK HEX. SOCKET HD. BOLT M6X45 (986940) 1453 RON 56 1 8 HEX.SOCKET HD.BOLT (994192) 894 RON 57 1 1 CRANK COVER (324937) Indisponibil Indisponibil 58 1 1 324912 (324912) 95181 RON 59 1 1 FEATHER KEY 3X3X8 (944109) 2012 RON 60 1 1 BEVEL PINION (324913) 12190 RON 61 1 1 COLLAR (321279) 5591 RON 62 1 1 OIL SEAL (A) (313050) 382 RON 63 1 1 BALL BEARING 6002DDUCMPS2S (6002DD) 4920 RON 64 1 1 WASHER (313058) 1453 RON 65 1 1 WASHER (A) (313053) 3578 RON 66 1 1 GEAR HOLDER (321281) 12862 RON 67 1 10 SPRING (C) (321282) 2236 RON 68 1 10 NEEDLE (320343) 3242 RON 69 1 1 SECOND GEAR (324914) 20691 RON 70 1 1 SPACER (321283) 10289 RON 71 1 1 BALL BEARING 629VVMC2EPS2L (629VVM) 3914 RON 72 1 1 BEARING WASHER (C) (944525) 1453 RON 73 1 1 SEAL PACKING (325230) 3242 RON 74 1 1 GEAR COVER (324944) 20691 RON 75 1 1 HANDLE (324947) 13197 RON 76 1 1 - Indisponibil 77 1 1 SDS MAX LABEL (324938) 2236 RON 78 1 1 SIDE HANDLE (313078) 13197 RON 79 1 1 HANDLE HOLDER (313079) 11519 RON 80 1 2 HEX. SOCKET HD. BOLT M5X40 (W/FLANGE) (980673) 1453 RON 81 1 1 SWITCH (C) 2P SCREW TYPE W/O LOCK (313093) 5480 RON 82 1 1 PILLAR TERMINAL (OLD 938307Z/512-31870-20)) (938307) 2571 RON 83 1 1 HANDLE COVER (324948) 8052 RON 84 1 2 TAPPING SCREW D4X20 (W/FLANGE) BLACK (OLD 305095) (301653) 894 RON 85 1 2 TUBE (D) (981373) 1341 RON *86 1 1 TERMINAL (980063) 1117 RON *86 1 1 TERMINAL M4.0 (10 PCS) (930804) 297 RON *87 1 1 CORD CLIP (960266) 894 RON *87 1 1 CORD CLIP (981987Z) 1453 RON 88 1 2 TAPPING SCREW D4X16 (W/FLANGE) (984750) 1117 RON *89 1 1 CORD ARMOR D8.8 (953327) Indisponibil Indisponibil *89 1 1 CORD ARMOR D10.1 (OLD 994565) (938051) 894 RON *90 1 1 500390Z - Indisponibil *90 1 1 CORD FOR GBR 110 VOLT (500467Z) 35790 RON *90 1 1 CORD FOR GBR 230V (500446Z) 23934 RON *90 1 1 CORD FOR SWISS (500391Z) 27513 RON *90 1 1 500434Z - Indisponibil *90 1 1 500439Z - Indisponibil *90 1 1 500408Z - Indisponibil *90 1 1 500487Z - Indisponibil 91 1 1 HANDLE BOLT (313080) 7828 RON 92 1 1 STOPPER ROD (971786) 488 RON 93 1 1 HEX.SOCKET HD.BOLT M5X12 (998471) 1453 RON 94 1 1 HOOD (A) (324936) 10065 RON 95 1 1 - Indisponibil 96 1 1 CRANK CASE (324908) 27289 RON 97 1 1 FIRST GEAR (324910) 15098 RON 98 1 1 SECOND PINION (324911) 8388 RON 99 1 1 NEEDLE BEARING (M661) (939299) 6933 RON 100 1 2 HEX .HD. TAPPING SCREW D5X60 (961501) 894 RON *101 1 1 340646C (340646C) 17782 RON *101 1 1 340646G - Indisponibil *101 1 1 340646E (340646E) 19572 RON *101 1 1 340646F - Indisponibil 102 1 1 - Indisponibil 103 1 1 324943 (324943) 5101 RON 104 1 2 BRUSH CAP (945161) 1453 RON 105 1 2 CARBON BRUSH A.S. TYPE (OLD 961946Z) (999071) 7045 RON 106 1 2 BRUSH HOLDER (962777) 5368 RON 107 1 2 HEX.SOCKET SET SCREW M5X8 (938477) 1453 RON 108 1 1 TAIL COVER (324946) 5927 RON 109 1 2 SEAL LOCK HEX. SOCKET HD. BOLT M5X20 (984508) 1453 RON 110 1 2 SEAL LOCK HEX. SOCKET HD. BOLT M6X22 (321313) 2236 RON 111 1 2 BRUSH TERMINAL (OLD 976831) (937623) 894 RON 112 1 1 VINYL TUBE (321322) 2236 RON 113 1 1 DUST WASHER (985436) 1453 RON 114 1 1 BALL BEARING 6200VVCMPS2S (6200VV) 3466 RON 115 1 1 MAGNET (318721) Indisponibil Indisponibil 116 1 1 BALL BEARING 6202DDUCMPS2S (OLD 956937) (6202DD) 4697 RON 117 1 1 DUST WASHER (B) (980700) 894 RON 118 1 1 FAN (318918) 6598 RON *119 1 1 360737C (360737C) 57153 RON *119 1 1 360737U - Indisponibil *119 1 1 360737E (360737E) 57153 RON *119 1 1 360737F - Indisponibil 120 1 1 FAN GUIDE (324945) 4025 RON 121 1 1 CASE (B) (324942) 4025 RON *122 1 1 CONTROLLER CIRCUIT 110-115 VOLT (324940) 6802 RON *122 1 1 324941 - Indisponibil *122 1 1 CONTROLLER CIRCUIT 220-240 VOLT (324939) 6802 RON 123 1 1 INTERNAL WIRE (317113) 3242 RON 501 1 1 PLASTIC CARRYING CASE (324820) 54469 RON 502 1 1 GREASE (FG-6A) (30G) (4966375124375) Indisponibil Indisponibil 503 1 1 HEX.BAR WRENCH 4MM (944458) 1229 RON 504 1 1 HEX.BAR WRENCH 5MM (944459) 1788 RON 601 1 1 GREASE FOR HAMMER DRILL (JF-375) (70G) (308471) 8388 RON 602 1 1 GREASE FOR IMPACT DRILL (FG-6A) (500G) (980927) 4251 RON 603 1 1 SYRINGE BLOW-OUT BULB TYPE (320859) 6374 RON 604 1 1 SYRINGE BELLOWS TYPE (OLD 944575) (318085) 3242 RON 605 1 1 313448 - Indisponibil 606 1 1 313456 - Indisponibil 607 1 1 313449 - Indisponibil 608 1 1 313457 - Indisponibil 609 1 1 313450 - Indisponibil 610 1 1 313458 - Indisponibil 611 1 1 313451 - Indisponibil 612 1 1 313459 - Indisponibil 613 1 1 313452 - Indisponibil 614 1 1 313460 - Indisponibil 615 1 1 313453 - Indisponibil 616 1 1 313461 - Indisponibil 617 1 1 313454 - Indisponibil 618 1 1 313462 - Indisponibil 619 1 1 313455 - Indisponibil 620 1 1 313463 - Indisponibil 621 1 1 944460 - Indisponibil 622 1 1 944461 - Indisponibil 623 1 1 993038 - Indisponibil 624 1 1 944462 - Indisponibil 625 1 1 944500 - Indisponibil 626 1 1 944463 - Indisponibil 628 1 1 COTTER (944477) 4361 RON 629 1 1 313465 - Indisponibil 630 1 1 CORE BIT 25MM (955994) 64647 RON 631 1 1 955995 - Indisponibil 632 1 1 955996 - Indisponibil 633 1 1 GUIDE PLATE 32MM (FOR CORE BIT) (955997) 4361 RON 634 1 1 CORE BIT 35MM (955998) 88359 RON 635 1 1 @ GUIDE PLATE 35MM (FOR CORE BIT) (955999) 4361 RON 636 1 1 956000 - Indisponibil 637 1 1 956001 - Indisponibil 638 1 1 955154 - Indisponibil 639 1 1 955166 - Indisponibil 640 1 1 955155 - Indisponibil 641 1 1 955167 - Indisponibil 642 1 1 956002 - Indisponibil 643 1 1 956003 - Indisponibil 644 1 1 955157 - Indisponibil 645 1 1 955168 - Indisponibil 646 1 1 956004 - Indisponibil 647 1 1 956005 - Indisponibil 648 1 1 955159 - Indisponibil 649 1 1 955169 - Indisponibil 650 1 1 313466 - Indisponibil 651 1 1 CORE BIT SHANK (A) SDS-MAX (313467) 74825 RON 652 1 1 @ CENTER PIN (B) D32,D35 CORE BIT (956009) 28184 RON 653 1 1 955165 - Indisponibil 654 1 1 DRILL CHUCK 13VLD-D (NEW 752056) (321813) 37468 RON 655 1 1 313468 - Indisponibil 656 1 1 303334 - Indisponibil 657 1 1 CH. ANCHOR ADAPTER 1/2" SDS-MAX (313469) 28967 RON 658 1 1 CH. ANCHOR ADAPTER 3/4" SQUARE SDS-MAX (313470) 32323 RON 659 1 1 313471 - Indisponibil 660 1 1 313472 - Indisponibil 661 1 1 313473 - Indisponibil 662 1 1 313474 - Indisponibil 663 1 1 313475 - Indisponibil 664 1 1 313476 - Indisponibil 665 1 1 313478 - Indisponibil 666 1 1 313477 - Indisponibil 667 1 1 313479 - Indisponibil 668 1 1 956006 - Indisponibil 669 1 1 956007 - Indisponibil Puteti cumpara DH45MR in urmatoarele variante: Hitachi DH45MR
