Top » Piese de schimb » PIESE HITACHI » DH40MR

DH40MR
[DH40MR]
DH40MR
Click pentru a mari
Imagini suplimentare
DH40MR
Click pentru a mari

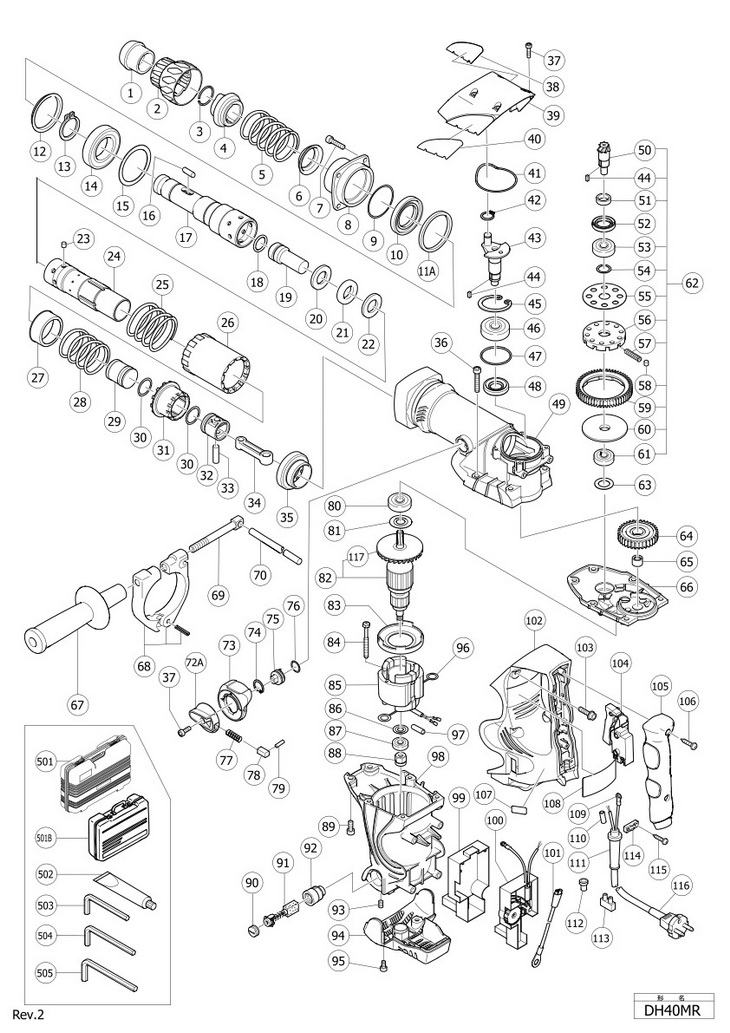

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 FRONT CAP (321306) 3242 RON
2 1 1 GRIP (321305) 4025 RON
3 1 1 STOPPER RING (318590) 2236 RON
4 1 1 NEEDLE HOLDER (321304) Indisponibil Indisponibil
5 1 1 RETAINER SPRING (321303) 4025 RON
6 1 1 SPRING HOLDER (A) (321302) 4025 RON
7 1 4 PACKING BOLT (981942) 2236 RON
8 1 1 FRONT COVER (321300) 13197 RON
9 1 1 O-RING (1AS-60) (956996) 297 RON
10 1 1 OIL SEAL (321301) 5368 RON
11A 1 1 RUBBER RING (325229) 3242 RON
12 1 1 URETHANE RING HOLDER (OLD 313406) (315868) 3242 RON
13 1 1 RETAINING RING FOR D35 SHAFT (948131) 2236 RON
14 1 1 BALL BEARING 6007DDUAV2S (6007DD) 8052 RON
15 1 1 BEARING WASHER (321297) 3242 RON
16 1 2 NEEDLE ROLLER D8X20 (313421) 4361 RON
17 1 1 RETAINER SLEEVE (321286) 5760 RON
18 1 1 O-RING (C) (313396) 4025 RON
19 1 1 SECOND HAMMER (321287) 5591 RON
20 1 1 DAMPER WASHER (321288) 6151 RON
21 1 1 DAMPER (321289) 5368 RON
22 1 1 DAMPER HOLDER (321290) 6822 RON
23 1 4 NEEDLE PIN D6X6 (313057) 3578 RON
24 1 1 CYLINDER (321291) 64087 RON
25 1 1 LOCK SPRING (321298) 4025 RON
26 1 1 LOCK SLEEVE (321299) 3690 RON
27 1 1 SPRING HOLDER (B) (321293) Indisponibil Indisponibil
28 1 1 CLUTCH SPRING (321294) 4025 RON
29 1 1 STRIKER (321292) 6151 RON
30 1 2 O-RING (986104) 1453 RON
31 1 1 CLUTCH (321295) 25612 RON
32 1 1 PISTON (321284) Indisponibil Indisponibil
33 1 1 PISTON PIN (980708) 2348 RON
34 1 1 CONNECTING ROD (321285) Indisponibil Indisponibil
35 1 1 BEVEL GEAR (321296) 34112 RON
36 1 4 SEAL LOCK HEX. SOCKET HD. BOLT M6X45 (986940) 1453 RON
37 1 5 SEAL LOCK HEX. SOCKET HD. BOLT M4X12 (983162) Indisponibil Indisponibil
38 1 1 - Indisponibil
39 1 1 CRANK COVER (321315) 9842 RON
40 1 1 - Indisponibil
41A 1 1 335023 - Indisponibil
42 1 1 RETAINING RING FOR D10 (10 PCS) (939540) 2683 RON
43 1 1 CRANK SHAFT (321275) 32323 RON
44 1 2 FEATHER KEY 3X3X8 (944109) 2012 RON
45 1 1 RETAINING RING FOR D40 HOLE (948391) 2236 RON
46 1 1 BALL BEARING 6203DDUCMAV2S (6203DD) 5368 RON
47 1 1 O-RING (S-40) (996363) 2236 RON
48 1 1 OIL SEAL (B) (321274) 4025 RON
49 1 1 CYLINDER CRANK CASE (321273) 64647 RON
50 1 1 BEVEL PINION (321278) 17559 RON
51 1 1 COLLAR (321279) 5591 RON
52 1 1 OIL SEAL (A) (313050) 382 RON
53 1 1 BALL BEARING 6002DDUCMPS2S (6002DD) 4920 RON
54 1 1 WASHER (313058) 1453 RON
55 1 1 WASHER (A) (313053) 3578 RON
56 1 1 GEAR HOLDER (321281) 12862 RON
57 1 10 SPRING (C) (321282) 2236 RON
58 1 10 NEEDLE (320343) 3242 RON
59 1 1 SECOND GEAR (321280) 18678 RON
60 1 1 SPACER (321283) 10289 RON
61 1 1 BALL BEARING 629VVMC2EPS2L (629VVM) 3914 RON
62 1 1 321277 (321277) 56258 RON
63 1 1 BEARING WASHER (C) (944525) 1453 RON
64 1 1 FIRST GEAR (321276) 18118 RON
65 1 1 NEEDLE BEARING (M661) (939299) 6933 RON
66 1 1 GEAR COVER (321319) 23934 RON
67 1 1 SIDE HANDLE (313078) 13197 RON
68 1 1 HANDLE HOLDER (313079) 11519 RON
69 1 1 HANDLE BOLT (313080) 7828 RON
70 1 1 STOPPER ROD (971786) 488 RON
72A 1 1 CHANGE LEVER (OLD 321309) (331545) 2795 RON
73 1 1 LEVER HOLDER (321308) 4025 RON
74 1 1 RETAINING RING FOR D20 HOLE (311229) 1453 RON
75 1 1 LEVER SHAFT (321307) 11519 RON
76 1 1 O-RING (P-16) (873095) 894 RON
77 1 1 LEVER SPRING (321310Hitachi) 2236 RON
78 1 1 PUSHING BUTTON (321311) 2236 RON
79 1 1 PIN D2X10 (321312) 2236 RON
80 1 1 BALL BEARING 6201DDUCMAV2S (6201DD) 4361 RON
81 1 1 DUST WASHER (B) (302429) Indisponibil Indisponibil
*82 1 1 ARMATURE 110-120 VOLT (360591U) 36461 RON
*82 1 1 ARMATURE 220-230 VOLT (360591E) 30868 RON
*82 1 1 360591F - Indisponibil
83 1 1 FAN GUIDE (321320) 3242 RON
84 1 2 HD.TAPPINGSCREW D5X55 (OLD 956669) (953174) 894 RON
*85 1 1 340542C (340542C) 16776 RON
*85 1 1 340542G - Indisponibil
*85 1 1 340542E (340542E) 18566 RON
*85 1 1 340542H - Indisponibil
*85 1 1 340542F - Indisponibil
86 1 1 WASHER (A) (982631) 894 RON
87 1 1 BALL BEARING 608VVMC2EPS2L (608VVM) 4025 RON
88 1 1 MAGNET (318721) Indisponibil Indisponibil
89 1 2 SEAL LOCK HEX. SOCKET HD. BOLT M6X22 (321313) 2236 RON
90 1 2 BRUSH CAP (935829) 1453 RON
*91 1 2 CARBON BRUSH A.S. TYPE (OLD 981612Z) (999073) 7269 RON
*91 1 2 CARBON BRUSH (1 PAIR) (999043) 382 RON
92 1 2 BRUSH HOLDER (971001) Indisponibil Indisponibil
93 1 2 HEX.SOCKET SET SCREW M5X8 (938477) 1453 RON
94 1 1 TAIL COVER (321321) 6822 RON
95 1 2 SEAL LOCK HEX. SOCKET HD. BOLT M5X10 (877839) 1453 RON
96 1 2 BRUSH TERMINAL (930703) 2348 RON
97 1 1 VINYL TUBE (321322) 2236 RON
98 1 1 321318 (321318) 5952 RON
99 1 1 CASE (B) (321317) 4025 RON
*100 1 1 CONTROLLER CIRCUIT 110 VOLT (321326) 103682 RON
*100 1 1 321328 - Indisponibil
*100 1 1 CONTROLLER CIRCUIT 220-240 VOLT (321327) 35566 RON
101 1 1 INTERNAL WIRE (317113) 3242 RON
102 1 1 HANDLE (321323) 18454 RON
103 1 6 HEX.SOCKET HD.BOLTM5X14 (W/FLANGE) (998485) 1453 RON
104 1 1 SWITCH (C) 2P SCREW TYPE W/O LOCK (313093) 5480 RON
105 1 1 HANDLE COVER (321324) 12973 RON
106 1 2 TAPPING SCREW D4X20 (W/FLANGE) BLACK (OLD 305095) (301653) 894 RON
107 1 1 - Indisponibil
108 1 1 - Indisponibil
*109 1 1 TERMINAL (980063) 1117 RON
*109 1 1 TERMINAL M4.0 (10 PCS) (930804) 297 RON
110 1 2 TUBE (D) (981373) 1341 RON
*111 1 1 CORD ARMOR D8.2 (OLD 958049Z) (958049) 894 RON
*111 1 1 CORD ARMOR D10.7 (940778) 2124 RON
112 1 1 CONNECTOR 50092 (10 PCS) (OLD 939558) (959141) 382 RON
113 1 1 PILLAR TERMINAL (OLD 938307Z/512-31870-20)) (938307) 2571 RON
*114 1 1 CORD CLIP (960266) 894 RON
*114 1 1 CORD CLIP (981987Z) 1453 RON
115 1 2 TAPPING SCREW D4X16 (W/FLANGE) (984750) 1117 RON
*116 1 1 500390Z - Indisponibil
*116 1 1 CORD FOR GBR 230V (500446Z) 23934 RON
*116 1 1 CORD 5M 2 X1.0 HO7RN-F (W/O PLUG) (500454Z) 11184 RON
*116 1 1 CORD 2,5M 2 X 1.0 H05VV-F W/PLUG 13A/250V GBR (500435Z) 12638 RON
*116 1 1 CORD FOR SWISS (500391Z) 27513 RON
*116 1 1 500408Z - Indisponibil
*116 1 1 500439Z - Indisponibil
*116 1 1 500434Z - Indisponibil
*116 1 1 500486Z - Indisponibil
117 1 1 FAN (321640) 5368 RON
501 1 1 321325 - Indisponibil
501B 1 1 PLASTIC CARRYING CASE (322152) 45968 RON
502 1 1 GREASE (FG-6A) (30G) (4966375124375) Indisponibil Indisponibil
503 1 1 HEX.BAR WRENCH 3MM (OLD 993822) (943277) 1229 RON
504 1 1 HEX.BAR WRENCH 4MM (944458) 1229 RON
505 1 1 HEX.BAR WRENCH 5MM (944459) 1788 RON
601 1 1 313448 - Indisponibil
602 1 1 313456 - Indisponibil
603 1 1 313449 - Indisponibil
604 1 1 313457 - Indisponibil
605 1 1 313450 - Indisponibil
606 1 1 313458 - Indisponibil
607 1 1 313451 - Indisponibil
608 1 1 313459 - Indisponibil
609 1 1 313452 - Indisponibil
610 1 1 313460 - Indisponibil
611 1 1 313453 - Indisponibil
612 1 1 313461 - Indisponibil
613 1 1 313454 - Indisponibil
614 1 1 313462 - Indisponibil
615 1 1 313455 - Indisponibil
616 1 1 313463 - Indisponibil
617 1 1 944460 - Indisponibil
618 1 1 944461 - Indisponibil
619 1 1 993038 - Indisponibil
620 1 1 944462 - Indisponibil
621 1 1 944500 - Indisponibil
622 1 1 944463 - Indisponibil
624 1 1 COTTER (944477) 4361 RON
625 1 1 313465 - Indisponibil
626 1 1 CORE BIT 25MM (955994) 64647 RON
627 1 1 955995 - Indisponibil
628 1 1 955996 - Indisponibil
629 1 1 GUIDE PLATE 32MM (FOR CORE BIT) (955997) 4361 RON
630 1 1 CORE BIT 35MM (955998) 88359 RON
631 1 1 @ GUIDE PLATE 35MM (FOR CORE BIT) (955999) 4361 RON
632 1 1 956000 - Indisponibil
633 1 1 956001 - Indisponibil
634 1 1 955154 - Indisponibil
635 1 1 955166 - Indisponibil
636 1 1 955155 - Indisponibil
637 1 1 955167 - Indisponibil
638 1 1 956002 - Indisponibil
639 1 1 956003 - Indisponibil
640 1 1 955157 - Indisponibil
641 1 1 955168 - Indisponibil
642 1 1 956004 - Indisponibil
643 1 1 956005 - Indisponibil
644 1 1 955159 - Indisponibil
645 1 1 955169 - Indisponibil
646 1 1 @ CENTER PIN (B) D32,D35 CORE BIT (956009) 28184 RON
647 1 1 955165 - Indisponibil
648 1 1 313466 - Indisponibil
649 1 1 CORE BIT SHANK (A) SDS-MAX (313467) 74825 RON
650 1 1 DRILL CHUCK 13VLD-D (NEW 752056) (321813) 37468 RON
651 1 1 CHUCK WRENCH 10G (OLD 879355) (930515) 488 RON
652 1 1 313468 - Indisponibil
653 1 1 CH. ANCHOR ADAPTER 1/2" SDS-MAX (313469) 28967 RON
654 1 1 CH. ANCHOR ADAPTER 3/4" SQUARE SDS-MAX (313470) 32323 RON
655 1 1 313471 - Indisponibil
656 1 1 313472 - Indisponibil
657 1 1 313473 - Indisponibil
658 1 1 313474 - Indisponibil
659 1 1 313475 - Indisponibil
660 1 1 313476 - Indisponibil
661A 1 1 313478 - Indisponibil
662 1 1 313477 - Indisponibil
663 1 1 313479 - Indisponibil
664 1 1 SYRINGE BLOW-OUT BULB TYPE (320859) 6374 RON
665 1 1 SYRINGE BELLOWS TYPE (OLD 944575) (318085) 3242 RON
666 1 1 GREASE FOR HAMMER DRILL (JF-375) (70G) (308471) 8388 RON
667 1 1 GREASE FOR IMPACT DRILL (FG-6A) (500G) (980927) 4251 RON
668A 1 1 SERVICE KIT DH40MR (321715) 54469 RON
669 1 1 DUST COLLECTOR (317341) 8503 RON

Puteti cumpara DH40MR in urmatoarele variante:
