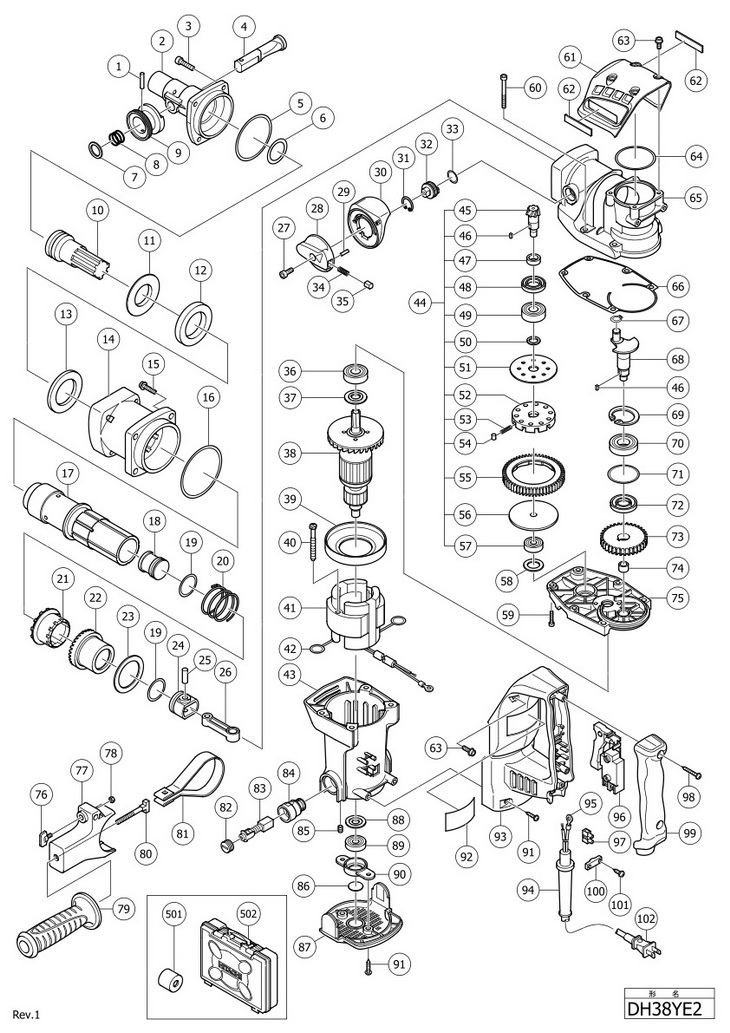

Top » Piese de schimb » PIESE HITACHI » DH38YE2 DH38YE2 [DH38YE2] Click pentru a mari Imagini suplimentare Click pentru a mari LISTA DE COMPONENTE: Numar Versiune Buc. in schema Denumire Pret/buc (Tva inclus) Cumpara 1 1 1 NEEDLE ROLLER D4X20 (943364) 1453 RON 2 1 1 331868 - Indisponibil 3 1 4 PACKING BOLT (981942) 2236 RON 4 1 1 STOP LEVER (B) (985372) 34112 RON 5 1 1 O-RING NEW (331244) 1453 RON 6 1 1 O-RING (C) (981857) 488 RON 7 1 1 331872 - Indisponibil 8 1 1 331871 - Indisponibil 9 1 1 331870 - Indisponibil 10 1 1 331863 - Indisponibil 11 1 1 331865 - Indisponibil 12 1 1 331864 - Indisponibil 13 1 1 331866 - Indisponibil 14 1 1 331867 - Indisponibil 15 1 4 HEX.SOCKET HD.BOLT (W/FLANGE) (991712) 1453 RON 16 1 1 O-RING (1AS-60) (956996) 297 RON 17 1 1 331862 - Indisponibil 18 1 1 331874 - Indisponibil 19 1 2 O-RING (986104) 1453 RON 20 1 1 331964 - Indisponibil 21 1 1 CLUTCH (331528) 12190 RON 22 1 1 BEVEL GEAR (331529) 14092 RON 23 1 1 THRUST WASHER (331234) 1453 RON 24 1 1 PISTON (326369) 3242 RON 25 1 1 PISTON PIN (331221) 1453 RON 26 1 1 CONNECTING ROD (321285) Indisponibil Indisponibil 27 1 1 SEAL LOCK HEX. SOCKET HD. BOLT M4X12 (983162) Indisponibil Indisponibil 28 1 1 CHANGE LEVER (OLD 321309) (331545) 2795 RON 29 1 1 PIN D2X10 (331548) 1453 RON 30 1 1 331873 - Indisponibil 31 1 1 RETAINING RING FOR D20 HOLE (311229) 1453 RON 32 1 1 LEVER SHAFT (331543) Indisponibil Indisponibil 33 1 1 O-RING (P-16) (873095) 894 RON 34 1 1 LEVER SPRING (331546) 1453 RON 35 1 1 PUSHING BUTTON (321311) 2236 RON 36 1 1 BALL BEARING 6201DDUCMAV2S (6201DD) 4361 RON 37 1 1 DUST WASHER (B) (325003) 1453 RON 38 1 1 360875U - Indisponibil 39 1 1 FAN GUIDE (331252) 2795 RON 40 1 2 HD.TAPPINGSCREW D5X55 (OLD 956669) (953174) 894 RON 41 1 1 340753D - Indisponibil 42 1 2 BRUSH TERMINAL (930703) 2348 RON 43 1 1 331251 (331251) 16441 RON 44 1 1 331210 (331210) 44514 RON 45 1 1 BEVEL PINION (331211) 7940 RON 46 1 2 FEATHER KEY 3X3X8 (944109) 2012 RON 47 1 1 COLLAR (331212) 3019 RON 48 1 1 OIL SEAL (A) (313050) 382 RON 49 1 1 BALL BEARING 6002DDUCMPS2S (6002DD) 4920 RON 50 1 1 WASHER (331213) 1453 RON 51 1 1 WASHER (A) (331214) 1453 RON 52 1 1 GEAR HOLDER (321281) 12862 RON 53 1 10 SPRING (C) (331218) 1453 RON 54 1 10 NEEDLE (331217) 1453 RON 55 1 1 SECOND GEAR (331215) 13085 RON 56 1 1 SPACER (331219) 7269 RON 57 1 1 BALL BEARING 629VVMC2EPS2L (629VVM) 3914 RON 58 1 1 BEARING WASHER (331220) 1453 RON 59 1 2 SEAL LOCK HEX. SOCKET HD. BOLT M6X20 (OLD 986086) (992803) 1453 RON 60 1 4 SEAL LOCK HEX. SOCKET HD. BOLT M6X45 (986940) 1453 RON 61 1 1 CRANK COVER (331245) 6933 RON 62 1 2 - Indisponibil 63 1 6 HEX.SOCKET HD.BOLT (994192) 894 RON 64 1 1 CYLINDER O-RING (B) (878713) 2683 RON 65 1 1 CRANK CASE (331523) 32882 RON 66 1 1 SEAL PACKING (331549) 2795 RON 67 1 1 RETAINING RING FOR D10 (10 PCS) (939540) 2683 RON 68 1 1 CRANK SHAFT (331208) 13085 RON 69 1 1 RETAINING RING FOR D40 HOLE (948391) 2236 RON 70 1 1 BALL BEARING 6203DDUCMAV2S (6203DD) 5368 RON 71 1 1 O-RING (S-40) (996363) 2236 RON 72 1 1 OIL SEAL (B) (321274) 4025 RON 73 1 1 FIRST GEAR (331209) 8723 RON 74 1 1 NEEDLE BEARING (M661) (939299) 6933 RON 75 1 1 GEAR COVER (331253) 17671 RON 76 1 1 WING BOLT M6X12 (307947) 1788 RON 77 1 1 MOUNT (331248) 5815 RON 78 1 1 NUT M6 (10 PCS) (949556) 1453 RON 79 1 1 SIDE HANDLE (330209) 8835 RON 80 1 1 HANDLE BOLT (331247) 4025 RON 81 1 1 BAND (331246) 3019 RON 82 1 2 BRUSH CAP (945161) 1453 RON 83 1 2 CARBON BRUSH (1 PAIR) (999043) 382 RON 84 1 2 BRUSH HOLDER (958900) 5368 RON 85 1 2 HEX.SOCKET SET SCREW M5X8 (938477) 1453 RON 86 1 1 DUST SEAL (331547) 1453 RON 87 1 1 TAIL COVER (331202) 5368 RON 88 1 1 WASHER (A) (982631) 894 RON 89 1 1 BALL BEARING 608VVMC2EPS2L (608VVM) 4025 RON 90 1 1 BEARING HOLDER (331254) 2795 RON 91 1 4 TAPPING SCREW D5X20 (W/FLANGE) BLACK (302089) 1453 RON 92 1 1 - Indisponibil 93 1 1 HANDLE (331204) 13421 RON 94 1 1 CORD ARMOR D8.2 (OLD 958049Z) (958049) 894 RON 95 1 1 TERMINAL M4.0 (10 PCS) (930804) 297 RON 96 1 1 SWITCH (C) 2P SCREW TYPE W/O LOCK (313093) 5480 RON 97 1 1 PILLAR TERMINAL (OLD 938307Z/512-31870-20)) (938307) 2571 RON 98 1 2 TAPPING SCREW D4X25 (W/FLANGE) (307028) 1453 RON 99 1 1 HANDLE COVER (331205) 6374 RON 100 1 1 CORD CLIP (960266) 894 RON 101 1 2 TAPPING SCREW D4X16 (W/FLANGE) (984750) 1117 RON 102 1 1 500434Z - Indisponibil 501 1 1 DUST COVER (993245) 5591 RON 502 1 1 331965 - Indisponibil 601 1 1 GREASE (FG-6A) (30G) (4966375124375) Indisponibil Indisponibil 602 1 1 GREASE FOR HAMMER DRILL (JF-375) (70G) (308471) 8388 RON 603 1 1 GREASE FOR IMPACT DRILL (FG-6A) (500G) (980927) 4251 RON 604 1 1 SYRINGE BLOW-OUT BULB TYPE (320859) 6374 RON 605 1 1 SYRINGE BELLOWS TYPE (OLD 944575) (318085) 3242 RON 606 1 1 985376 - Indisponibil 607 1 1 985374 - Indisponibil 608 1 1 985375 - Indisponibil 609 1 1 @A-TAPER ADAPTER WITH SPLINE SHANK (OLD 451045A) (985377) 23934 RON 610 1 1 B-TAPER SHANK ADAPTER (985378) 23934 RON 611 1 1 COTTER (944477) 4361 RON 612 1 1 955165 - Indisponibil 613 1 1 985380 - Indisponibil 614 1 1 955159 - Indisponibil 615 1 1 984029 - Indisponibil 616 1 1 985379 - Indisponibil 617 1 1 985383 - Indisponibil 618 1 1 985381 - Indisponibil 619 1 1 985382 - Indisponibil 620 1 1 985384 - Indisponibil 621 1 1 985385 - Indisponibil 622 1 1 985386 - Indisponibil
