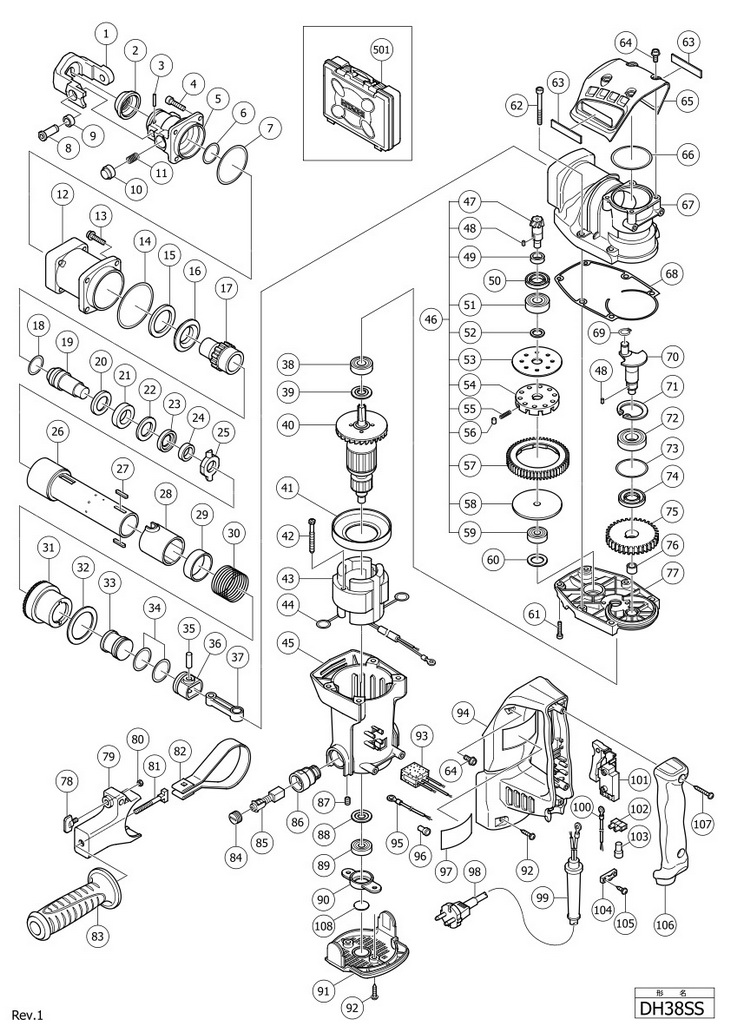

Top » Piese de schimb » PIESE HITACHI » DH38SS DH38SS [DH38SS] Click pentru a mari Imagini suplimentare Click pentru a mari LISTA DE COMPONENTE: Numar Versiune Buc. in schema Denumire Pret/buc (Tva inclus) Cumpara 1 1 1 RETAINER NEW (331241) 23375 RON 2 1 1 DUST COVER NEW (331243) 2795 RON 3 1 2 ROLL PIN D4X20 (991697) 1453 RON 4 1 4 PACKING BOLT (981942) 2236 RON 5 1 1 FRONT COVER NEW (331238) 28632 RON 6 1 1 O-RING (S-25) (319572) 2236 RON 7 1 1 O-RING NEW (331244) 1453 RON 8 1 2 RETAINER PIN (331242) 4473 RON 9 1 2 DAMPER (B) (990134) 2348 RON 10 1 1 PUSHING BUTTON NEW (331240) 4025 RON 11 1 1 SET SPRING (OLD 990132) NEW JAN (331239) 1453 RON 12 1 1 CYLINDER CASE (331237) 16441 RON 13 1 4 HEX.SOCKET HD.BOLT (W/FLANGE) (991712) 1453 RON 14 1 1 O-RING (1AS-60) (956996) 297 RON 15 1 1 DAMPER (321843) 4025 RON 16 1 1 DRIVER HOLDER NEW (331236) 4025 RON 17 1 1 DRIVER NEW (331222) 16441 RON 18 1 1 O-RING (C) (313396) 4025 RON 19 1 1 SECOND HAMMER NEW (331223) 7269 RON 20 1 1 DAMPER WASHER (331224) 3690 RON 21 1 1 DAMPER (321835) 5368 RON 22 1 1 DAMPER HOLDER (331225) 3690 RON 23 1 1 DAMPER HOLDER (B) (331227) 4025 RON 24 1 1 DAMPER (321832) 3242 RON 25 1 1 SLIDE RING NEW (331228) 6262 RON 26 1 1 CYLINDER NEW (331226) 22257 RON 27 1 2 CYLINDER KEY NEW (331232) 1453 RON 28 1 1 SLIDE SLEEVE (B) NEW (331230) 2795 RON 29 1 1 SLIDE SLEEVE (A) NEW (331229) 5144 RON 30 1 1 SPRING (A) (331231) 1453 RON 31 1 1 BEVEL GEAR NEW (331233) 12973 RON 32 1 1 THRUST WASHER (331234) 1453 RON 33 1 1 STRIKER (331235) 5480 RON 34 1 2 O-RING (986104) 1453 RON 35 1 1 PISTON PIN (331221) 1453 RON 36 1 1 PISTON (326369) 3242 RON 37 1 1 CONNECTING ROD (321285) Indisponibil Indisponibil 38 1 1 BALL BEARING 6201DDUCMAV2S (6201DD) 4361 RON 39 1 1 DUST WASHER (B) (325003) 1453 RON *40 1 1 360875C (360875C) 32882 RON *40 1 1 360875E (360875E) 32882 RON *40 1 1 360875F - Indisponibil 41 1 1 FAN GUIDE (331252) 2795 RON 42 1 2 HD.TAPPINGSCREW D5X55 (OLD 956669) (953174) 894 RON *43 1 1 340753C (340753C) 18118 RON *43 1 1 340753G - Indisponibil *43 1 1 340753E (340753E) 1998 RON *43 1 1 340753H - Indisponibil *43 1 1 340753J - Indisponibil 44 1 2 BRUSH TERMINAL (930703) 2348 RON 45 1 1 331251 (331251) 16441 RON 46 1 1 331210 (331210) 44514 RON 47 1 1 BEVEL PINION (331211) 7940 RON 48 1 2 FEATHER KEY 3X3X8 (944109) 2012 RON 49 1 1 COLLAR (331212) 3019 RON 50 1 1 OIL SEAL (A) (313050) 382 RON 51 1 1 BALL BEARING 6002DDUCMPS2S (6002DD) 4920 RON 52 1 1 WASHER (331213) 1453 RON 53 1 1 WASHER (A) (331214) 1453 RON 54 1 1 GEAR HOLDER (321281) 12862 RON 55 1 10 SPRING (C) (331218) 1453 RON 56 1 10 NEEDLE (331217) 1453 RON 57 1 1 SECOND GEAR (331215) 13085 RON 58 1 1 SPACER (331219) 7269 RON 59 1 1 BALL BEARING 629VVMC2EPS2L (629VVM) 3914 RON 60 1 1 BEARING WASHER (331220) 1453 RON 61 1 2 SEAL LOCK HEX. SOCKET HD. BOLT M6X20 (OLD 986086) (992803) 1453 RON 62 1 4 SEAL LOCK HEX. SOCKET HD. BOLT M6X45 (986940) 1453 RON 63 1 2 - Indisponibil 64 1 6 HEX.SOCKET HD.BOLT (994192) 894 RON 65 1 1 CRANK COVER (331245) 6933 RON 66 1 1 CYLINDER O-RING (B) (878713) 2683 RON 67 1 1 CRANK CASE NEW (331207) 32882 RON 68 1 1 SEAL PACKING (331549) 2795 RON 69 1 1 RETAINING RING FOR D10 (10 PCS) (939540) 2683 RON 70 1 1 CRANK SHAFT (331208) 13085 RON 71 1 1 RETAINING RING FOR D40 HOLE (948391) 2236 RON 72 1 1 BALL BEARING 6203DDUCMAV2S (6203DD) 5368 RON 73 1 1 O-RING (S-40) (996363) 2236 RON 74 1 1 OIL SEAL (B) (321274) 4025 RON 75 1 1 FIRST GEAR (331209) 8723 RON 76 1 1 NEEDLE BEARING (M661) (939299) 6933 RON 77 1 1 GEAR COVER (331253) 17671 RON 78 1 1 WING BOLT M6X12 (307947) 1788 RON 79 1 1 MOUNT (331248) 5815 RON 80 1 1 NUT M6 (10 PCS) (949556) 1453 RON 81 1 1 HANDLE BOLT (331247) 4025 RON 82 1 1 BAND (331246) 3019 RON 83 1 1 SIDE HANDLE (330209) 8835 RON 84 1 2 BRUSH CAP (945161) 1453 RON 85 1 2 CARBON BRUSH (1 PAIR) (999043) 382 RON 86 1 2 BRUSH HOLDER (958900) 5368 RON 87 1 2 HEX.SOCKET SET SCREW M5X8 (938477) 1453 RON 88 1 1 WASHER (A) (982631) 894 RON 89 1 1 BALL BEARING 608VVMC2EPS2L (608VVM) 4025 RON 90 1 1 BEARING HOLDER (331254) 2795 RON 91 1 1 TAIL COVER (331202) 5368 RON 92 1 4 TAPPING SCREW D5X20 (W/FLANGE) BLACK (302089) 1453 RON 93 1 1 NOISE SUPPRESSOR (331203) 4025 RON 94 1 1 HANDLE (331204) 13421 RON 95 1 1 INTERNAL WIRE 270L (330216) 1453 RON 96 1 1 CONNECTOR 50092 (10 PCS) (OLD 939558) (959141) 382 RON 97 1 1 - Indisponibil *98 1 1 500390Z - Indisponibil *98 1 1 @ CORD FOR THA (500239Z) 16553 RON *98 1 1 @ CORD FOR SINZ KUW (500424Z) 16441 RON *98 1 1 500235Z - Indisponibil *98 1 1 500457Z - Indisponibil *98 1 1 CORD 5M 2 X 1,0 W/PLUG 13A/250V FOR GBR (500440Z) 13197 RON *98 1 1 500477Z - Indisponibil *98 1 1 500475Z - Indisponibil *99 1 1 CORD ARMOR D8.2 (OLD 958049Z) (958049) 894 RON *99 1 1 CORD ARMOR D10.7 (940778) 2124 RON 100 1 1 INTERNAL WIRE (981974) 2236 RON 101 1 1 SWITCH (C) 2P SCREW TYPE W/O LOCK (313093) 5480 RON 102 1 1 PILLAR TERMINAL (OLD 938307Z/512-31870-20)) (938307) 2571 RON 103 1 1 CONNECTOR 50092 (10 PCS) (OLD 939558) (959141) 382 RON 104 1 1 CORD CLIP (960266) 894 RON 105 1 2 TAPPING SCREW D4X16 (W/FLANGE) (984750) 1117 RON 106 1 1 HANDLE COVER (331205) 6374 RON 107 1 2 TAPPING SCREW D4X25 (W/FLANGE) (307028) 1453 RON 108 1 1 DUST SEAL (331547) 1453 RON 501 1 1 PLASTIC CARRYING CASE (331206) 49323 RON
