Top » Piese de schimb » PIESE HITACHI » DH35

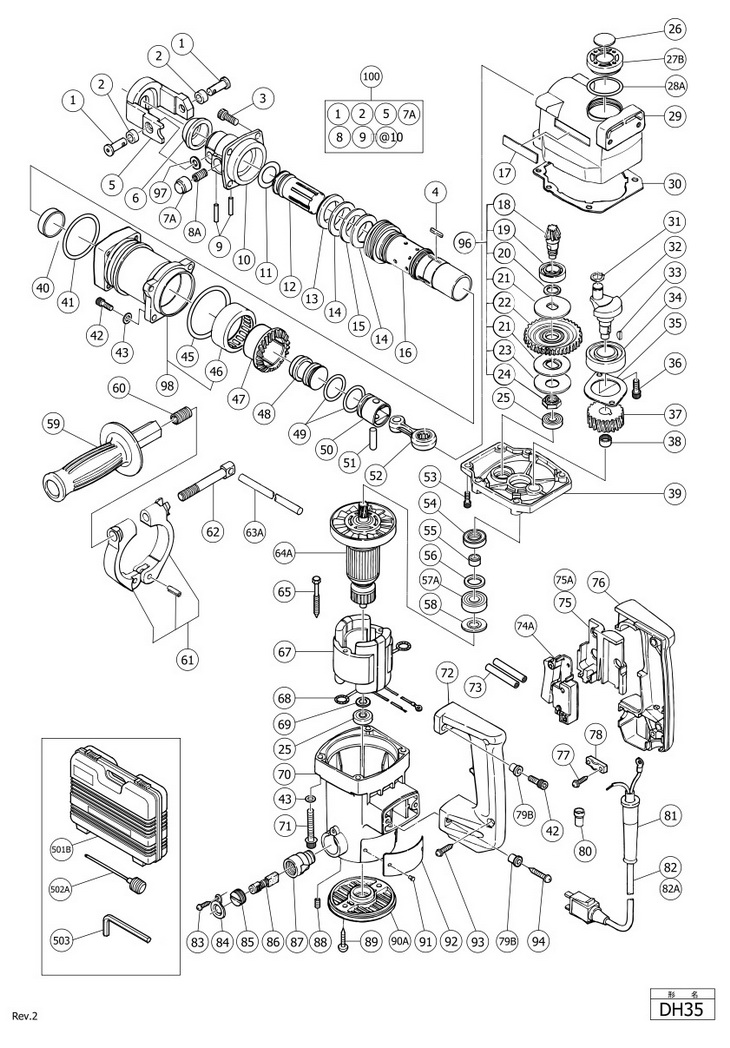

DH35
[DH35]
DH35
Click pentru a mari
Imagini suplimentare
DH35
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 2 RETAINER PIN (990135) 7828 RON
2 1 2 DAMPER (B) (990134) 2348 RON
3 1 4 NYLOCK HIGH TENSION BOLT M7X20 (993068) 2348 RON
4 1 4 993062 - Indisponibil
5 1 1 RETAINER (990131) 22592 RON
6 1 2 DUST COVER (971077) 1453 RON
7A 1 1 PUSHING BUTTON (990133) 6374 RON
8A 1 1 SET SPRING (OLD 990132) NEW JAN (331239) 1453 RON
9 1 2 @ ROLL PIN D4X20 (10 PCS) (OLD 949499Z) (949499) 297 RON
10 1 1 993060 - Indisponibil
11 1 1 O-RING (C) (981857) 488 RON
12 1 1 993061 - Indisponibil
13 1 1 993067 - Indisponibil
14 1 2 993066 - Indisponibil
15 1 1 993063 - Indisponibil
16 1 1 993059 - Indisponibil
17 1 1 957561 - Indisponibil
18 1 1 993057 - Indisponibil
19 1 1 990936 - Indisponibil
20 1 1 @ WASHER (A) (986103) 1453 RON
21 1 2 993055 - Indisponibil
22 1 1 993058 - Indisponibil
23 1 1 993056 - Indisponibil
24 1 1 SPECIAL NUT (B) (986106) 2236 RON
25 1 2 BALL BEARING 608VVMC2EPS2L (608VVM) 4025 RON
26 1 1 CAUTION PLATE (ENGLISH) VRV-16 (980934Z) 1453 RON
27B 1 1 314031 (314031) 382 RON
28A 1 1 O-RING (314030) 1453 RON
29 1 1 CRANK CASE (986093) 35790 RON
30 1 1 SEAL PACKING (986071) 2236 RON
31 1 1 RETAINING RING FOR D12 (10 PCS) (939542) 1788 RON
32 1 1 @ CRANK SHAFT (993053) 28967 RON
33 1 1 WOODRUFF KEY 3X13 (932815) 1788 RON
34 1 1 BALL BEARING 6204VVCMPS2S (6204VV) 6262 RON
35 1 1 @ BEARING COVER (986074) 2683 RON
36 1 2 SEAL LOCK HEX. SOCKET HD. BOLT M5X14 (OLD 315636) (984509) 1453 RON
37 1 1 993054 - Indisponibil
38 1 1 NEEDLE BEARING (M661) (939299) 6933 RON
39 1 1 993083 - Indisponibil
40 1 1 VALVE BAND (981858) 6151 RON
41 1 1 O-RING (S-55) (980744) 2683 RON
42 1 6 SEAL LOCK HEX. SOCKET HD. BOLT M6X25 (987707) 1453 RON
43 1 12 BOLT WASHER M6 (10 PCS) (OLD 949432Z) (949432) 1453 RON
43S 1 8 BOLT WASHER M6 (10 PCS) (OLD 949432Z) (949432) 1453 RON
45 1 1 O-RING (1AS-60) (956996) 297 RON
46 1 1 NEEDLE BEARING NTN HMK 4520 (993069) 13421 RON
47 1 1 THIRD GEAR (981854) 5101 RON
48 1 1 STRIKER (986081) 16441 RON
49 1 2 O-RING (986104) 1453 RON
50 1 1 PISTON (981885) 12079 RON
51 1 1 PISTON PIN (980708) 2348 RON
52 1 1 CONNECTING ROD (980707) 22592 RON
53 1 2 SEAL LOCK HEX. SOCKET HD. BOLT M6X16 (990935) 1453 RON
54 1 1 993051 - Indisponibil
55 1 1 993065 - Indisponibil
56 1 1 993064 - Indisponibil
57A 1 1 BALL BEARING 6001DDUCMPS2S (OLD 980925) (6001DD) 4585 RON
58 1 1 DUST WASHER (993052) 1453 RON
59 1 1 SIDE HANDLE (981870) 8276 RON
60 1 1 SPRING (672612) 1453 RON
61 1 1 HANDLE HOLDER (OLD 981960Z) (981960) 12862 RON
62 1 1 HANDLE BOLT (971785) 3578 RON
63A 1 1 STOPPER ROD (971786) 488 RON
64A 1 1 993072C - Indisponibil
64A 1 1 993072D - Indisponibil
64A 1 1 993072E - Indisponibil
64A 1 1 993072F - Indisponibil
65 1 2 HD.TAPPINGSCREW D5X55 (OLD 956669) (953174) 894 RON
67 1 1 986090C (986090C) 34112 RON
67 1 1 986090D - Indisponibil
67 1 1 986090E (986090E) 34112 RON
67 1 1 986090F (986090F) 34112 RON
67 1 1 986090G - Indisponibil
67 1 1 986090H - Indisponibil
68 1 2 BRUSH TERMINAL (930703) 2348 RON
69 1 1 DUST WASHER (A) (980698) 1453 RON
70 1 1 993085 - Indisponibil
71 1 4 SEAL LOCK HEX. SOCKET HD. BOLT M6X50 (986491) 1453 RON
72 1 1 HANDLE (B) (981867) Indisponibil Indisponibil
72 1 1 HANDLE (B) (992809) 8611 RON
73 1 2 - Indisponibil
74A 1 1 SWITCH (2P PILLAR TYPE) W/O LOCK (981533Z) 13085 RON
74A 1 1 SWITCH (B) (1P SCREW TYPE) W/O LOCK (990941) 6374 RON
75 1 1 SUPPORT (981869) 6151 RON
75 1 1 SUPPORT (A) (981986Z) 15434 RON
75A 1 1 990082 - Indisponibil
76 1 1 HANDLE (A) (981866) 10065 RON
76 1 1 HANDLE (A) (992808) 9059 RON
77 1 2 TAPPING SCREW D4X16 (W/FLANGE) (984750) 1117 RON
78 1 1 CORD CLIP (960266) 894 RON
79B 1 4 DISTANCE PIECE (C) (OLD 981868) (990940) 1453 RON
80 1 1 CONNECTOR 50091 (10 PCS) (OLD 939557) (959140) 2236 RON
81 1 1 CORD ARMOR D10.7 (940778) 2124 RON
81 1 1 CORD ARMOR D8.2 (OLD 958049Z) (958049) 894 RON
82 1 1 500235Z - Indisponibil
82 1 1 @ CORD FOR THA (500239Z) 16553 RON
82 1 1 500394Z - Indisponibil
82 1 1 500408Z - Indisponibil
82A 1 1 @ CORD FOR SINZ KUW (500424Z) 16441 RON
83 1 2 TAPPING SCREW D4X10 (958715) 894 RON
84 1 2 CAP COVER (OLD 981959Z) (981959) 2348 RON
85 1 2 BRUSH CAP (961781) 2683 RON
86 1 2 CARBON BRUSH (1 PAIR) (999043) 382 RON
87 1 2 BRUSH HOLDER (981586) 5368 RON
88 1 2 HEX.SOCKET SET SCREW M5X8 (938477) 1453 RON
89 1 2 TAPPING SCREW D5X20 (953040) 1453 RON
90A 1 1 TAIL COVER (B) (OLD 981951) (302323) 13421 RON
91 1 2 RIVET D2.5X4.8 (10 PCS) (OLD 949510Z) (949510) 1453 RON
92 1 1 - Indisponibil
93 1 2 956636 - Indisponibil
94 1 2 TAPPING SCREW D6X30 (986087) 1453 RON
95 1 2 TUBE (D) (981373) 1341 RON
96 1 1 990939 - Indisponibil
97 1 1 991701 - Indisponibil
98 1 1 990943 (990943) 5101 RON
100 1 1 990946 - Indisponibil
501B 1 1 CASE (OLD 314175) (312831) 35790 RON
502A 1 1 - Indisponibil
503 1 1 HEX.BAR WRENCH 5MM (944459) 1788 RON
601 1 1 985720 - Indisponibil
602 1 1 981890 - Indisponibil
603 1 1 981904 - Indisponibil
604 1 1 985723 - Indisponibil
605 1 1 981891 - Indisponibil
606 1 1 981905 - Indisponibil
607 1 1 985726 - Indisponibil
608 1 1 981892 - Indisponibil
609 1 1 981906 - Indisponibil
610 1 1 985729 - Indisponibil
611 1 1 981893 - Indisponibil
612 1 1 981907 - Indisponibil
613 1 1 985732 - Indisponibil
614 1 1 981894 - Indisponibil
615 1 1 981908 - Indisponibil
616 1 1 981902 - Indisponibil
617 1 1 981895 - Indisponibil
618 1 1 981909 - Indisponibil
619 1 1 990931 - Indisponibil
620 1 1 990930 - Indisponibil
622 1 1 CORE BIT 25MM (955994) 64647 RON
623 1 1 955995 - Indisponibil
624 1 1 955996 - Indisponibil
625 1 1 CORE BIT 35MM (955998) 88359 RON
626 1 1 956000 - Indisponibil
627 1 1 955154 - Indisponibil
628 1 1 955155 - Indisponibil
629 1 1 956002 - Indisponibil
630 1 1 955157 - Indisponibil
631 1 1 956004 - Indisponibil
632 1 1 955159 - Indisponibil
633 1 1 955163 - Indisponibil
634 1 1 CORE BIT SHANK (B) D25-35 (956008) 40823 RON
635 1 1 955165 - Indisponibil
636 1 1 @ CENTER PIN (B) D32,D35 CORE BIT (956009) 28184 RON
637 1 1 981924 - Indisponibil
638 1 1 SHANK 250L (955186) 25612 RON
639 1 1 955183 - Indisponibil
640 1 1 RAMMER 140MM (955181) 83214 RON
641 1 1 956126 - Indisponibil
642 1 1 @ DRIFT KEY (944574) 5927 RON
644 1 1 COTTER (944477) 4361 RON
645 1 1 944460 - Indisponibil
646 1 1 944461 - Indisponibil
647 1 1 993038 - Indisponibil
648 1 1 944462 - Indisponibil
649 1 1 944500 - Indisponibil
650 1 1 944463 - Indisponibil
651 1 1 944464 - Indisponibil
652 1 1 TAPER SHANK ADAPTER NO.1 (W/O C (981911) 18789 RON
653 1 1 981912 - Indisponibil
654 1 1 981913 - Indisponibil
656 1 1 981922 - Indisponibil
657 1 1 981923 - Indisponibil
658 1 1 981925 - Indisponibil
659 1 1 981926 - Indisponibil
660 1 1 GREASE (FG-6A) (30G) (4966375124375) Indisponibil Indisponibil
661 1 1 GREASE FOR IMPACT DRILL (FG-6A) (500G) (980927) 4251 RON
664 1 1 981929 - Indisponibil
665 1 1 ANCHOR ADAPTER NO.40 (981930) 21697 RON
666 1 1 ANCHOR ADAPTER NO.50 (981931) 21697 RON
669 1 1 ANCHOR ADAPTER NO.30 (FOR ROTATIO (981919) 19796 RON
670 1 1 ANCHOR ADAPTER NO.40 (FOR ROTATIO (981920) 17895 RON
671 1 1 ANCHOR ADAPTER NO.50 (FOR ROTATION) (981921) 17895 RON
672 1 1 DRILL CHUCK 13VLD-D (NEW 752056) (321813) 37468 RON
673 1 1 CHUCK WRENCH 10G (OLD 879355) (930515) 488 RON
674 1 1 CHUCK ADAPTER 13MM HEX->1/2"X20 (986102) 30645 RON
675 1 1 J-122 WRENCH (970884) 22144 RON
676A 1 1 WRENCH (936728) 573 RON
677 1 1 984010 - Indisponibil
678 1 1 BIT FOR MASONRY 16X505 (984017) 4251 RON
679 1 1 984011 - Indisponibil
680 1 1 984018 - Indisponibil
681 1 1 984012 - Indisponibil
683 1 1 984013 - Indisponibil
685 1 1 984014 - Indisponibil
687 1 1 984015 - Indisponibil
689 1 1 A-TAPER SHANK ADAPTER D11.0-17.5 (985754) 24717 RON
690 1 1 B-TAPER SHANK ADAPTER (D21.5) (985755) 24717 RON
691 1 1 GREASE FOR HAMMER DRILL (JF-375) (70G) (308471) 8388 RON
692A 1 1 SYRINGE BELLOWS TYPE (OLD 944575) (318085) 3242 RON
693 1 1 CHEMICAL ANCHOR ADAPTER 12.7MM (998561) 25612 RON
694 1 1 CHEMICAL ANCHOR ADAPTER 19MMX1 (998562) 27289 RON
695 1 1 SYRINGE BLOW-OUT BULB TYPE (320859) 6374 RON
