Top » Piese de schimb » PIESE HITACHI » DH28PC

DH28PC
[DH28PC]
DH28PC
Click pentru a mari
Imagini suplimentare
DH28PC
Click pentru a mari

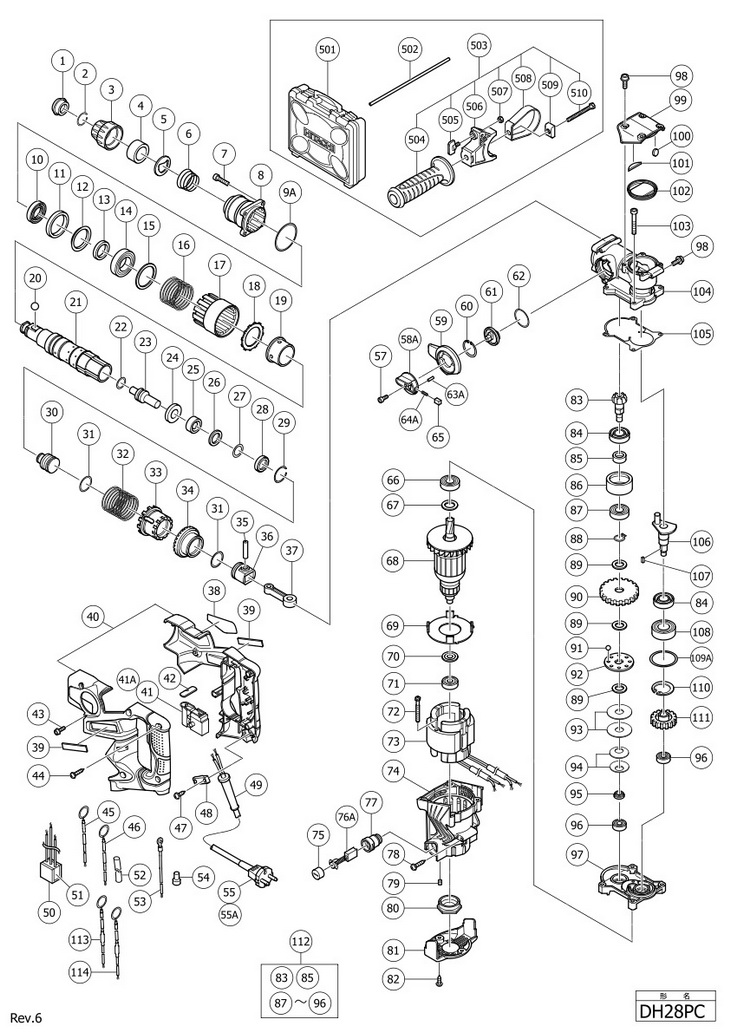

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 FRONT CAP (306345) 2012 RON
2 1 1 STOPPER RING (306340) 1788 RON
3 1 1 GRIP (324527) 3242 RON
4 1 1 BALL HOLDER (330192) 3690 RON
5 1 1 HOLDER PLATE (OLD 322811) (324526) 3242 RON
6 1 1 HOLDER SPRING (330191) 1453 RON
7 1 4 SEAL LOCK HEX. SOCKET HD. BOLT M6X20 (OLD 986086) (992803) 1453 RON
8 1 1 CYLINDER CASE (330174) 5591 RON
9A 1 1 O-RING (I.D 49.5) NEW (334370) 1453 RON
10 1 1 OIL SEAL (328867) 4025 RON
11 1 1 DAMPER (A) (330175) 3242 RON
12 1 1 DAMPER WASHER (B) (330184) 1453 RON
13 1 1 FELT PACKING (A) (304020) 1453 RON
14 1 1 BALL BEARING 6905DDUCMNS7S (6905DD) 17447 RON
15 1 1 WASHER (A) (330176) 1453 RON
16 1 1 LOCK SPRING (330177) 1453 RON
17 1 1 LOCK SLEEVE (330178) 573 RON
18 1 1 WASHER (B) (330179) 1453 RON
19 1 1 SLIDE SLEEVE (330187) 5815 RON
20 1 1 STEEL BALL D7.0 (10 PCS) (959156) 2236 RON
21 1 1 CYLINDER (330180) 28632 RON
22 1 1 O-RING (C) (323058) 3242 RON
23 1 1 SECOND HAMMER (330181) 4025 RON
24 1 1 DAMPER WASHER (330182) 3019 RON
25 1 1 DAMPER (B) (330183) 5368 RON
26 1 1 DAMPER HOLDER (A) (331672) 2795 RON
27 1 1 O-RING (A) (330186) 2236 RON
28 1 1 DAMPER HOLDER (B) (331673) 3019 RON
29 1 1 STOPPER RING (323062) 2236 RON
30 1 1 STRIKER (330185) 3019 RON
31 1 2 O-RING (I.D.19.2) (319577) 3242 RON
32 1 1 CLUTCH SPRING (330188) 1453 RON
33 1 1 CLUTCH (330189) 21138 RON
34 1 1 BEVEL GEAR (330190) 11519 RON
35A 1 1 PISTON PIN (330173) Indisponibil Indisponibil
36 1 1 PISTON (330172) Indisponibil Indisponibil
37 1 1 CONNECTING ROD (319585) 3242 RON
38 1 1 - Indisponibil
39 1 2 HITACHI PLATE (886342) 2236 RON
40 1 1 HANDLE (A+B) SET (330256) 16441 RON
*41 1 1 SWITCH (331677) 10848 RON
41A 1 1 334371 - Indisponibil
42 1 1 PUSHING BUTTON (322853) Indisponibil Indisponibil
43 1 4 HEX.SOCKET HD BOLT(W/FLANGE)M4X10 (316228) 2236 RON
44 1 3 TAPPING SCREW D4X25 (W/FLANGE) (307028) 1453 RON
*45 1 1 INTERNAL WIRE BLUE 18AWGX300L (330254) 2795 RON
*46 1 1 INTERNAL WIRE BROWN 18AWGX300L (330255) 2795 RON
47 1 2 TAPPING SCREW D4X16 (W/FLANGE) (984750) 1117 RON
48 1 1 CORD CLIP (960266) 894 RON
49 1 1 CORD ARMOR D8.8 (953327) Indisponibil Indisponibil
*49 1 1 CORD ARMOR D10.7 (940778) 2124 RON
50 1 1 SUPPORT (B) (317492) 2236 RON
51 1 1 NOISE SUPPRESSOR (325566) 5927 RON
52 1 1 VINYL TUBE (321322) 2236 RON
53 1 1 INTERNAL WIRE (981500) 1453 RON
54 1 1 CONNECTOR 50091 (10 PCS) (OLD 939557) (959140) 2236 RON
*55 1 1 500390Z - Indisponibil
*55 1 1 CORD 4M 2 X 1.0 H07RN-F W/PLUG 16A CEE FORM 2P+E 110 VOLT (500465Z) 22144 RON
*55 1 1 CORD FOR GBR 230V (500446Z) 23934 RON
*55 1 1 @ CORD FOR SINZ KUW (500424Z) 16441 RON
*55 1 1 500457Z - Indisponibil
*55 1 1 500235Z - Indisponibil
*55 1 1 500439Z - Indisponibil
*55 1 1 500477Z - Indisponibil
55A 1 1 500432Z - Indisponibil
57 1 1 SEAL LOCK HEX. SOCKET HD. BOLT M4X12 (983162) Indisponibil Indisponibil
58A 1 1 CHANGE LEVER (OLD 321309) (331545) 2795 RON
59 1 1 LEVER HOLDER (330207) 2236 RON
60 1 1 RETAINING RING FOR D35 HOLE (10 PCS) (939556) 6822 RON
61 1 1 LEVER SHAFT (330206) 4025 RON
62 1 1 O-RING (330205) 1453 RON
63A 1 1 PIN D2X10 (331548) 1453 RON
64A 1 1 LEVER SPRING (331546) 1453 RON
65 1 1 PUSHING BUTTON (321311) 2236 RON
66 1 1 BALL BEARING 6001DDUCMPS2S (OLD 980925) (6001DD) 4585 RON
67 1 1 WASHER (B) (971736) 1453 RON
*68 1 1 ARMATURE 110-115 VOLT NEW DEC (360857C) 30757 RON
*68 1 1 360857U - Indisponibil
*68 1 1 ARMATURE 220-230 VOLT (360857E) 30757 RON
*68 1 1 360857F - Indisponibil
*68 1 1 360857G - Indisponibil
69 1 1 FAN GUIDE (330202) 2236 RON
70 1 1 WASHER (A) (982631) 894 RON
71 1 1 BALL BEARING 608VVMC2EPS2L (608VVM) 4025 RON
72 1 2 HEX.HD. TAPPING SCREW D5X40 (980864) 1453 RON
*73 1 1 340739L - Indisponibil
*73 1 1 340739G - Indisponibil
*73 1 1 340739K - Indisponibil
*73 1 1 STATOR 220-230 VOLT (340739E) 22257 RON
*73 1 1 340739H - Indisponibil
*73 1 1 340739J - Indisponibil
*73 1 1 340739F - Indisponibil
74 1 1 330201 (330201) 22257 RON
75 1 2 BRUSH CAP (935829) 1453 RON
76A 1 2 CARBON BRUSH (1 PAIR) (999004) 5591 RON
77 1 2 BRUSH HOLDER (957051) 4361 RON
78 1 2 TAPPING SCREW D5X20 (W/FLANGE) BLACK (302089) 1453 RON
79 1 2 HEX.SOCKET SET SCREW M5X8 (938477) 1453 RON
80 1 1 BEARING BUSH (B) (310111) 5591 RON
81 1 1 TAIL COVER (330203) 5815 RON
82 1 2 TAPPING SCREW D4X16 (W/FLANGE) (BLACK) (307811) 894 RON
83A 1 1 BEVEL PINION (330196) 6933 RON
84 1 2 OIL SEAL (B) (981851) 2683 RON
85 1 1 COLLAR (330197) 2795 RON
86 1 1 SLEEVE (330194) 4025 RON
87 1 1 BALL BEARING 6001DDUCMPS2S (OLD 980925) (6001DD) 4585 RON
88 1 1 RETAINING RING FOR D12 (10 PCS) (939542) 1788 RON
89 1 3 WASHER (992503) 894 RON
90 1 1 SECOND GEAR (330198) 7269 RON
91 1 8 STEEL BALL D3.97 (10 PCS) (OLD 939363Z) (959155) 894 RON
92 1 1 CLUTCH PLATE (992916) 2795 RON
93 1 2 SPRING PLATE (992926) 1453 RON
94 1 2 BELLEVILLE SPRING (980877) 1453 RON
95 1 1 BUSHING (330199) 2795 RON
96 1 2 BALL BEARING 608VVMC2EPS2L (608VVM) 4025 RON
97 1 1 GEAR COVER (330200) 10065 RON
98 1 6 HEX.SOCKET HD.BOLT (994192) 894 RON
99 1 1 CRANK COVER (330204) 9730 RON
100 1 1 FELT PACKING (B) (324544) 2236 RON
101 1 1 FELT PACKING (331674) 2236 RON
102 1 1 RUBBER SEAL (331675) 3242 RON
103 1 4 SEAL LOCK HEX. SOCKET HD. BOLT M5X40 (324060) 2236 RON
104 1 1 CRANK CASE (330169) 21138 RON
105 1 1 SEAL PACKING (331676) 2795 RON
106A 1 1 CRANK SHAFT (330170) 12750 RON
107 1 1 FEATHER KEY 3X3X8 (944109) 2012 RON
108 1 1 BALL BEARING 6002DDUCMPS2S (6002DD) 4920 RON
109A 1 1 O-RING (I.D 31.5) NEW (334369) 1453 RON
110 1 1 RETAINING RING D32 HOLE (948001) 1453 RON
111A 1 1 FIRST GEAR (330171) 11743 RON
112 1 1 330195 (330195) 22368 RON
113 1 1 334703 - Indisponibil
113 1 1 335205 - Indisponibil
114 1 1 334704 - Indisponibil
114 1 1 335206 - Indisponibil
501 1 1 PLASTIC CARRYING CASE (330220) 39145 RON
502 1 1 STOPPER ROD (982671) 297 RON
503 1 1 330208 (330208) 9394 RON
504 1 1 SIDE HANDLE (330209) 8835 RON
505 1 1 WING BOLT M6X12 (307947) 1788 RON
506 1 1 MOUNT (330210) 3242 RON
507 1 1 NUT M6 (10 PCS) (949556) 1453 RON
508 1 1 BAND (330212) 2795 RON
509 1 1 BOLT HOLDER (330211) 2236 RON
510 1 1 BOLT M8X45 (330213) 1453 RON
601 1 1 303046 - Indisponibil
602 1 1 CHEMICAL ANCHOR ADAPTER (SDS+) 12.7MMX90L (303044) 22592 RON
603 1 1 CHEMICAL ANCHOR ADAPTER (SDS+) 19MMX100L (303045) 30645 RON
604 1 1 303334 - Indisponibil
605 1 1 302976 - Indisponibil
606 1 1 CHUCK WRENCH 10G (OLD 879355) (930515) 488 RON
607 1 1 302975 - Indisponibil
608 1 1 303621 - Indisponibil
609 1 1 302974 - Indisponibil
610 1 1 302979 - Indisponibil
611 1 1 302978 - Indisponibil
612 1 1 303622 - Indisponibil
613 1 1 302977 - Indisponibil
614 1 1 TAPER MORSE KONUS NR.1 (303617) 22592 RON
615 1 1 TAPER SHANK ADAPTOR(SDS PLUS) NO.2 (303618) 23487 RON
616 1 1 TAPER ADAPTER A (SDS PLUS) (303619) 20691 RON
617 1 1 TAPER ADAPTER B (SDS PLUS) (303620) 20691 RON
618 1 1 SPECIAL SCREW M6X22 (981122) 1788 RON
619 1 1 CORE BIT SHANK (SDS) 45-90MM 300L (DISCON) (303627) 37468 RON
620 1 1 CORE BIT SHANK (SDS) 25-38MM 105 (DISCON) (303625) 1614 RON
621 1 1 303626 - Indisponibil
622 1 1 303624 - Indisponibil
623 1 1 321825 - Indisponibil
624 1 1 303623 - Indisponibil
625 1 1 321814 - Indisponibil
626 1 1 995344 - Indisponibil
627 1 1 DRILL CHUCK 13VLD-D (NEW 752056) (321813) 37468 RON
628 1 1 GREASE FOR IMPACT DRILL (FG-6A) (500G) (980927) 4251 RON
629 1 1 GREASE (FG-6A) (30G) (4966375124375) Indisponibil Indisponibil
630 1 1 GREASE FOR HAMMER DRILL (JF-375) (70G) (308471) 8388 RON
631 1 1 971511Z - Indisponibil
632 1 1 971512Z - Indisponibil
633 1 1 COTTER (944477) 4361 RON
634 1 1 982684 - Indisponibil
635 1 1 982685 - Indisponibil
636 1 1 @ ADAPTER (A) FOR HAMMER DRILL (315921) 25612 RON
637 1 1 982672 - Indisponibil
638 1 1 982673 - Indisponibil
639 1 1 982674 - Indisponibil
640 1 1 982686 - Indisponibil
641 1 1 982675 - Indisponibil
642 1 1 982687 - Indisponibil
643 1 1 982676 - Indisponibil
644 1 1 982688 - Indisponibil
645 1 1 982677 - Indisponibil
646 1 1 982689 - Indisponibil
647 1 1 982678 - Indisponibil
648 1 1 982690 - Indisponibil
649 1 1 982679 - Indisponibil
650 1 1 982691 - Indisponibil
651 1 1 982680 - Indisponibil
652 1 1 982692 - Indisponibil
653 1 1 971794 - Indisponibil
654 1 1 971795 - Indisponibil
655 1 1 971796 - Indisponibil
656 1 1 971797 - Indisponibil
657 1 1 971798 - Indisponibil
658 1 1 ANCHOR SETTING ADAPTER B W1/4" MANUAL (971799) 10736 RON
659 1 1 ANCHOR SETTING ADAPTER B W5/16" MANUAL (971800) 10736 RON
660 1 1 971801 - Indisponibil
661 1 1 ANCHOR SETTING ADAPTER B W1/2" MANUAL (971802) 11967 RON
662 1 1 ANCHOR SETTING ADAPTER B W5/8" MANUAL (971803) 12526 RON
663 1 1 944460 - Indisponibil
664 1 1 944461 - Indisponibil
665 1 1 993038 - Indisponibil
666 1 1 944462 - Indisponibil
667 1 1 944500 - Indisponibil
668 1 1 944463 - Indisponibil
669 1 1 944464 - Indisponibil
670 1 1 SYRINGE BLOW-OUT BULB TYPE (320859) 6374 RON
671 1 1 303571 - Indisponibil
672 1 1 303575 - Indisponibil
673 1 1 303578 - Indisponibil
674 1 1 303576 - Indisponibil
675 1 1 303581 - Indisponibil
676 1 1 303582 - Indisponibil
677 1 1 303584 - Indisponibil
678 1 1 303585 - Indisponibil
679 1 1 303586 - Indisponibil
680 1 1 303591 - Indisponibil
681 1 1 303606 - Indisponibil
682 1 1 303593 - Indisponibil
683 1 1 303595 - Indisponibil
684 1 1 303598 - Indisponibil
685 1 1 303599 - Indisponibil
686 1 1 303611 - Indisponibil
687 1 1 303601 - Indisponibil
688 1 1 303613 - Indisponibil
689 1 1 303614 - Indisponibil
690 1 1 303615 - Indisponibil
691 1 1 303616 - Indisponibil
692 1 1 DUST CUP (971787) 382 RON
693 1 1 SYRINGE BELLOWS TYPE (OLD 944575) (318085) 3242 RON
694 1 1 306885 (306885) 16553 RON
695 1 1 986802 (986802) 18789 RON
696 1 1 @DUST COVER (986803) 6598 RON
697 1 1 SEAL COVER NEW (986804) 297 RON
698 1 1 RETAINING RING FOR D30 SHAFT (948310) 1788 RON
699 1 1 WASHER (OLD 958063P) (958063) 1453 RON
700 1 19 STEEL BALL D6.35 (10 PCS) (959150) 1788 RON
701 1 1 OUTER RACE NEW (986805) 382 RON
702 1 1 SOCKET (986806) 6151 RON
703 1 1 SOCKET ADAPTOR (B) (306910) 488 RON
