Top » Piese de schimb » PIESE HITACHI » DH24PM

DH24PM
[DH24PM]
DH24PM
Click pentru a mari
Imagini suplimentare
DH24PM
Click pentru a mari

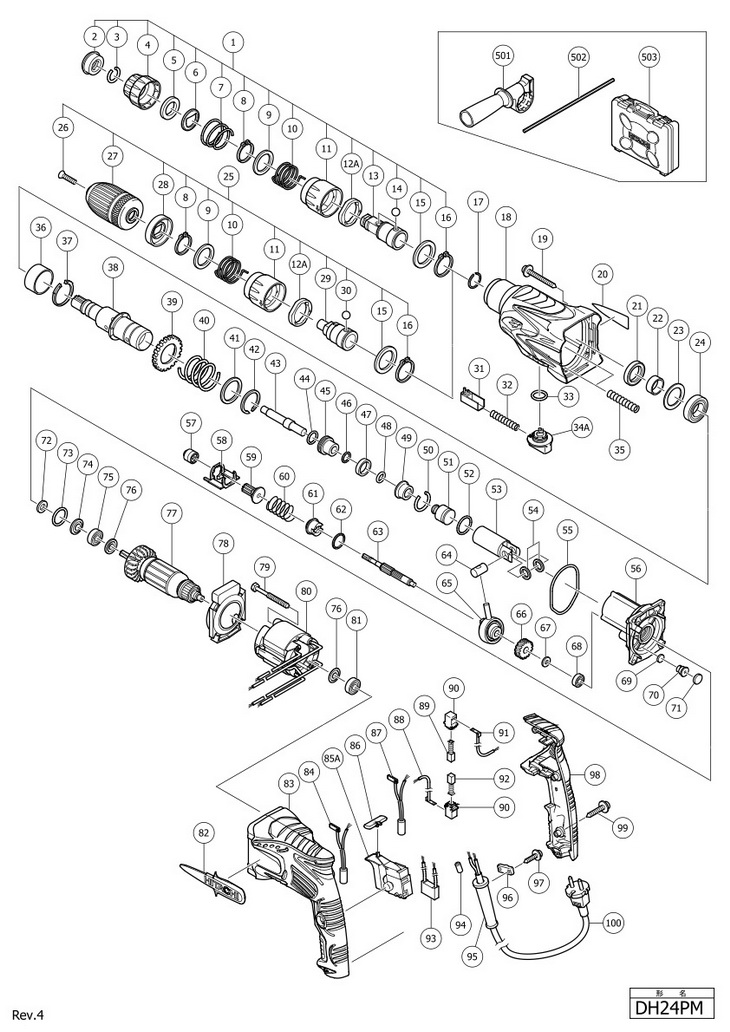

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 326516 (326516) 78180 RON
2 1 1 FRONT CAP (306345) 2012 RON
3 1 1 STOPPER RING (306340) 1788 RON
4 1 1 GRIP (324527) 3242 RON
5 1 1 BALL HOLDER (OLD 322810) (324528) 5368 RON
6 1 1 HOLDER PLATE (OLD 322811) (324526) 3242 RON
7 1 1 HOLDER SPRING (322812) 2236 RON
8 1 2 RETAINING RING FOR D25 SHAFT (965469) 1453 RON
9 1 2 WASHER (B) (326520) 5368 RON
10 1 2 SPRING (326519) 6374 RON
11 1 2 LOCK GRIP (326387) 4025 RON
12A 1 1 LOCK RING (OLD 326661) (326801) 20691 RON
13 1 1 BIT HOLDER (326517) 5101 RON
14A 1 3 335300 - Indisponibil
15 1 2 WASHER (A) (326518) 5368 RON
16 1 2 RETAINING RING FOR D28 SHAFT (962553) 1453 RON
17 1 1 RETAINING RING FOR DH15DV SHAFT (306993) 1788 RON
18 1 1 324605 (324605) 15770 RON
19 1 4 TAPPING SCREW D5X35 (W/FLANGE) (301654) 1453 RON
20 1 1 - Indisponibil
21 1 1 OIL SEAL (307688) 382 RON
22 1 1 SLEEVE (322815) 2236 RON
23 1 1 FELT PACKING (B) (323232) 2236 RON
24 1 1 BALL BEARING 6904DDPS2L (6904DD) 9394 RON
25 1 1 326271 (326271) 6802 RON
26 1 1 995344 - Indisponibil
27 1 1 322357 - Indisponibil
28 1 1 STOPPER (326527) 3242 RON
29 1 1 CHUCK HOLDER (326526) 47646 RON
30A 1 2 335300 - Indisponibil
31 1 1 PUSHING BUTTON (324530) 2236 RON
32 1 1 PUSHING SPRING (317223) 2236 RON
33 1 1 O-RING (S-18) (878885) 1453 RON
34A 1 1 CHANGE LEVER (OLD 325059) (333588) 3019 RON
35 1 2 SPRING (B) (317238) 2236 RON
36 1 1 SLEEVE (A) (324522) 3242 RON
37 1 1 RETAINING RING 37MM (322813) 2236 RON
38 1 1 CYLINDER (326521) 61179 RON
39 1 1 SECOND GEAR (323185) Indisponibil Indisponibil
40 1 1 SPRING (A) (317233) 6151 RON
41 1 1 WASHER (A) (317234) 3242 RON
42 1 1 RETAINING RING D30 (317235) 2236 RON
43 1 1 SECOND HAMMER (326522) 13197 RON
44 1 1 O-RING (1AP-20) (944486) 1453 RON
45 1 1 HAMMER HOLDER (324523) 765 RON
46 1 1 O-RING (B) (322802) 3242 RON
47 1 1 DAMPER (A) (322805) 2236 RON
48 1 1 O-RING (C) (322808) 2236 RON
49 1 1 DAMPER HOLDER (OLD 322806) (324524) 5368 RON
50 1 1 STOPPER RING (322807) 2236 RON
51 1 1 STRIKER (OLD 322801) (324535) 4473 RON
52 1 1 O-RING (322834) 2348 RON
53 1 1 PISTON (324534) 1041 RON
54 1 2 WASHER (C) (322799) 2236 RON
55 1 1 O-RING (322793) 3242 RON
56 1 1 324542 (324542) 22592 RON
57 1 1 PINION SLEEVE (323249) 27289 RON
58 1 1 LOCK PLATE (OLD 317237) (318522) 13980 RON
59 1 1 SECOND PINION (323181) 12973 RON
60 1 1 CLUTCH SPRING (323182) 2236 RON
61 1 1 CLUTCH (OLD 323183) (324606) 10065 RON
62 1 1 WASHER (D) (326524) 2236 RON
63 1 1 SECOND SHAFT (323180) Indisponibil Indisponibil
64 1 1 PISTON PIN (322798) 2236 RON
65 1 1 RECIPROCATING BEARING (324533) 22144 RON
66 1 1 FIRST GEAR (322797) Indisponibil Indisponibil
67 1 1 SPACER (322795) 2236 RON
68 1 1 BALL BEARING 626VVMC2ERPS2S (626VVM) 3690 RON
69 1 1 FELT PACKING (A) (324543) 2236 RON
70 1 1 VALVE (324545) 2236 RON
71 1 1 FELT PACKING (B) (324544) 2236 RON
72 1 1 FELT PACKING (322816) 2236 RON
73 1 1 O-RING (P-22) (876796) 1453 RON
74 1 1 PACKING WASHER (322818) 3242 RON
75 1 1 BALL BEARING 608DDMC2EPS2S (608DDM) 3914 RON
76 1 2 WASHER (A) (982631) 894 RON
*77 1 1 360720U (360720U) Indisponibil Indisponibil
*77 1 1 ARMATURE 220-230 VOLT (360720E) 13085 RON
*77 1 1 360720F - Indisponibil
78 1 1 FAN GUIDE (324531) 3242 RON
79 1 2 HEX.HD. TAPPING SCREW D4X50 (961672) 894 RON
*80 1 1 STATOR 110-120 VOLT (340635C) 9058 RON
*80 1 1 STATOR 220-230 VOLT (340635E) 9170 RON
*80 1 1 340635F - Indisponibil
81 1 1 BALL BEARING 608VVMC2EPS2L (608VVM) 4025 RON
82 1 1 HITACHI PLATE (326523) 6374 RON
83 1 1 HOUSING (324553) 17335 RON
*84 1 1 CHOKE COIL (A) BROWN (324549) 765 RON
85A 1 1 SWITCH (1P PILLAR TYPE) (OLD 331454) SWITCH (OLD 331454) (335796) 9282 RON
86 1 1 PUSHING BUTTON (322853) Indisponibil Indisponibil
*87 1 1 CHOKE COIL (A) BLEU (324551) 765 RON
88 1 1 INTERNAL WIRE (A) BLUE (324538) 4025 RON
89 1 1 CARBON BRUSH (1 PAIR) (999041) 3578 RON
90 1 2 BRUSH HOLDER (955203) 2683 RON
91 1 1 INTERNAL WIRE (A) BROWN (324537) 4025 RON
92 1 1 CARBON BRUSH A.S. TYPE (OLD 999080) (999072) 7269 RON
93 1 1 NOISE SUPPRESSOR GASKET (930039) 2683 RON
94 1 2 TUBE (D) (981373) 1341 RON
95 1 1 CORD ARMOR D8.8 (953327) Indisponibil Indisponibil
96 1 1 CORD CLIP (OLD 994566) (937631) 894 RON
97 1 2 TAPPING SCREW D4X16 (W/FLANGE) (984750) 1117 RON
98 1 1 HANDLE COVER (324554) 10065 RON
99 1 3 TAPPING SCREW D4X20 (W/FLANGE) BLACK (OLD 305095) (301653) 894 RON
*100 1 1 500390Z - Indisponibil
*100 1 1 500249Z - Indisponibil
*100 1 1 CORD FOR GBR 230V (500446Z) 23934 RON
*100 1 1 CORD 5M 2 X1.0 HO7RN-F (W/O PLUG) (500454Z) 11184 RON
*100 1 1 CORD FOR SWISS (500391Z) 27513 RON
*100 1 1 500408Z - Indisponibil
501 1 1 SIDE HANDLE (324548) 10065 RON
*502 1 1 DEPTH GAUGE (303709) 1229 RON
*502 1 1 310331 - Indisponibil
503 1 1 PLASTIC CARRYING CASE (326525) 35790 RON
601 1 1 GREASE (FG-6A) (30G) (4966375124375) Indisponibil Indisponibil
602 1 1 GREASE FOR HAMMER DRILL (JF-375) (70G) (308471) 8388 RON
603 1 1 GREASE FOR IMPACT DRILL (FG-6A) (500G) (980927) 4251 RON
604 1 1 306885 (306885) 16553 RON
605 1 1 986802 (986802) 18789 RON
606 1 1 @DUST COVER (986803) 6598 RON
607 1 1 SEAL COVER NEW (986804) 297 RON
608 1 1 RETAINING RING FOR D30 SHAFT (948310) 1788 RON
609 1 1 WASHER (OLD 958063P) (958063) 1453 RON
610 1 19 STEEL BALL D6.35 (10 PCS) (959150) 1788 RON
611 1 1 OUTER RACE NEW (986805) 382 RON
612 1 1 SOCKET (986806) 6151 RON
613 1 1 SOCKET ADAPTOR (B) (306910) 488 RON
614 1 1 DUST CUP (971787) 382 RON
615 1 1 STOPPER (931844) 2236 RON
616 1 1 321814 - Indisponibil
617 1 1 995344 - Indisponibil
618 1 1 DRILL CHUCK 13VLD-D (NEW 752056) (321813) 37468 RON
619 1 1 971511Z - Indisponibil
620 1 1 971512Z - Indisponibil
621 1 1 COTTER (944477) 4361 RON
622 1 1 982684 - Indisponibil
623 1 1 982685 - Indisponibil
624 1 1 982672 - Indisponibil
625 1 1 982673 - Indisponibil
626 1 1 982674 - Indisponibil
627 1 1 982686 - Indisponibil
628 1 1 982675 - Indisponibil
629 1 1 982687 - Indisponibil
630 1 1 982676 - Indisponibil
631 1 1 982688 - Indisponibil
632 1 1 982677 - Indisponibil
633 1 1 982689 - Indisponibil
634 1 1 982678 - Indisponibil
635 1 1 982690 - Indisponibil
636 1 1 971794 - Indisponibil
637 1 1 971795 - Indisponibil
638 1 1 971796 - Indisponibil
639 1 1 971797 - Indisponibil
640 1 1 971798 - Indisponibil
641 1 1 ANCHOR SETTING ADAPTER B W1/4" MANUAL (971799) 10736 RON
642 1 1 ANCHOR SETTING ADAPTER B W5/16" MANUAL (971800) 10736 RON
643 1 1 971801 - Indisponibil
644 1 1 ANCHOR SETTING ADAPTER B W1/2" MANUAL (971802) 11967 RON
645 1 1 ANCHOR SETTING ADAPTER B W5/8" MANUAL (971803) 12526 RON
646 1 1 944460 - Indisponibil
647 1 1 944461 - Indisponibil
648 1 1 993038 - Indisponibil
649 1 1 944462 - Indisponibil
650 1 1 944500 - Indisponibil
651 1 1 944463 - Indisponibil
652 1 1 944464 - Indisponibil
653 1 1 SYRINGE BLOW-OUT BULB TYPE (320859) 6374 RON
654 1 1 SERVICE KIT DH24PB3/PC3/PD3/PF3/PM (326305) 30645 RON
655 1 1 303046 - Indisponibil
656 1 1 CHEMICAL ANCHOR ADAPTER (SDS+) 12.7MMX90L (303044) 22592 RON
657 1 1 CHEMICAL ANCHOR ADAPTER (SDS+) 19MMX100L (303045) 30645 RON
658 1 1 CHUCK WRENCH 10G (OLD 879355) (930515) 488 RON
659 1 1 302976 - Indisponibil
660 1 1 302975 - Indisponibil
661 1 1 303621 - Indisponibil
662 1 1 302974 - Indisponibil
663 1 1 302979 - Indisponibil
664 1 1 302978 - Indisponibil
665 1 1 303622 - Indisponibil
666 1 1 302977 - Indisponibil
667 1 1 303332 - Indisponibil
668 1 1 303334 - Indisponibil
669 1 1 RUBBER CAP (303335) 4585 RON
670 1 1 TAPER MORSE KONUS NR.1 (303617) 22592 RON
671 1 1 TAPER SHANK ADAPTOR(SDS PLUS) NO.2 (303618) 23487 RON
672 1 1 TAPER ADAPTER A (SDS PLUS) (303619) 20691 RON
673 1 1 TAPER ADAPTER B (SDS PLUS) (303620) 20691 RON
674 1 1 SPECIAL SCREW M6X22 (981122) 1788 RON
675 1 1 CORE BIT SHANK (SDS) 25-38MM 105 (DISCON) (303625) 1614 RON
676 1 1 303626 - Indisponibil
677 1 1 CORE BIT SHANK (SDS) 45-90MM 300L (DISCON) (303627) 37468 RON
678 1 1 303624 - Indisponibil
679 1 1 321825 - Indisponibil
680 1 1 303623 - Indisponibil
683 1 1 ADAPTER FOR SLENDER SHAFT (SDS-PLUS) (306370) 23039 RON
