DH24DV
[DH24DV]
DH24DV
Click pentru a mari
Imagini suplimentare
DH24DV
Click pentru a mari

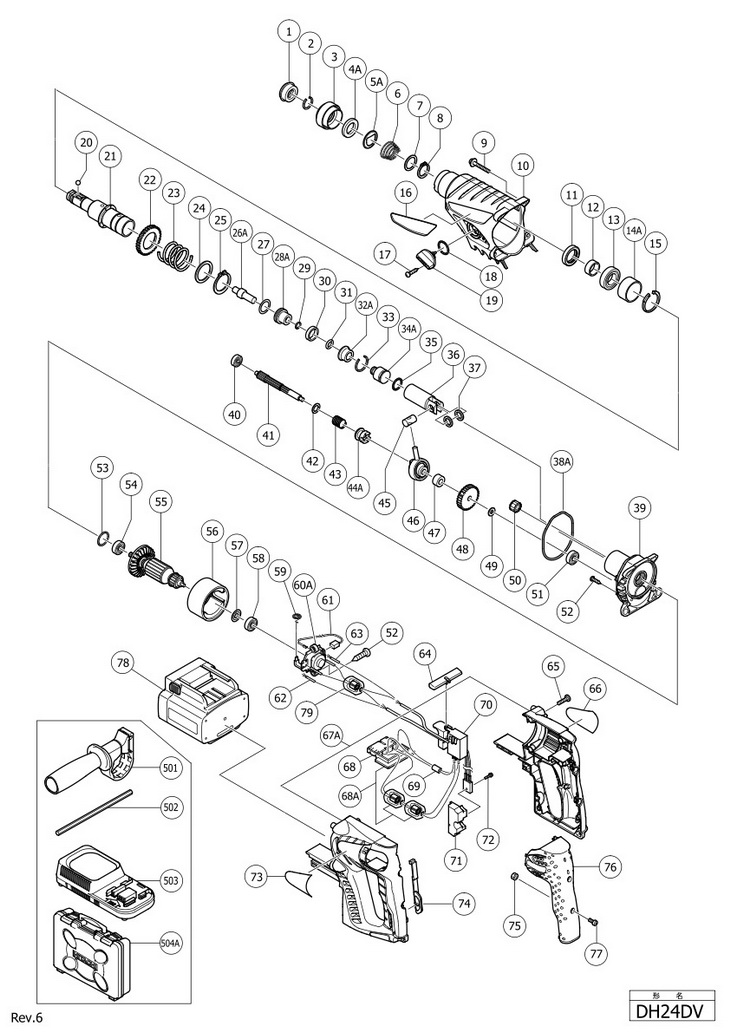

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 FRONT CAP (306345) 2012 RON
2 1 1 STOPPER RING (306340) 1788 RON
3 1 1 GRIP (323154) 4025 RON
4A 1 1 BALL HOLDER (OLD 322810) (324528) 5368 RON
5A 1 1 HOLDER PLATE (OLD 322811) (324526) 3242 RON
6 1 1 HOLDER SPRING (322812) 2236 RON
7 1 1 WASHER (B) (984118) 1453 RON
8 1 1 RETAINING RING FOR D20 (10 PCS) (939547) 382 RON
9 1 4 TAPPING SCREW D5X25 (W/FLANGE) BLACK (305558) 894 RON
10 1 1 GEAR COVER (323167) 17112 RON
11 1 1 OIL SEAL (307688) 382 RON
12 1 1 SLEEVE (322815) 2236 RON
13 1 1 BALL BEARING 6904DDPS2L (6904DD) 9394 RON
14A 1 1 SLEEVE (A) (324522) 3242 RON
15 1 1 RETAINING RING 37MM (322813) 2236 RON
16 1 1 HITACHI PLATE (GREEN) (323172) 3019 RON
17 1 1 TAPPING SCREW D2.6X10 (323239) 2236 RON
18 1 1 O-RING (S-18) (878885) 1453 RON
19 1 1 CHANGE LEVER (323161) 1453 RON
20 1 1 STEEL BALL D7.0 (10 PCS) (959156) 2236 RON
21 1 1 CYLINDER (322814) 23487 RON
22 1 1 SECOND GEAR (301677) 15098 RON
23 1 1 SPRING (A) (316135) 5368 RON
24 1 1 WASHER (A) (301679) 1453 RON
25 1 1 RETAINING RING FOR D30 SHAFT (948310) 1788 RON
26A 1 1 SECOND HAMMER (OLD 322803) (324525) 5144 RON
27 1 1 O-RING (1AP-20) (944486) 1453 RON
28A 1 1 HAMMER HOLDER (324523) 765 RON
29 1 1 O-RING (B) (322802) 3242 RON
30 1 1 DAMPER (A) (322805) 2236 RON
31 1 1 O-RING (C) (322808) 2236 RON
32A 1 1 DAMPER HOLDER (OLD 322806) (324524) 5368 RON
33 1 1 STOPPER RING (322807) 2236 RON
34A 1 1 STRIKER (OLD 322801) (324535) 4473 RON
35 1 1 O-RING (322834) 2348 RON
36 1 1 PISTON (322800) 15098 RON
37 1 2 WASHER (C) (322799) 2236 RON
38A 1 1 O-RING I.D 72 (OLD 323150) (325254) 3242 RON
39 1 1 323157 (323157) 1147 RON
40 1 1 BALL BEARING 626VVMC2ERPS2S (626VVM) 3690 RON
41 1 1 SECOND SHAFT (323151) 15881 RON
42 1 1 WASHER (B) (301659) 894 RON
43 1 1 CLUTCH SPRING (301660) 894 RON
44A 1 1 CLUTCH (OLD 301661) (324532) 765 RON
45 1 1 PISTON PIN (322798) 2236 RON
46 1 1 RECIPROCATING BEARING (OLD 301662) (306990) 28967 RON
47 1 1 COLLAR (323152) 4025 RON
48 1 1 FIRST GEAR (323153) 9394 RON
49 1 1 SPACER (301663) 894 RON
50 1 1 PINION (323170) 4025 RON
51 1 1 BALL BEARING 626VVMC2ERPS2S (626VVM) 3690 RON
52 1 4 TAPPING SCREW D4X16 (W/FLANGE) BLACK (305812) 894 RON
53 1 1 O-RING (P-22) (876796) 1453 RON
54 1 1 BALL BEARING 608DDMC2EPS2S (608DDM) 3914 RON
55 1 1 ARMATURE & PINION SET DC 24V (360663) 38250 RON
56 1 1 MAGNET (323156) 12973 RON
57 1 1 WASHER (A) (982631) 894 RON
58 1 1 BALL BEARING 608DDMC2EPS2S (608DDM) 3914 RON
59 1 2 SPRING (308536) 2236 RON
60A 1 1 BRUSH HOLDER (323164) 3914 RON
61 1 2 CARBON BRUSH A.S. TYPE (1 PAIR) (999090) 956 RON
62 1 1 INTERNAL WIRE RED (323166) 1453 RON
63 1 1 INTERNAL WIRE (BLACK) (323165) 1453 RON
64 1 1 PUSHING BUTTON (323158) Indisponibil Indisponibil
65 1 6 TAPPING SCREW D4X20 (W/FLANGE) BLACK (302086) 1453 RON
66 1 1 - Indisponibil
67A 1 1 HOUSING SET (A+B) GREEN (323171) 10289 RON
68 1 1 TERMINAL SUPPORT (323163) 5927 RON
68A 1 1 334882 - Indisponibil
69 1 1 FERRITE CORE (318247) 1453 RON
70 1 1 DC-SPEED CONTROL SWITCH (319811) 23152 RON
71 1 1 HEAT SINK (319812) 2795 RON
72 1 1 MACHINE SCREW M3X12 (W/WASHERS) (993963) 1453 RON
73 1 1 - Indisponibil
74 1 1 SHIFT KNOB (323159) 1453 RON
75 1 2 NUT M4 (10 PCS) (949554) 894 RON
76 1 1 GRIP COVER (323160) 8947 RON
77 1 2 MACHINE SCREW M4X8 (10 PCS) (949215) 1453 RON
*78 1 2 319805 - Indisponibil
*78 1 2 319806 - Indisponibil
*78 1 2 319807 - Indisponibil
79 1 1 334861 - Indisponibil
501 1 1 SIDE HANDLE (323155) 5927 RON
*502 1 1 DEPTH GAUGE (303709) 1229 RON
*502 1 1 310331 - Indisponibil
503 1 1 - Indisponibil
504A 1 1 PLASTIC CARRYING CASE DH24DV/DVA/25DL/DAL (OLD 323350) (329317) 14874 RON
601 1 1 303332 - Indisponibil
602 1 1 303334 - Indisponibil
603 1 1 RUBBER CAP (303335) 4585 RON
604 1 1 321825 - Indisponibil
605 1 1 303623 - Indisponibil
606 1 1 321814 - Indisponibil
607 1 1 995344 - Indisponibil
608 1 1 987576 - Indisponibil
609 1 1 DRILL CHUCK 13VLD-D (NEW 752056) (321813) 37468 RON
610 1 1 303334 - Indisponibil
611 1 1 DUST CUP (971787) 382 RON
612 1 1 STOPPER (931844) 2236 RON
613 1 1 971511Z - Indisponibil
614 1 1 971512Z - Indisponibil
615 1 1 971794 - Indisponibil
616 1 1 971795 - Indisponibil
617 1 1 971796 - Indisponibil
618 1 1 971797 - Indisponibil
619 1 1 971798 - Indisponibil
620 1 1 ANCHOR SETTING ADAPTER B W1/4" MANUAL (971799) 10736 RON
621 1 1 ANCHOR SETTING ADAPTER B W5/16" MANUAL (971800) 10736 RON
622 1 1 971801 - Indisponibil
623 1 1 ANCHOR SETTING ADAPTER B W1/2" MANUAL (971802) 11967 RON
624 1 1 ANCHOR SETTING ADAPTER B W5/8" MANUAL (971803) 12526 RON
625 1 1 COTTER (944477) 4361 RON
626 1 1 TAPER MORSE KONUS NR.1 (303617) 22592 RON
627 1 1 TAPER ADAPTER A (SDS PLUS) (303619) 20691 RON
628 1 1 TAPER ADAPTER B (SDS PLUS) (303620) 20691 RON
629 1 1 303624 - Indisponibil
630 1 1 302976 - Indisponibil
631 1 1 302975 - Indisponibil
632 1 1 303621 - Indisponibil
633 1 1 302974 - Indisponibil
634 1 1 302979 - Indisponibil
635 1 1 302978 - Indisponibil
636 1 1 303622 - Indisponibil
637 1 1 302977 - Indisponibil
638 1 1 CHEMICAL ANCHOR ADAPTER (SDS+) 12.7MMX90L (303044) 22592 RON
639 1 1 CHEMICAL ANCHOR ADAPTER (SDS+) 19MMX100L (303045) 30645 RON
640 1 1 CORE BIT SHANK (SDS) 25-38MM 105 (DISCON) (303625) 1614 RON
641 1 1 303626 - Indisponibil
642 1 1 CORE BIT SHANK (SDS) 45-90MM 300L (DISCON) (303627) 37468 RON
643 1 1 306885 (306885) 16553 RON
644 1 1 SOCKET ADAPTOR (B) (306910) 488 RON
645 1 1 944460 - Indisponibil
646 1 1 944461 - Indisponibil
647 1 1 993038 - Indisponibil
648 1 1 944462 - Indisponibil
649 1 1 944500 - Indisponibil
650 1 1 944463 - Indisponibil
651 1 1 944464 - Indisponibil
652 1 1 982672 - Indisponibil
653 1 1 982673 - Indisponibil
654 1 1 982674 - Indisponibil
655 1 1 982686 - Indisponibil
656 1 1 982675 - Indisponibil
657 1 1 982687 - Indisponibil
658 1 1 982676 - Indisponibil
659 1 1 982688 - Indisponibil
660 1 1 982677 - Indisponibil
661 1 1 982689 - Indisponibil
662 1 1 982678 - Indisponibil
663 1 1 982690 - Indisponibil
664 1 1 982684 - Indisponibil
665 1 1 982685 - Indisponibil
666 1 1 GREASE (FG-6A) (30G) (4966375124375) Indisponibil Indisponibil
667 1 1 GREASE FOR HAMMER DRILL (JF-375) (70G) (308471) 8388 RON
668 1 1 GREASE FOR IMPACT DRILL (FG-6A) (500G) (980927) 4251 RON
669 1 1 303046 - Indisponibil
