Top » Piese de schimb » PIESE HITACHI » DH22PB

DH22PB
[DH22PB]
DH22PB
Click pentru a mari
Imagini suplimentare
DH22PB
Click pentru a mari

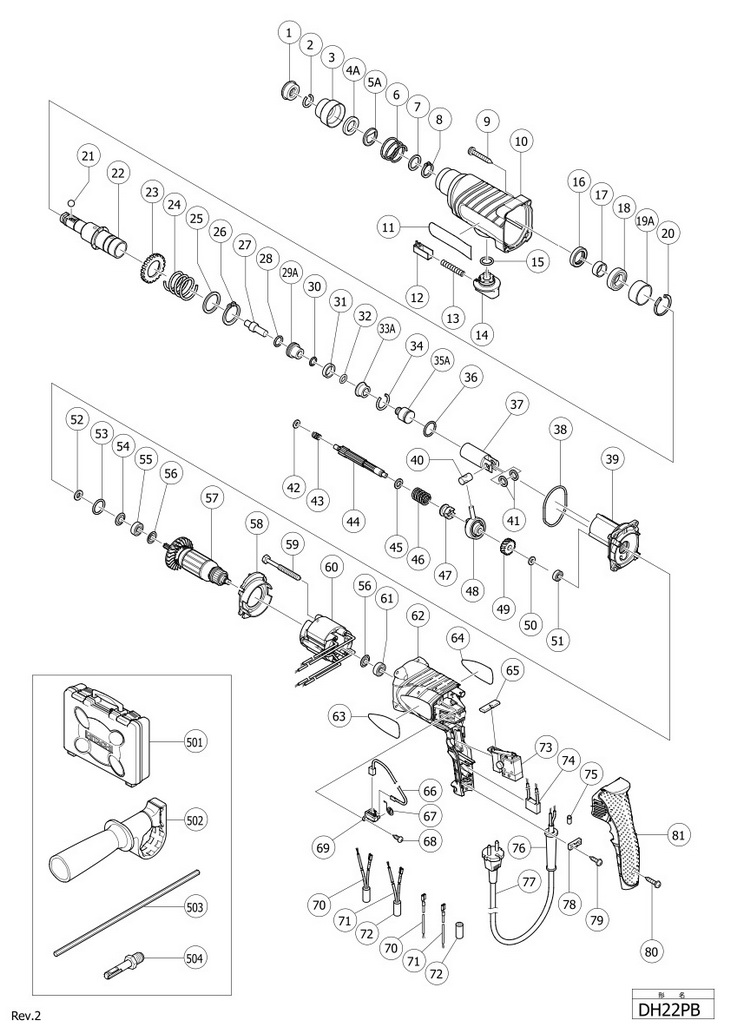

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 FRONT CAP (306345) 2012 RON
2 1 1 STOPPER RING (306340) 1788 RON
3 1 1 GRIP (322809) 3242 RON
4A 1 1 BALL HOLDER (OLD 322810) (324528) 5368 RON
5A 1 1 HOLDER PLATE (OLD 322811) (324526) 3242 RON
6 1 1 HOLDER SPRING (322812) 2236 RON
7 1 1 WASHER (B) (984118) 1453 RON
8 1 1 RETAINING RING FOR D20 (10 PCS) (939547) 382 RON
9 1 4 TAPPING SCREW D5X35 (W/FLANGE) (301654) 1453 RON
10 1 1 GEAR COVER (322786) 34112 RON
11 1 1 - Indisponibil
12 1 1 PUSHING BUTTON (322789) 4025 RON
13 1 1 PUSHING SPRING (317223) 2236 RON
14 1 1 CHANGE LEVER (OLD 324951) (322787) 5368 RON
15 1 1 O-RING (S-18) (878885) 1453 RON
16 1 1 OIL SEAL (307688) 382 RON
17 1 1 SLEEVE (322815) 2236 RON
18 1 1 BALL BEARING 6904DDPS2L (6904DD) 9394 RON
19A 1 1 SLEEVE (A) (324522) 3242 RON
20 1 1 RETAINING RING 37MM (322813) 2236 RON
21 1 1 STEEL BALL D7.0 (10 PCS) (959156) 2236 RON
22 1 1 CYLINDER (322814) 23487 RON
23 1 1 SECOND GEAR (301677) 15098 RON
24 1 1 SPRING (A) (301678) 3242 RON
25 1 1 WASHER (A) (301679) 1453 RON
26 1 1 RETAINING RING FOR D30 SHAFT (948310) 1788 RON
27 1 1 SECOND HAMMER (OLD 322803) (324525) 5144 RON
28 1 1 O-RING (1AP-20) (944486) 1453 RON
29A 1 1 HAMMER HOLDER (324523) 765 RON
30 1 1 O-RING (B) (322802) 3242 RON
31 1 1 DAMPER (A) (322805) 2236 RON
32 1 1 O-RING (C) (322808) 2236 RON
33A 1 1 DAMPER HOLDER (OLD 322806) (324524) 5368 RON
34 1 1 STOPPER RING (322807) 2236 RON
35A 1 1 STRIKER (OLD 322801) (324535) 4473 RON
36 1 1 O-RING (322834) 2348 RON
37 1 1 PISTON (322800) 15098 RON
38 1 1 O-RING (322793) 3242 RON
39 1 1 INNER COVER (322792) 18678 RON
40 1 1 PISTON PIN (322798) 2236 RON
41 1 2 WASHER (C) (322799) 2236 RON
42 1 1 SPACER (322795) 2236 RON
43 1 1 SPRING (B) (322796) 3242 RON
44 1 1 SECOND SHAFT (322794) 6822 RON
45 1 1 WASHER (B) (301659) 894 RON
46 1 1 CLUTCH SPRING (301660) 894 RON
47 1 1 CLUTCH (OLD 301661) (324532) 765 RON
48 1 1 RECIPROCATING BEARING (OLD 301662) (306990) 28967 RON
49 1 1 FIRST GEAR (322797) Indisponibil Indisponibil
50 1 1 SPACER (301663) 894 RON
51 1 1 BALL BEARING 626VVMC2ERPS2S (626VVM) 3690 RON
52 1 1 FELT PACKING (322816) 2236 RON
53 1 1 O-RING (P-22) (876796) 1453 RON
54 1 1 PACKING WASHER (322818) 3242 RON
55 1 1 BALL BEARING 608DDMC2EPS2S (608DDM) 3914 RON
56 1 2 WASHER (A) (982631) 894 RON
*57 1 1 360650U (360650U) 32882 RON
*57 1 1 ARMATURE 220-230 VOLT (360650E) 24493 RON
*57 1 1 360650F - Indisponibil
58 1 1 FAN GUIDE (322791) 3242 RON
59 1 2 HEX.HD. TAPPING SCREW D4X50 (961672) 894 RON
*60 1 1 STATOR 110 VOLT (340583J) 22368 RON
*60 1 1 340583C - Indisponibil
*60 1 1 STATOR 220-230 VOLT (340583E) 22368 RON
*60 1 1 340583G - Indisponibil
*60 1 1 340583F - Indisponibil
61 1 1 BALL BEARING 608VVMC2EPS2L (608VVM) 4025 RON
62 1 1 HOUSING (322836) 11743 RON
63 1 1 - Indisponibil
64 1 1 - Indisponibil
65 1 1 PUSHING BUTTON (322790) 2236 RON
66 1 2 CARBON BRUSH (999088) 382 RON
67 1 2 SPRING (308536) 2236 RON
68 1 4 TAPPING SCREW D3X10 (306945) 894 RON
69 1 2 BRUSH HOLDER (322838) 5368 RON
*70 1 1 INTERNAL WIRE (BROWN) (322826) 3242 RON
*70 1 1 CHOKE COIL (322827) 5591 RON
*70 1 1 322821 - Indisponibil
*70 1 1 CHOKE COIL BROWN FOR GBR 110 VOLT (322828) 4584 RON
*71 1 1 INTERNAL WIRE BLEU (322829) 3242 RON
*71 1 1 CHOKE COIL BLEU (322830) 5591 RON
*71 1 1 322822 - Indisponibil
*71 1 1 CHOKE COIL BLEU FOR GBR 110 VOLT (322831) 4584 RON
72 1 2 SUPPORT (B) (322823) 2236 RON
*73 1 1 SWITCH (B) (322825) 27289 RON
*73 1 1 SWITCH (A) 110 VOLT (322820) 27289 RON
74 1 1 NOISE SUPPRESSOR GASKET (930039) 2683 RON
75 1 2 TUBE (D) (981373) 1341 RON
*76 1 1 CORD ARMOR D8.8 (953327) Indisponibil Indisponibil
*76 1 1 CORD ARMOR D10.1 (OLD 994565) (938051) 894 RON
*77 1 1 500390Z - Indisponibil
*77 1 1 @ CORD FOR SINZ KUW (500424Z) 16441 RON
*77 1 1 500234Z - Indisponibil
*77 1 1 @ CORD FOR THA (500239Z) 16553 RON
*77 1 1 500245Z - Indisponibil
*77 1 1 930055 - Indisponibil
*77 1 1 500408Z - Indisponibil
*77 1 1 500249Z - Indisponibil
*77 1 1 500214Z - Indisponibil
*77 1 1 CORD 5M 2 X 1,0 W/PLUG 13A/250V FOR GBR (500440Z) 13197 RON
*77 1 1 CORD FOR SWISS (500391Z) 27513 RON
*77 1 1 CORD 5M 2 X1.0 HO7RN-F (W/O PLUG) (500454Z) 11184 RON
*77 1 1 CORD FOR GBR 230V (500446Z) 23934 RON
*77 1 1 500456Z - Indisponibil
78 1 1 CORD CLIP (OLD 994566) (937631) 894 RON
79 1 2 TAPPING SCREW D4X16 (W/FLANGE) (984750) 1117 RON
80 1 2 TAPPING SCREW D4X20 (W/FLANGE) BLACK (OLD 305095) (301653) 894 RON
81 1 1 HANDLE COVER (322837) 6710 RON
501 1 1 PLASTIC CARRYING CASE (OLD 322706) (323130) 22368 RON
502 1 1 SIDE HANDLE (OLD 307894) (303659) 7828 RON
*503 1 1 DEPTH GAUGE (303709) 1229 RON
*503 1 1 310331 - Indisponibil
504 1 1 303624 - Indisponibil
601 1 1 GREASE FOR IMPACT DRILL (FG-6A) (500G) (980927) 4251 RON
602 1 1 GREASE (FG-6A) (30G) (4966375124375) Indisponibil Indisponibil
603 1 1 GREASE FOR HAMMER DRILL (JF-375) (70G) (308471) 8388 RON
604 1 1 306885 (306885) 16553 RON
605 1 1 SOCKET ADAPTOR (B) (306910) 488 RON
606 1 1 DUST CUP (971787) 382 RON
607 1 1 STOPPER (931844) 2236 RON
608 1 1 321814 - Indisponibil
609 1 1 995344 - Indisponibil
610 1 1 DRILL CHUCK 13VLD-D (NEW 752056) (321813) 37468 RON
611 1 1 971511Z - Indisponibil
612 1 1 971512Z - Indisponibil
613 1 1 COTTER (944477) 4361 RON
614 1 1 982684 - Indisponibil
615 1 1 982685 - Indisponibil
616 1 1 982672 - Indisponibil
617 1 1 982673 - Indisponibil
618 1 1 982674 - Indisponibil
619 1 1 982686 - Indisponibil
620 1 1 982675 - Indisponibil
621 1 1 982687 - Indisponibil
622 1 1 982676 - Indisponibil
623 1 1 982688 - Indisponibil
624 1 1 982677 - Indisponibil
625 1 1 982689 - Indisponibil
626 1 1 982678 - Indisponibil
627 1 1 982690 - Indisponibil
628 1 1 971794 - Indisponibil
629 1 1 971795 - Indisponibil
630 1 1 971796 - Indisponibil
631 1 1 971797 - Indisponibil
632 1 1 971798 - Indisponibil
633 1 1 ANCHOR SETTING ADAPTER B W1/4" MANUAL (971799) 10736 RON
634 1 1 ANCHOR SETTING ADAPTER B W5/16" MANUAL (971800) 10736 RON
635 1 1 971801 - Indisponibil
636 1 1 ANCHOR SETTING ADAPTER B W1/2" MANUAL (971802) 11967 RON
637 1 1 ANCHOR SETTING ADAPTER B W5/8" MANUAL (971803) 12526 RON
638 1 1 303046 - Indisponibil
639 1 1 CHEMICAL ANCHOR ADAPTER (SDS+) 12.7MMX90L (303044) 22592 RON
640 1 1 CHEMICAL ANCHOR ADAPTER (SDS+) 19MMX100L (303045) 30645 RON
641 1 1 302976 - Indisponibil
642 1 1 CHUCK WRENCH 10G (OLD 879355) (930515) 488 RON
643 1 1 302975 - Indisponibil
644 1 1 303621 - Indisponibil
645 1 1 302974 - Indisponibil
646 1 1 302979 - Indisponibil
647 1 1 302978 - Indisponibil
648 1 1 303622 - Indisponibil
649 1 1 302977 - Indisponibil
650 1 1 303332 - Indisponibil
651 1 1 303334 - Indisponibil
652 1 1 RUBBER CAP (303335) 4585 RON
653 1 1 TAPER MORSE KONUS NR.1 (303617) 22592 RON
654 1 1 TAPER SHANK ADAPTOR(SDS PLUS) NO.2 (303618) 23487 RON
655 1 1 TAPER ADAPTER A (SDS PLUS) (303619) 20691 RON
656 1 1 TAPER ADAPTER B (SDS PLUS) (303620) 20691 RON
657 1 1 SPECIAL SCREW M6X22 (981122) 1788 RON
658 1 1 CORE BIT SHANK (SDS) 45-90MM 300L (DISCON) (303627) 37468 RON
659 1 1 CORE BIT SHANK (SDS) 25-38MM 105 (DISCON) (303625) 1614 RON
660 1 1 303626 - Indisponibil
661 1 1 303624 - Indisponibil
662 1 1 303623 - Indisponibil
663 1 1 321825 - Indisponibil
666 1 1 ADAPTER FOR SLENDER SHAFT (SDS-PLUS) (306370) 23039 RON
667 1 1 944460 - Indisponibil
668 1 1 944461 - Indisponibil
669 1 1 993038 - Indisponibil
670 1 1 944462 - Indisponibil
671 1 1 944500 - Indisponibil
672 1 1 944463 - Indisponibil
673 1 1 944464 - Indisponibil
674 1 1 SYRINGE BLOW-OUT BULB TYPE (320859) 6374 RON
676 1 1 SILICON RUBBER (B) (324688) 23934 RON
