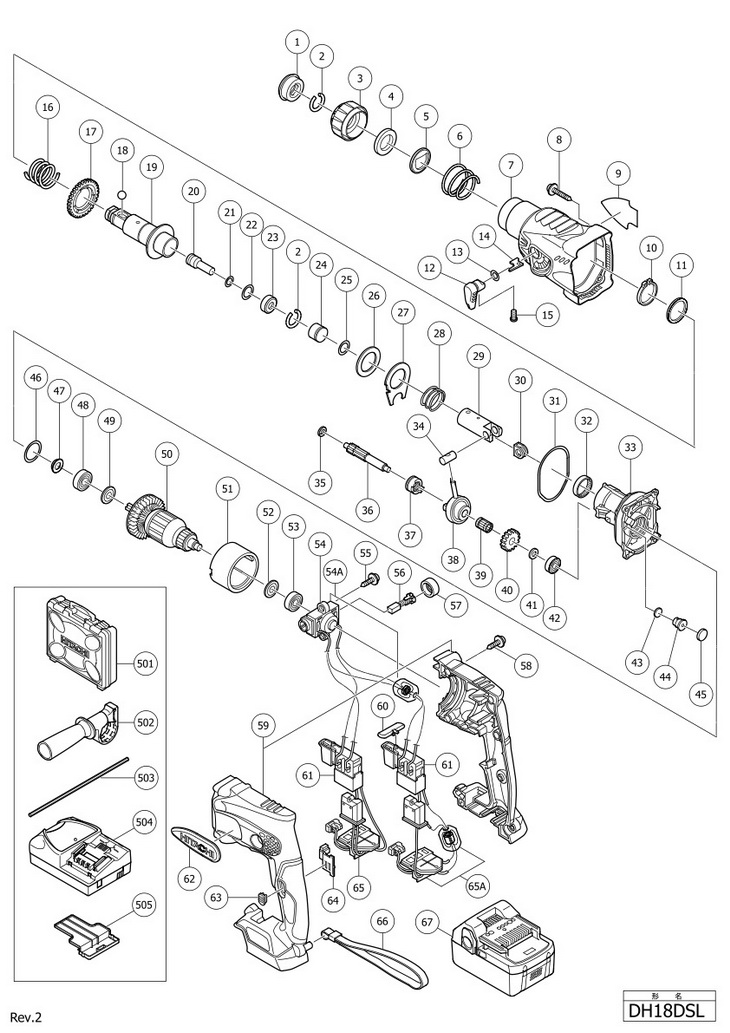

Top » Piese de schimb » PIESE HITACHI » DH18DSL DH18DSL [DH18DSL] Click pentru a mari Imagini suplimentare Click pentru a mari LISTA DE COMPONENTE: Numar Versiune Buc. in schema Denumire Pret/buc (Tva inclus) Cumpara 1 1 1 FRONT CAP (306345) 2012 RON 2 1 2 STOPPER RING (306340) 1788 RON 3 1 1 GRIP (325597) 3242 RON 4 1 1 BALL HOLDER (327879) 3019 RON 5 1 1 HOLDER PLATE (OLD 322811) (324526) 3242 RON 6 1 1 HOLDER SPRING (322812) 2236 RON 7 1 1 GEAR COVER (325593) 39145 RON 8 1 4 TAPPING SCREW D4X30 (W/FLANGE) BLACK (305490) 894 RON 9 1 1 - Indisponibil 10 1 1 RETAINING RING FOR D25 SHAFT (965469) 1453 RON 11 1 1 WASHER (944274) 1453 RON 12 1 1 LEVER (325594) 2236 RON 13 1 1 O-RING (1AP-10) (OLD 983540) (872654) 1788 RON 14 1 1 STOPPER (327875) 2236 RON 15 1 1 MACHINE SCREW M4X5 (10 PCS) (949213) 1453 RON 16 1 1 SPRING (A) (306334) 3578 RON 17 1 1 SECOND GEAR (306333) 1232 RON 18 1 1 STEEL BALL D7.0 (10 PCS) (959156) 2236 RON 19 1 1 CYLINDER (327876) 14092 RON 20 1 1 SECOND HAMMER (327877) 2795 RON 21 1 1 O-RING (B) (301672) 1453 RON 22 1 1 O-RING (P-15) (311814) 1453 RON 23 1 1 HAMMER HOLDER (327878) 2795 RON 24 1 1 STRIKER (325601) 4025 RON 25 1 1 O-RING (A) (306326) 297 RON 26 1 1 THRUST WASHER (327880) 1453 RON 27 1 1 THRUST PLATE (325588) 3242 RON 28 1 1 SPRING (B) (306976) 4361 RON 29 1 1 PISTON (306324) 9282 RON 30 1 1 WASHER (A) (321007) 3242 RON 31 1 1 O-RING (I.D.61) (325583) 2236 RON 32 1 1 NEEDLE BEARING (306328) 5591 RON 33 1 1 INNER COVER (D) (328479) 1998 RON 34 1 1 PISTON PIN (306322) 5032 RON 35 1 1 SPACER (325587) 2236 RON 36 1 1 SECOND SHAFT (327871) 4697 RON 37 1 1 CLUTCH (325584) 5927 RON 38 1 1 RECIPROCATING BEARING (325585) 17335 RON 39 1 1 NEEDLE CAGE (306320) 6151 RON 40 1 1 FIRST GEAR (327872) 4025 RON 41 1 1 WASHER (B) (995634) 1453 RON 42 1 1 NEEDLE BEARING (306328) 5591 RON 43 1 1 FELT PACKING (A) (324543) 2236 RON 44 1 1 VALVE (324545) 2236 RON 45 1 1 FELT PACKING (B) (324544) 2236 RON 46 1 1 O-RING (S-24) (878609) 1453 RON 47 1 1 FRINGER (306312) 2683 RON 48 1 1 BALL BEARING 609DDC3PS2-L (609DDC) 7940 RON 49 1 1 WASHER (A) (958915) 894 RON 50 1 1 ARMATURE DC 18 VOLT (360809) Indisponibil Indisponibil 51 1 1 MAGNET (328482) 11743 RON 52 1 1 WASHER (A) (980865) 894 RON 53 1 1 BALL BEARING 626VVMC2ERPS2S (626VVM) 3690 RON 54 1 1 BRUSH BLOCK (328486) Indisponibil Indisponibil 54A 1 1 334890 - Indisponibil 55 1 2 TAPPING SCREW D4X16 (W/FLANGE) BLACK (305812) 894 RON 56 1 2 CARBON BRUSH (1 PAIR) (999100) 4025 RON 57 1 2 BRUSH CAP (319847) Indisponibil Indisponibil 58 1 7 TAPPING SCREW D4X20 (W/FLANGE) BLACK (OLD 305095) (301653) 894 RON 59 1 1 HOUSING SET (A+B) (330075) 16441 RON 60 1 1 PUSHING BUTTON (322853) Indisponibil Indisponibil 61 1 1 DC-SPEED CONTROL SWITCH (328484) 1998 RON 62 1 1 - Indisponibil 63 1 1 LEVER (A) (326276) 1453 RON 64 1 1 LEVER (328480) 1453 RON 65 1 1 CONTROLLER TERMINAL SET (330074) 42389 RON 65A 1 1 334895 - Indisponibil 66 1 1 STRAP (BLACK) (OLD 317320) (306952) 4025 RON *67 1 2 BSL1830 BATTERY 18V 3.0Ah Li-Ion (330068) 92833 RON *67 1 2 330067 - Indisponibil 501 1 1 PLASTIC CARRYING CASE (328703) 22368 RON 502 1 1 SIDE HANDLE (324548) 10065 RON 503 1 1 DEPTH GAUGE (303709) 1229 RON 504 1 1 - Indisponibil 505 1 1 BATTERY COVER (329897) 2236 RON 601 1 1 GREASE FOR IMPACT DRILL (FG-6A) (500G) (980927) 4251 RON 602 1 1 GREASE (FG-6A) (30G) (4966375124375) Indisponibil Indisponibil 603 1 1 GREASE FOR HAMMER DRILL (JF-375) (70G) (308471) 8388 RON 604 1 1 306885 (306885) 16553 RON 605 1 1 986802 (986802) 18789 RON 606 1 1 @DUST COVER (986803) 6598 RON 607 1 1 SEAL COVER NEW (986804) 297 RON 608 1 1 RETAINING RING FOR D30 SHAFT (948310) 1788 RON 609 1 1 WASHER (OLD 958063P) (958063) 1453 RON 610 1 19 STEEL BALL D6.35 (10 PCS) (959150) 1788 RON 611 1 1 OUTER RACE NEW (986805) 382 RON 612 1 1 SOCKET (986806) 6151 RON 613 1 1 SOCKET ADAPTOR (B) (306910) 488 RON 614 1 1 DUST CUP (971787) 382 RON 615 1 1 STOPPER (931844) 2236 RON 616 1 1 321814 - Indisponibil 617 1 1 995344 - Indisponibil 618 1 1 DRILL CHUCK 13VLD-D (NEW 752056) (321813) 37468 RON 619 1 1 971511Z - Indisponibil 620 1 1 971512Z - Indisponibil 621 1 1 COTTER (944477) 4361 RON 622 1 1 982684 - Indisponibil 623 1 1 982685 - Indisponibil 624 1 1 982672 - Indisponibil 625 1 1 982673 - Indisponibil 626 1 1 982674 - Indisponibil 627 1 1 982686 - Indisponibil 628 1 1 982675 - Indisponibil 629 1 1 982687 - Indisponibil 630 1 1 982676 - Indisponibil 631 1 1 982688 - Indisponibil 632 1 1 982677 - Indisponibil 633 1 1 982689 - Indisponibil 634 1 1 982678 - Indisponibil 635 1 1 982690 - Indisponibil 636 1 1 971794 - Indisponibil 637 1 1 971795 - Indisponibil 638 1 1 971796 - Indisponibil 639 1 1 971797 - Indisponibil 640 1 1 971798 - Indisponibil 641 1 1 ANCHOR SETTING ADAPTER B W1/4" MANUAL (971799) 10736 RON 642 1 1 ANCHOR SETTING ADAPTER B W5/16" MANUAL (971800) 10736 RON 643 1 1 971801 - Indisponibil 644 1 1 ANCHOR SETTING ADAPTER B W1/2" MANUAL (971802) 11967 RON 645 1 1 ANCHOR SETTING ADAPTER B W5/8" MANUAL (971803) 12526 RON 646 1 1 944460 - Indisponibil 647 1 1 944461 - Indisponibil 648 1 1 993038 - Indisponibil 649 1 1 944462 - Indisponibil 650 1 1 944500 - Indisponibil 651 1 1 944463 - Indisponibil 652 1 1 944464 - Indisponibil 653 1 1 303046 - Indisponibil 654 1 1 CHEMICAL ANCHOR ADAPTER (SDS+) 12.7MMX90L (303044) 22592 RON 655 1 1 CHEMICAL ANCHOR ADAPTER (SDS+) 19MMX100L (303045) 30645 RON 656 1 1 TAPER MORSE KONUS NR.1 (303617) 22592 RON 657 1 1 TAPER ADAPTER A (SDS PLUS) (303619) 20691 RON 658 1 1 TAPER ADAPTER B (SDS PLUS) (303620) 20691 RON 659 1 1 303624 - Indisponibil 660 1 1 303623 - Indisponibil 661 1 1 302976 - Indisponibil 662 1 1 302975 - Indisponibil 663 1 1 303621 - Indisponibil 664 1 1 302974 - Indisponibil 665 1 1 302979 - Indisponibil 666 1 1 302978 - Indisponibil 667 1 1 303622 - Indisponibil 668 1 1 302977 - Indisponibil 669 1 1 CORE BIT SHANK (SDS) 25-38MM 105 (DISCON) (303625) 1614 RON 670 1 1 303626 - Indisponibil 671 1 1 CORE BIT SHANK (SDS) 45-90MM 300L (DISCON) (303627) 37468 RON 672 1 1 303332 - Indisponibil 673 1 1 303334 - Indisponibil 674 1 1 RUBBER CAP (303335) 4585 RON 675 1 1 321825 - Indisponibil 676 1 1 303623 - Indisponibil 677 1 1 321814 - Indisponibil 678 1 1 987576 - Indisponibil 679 1 1 995344 - Indisponibil 680 1 1 CHUCK WRENCH 10G (OLD 879355) (930515) 488 RON
