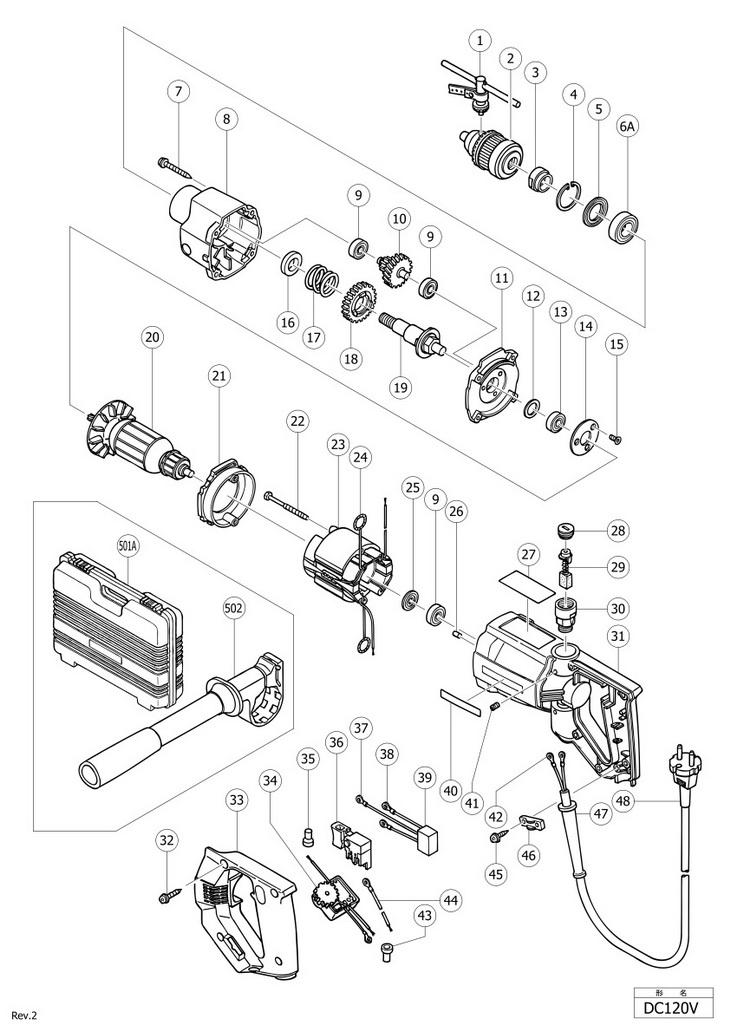

Top » Piese de schimb » PIESE HITACHI » DC120V DC120V [DC120V] Click pentru a mari Imagini suplimentare Click pentru a mari LISTA DE COMPONENTE: Numar Versiune Buc. in schema Denumire Pret/buc (Tva inclus) Cumpara 1 1 1 CHUCK WRENCH 10G (OLD 879355) (930515) 488 RON 2 1 1 DRILL CHUCK 5/8"X16UNF, 1-13MM KEY-TYPE (OLD 950287) (321816) 37468 RON *2 1 1 DRILL CHUCK 13VLD-D (NEW 752056) (321813) 37468 RON 3 1 1 NUT (309125) 9730 RON *3 1 1 @ NUT (A) (300400) 7269 RON 4 1 1 RETAINING RING FOR D35 HOLE (10 PCS) (939556) 6822 RON 5 1 1 DUST SEAL (981572) 3242 RON 6A 1 1 BALL BEARING 6003DDCMPS2S (6003DD) Indisponibil Indisponibil *6A 1 1 BALL BEARING 6202DDUCMPS2S (OLD 956937) (6202DD) 4697 RON 7 1 4 TAPPING SCREW D5X35 (986140) 1453 RON 8 1 1 GEAR COVER (309124) 22144 RON *8 1 1 300395 - Indisponibil 9 1 3 BALL BEARING 608VVMC2EPS2L (608VVM) 4025 RON 10 1 1 SECOND PINION (309129) 22592 RON 11 1 1 319542 (319542) 22144 RON 12 1 1 WASHER (OLD 984113Z) (984357) 1453 RON 13 1 1 BALL BEARING 609VVMC2PS2S (609VVM) 4025 RON 14 1 1 @BEARING HOLDER (309132) 297 RON 15 1 3 SEAL LOCK HEX. SOCKET FLAT HD. BOLT (981588) 1453 RON 16 1 1 SLEEVE (309128) 5368 RON *16 1 1 SLEEVE (300399) 6151 RON 17 1 1 SPRING (309167) 382 RON 18 1 1 FINAL GEAR (309127) 22144 RON 19 1 1 SPINDLE (309126) 18789 RON *19 1 1 SPINDLE (300396) 22144 RON *20 1 1 360342C (360342C) 57824 RON *20 1 1 360342E (360342E) 57824 RON 21 1 1 FAN GUIDE (981562) 297 RON 22 1 2 HEX .HD. TAPPING SCREW D5X60 (961501) 894 RON *23 1 1 340302C (340302C) 37468 RON *23 1 1 340302E (340302E) 37468 RON 24 1 2 BRUSH TERMINAL (930703) 2348 RON 25 1 1 DUST SEAL (A) (956387) 2571 RON 26 1 1 BEARING LOCK (OLD 976441) (946362) 1453 RON 27 1 1 - Indisponibil 28 1 2 BRUSH CAP (961781) 2683 RON 29 1 2 CARBON BRUSH (1 PAIR) (999043) 382 RON 30 1 2 BRUSH HOLDER (981586) 5368 RON 31 1 1 983552 (983552) 28967 RON 32 1 5 TAPPING SCREW D4X20 (W/FLANGE) BLACK (OLD 305095) (301653) 894 RON 33 1 1 HANDLE COVER (309123) 8388 RON *34 1 1 CONTROLLER CIRCUIT (OLD 983582Z) (983582) 39145 RON *34 1 1 CONTROLLER CIRCUIT (OLD 983584Z) (983577) 39145 RON 35 1 1 CONNECTOR 50091 (10 PCS) (OLD 939557) (959140) 2236 RON 36 1 1 SWITCH (C) (1P SCREW TYPE) W/O LOCK (302470) 7269 RON 37 1 1 TERMINAL (OLD 938108Z) (938108) 1453 RON 38 1 2 TERMINAL (980063) 1117 RON 39 1 1 NOISE SUPPRESSOR (994273) Indisponibil Indisponibil 40 1 1 - Indisponibil 41 1 2 HEX.SOCKET SET SCREW M4X6 (985114) 1453 RON 42 1 2 TERMINAL (980063) 1117 RON 43 1 1 CONNECTOR 50092 (10 PCS) (OLD 939558) (959141) 382 RON 44 1 1 @ INTERNAL WIRE (309165) 297 RON 45 1 2 TAPPING SCREW D4X16 (W/FLANGE) (984750) 1117 RON 46 1 1 CORD CLIP (960266) 894 RON 47 1 1 CORD ARMOR D8.8 (953327) Indisponibil Indisponibil *48 1 1 500234Z - Indisponibil *48 1 1 500237Z - Indisponibil *48 1 1 CORD 2,5M 2 X 1.0 H05VV-F W/PLUG 13A/250V GBR (500435Z) 12638 RON 501A 1 1 CASE (OLD 996404 + 996408) (310905) 30645 RON 502 1 1 309122 (309122) 22144 RON
