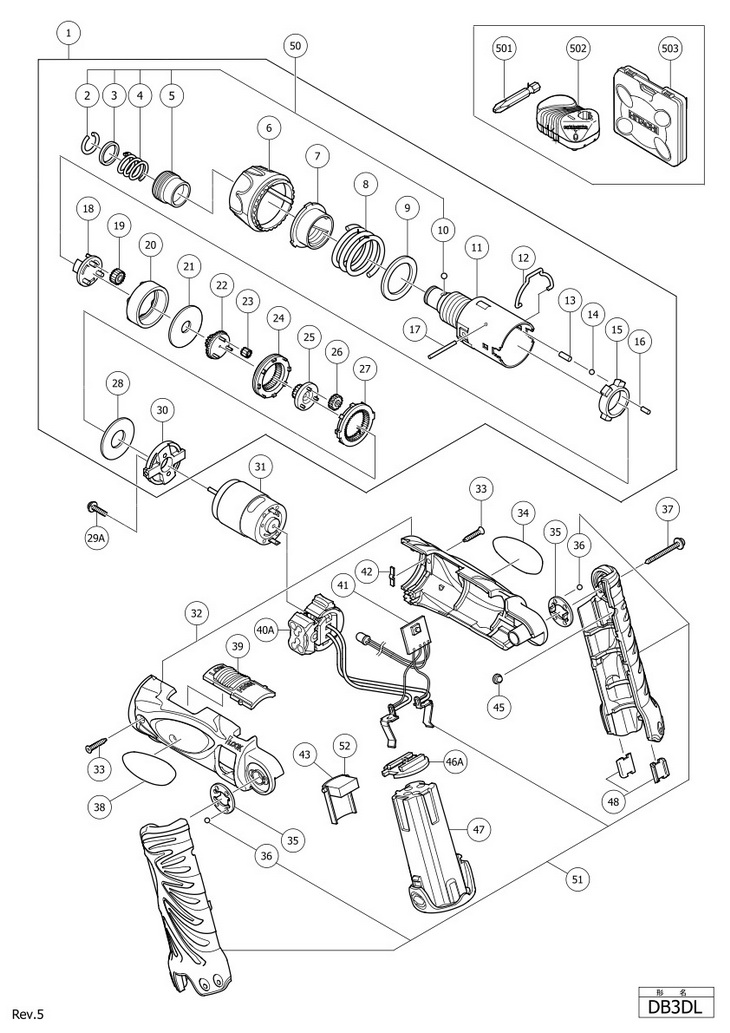

Top » Piese de schimb » PIESE HITACHI » DB3DL DB3DL [DB3DL] Click pentru a mari Imagini suplimentare Click pentru a mari LISTA DE COMPONENTE: Numar Versiune Buc. in schema Denumire Pret/buc (Tva inclus) Cumpara 1 1 1 326348 (326348) 40823 RON 2 1 1 RETAINING RING (315984) 2236 RON 3 1 1 WASHER (D) (315983) 2236 RON 4 1 1 GUIDE SPRING (320409) 2236 RON 5 1 1 GUIDE SLEEVE (A) (319921) 6374 RON 6 1 1 CLUTCH DIAL (326342) 3242 RON 7 1 1 NUT (326341) 2236 RON 8 1 1 SPRING (326340) 2236 RON 9 1 1 WASHER (D) (326339) 2236 RON 10 1 1 STEEL BALL D3.5 (10 PCS) (319535) 2236 RON 11 1 1 GEAR CASE (326349) 14875 RON 12 1 1 SHIFT ARM (326345) 2236 RON 13 1 3 PIN SET (3 PCS) (326338) 2236 RON 14 1 3 STEEL BALL D3 (317788) 2236 RON 15 1 1 LOCK RING (326323) 3242 RON 16 1 6 NEEDLE ROLLER SET (6 PCS) (326324) 2236 RON 17 1 2 NEEDLE (326329) 2236 RON 18 1 1 CARRIER (326325) 2236 RON 19 1 3 PLANET GEAR (C) SET (3 PCS) (326327) 2236 RON 20 1 1 RING GEAR (326326) 3242 RON 21 1 1 WASHER (B) (326328) 2236 RON 22 1 1 PINION (C) (326330) 2236 RON 23 1 3 PLANET GEAR (B) SET (3 PCS) (326332) 2236 RON 24 1 1 SLIDE RING GEAR (326331) 2236 RON 25 1 1 PINION (B) (326333) 2236 RON 26 1 3 PLANET GEAR (A) SET (3 PCS) (326335) 2236 RON 27 1 1 FIRST RING GEAR (326334) 2236 RON 28 1 1 WASHER (A) (326336) 2236 RON 29A 1 2 MACHINE SCREW M2.6X8 (W/SP. WASHER) (330755) 1453 RON 30 1 1 MOTOR SPACER (326337) 2236 RON 31 1 1 MOTOR (326310) 6822 RON 32 1 1 HOUSING SET (A+B) (326307) 6262 RON 33 1 4 PAN HD.TAPPING SCREW D3X8 (984319) 1453 RON 34 1 1 - Indisponibil 35 1 2 CLICK PLATE (326315) 2795 RON 36 1 4 STEEL BALL D3 (317788) 2236 RON 37 1 1 TAPPING SCREW D4X20 (W/FLANGE) BLACK (302086) 1453 RON 38 1 1 328846 - Indisponibil 39 1 1 SHIFT KNOB (326308) 2236 RON 40A 1 1 SWITCH (W/LOCK) (OLD 326311) (331514) 7716 RON 41 1 1 326313 (326313) 6598 RON 42 1 1 CLICK SPRING (326309) Indisponibil Indisponibil 43 1 1 HANDLE COVER (326314) 1453 RON 45 1 1 BUTTON (326317) 1453 RON 46A 1 1 TERMINAL SUPPORT (326316) 1453 RON *47 1 2 EBM315 BATTERY 3.6V 1.5Ah Li-Ion (326299) 19572 RON *47 1 2 326263 - Indisponibil 48 1 2 CLIP (326318) 1453 RON 50 1 1 GUIDE SLEEVE SET (320085) 8388 RON 51 1 1 HANDLE AND TERMINAL SET (GREEN) (328825) 17335 RON 52 1 1 PACKING (A) (328847) 2236 RON 501 1 1 992671 - Indisponibil 502 1 1 - Indisponibil 503 1 1 PLASTIC CARRYING CASE (326346) 24493 RON 601 1 1 HOLSTER NEW (326665) 10513 RON 602 1 1 @DRIVER BIT NO.1 50L (992670) 2123 RON 603 1 1 DRIVER BIT (B) NO.3 50L (992672) 382 RON 604 1 1 @ DRIVER BIT (B) 4MMX50 (992675) 2459 RON 605 1 1 @DRIVER BIT (B) 5MMX50 (992676) 2459 RON 606 1 1 @ DRIVER BIT (B) 6MMX50 (992677) 2459 RON 607 1 1 321823 - Indisponibil 608 1 1 307543 - Indisponibil 609 1 1 987575 - Indisponibil Puteti cumpara DB3DL in urmatoarele variante: Surubelnita electrica Hitachi DB3DL
