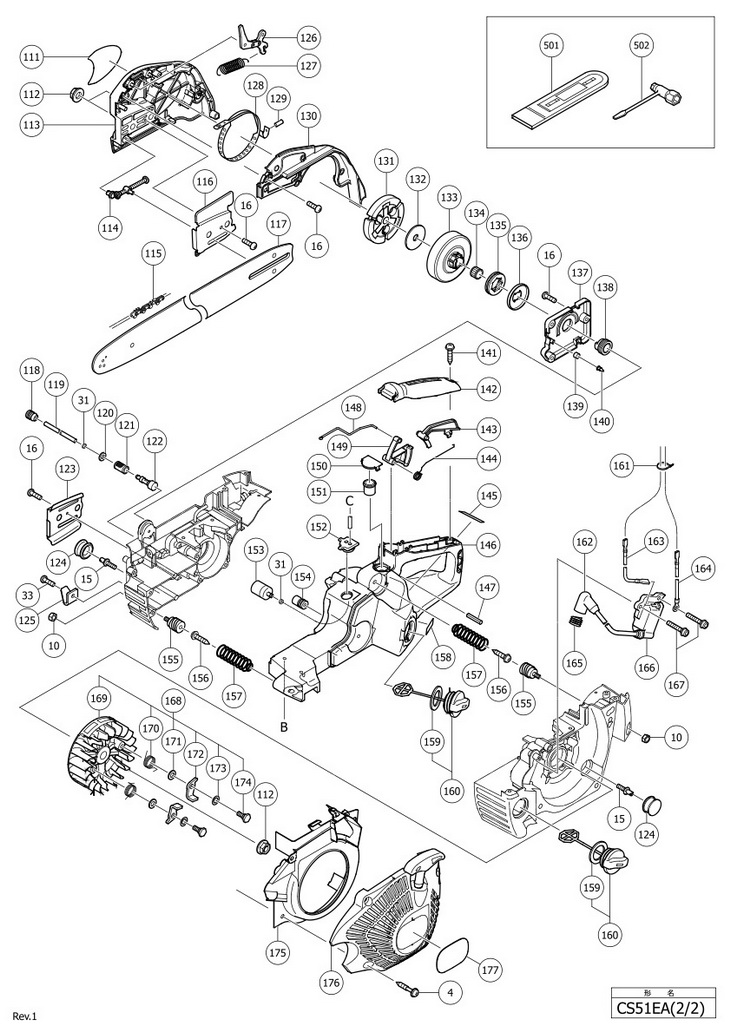

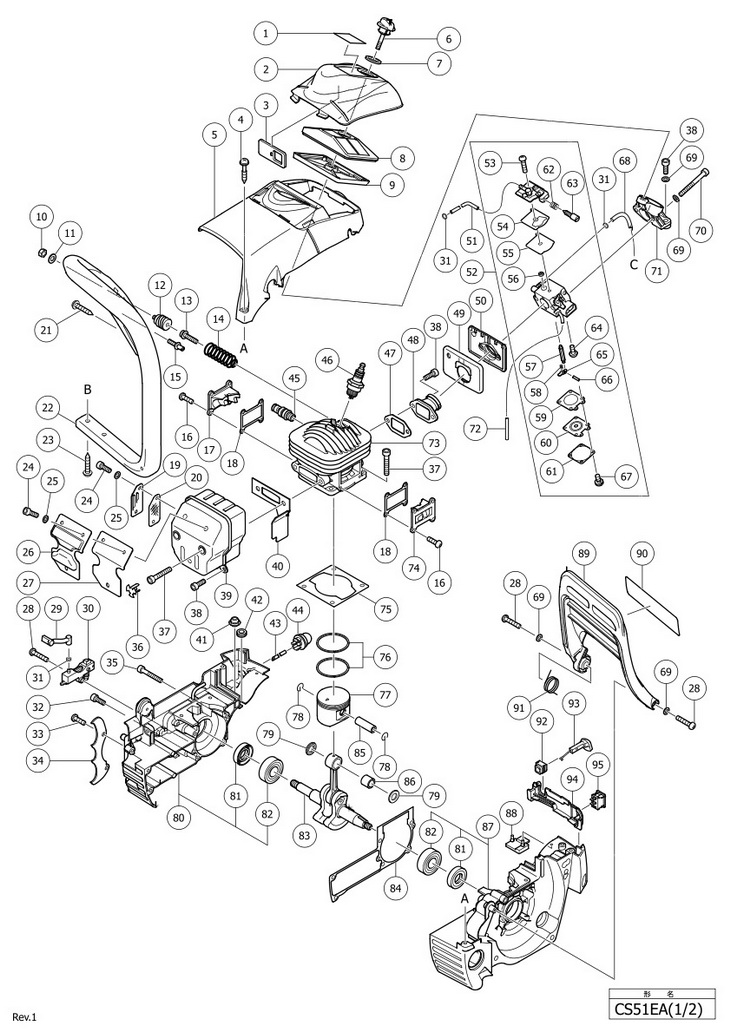

Top » Piese de schimb » PIESE HITACHI » CS51EA CS51EA [CS51EA] Click pentru a mari Imagini suplimentare Click pentru a mari Click pentru a mari LISTA DE COMPONENTE: Numar Versiune Buc. in schema Denumire Pret/buc (Tva inclus) Cumpara 1 1 1 START LABEL (C51) (EX) NEW (6698919) 1453 RON 2 1 1 CLEANER COVER (C51) NEW (6698568) 4025 RON 3 1 1 SHUTTER PLATE NEW (6698569) 1453 RON 4 1 7 COVER SET BOLT NEW (6696903) 781 RON 5 1 1 CYLINDER COVER (C51) NEW (6698708) 9842 RON 6 1 1 CLEANER KNOB (VERMILION) NEW (6698595) 1453 RON 7 1 1 KNOB PACKING NEW (6698570) 1453 RON 8 1 1 CLEANER ELEMENT (B) NEW (6698563) 4025 RON 9 1 1 CLEANER ELEMENT (A) NEW (6698562) 4025 RON 10 1 3 NUT M6 NEW (6698449) 1453 RON 11 1 1 BOLT WASHER M6 (10 PCS) (OLD 949432Z) (949432) 1453 RON 12 1 1 SPRING HOLDER NEW FEB (6698429) 2795 RON 13 1 1 HEX. SOCKET HD. BOLT M6X20 (W/FLANGE) NEW FEB (881722) 2236 RON 14 1 1 ANTIVIBRATION SPRING NEW MAR (6698428) 2795 RON 15 1 3 DAMPER SET BOLT (6685413) 1453 RON 16 1 18 SEAL LOCK SCREW M4X10 NEW (6696835) 1453 RON 17 1 1 SCAVENGING COVER (B) NEW (6698539) 2795 RON 18 1 2 COVER PACKING (C51) (6698540) 1453 RON 19 1 1 EXHAUST PIPE (C51) NEW (6698903) 1453 RON 20 1 1 MUFFLER GAUZE NEW (6698575) 1453 RON 21 1 2 TAPPING SCREW D5X25 (W/FLANGE) BLACK (305558) 894 RON 22A 1 1 6699026 - Indisponibil 23 1 2 TAPPING SCREW D5X20 (W/FLANGE) BLACK (302089) 1453 RON 24 1 5 HEX.SOCKET HD.BOLT M4X10 (10 PCS) (949812) 2348 RON 25 1 5 BOLT WASHER M4 (BLACK) (323210) 1453 RON 26 1 1 6698904 - Indisponibil 27 1 1 6698905 - Indisponibil 28 1 3 MACHINE SCREW M4X16 (10 PCS) (949219) 1453 RON 29 1 1 6698900 - Indisponibil 30 1 1 6698554 - Indisponibil 31 1 5 D6 CLIP (6685311) 1453 RON 32 1 4 HEX. SOCKET BOLT M5 (6685412) 1453 RON 33 1 3 6698901 - Indisponibil 34 1 1 SPIKE (Option) CS33EB (NEW 6696329) (6685400) 3019 RON 35 1 2 6698902 - Indisponibil 36 1 2 6698706 - Indisponibil 37 1 6 6698899 - Indisponibil 38 1 4 6696836 - Indisponibil 39 1 1 6698574 - Indisponibil 40 1 1 6698576 - Indisponibil 41 1 2 FUEL GROMMET(A) (6685308) Indisponibil Indisponibil 43 1 1 FUEL PIPE 2.5X4X90 (OLD 700-02504-09) (6685267) 1229 RON 44 1 1 PRIMING PUMP COMP. (OLD 442-25143-80) (6685139) 3578 RON 45 1 1 6698541 - Indisponibil *46 1 1 SPARK PLUG BPMR7A (OLD 018-12710-20) (6685782) Indisponibil Indisponibil 47 1 1 6698549 - Indisponibil 48 1 1 6698906 - Indisponibil 49 1 1 6698551 - Indisponibil 50 1 1 6698552 - Indisponibil 51 1 1 6698907 - Indisponibil 52 1 1 6698705 - Indisponibil 53 1 1 SCREW (OLD 514-25001-20) (6685210) 1229 RON 54 1 1 PUMP GASKET (OLD 577-25007-20) (6685212) 2236 RON 55 1 1 PUMP DIAPHRAGM (OLD 576-25006-20) (6685213) 3242 RON 56 1 1 INLET SCREEN (OLD 578-25007-20/6691460) (6684700) 2236 RON 57 1 1 NEEDLE VALVE (OLD 603-25012-20) (6685215) 382 RON 58 1 1 VALVE SPRING (OLD 477-25088-20) NEW (6690873) 3242 RON 59 1 1 DIAPHRAGM PACKING (OLD 475-25038-20) (6685220) 2236 RON 60 1 1 METERING DIAPHRAGM (OLD 474-25601-20) (6684690) 6039 RON 61 1 1 DIAPHRAGM COVER (OLD 476-25004-20) (6685222) 3242 RON 62 1 1 IDLE ADJUST SPRING (OLD 463-25012-20) (6690766) 2236 RON 63 1 1 IDLE ADJUST SCREW (OLD 462-25016-20) (6685298) 2236 RON 64 1 1 HINGE PIN SET SCREW (OLD 546-25001-20) (6685218) 2236 RON 65 1 1 CONTROL LEVER (OLD 473-25001-20) (6685217) 2460 RON 66 1 1 HINGE PIN (OLD 605-25001-20) (6685219) 1229 RON 67 1 1 SET SCREW (OLD 548-25012-20) (6685223) 1229 RON 68 1 1 6698908 - Indisponibil 69 1 4 5 WASHER (6685408) 1453 RON 70 1 2 HEX. SOCKET HD. BOLT M5X45 (6696317) 1453 RON 71A 1 1 6698553 - Indisponibil 72 1 1 FUEL PIPE NEW (6698721) 6151 RON 73 1 1 6698537 - Indisponibil 74 1 1 SCAVENGING COVER (A) NEW (6698538) 2795 RON 75 1 1 6698542 - Indisponibil 76 1 2 PISTON RING NEW (6698534) 5815 RON 77 1 1 PISTON (44) (M) NEW (6698909) 15322 RON 78 1 2 CIR CLIP NEW JAN (6696854) 1453 RON 79 1 2 6698910 - Indisponibil 80 1 1 6698531 - Indisponibil 81 1 2 6698914 - Indisponibil 82 1 2 BALL BEARING 6202C3 (OLD 939227/6695557/790101) (6202C3) 4025 RON 83 1 1 6698532 - Indisponibil 84 1 1 CRANK CASE PACKING (C51) NEW (6698535) 2795 RON 85 1 1 PISTON PIN (6696855) 2795 RON 86 1 1 6698911 - Indisponibil 87 1 1 6698530 - Indisponibil 88 1 1 6698709 - Indisponibil 89 1 1 6698572 - Indisponibil 90 1 1 6698973 - Indisponibil *90 1 1 CAUTION LABEL (E) NEW (6696336) 2795 RON *90 1 1 CAUTION LABEL (D) NEW (6696335) 2795 RON 91 1 1 6698912 - Indisponibil 92 1 1 CHOKE ROD RUBBER (6685369) 1453 RON 93 1 1 6698593 - Indisponibil 94 1 1 6698565 - Indisponibil 95 1 1 STOP SWITCH (6696940) 2795 RON 96 1 1 6698988 - Indisponibil 98 1 2 6699029 - Indisponibil 111 1 1 - Indisponibil 112 1 1 FLANGE NUT M8 NEW MAR (6698581) 1453 RON 112A 1 2 6699028 - Indisponibil 113 1 1 6698585 - Indisponibil 114 1 1 6698591 - Indisponibil *115 1 1 SAW CHAIN 13" x .325" x 1.3 MM (.050")x56 (OLD 134-3286F-20) OREGON (6687270) 1232 RON *115 1 1 SAW CHAIN 15" x .325" x 1.3 MM (.050")x64 (OLD 149-3285E-20)OREGON (6687335) 11966 RON *115 1 1 SAW CHAIN 16" x .325" x 1.3 MM (.050")x66 (OLD 138-3285B-20)OREGON (6687296) 12861 RON *115 1 1 SAW CHAIN 18" x .325" x 1.3 MM (.050")x72 (OLD 136-3285A-20) OREGON (6687284) 13644 RON *115 1 1 6698710 - Indisponibil 116 1 1 6698592 - Indisponibil *117 1 1 CHAIN BAR 13" NEW JAN (6696911) 23375 RON *117 1 1 CHAIN BAR 15" NEW JAN (6696912) 2550 RON *117 1 1 CHAIN BAR 16" NEW JAN (6696983) 2550 RON *117 1 1 CHAIN BAR 18" NEW JAN (6696982) 2550 RON *117 1 1 6698641 - Indisponibil 118 1 1 OIL GROMMET (A) (6696868) 1453 RON 119 1 1 FUEL PIPE (OLD 6698453) (6698719) 6151 RON 120 1 1 D5 BOLT WASHER (6685407) 1453 RON 121 1 1 OIL FILTER (6698455) 1453 RON 122 1 1 OIL FILTER BODY (OLD 6696869) (6698536) 2795 RON 123 1 1 6698561 - Indisponibil 124 1 2 6698913 - Indisponibil 125A 1 1 6699027 - Indisponibil 126 1 1 6698587 - Indisponibil 127 1 1 6698588 - Indisponibil 128 1 1 6698589 - Indisponibil 129 1 1 D3 NEEDLE ROLLER (6685391) 1453 RON 130 1 1 6698590 - Indisponibil 131 1 1 6698560 - Indisponibil 132 1 1 CLUTCH WASHER (B) (6696882) 2795 RON 133 1 1 6698558 - Indisponibil 134 1 1 NEEDLE BEARING (6696884) 4025 RON 135 1 1 6698557 - Indisponibil 136 1 1 6698556 - Indisponibil 137 1 1 6698555 - Indisponibil 138 1 1 WORM (6696886) 5815 RON 139 1 1 AIR VENT SPONGE (6685371) 1453 RON 140 1 1 AIR VENT VALVE(B) (6685370) 2795 RON 141 1 1 TAPPING SCREW D4X16 (W/FLANGE) BLACK (305812) 894 RON 142 1 1 REAR HANDLE GRIP NEW FEB (6698805) 1453 RON 143 1 1 TRIGGER LOCKOUT (6685350) 1453 RON 144 1 1 6696838 - Indisponibil 145 1 1 - Indisponibil 146 1 1 6698579 - Indisponibil 147 1 1 SPRING PIN 5X25 (OLD 993-26005-254) (6685282) 1229 RON 148 1 1 6698564 - Indisponibil 149 1 1 6698916 - Indisponibil 150 1 1 6698580 - Indisponibil 151 1 1 6685351 (6685351) 3690 RON 152 1 1 FUEL GROMMET (OLD 701-72930-20) NEW (6696167) 1229 RON 153 1 1 6692285 (6692285) 4361 RON 154 1 1 FRONT DAMPER (6696873) 1453 RON 155 1 2 SPRING HOLDER NEW FEB (6698409) 2795 RON 156 1 2 FLANGED TAPPING SCREW D6 NEW (6696872) 1453 RON 157 1 2 ANTIVIBRATION SPRING NEW FEB (6698408) 2795 RON *158 1 1 6698921 - Indisponibil *158 1 1 6698922 - Indisponibil 159 1 2 TANK CAP PACKING (OLD 630-3252K-20) (6685179) 2236 RON 160 1 1 6698854 (6698854) 4025 RON 161 1 1 @ CABLE TIE (988054) 1453 RON 162 1 1 6698548 - Indisponibil 163 1 1 6698545 - Indisponibil 164 1 1 6698546 - Indisponibil 165 1 1 6698547 - Indisponibil 166 1 1 6698544 - Indisponibil 167 1 2 HEX. SOCKET HD. BOLT (W/FLANGE) M4X18 (6696326) 1453 RON 168 1 1 6698918 - Indisponibil 169 1 1 6698543 - Indisponibil 170 1 2 STARTER PAWL SPRING NEW FEB (6698417) 1453 RON 171 1 2 WASHER 0.8 NEW (6696857) 1453 RON 172 1 2 STARTER PAWL (6696877) 2795 RON 173 1 2 CHIM (6696434) 1453 RON 174 1 2 STEP BOLT NEW (6696878) 1453 RON 175 1 1 6698571 - Indisponibil 176 1 1 6698583 - Indisponibil 177 1 1 - Indisponibil 179 1 1 6698358 - Indisponibil *501 1 1 CHAIN COVER 14" (6685439) 3690 RON *501 1 1 CHAIN COVER 15"/16" (6696909) 3690 RON *501 1 1 CHAIN COVER 18" (6696910) 3690 RON *501 1 1 6698577 - Indisponibil 502 1 1 COMBI BOX SPANNER 13X19 NEW (6698582) 3690 RON
