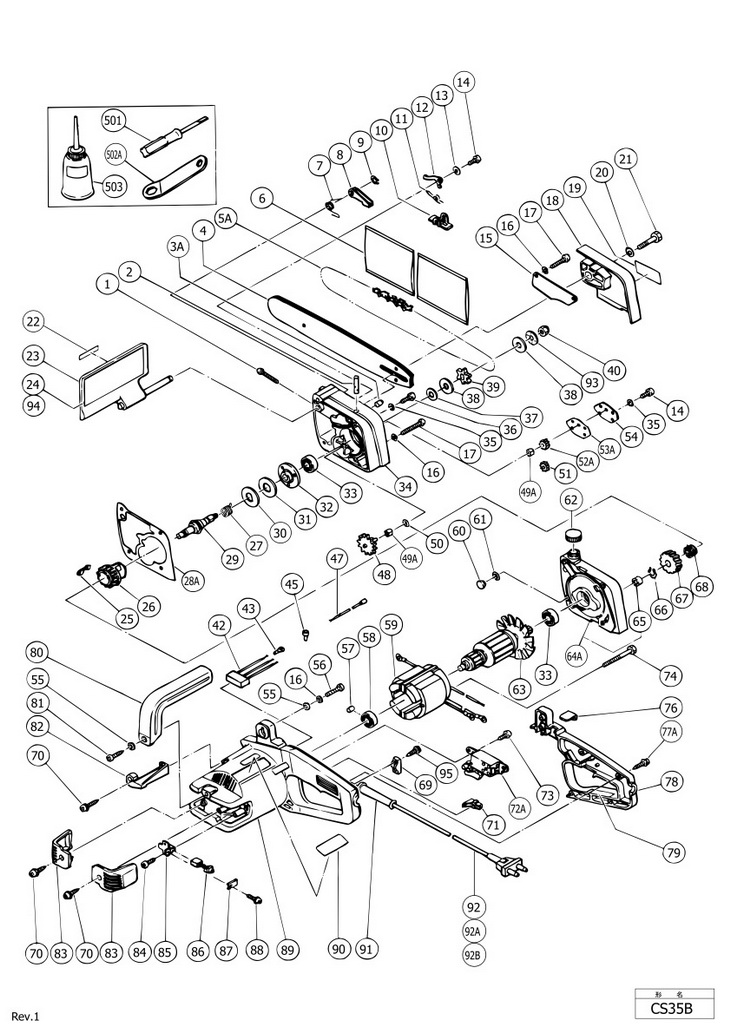

Top » Piese de schimb » PIESE HITACHI » CS35B CS35B [CS35B] Click pentru a mari Imagini suplimentare Click pentru a mari LISTA DE COMPONENTE: Numar Versiune Buc. in schema Denumire Pret/buc (Tva inclus) Cumpara 1 1 1 FREE DRIVE SCREW M5X40 (960260) 1453 RON 2 1 1 STOP PIN (985536) 573 RON 3A 1 1 960290 (960290) 297 RON 4 1 1 GUIDE BAR (B) (960304Z) 5952 RON 5A 1 1 317266 - Indisponibil 6 1 1 CHAIN CASE (A) (985577) 5927 RON 7 1 1 SPRING (B) (985531) 1453 RON 8 1 1 CAM PLATE (985530) 2683 RON 9 1 1 RETAINING RING FOR D10 (10 PCS) (939540) 2683 RON 10 1 1 RESET PLATE (985532) 2683 RON 11 1 1 SPRING (A) (985534) 1788 RON 12 1 1 HOOK PLATE (985533) 1453 RON 13 1 1 BOLT WASHER M4 (10 PCS) (OLD 949429Z) (949429) 1453 RON 14 1 5 MACHINE SCREW M4X10 (10 PCS) (OLD 949216Z) (949216) 894 RON 15 1 1 COVER PLATE (985535) 2683 RON 16 1 5 SPRING WASHER M5 (10 PCS) (949454) 1117 RON 17 1 4 TAPPING SCREW D5X70 (957725) 1453 RON 18 1 1 985570 (985570) 6151 RON 19 1 1 HITACHI LABEL (985571) 1788 RON 20 1 1 SPRING WASHER M8 (10 PCS) (949457) 1453 RON 21 1 1 BOLT M8X40 (10 PCS) (949630) 297 RON 22 1 1 - Indisponibil 23 1 1 HAND GUARD (985528) 3578 RON 24 1 1 - Indisponibil 25 1 1 HOOK SPRING (985550) 2683 RON 26 1 1 STOP COLLAR (985524) 6151 RON 27 1 1 BRAKE SPRING (985526) 3578 RON 28A 1 1 OIL SEAL (985541) 1788 RON 29 1 1 SPINDLE (985522) 23934 RON 30 1 1 WASHER (PLASTIC T0.5) (985546) 1453 RON 31 1 1 WASHER (STEEL T0.2) (985549) 4025 RON 32 1 1 SLEEVE (985523) 13085 RON 33 1 2 BALL BEARING 6201VVCMPS2S (6201VV) 4249 RON 34 1 1 GEAR COVER (985520) 35790 RON 35 1 7 SPRING WASHER M4 (10 PCS) (949453) 894 RON 36 1 3 MACHINE SCREW M4X12 (10 PCS) (949217) 1453 RON 37 1 1 WASHER (B) (OLD 961436Z) (961436) 1453 RON 38 1 2 SIDE PLATE (957699) 1453 RON 39 1 1 SPROCKET (957700) 6374 RON 40 1 1 U-NUT (LEFT HAND) M8 (960256) 1453 RON 42 1 1 NOISE SUPPRESSOR (994273) Indisponibil Indisponibil 43 1 1 TERMINAL (961419Z) 894 RON *43 1 1 TERMINAL 50061 (10 PCS) (959146) 3578 RON 45 1 2 CONNECTOR 50092 (10 PCS) (OLD 939558) (959141) 382 RON 47 1 2 INTERNAL WIRE (A) (960281Z) 1788 RON 48 1 1 PUMP GEAR (985537) 6598 RON 49A 1 2 METAL D4X6 (OLD 980827) (994677) 1453 RON 50 1 1 O-RING (P-4) (874436) 1453 RON 51 1 1 FIRST IDLE GEAR (OLD 985538) (985547) 3578 RON 52A 1 1 FIRST IDLE GEAR (OLD 985538) (985547) 3578 RON 53A 1 1 CAP SEAL (985539) 1453 RON 54 1 1 CAP PLATE (985540) 1788 RON 55 1 2 WASHER M5 (10 PCS) (949424) 1453 RON 56 1 1 MACHINE SCREW M5X35 (10 PCS) (949247) 2236 RON 57 1 1 BEARING LOCK (931701) 1453 RON 58 1 1 BALL BEARING 6000VVCMPS2S (6000VV) 4025 RON *59 1 1 STATOR 110-115 VOLT (960270C) 20467 RON *59 1 1 STATOR 220-230 VOLT (960270E) 22592 RON *59 1 1 @ STATOR 240V (960270F) 22592 RON *59 1 1 STATOR 220-230 VOLT (960270K) 22592 RON *59 1 1 960270H - Indisponibil *59 1 1 STATOR 110 VOLT (960270L) 20467 RON 60 1 1 OIL GAUGE (985542) 1788 RON 61 1 1 O-RING (S-12) (875638) 2236 RON 62 1 1 CAP (957709) 1453 RON *63 1 1 @ ARMATURE 110 VOLT (OLD 985548J) (985548C) 6802 RON *63 1 1 ARMATURE 220V (OLD 985548G) (985548E) 6802 RON *63 1 1 ARMATURE 230V-240V (OLD 985548H) (985548F) 6802 RON 64A 1 1 985578 (985578) 30645 RON 65 1 1 NEEDLE BEARING HK1010 (982027) 5368 RON 66 1 1 RETAINING RING FOR D12 (10 PCS) (939542) 1788 RON 67 1 1 GEAR (985527) 17895 RON 68 1 1 CLUTCH SPRING (A) (985551) 6151 RON 69 1 1 CORD CLIP (960266) 894 RON 70 1 3 TAPPING SCREW D4X16 (930446) 894 RON 71 1 1 INTERNAL WIRE CLIP (960252) 1453 RON 72A 1 1 SWITCH (A) (1P SCREW TYPE) W/O (306977) 956 RON 73 1 1 TAPPING SCREW D4X12 (954017) 894 RON 74 1 2 HEX.HD. TAPPING SCREW D5X65 (960251) 1453 RON 76 1 1 RUBBER CAP (985545) 2348 RON 77A 1 5 TAPPING SCREW D4X25 (W/FLANGE) (306999) 1117 RON 78 1 1 HANDLE COVER (960265) 956 RON 79 1 1 - Indisponibil 80 1 1 SIDE HANDLE (960273) 488 RON 81 1 1 TAPPING SCREW D5X20 (953040) 1453 RON 82 1 1 ATTACHMENT (985529) 1453 RON 83 1 2 TAIL COVER (960259) 2683 RON 84 1 2 TAPPING SCREW D4X10 (958715) 894 RON 85 1 2 BRUSH HOLDER (957686) 3242 RON 86 1 2 CARBON BRUSH (1 PAIR) (999038) 382 RON 87 1 2 BRUSH PLATE (957710) 1453 RON 88 1 2 MACHINE SCREW (W/WASHER) M4X8 (960258) 1453 RON 89 1 1 960284Z (960284Z) 23934 RON 90 1 1 - Indisponibil 91 1 1 CORD ARMOR D8.8 (953327) Indisponibil Indisponibil *91 1 1 CORD ARMOR D10.1 (OLD 994565) (938051) 894 RON *92 1 1 500247Z - Indisponibil *92 1 1 500439Z - Indisponibil *92 1 1 500234Z - Indisponibil *92 1 1 500245Z - Indisponibil *92 1 1 CORD FOR SUI (500248Z) 22033 RON 92A 1 1 @ CORD 2,5M 2 X 1.0 H05VV-F W/PLUG 13A/250V (OLD 500223Z) (500423Z) 12862 RON 92A 1 1 500464Z - Indisponibil 92B 1 1 CORD 230 VOLT GBR (500450Z) 22592 RON 93 1 1 BELLEVILLE SPRING (985556) 1453 RON 94 1 1 - Indisponibil 95 1 2 TAPPING SCREW D4X16 (W/FLANGE) (984750) 1117 RON 501 1 1 SCREWDRIVER NO.2 (OLD 957682) (945882) 297 RON 502A 1 1 WRENCH 10/13MM (OLD 960267) (957683) 1453 RON 503 1 1 957681 - Indisponibil 601 1 1 DEPTH GAUGE JOINTER (957685) 1453 RON 602 1 1 957680 - Indisponibil
