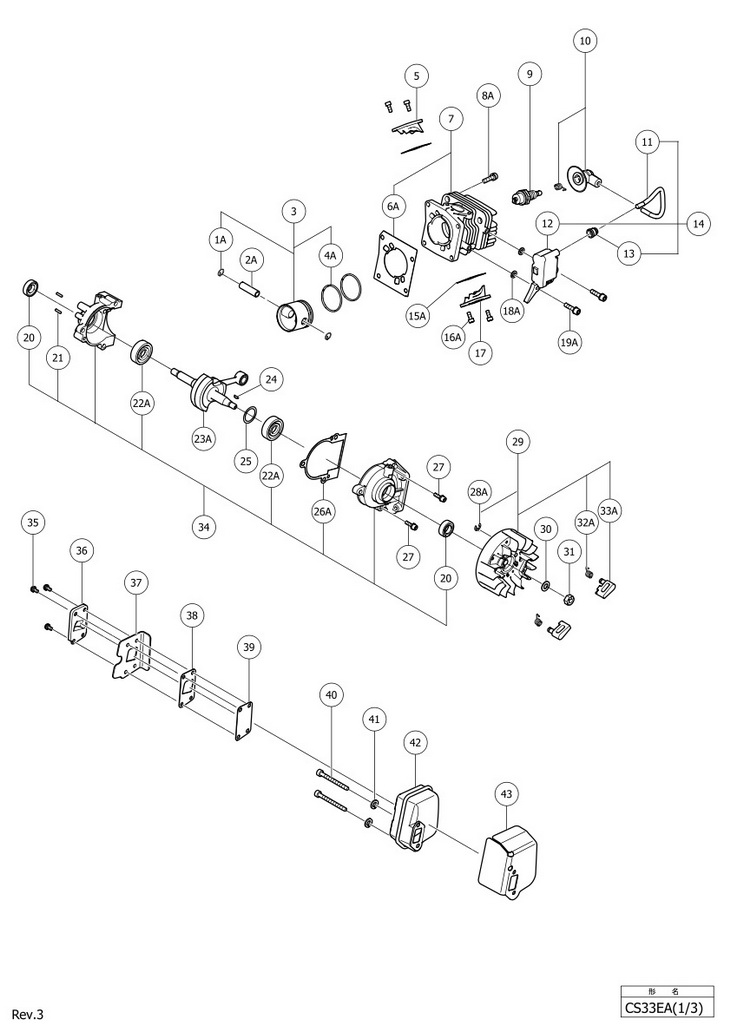

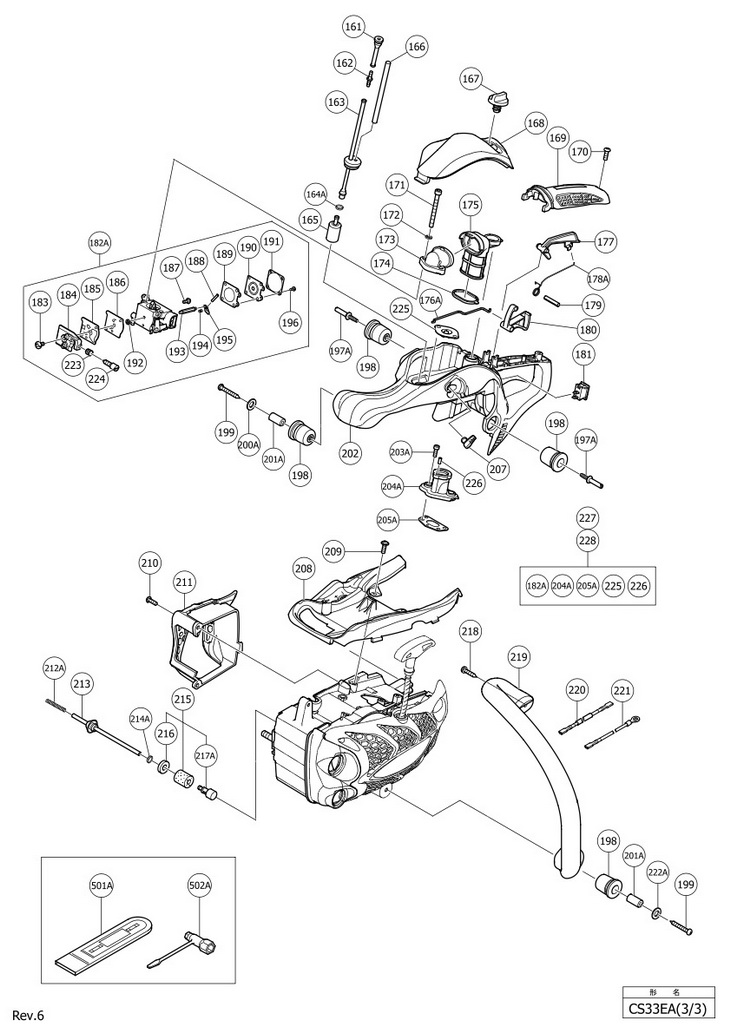

Top » Piese de schimb » PIESE HITACHI » CS33EA CS33EA [CS33EA] Click pentru a mari Imagini suplimentare Click pentru a mari Click pentru a mari Click pentru a mari LISTA DE COMPONENTE: Numar Versiune Buc. in schema Denumire Pret/buc (Tva inclus) Cumpara 1A 1 2 CIR CLIP (6685326) 1453 RON 2A 1 1 PISTON PIN (OLD 6685079) (6696764) 1453 RON 3 1 1 PISTON SET (OLD 030-5631M-90) (6685080) 11519 RON 4A 1 2 PISTON RING (XR1-1856) (6685331) 4025 RON 5 1 1 SCAVENGING COVER (B) (OLD 051-56300-20) (6685082) 2236 RON 6A 1 1 CYLINDER PACKING NEW (6698697) 1453 RON 7 1 1 CYLINDER SET (OLD 001-56300-90) (6685084) 17895 RON 8A 1 4 HEX.SOCKET HD.BOLT M5X20 (305583) 1453 RON *9 1 1 SPARK PLUG BPM6A FOR USA (OLD 018-11660-21) (6685085) 2459 RON *9 1 1 SPARK PLUG BPMR6A (OLD 018-06540-21) (6685086) 3130 RON 10 1 1 6685087 (6685087) 2236 RON 11 1 1 HIGH VOLTAGE CORD (OLD 178-20560-20) (6685088) 2236 RON 12 1 1 IGNITION COIL COMP. (OLD 167-20555-80) (6685089) 16888 RON 13 1 1 RUBBER CAP (OLD 560-20517-20) (6684602) 1229 RON 14 1 1 6685091 (6685091) 16888 RON 15A 1 2 COVER PACKING (A) (OLD 052-56300-21/6685092) NEW (6698698) 1453 RON 16A 1 4 HEX.SOCKET HD.BOLT M4X10 (10 PCS) (949812) 2348 RON 17 1 1 SCAVENGING COVER (A) (OLD 050-56300-20) (6685094) 2236 RON 18A 1 2 GLASS WASHER NEW (6698700) 1453 RON 19A 1 2 HEX. SOCKET HD BOLT M4X18 (W/WASHERS) (6698388) 1453 RON 20 1 2 OIL SEAL TB 12227 (OLD 999-66122-200/6695624) (6684607) Indisponibil Indisponibil 21 1 2 NEEDLE ROLLER 2.5X9.8 (OLD 999-05250-980) (6685095) 1229 RON 22A 1 2 BALL BEARING (6685328) 3019 RON 23A 1 1 CRANK SHAFT NEW (6698693) 30757 RON 24 1 1 WOODRUFF KEY 3X13X4.5 (OLD 068-10100-20) (6684899) 1229 RON *25 1 1 SHIM S T0.2 (OLD 071-04063-23) (6685098) 1229 RON *25 1 1 SHIM S T0.3 (OLD 071-04063-24) (6685099) 1229 RON 26A 1 1 CRANK CASE PACKING NEW (6698694) 1453 RON 27 1 3 HEX. HOLE BOLT M5X20/S (OLD 994-61050-204) (6684668) 1229 RON 28A 1 2 D4E RETAINING RING (6685336) 1453 RON 29 1 1 6685102 (6685102) 9059 RON 30 1 1 BOLT WASHER M7 (OLD 992-01070-011) (6685103) 1229 RON 31 1 1 FLYWHEEL NUT (OLD 066-00000-20) (6685104) 1229 RON 32A 1 2 STARTER PAWL SPRING (6685335) 1453 RON 33A 1 2 STARTER PAWL (6685334) 1453 RON 34 1 1 6685107 (6685107) 13197 RON *35 1 4 MACHINE SCREW (W/WASHERS) M4X10 (OLD 994-16040-101) (986662) 1453 RON *35 1 4 MACHINE SCREW (W/SP. WASHER) M4X8 (OLD 994-34040-081) NEW NO (6685109) 1229 RON 36 1 1 EXHAUST PIPE (OLD 734-56300-20) (6685110) 2236 RON 37 1 1 MUFFLER SPECIAL PACKING (OLD 751-56300-20) (6685111) 2460 RON 38 1 1 GAUZE FIXING PLATE (OLD 745-56300-20) (6685112) 2460 RON 39 1 1 MUFFLER GAUZE (OLD 732-56300-20) (6685113) 2236 RON 40 1 2 HEX. SOCKET HD. BOLT M5X50 (OLD 990-51050-503) (6685114) 1229 RON 41 1 2 WASHER 5 (OLD 992-01050-011) (6684661) 1229 RON *42 1 1 MUFFLER COMP. (OLD 706-56300-81) (6685115) 15993 RON *42 1 1 MUFFLER COMP. (OLD 706-56301-80) (6685116) 10513 RON 43 1 1 MUFFLER PACKING (OLD 737-56300-20) (6685117) 2460 RON 71 1 1 BRAKE SUPPORT PLATE COMP. (OLD 386-32901-80) (6685119) 3242 RON 72 1 1 COLLAR (OLD 031-32901-20) (6685120) 1229 RON 73A 1 1 6685388 (6685388) 4025 RON 74A 1 1 BRAKE LEVER SPRING NEW MAR (6696783) 1453 RON 75 1 1 BRAKE HANDLE (OLD 365-72940-80) (6685264) 4137 RON 76 1 1 - Indisponibil 77 1 1 BRAKE LINK COVER (OLD 375-72930-20) (6685126) 1229 RON 78 1 1 OIL ADJUST GROMMET (OLD 488-72930-20) (6685127) 1229 RON 79 1 1 OIL PUMP ADJUSTER (OLD 501-72000-20) (6685128) 1229 RON 80 1 1 ADJUSTER SPRING (OLD 502-72000-20) (6685129) 1229 RON 81 1 1 BOLT WASHER M4 (OLD 992-01040-011) (6685070) 1229 RON 82A 1 1 OIL PUMP ADJUST CAP (OLD 503-72000-20) (6685130) 1229 RON 83 1 1 PUMP GEAR SPRING (OLD 099-72000-20) (6685131) 1229 RON 84 1 1 PUMP GEAR COMP. (OLD 085-72000-80) (6685132) 5591 RON 85 1 1 MACHINE SCREW M3X8 (OLD 990-11030-081) (6685133) 1229 RON 86 1 1 OIL PUMP CASE COMP. (6685134) 6374 RON 87A 1 1 6685135 (6685135) Indisponibil Indisponibil 88 1 5 SEAL LOCK BOLT M5X15 (OLD 990-54050-155) (6685136) 1229 RON 89 1 1 FUEL PIPE 2.5X4X90 (OLD 700-02504-09) (6685267) 1229 RON 90 1 1 PRIMING PUMP COMP. (OLD 442-25143-80) (6685139) 3578 RON 91 1 1 BRAKE BAND (OLD 378-32900-20) (6685140) 6933 RON 92A 1 1 D3 NEEDLE ROLLER (6685391) 1453 RON 93A 1 1 6685362 (6685362) Indisponibil Indisponibil 94A 1 1 NEEDLE BEARING (D) (6685361) 4025 RON 95A 1 1 CLUTCH HOUSING (6685403) 6710 RON 96A 1 1 CLUTCH WASHER (6685414) 1453 RON 97A 1 1 CRANK SHAFT COLLAR (6685360) 2795 RON 98 1 1 OIL PUMP COVER (OLD 097-72930-20) (6685147) 1229 RON 99 1 3 TAPPING SCREW D4X15 (OLD 993-41040-151) (6685148) 1229 RON 100 1 2 MACHINESCREW(W/SP. WASHER) M4X14 (OLD 994-14040-141) (6685149) 1229 RON 101 1 1 OIL PIPE (A) (OLD 515-72000-20) (6685150) 2236 RON 102 1 1 SCREW GEAR (OLD 084-72000-20) (6685151) 5591 RON 103 1 3 TAPPING SCREW D4.5X14 (OLD 990-75045-144) (6685152) 1229 RON 104 1 3 TAPPING SCREW D4.5X14 (OLD 990-73045-144) (6685153) 1229 RON 105 1 1 FUEL PIPE (OLD 700-07105-02) (6685154) 1229 RON 106 1 1 CHAIN CATCHER (OLD 125-32710-20) (6685155) 1229 RON 107 1 1 AIR VENT SPONGE (6685156) 1229 RON 108A 1 1 GUIDE PLATE (B) (OLD 6685157) (6696784) 2795 RON 109 1 1 TAPPING SCREW D3X8 (OLD 993-11030-801) (6685158) 1229 RON *110 1 1 BAR 12" 3/8 SPROCKET HITACHI (OLD 109-32770-20) (6685294) 12526 RON *110 1 1 BAR 14" 3/8 SPROCKET (OLD 108-72910-20) (6685295) 13197 RON 111 1 1 TAPPING SCREW D4X10 (OLD 993-41040-101) (6685161) 1229 RON 112A 1 1 GUIDE PLATE (A) NEW (6698692) 4025 RON 113 1 1 - Indisponibil 114 1 1 SIDE COVER COMP. (OLD 039-72930-80) (6685165) 6486 RON 115A 1 2 CHAIN BAR CLAMP NUT (6685416) 1453 RON 116A 1 1 BRAKE SPRING (6685389) 1453 RON 117 1 1 GEAR (A) (OLD 301-72000-20) (6685168) 2236 RON 118 1 1 CHAIN PULLER COMP. (OLD 116-32911-80) (6685169) 3578 RON *119A 1 1 6697852 - Indisponibil *119A 1 1 6697854 - Indisponibil 120 1 1 TAPPING SCREW D4X10 (OLD 993-41040-101) (6685161) 1229 RON 121 1 1 SPIKE (OLD 460-32970-20) (6685270) 5032 RON 122 1 1 AIR VENT VALVE (B) (OLD 562-04060-20) (6685173) 2236 RON 123 1 1 6685271 (6685271) 20691 RON 124A 1 1 INNER CAP SET (OLD 629-01750-90) (6685175) 4137 RON 125 1 1 AIR DEFLECTOR (OLD 145-56300-20) (6685176) 2460 RON 126 1 1 OIL TANK CAP PACKING (OLD 523-3252K-20) (6685177) 105 RON 127 1 1 6685178 (6685178) 1564 RON 128 1 1 TANK CAP PACKING (OLD 630-3252K-20) (6685179) 2236 RON 129 1 1 6685180 (6685180) 2460 RON 130 1 1 SET SCREW (OLD 839-03045-20) (6684679) 1229 RON 131 1 1 CAM PLATE (OLD 759-0174M-20) (6685182) 2460 RON 132 1 1 DAMPER SPRING (OLD 758-01761-20) (6685183) 3242 RON 133 1 1 STARTER PULLEY (OLD 774-01761-20) (6685184) 3578 RON 134 1 1 6685185 (6685185) 5591 RON 135 1 1 ROPE (OLD 783-01761-20) (6685186) 2236 RON 136 1 1 FAN CASE COMP. (OLD 112-56300-80) (6685187) 9059 RON 137 1 1 STARTER HANDLE (OLD 785-01761-20) (6685188) 2236 RON 138 1 1 PLATE (OLD 795-04063-20) (6685189) 1229 RON 139 1 1 6685190 (6685190) 13197 RON 140 1 4 TAPPING SCREW D4.5X20 (OLD 990-72045-204) (6685191) 1229 RON 141 1 1 - Indisponibil 161 1 1 6685272 - Indisponibil 162 1 1 PIPE JOINT (OLD 497-32970-20) (6685196) 1229 RON 163 1 1 6685197 (6685197) 4361 RON 164A 1 1 D6 CLIP (6685311) 1453 RON 165 1 1 6685199 (6685199) 3242 RON 166 1 1 FUEL PIPE 2.5X4X260 (OLD 700-02504-260) (6685200) 1229 RON 167 1 1 CLEANER KNOB (OLD 175-72000-20) (6685228) 2236 RON 168 1 1 CLEANER COVER (OLD 051-72940-20) (6685273) 3578 RON 169 1 1 REAR HANDLE GRIP COMP. (OLD 227-72940-80) (6685274) 4361 RON 170 1 1 TAPPING SCREW D5X14 (OLD 990-72050-144) (6685275) 1229 RON 171 1 2 HEX. SOCKET HD. BOLT M5X50 (OLD 990-51050-503) (6685114) 1229 RON 172 1 2 WASHER M5 (BLACK) (OLD 992-00050-061) (6685226) 1229 RON 173 1 1 AIR CLEANER BASE (OLD 436-56301-20) (6685276) 1229 RON 174 1 1 CLEANER CAP (OLD 424-56301-20) (6685277) 1229 RON 175 1 1 CLEANER ELEMENT COMP. (OLD 420-56301-80) (6685278) 3578 RON 176A 1 1 THROTTLE ROD NEW (6698704) 2795 RON 177 1 1 TRIGGER LOCKOUT (OLD 257-72940-20) (6685280) 1229 RON 178A 1 1 THROTTLE LEVER SPRING NEW (6698701) 2795 RON 179 1 1 SPRING PIN 5X25 (OLD 993-26005-254) (6685282) 1229 RON 180 1 1 THROTTLE LEVER (OLD 060-72940-20) (6685283) 2236 RON 181 1 1 STOP SWITCH (OLD 170-04063-80) (6685239) 2460 RON *182A 1 1 6685284 (6685284) 43284 RON *182A 1 1 6685285 (6685285) 43284 RON 183 1 1 SCREW (OLD 514-25001-20) (6685210) 1229 RON 184 1 1 PUMP BODY (OLD 575-25028-20) (6685211) 5032 RON 185 1 1 PUMP GASKET (OLD 577-25007-20) (6685212) 2236 RON 186 1 1 PUMP DIAPHRAGM (OLD 576-25006-20) (6685213) 3242 RON 187 1 1 HINGE PIN SET SCREW (OLD 546-25001-20) (6685218) 2236 RON 188 1 1 HINGE PIN (OLD 605-25001-20) (6685219) 1229 RON 189 1 1 DIAPHRAGM PACKING (OLD 475-25038-20) (6685220) 2236 RON 190 1 1 METERING DIAPHRAGM (OLD 474-25601-20) (6684690) 6039 RON 191 1 1 DIAPHRAGM COVER (OLD 476-25004-20) (6685222) 3242 RON 192 1 1 INLET SCREEN (OLD 578-25007-20/6691460) (6684700) 2236 RON 193 1 1 NEEDLE VALVE (OLD 603-25012-20) (6685215) 382 RON 194 1 1 VALVE SPRING (OLD 477-25343-20) (6685216) 2236 RON 195 1 1 CONTROL LEVER (OLD 473-25001-20) (6685217) 2460 RON 196 1 4 SET SCREW (OLD 548-25012-20) (6685223) 1229 RON 197A 1 2 DAMPER SET BOLT NEW (6698702) 2795 RON 198 1 4 BUMPER COMP. (OLD 244-72930-80) (6685236) 3242 RON 199 1 2 TAPPING SCREW D5X45 (OLD 990-73050-454) (6685233) 1229 RON 200A 1 1 WASHER 1.0 NEW (6698703) 2348 RON 201A 1 3 COLLAR 28.2 (OLD 6685235) (6696800) 2795 RON 202 1 1 REAR HANDLE (A) COMP. (OLD 010-72940-80) (6685288) 11519 RON 203A 1 2 HEX. HOLE BOLT M4 NEW (6698792) Indisponibil Indisponibil 204A 1 1 INTAKE COMP. (OLD 391-56301-80) (6685289) 5591 RON 205A 1 1 INTAKE PACKING (OLD 403-56300-20) (6685205) Indisponibil Indisponibil 207 1 1 CHOKE LEVER (OLD 495-56300-20) (6685206) 1229 RON 208 1 1 ENGINE CASE COVER (OLD 563-72940-20) (6685291) 3242 RON 209 1 4 TAPPING SCREW D4.5X14 (OLD 990-73045-144) (6685153) 1229 RON 210 1 2 TAPPING SCREW D4.5X14 (OLD 990-75045-144) (6685152) 1229 RON 211 1 1 MUFFLER COVER (OLD 737-72933-20) (6685245) 5591 RON 212A 1 1 PROTECTIVE COIL (A) NEW (6696806) 781 RON 213 1 1 6685247 (6685247) 2236 RON 214A 1 1 D6 CLIP (6685311) 1453 RON 215 1 1 6685249 (6685249) 2236 RON 216 1 1 WASHER 5 (OLD 992-01050-011) (6684661) 1229 RON 217A 1 1 OIL FILTER BODY (6685310) 1453 RON 218 1 2 TAPPING SCREW D5X20 (W/FLANGE) BLACK (302089) 1453 RON 219 1 1 FRONT HANDLE (OLD 209-72940-20) (6685292) 6822 RON 220 1 1 CORD 195MM (OLD 178-56300-80) (6685293) 2236 RON 221 1 1 CORD 180MM (OLD 274-01750-80) (6685252) 2236 RON 222A 1 3 WASHER 1.0 (OLD 6685234) (6696799) 1453 RON 223 1 1 IDLE ADJUST SPRING (OLD 463-25006-20) (6685297) 2236 RON 224 1 1 IDLE ADJUST SCREW (OLD 462-25016-20) (6685298) 2236 RON 225 1 1 INLET MANIFOLD SPACER (OLD 400-32970-20) (6685202) 2460 RON 226 1 1 PULSE GUIDE NEW (6696842) Indisponibil Indisponibil *227 1 1 CARBURETOR SET FOR EUROPE & USA NEW (6698656) 60396 RON *228 1 1 CARBURETOR SET FOR AUS & RUS NEW (6698657) 60396 RON *501A 1 1 CHAIN COVER (6685401) 4025 RON *501A 1 1 CHAIN COVER 14" (6685439) 3690 RON 502A 1 1 COMBI BOX SPANNER (6685402) 3019 RON
