Top » Piese de schimb » PIESE HITACHI » CR24DV

CR24DV
[CR24DV]
CR24DV
Click pentru a mari
Imagini suplimentare
CR24DV
Click pentru a mari

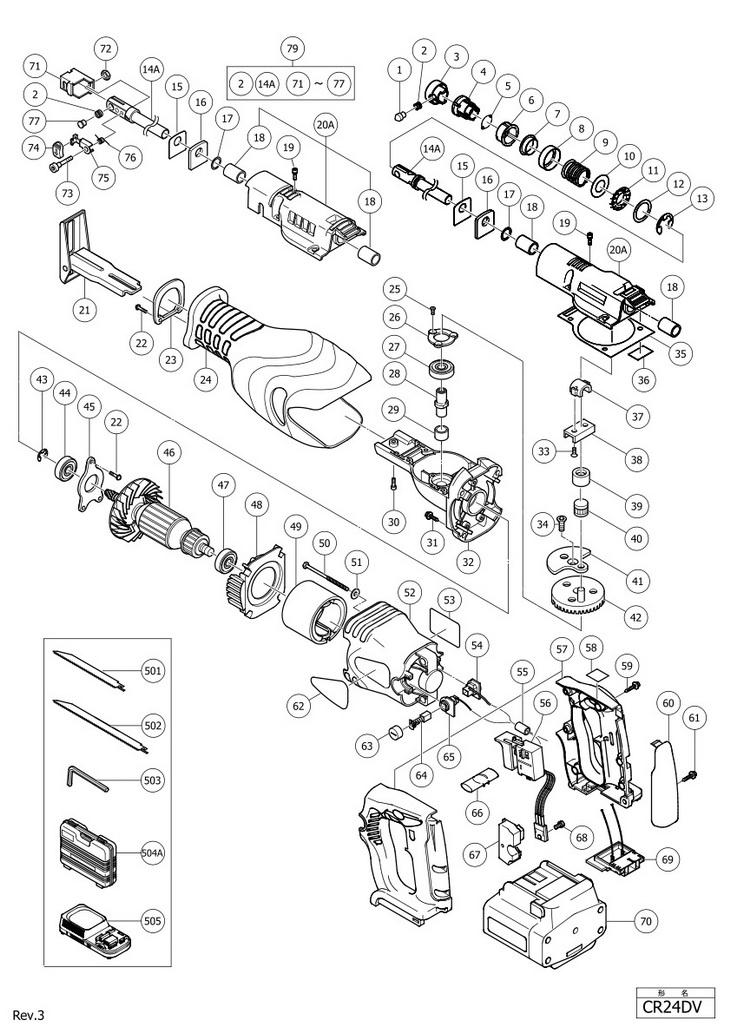

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 HOLDER PIN (318481) 4025 RON
2 1 1 SPRING (B) (318483) 1453 RON
3 1 1 HOLDER SLEEVE (A) (318478) 12862 RON
4 1 1 HOLDER SLEEVE (B) (318479) 7828 RON
5 1 2 STEEL BALL D4.76 (10 PCS) (959149) 894 RON
6 1 1 HOLDER SLEEVE (C) (318480) 2236 RON
7 1 1 GUIDE WASHER (318477) 1341 RON
8 1 1 DUST WASHER (318487) 1341 RON
9 1 1 SPRING (A) (318482) 1453 RON
10 1 1 WASHER (E) (318484) 2236 RON
11 1 1 THRUST BEARING (318485) 5368 RON
12 1 1 WASHER (D) (318486) 2236 RON
13 1 1 RETAINING RING(E-TYPE) FOR D14 SHAFT (318453) 2236 RON
14A 1 1 PLUNGER (324472) 12862 RON
15 1 1 PACKING WASHER (996401) 1453 RON
16 1 1 FELT PACKING (996400) 1453 RON
17 1 1 O-RING (1AP-12) (996407) 1453 RON
18 1 2 METAL (956589) 2683 RON
19 1 4 HEX.SOCKET HD.BOLT M5X16 (305574) 1453 RON
20A 1 1 UPPER COVER (324471) 12862 RON
21 1 1 BASE (319866) 22592 RON
22 1 5 MACHINE SCREW (W/SP.WASHER) M4X12 (951039) 1453 RON
23 1 1 COVER PLATE (319868) 2795 RON
24 1 1 FRONT COVER (319867) 16217 RON
25 1 3 SEAL LOCK FLAT HD. SCREW M4X12 (993244) 1453 RON
26 1 1 BEARING COVER (B) (319849) 1453 RON
27 1 1 BALL BEARING 6901ZZCMPS2L (6901ZZ) 573 RON
28 1 1 SPINDLE (319848) 5368 RON
29 1 1 METAL (B) (954789) 1453 RON
30 1 1 HEX.SOCKET HD.BOLT M5X12 (W/FLANGE) (996399) 894 RON
31 1 4 TAPPING SCREW D5X30 (W/SP.WASHER) (986011) 1453 RON
32 1 1 319844 (319844) 18789 RON
33 1 2 SEALLOCK HEX.SOCKET HD BOLT M5X12 (319875) 3242 RON
34 1 1 NYLOCK HEX. SOCKET HD BOLT M6X16 (319851) 1453 RON
35 1 1 SEAL PACKING (319856) 2795 RON
36 1 1 PACKING (B) (319874) 1453 RON
37 1 1 CONNECTOR HOLDER (983567) 3578 RON
38 1 1 CONNECTOR (OLD 983568) (996405) 12862 RON
39 1 1 CONNECTING PIECE (A) (OLD 983566) (983541) 14092 RON
40 1 1 NEEDLE ROLLER H-7108 (OLD 983560) (324470) 3242 RON
41 1 1 BALANCE WEIGHT (319852) 1453 RON
42 1 1 GEAR (319850) 30645 RON
43 1 1 RETAINING RING (E-TYPE) (670514) 1453 RON
44 1 1 BALL BEARING 6001VVCMPS2L (6001VV) 4361 RON
45 1 1 BEARING COVER (A) (319843) 1453 RON
46 1 1 ARMATURE DC 24V CR24DV (360555) 55140 RON
47 1 1 BALL BEARING 608VVMC2EPS2L (608VVM) 4025 RON
48 1 1 @ FAN GUIDE (319788) 3242 RON
49 1 1 MAGNET (319846) 15322 RON
50 1 2 HEX.HD. TAPPING SCREW D4X60 (960108) 1453 RON
51 1 2 WASHER (B) (319956) 1453 RON
52 1 1 HOUSING (319808) 9730 RON
53 1 1 - Indisponibil
54 1 1 BRUSH HOLDER (B) (319814) 5591 RON
55 1 1 FERRITE CORE (318247) 1453 RON
56 1 1 DC-SPEED CONTROL SWITCH (319861) 25612 RON
57 1 1 HANDLE (A+B) SET (319855) 12079 RON
58 1 1 - Indisponibil
59 1 4 TAPPING SCREW D4X30 (W/FLANGE) BLACK (305490) 894 RON
60 1 1 GRIP COVER (319790) 5368 RON
61 1 2 TAPPING SCREW D4X25 (304035) 894 RON
62 1 1 - Indisponibil
63 1 2 BRUSH CAP (319847) Indisponibil Indisponibil
64 1 2 CARBON BRUSH (1 PAIR) (OLD 999058) (999068) 4025 RON
65 1 1 BRUSH HOLDER (A) (319813) 5591 RON
66 1 1 PUSHING BUTTON (319865) 2236 RON
67 1 1 HEAT SINK (319812) 2795 RON
68 1 1 MACHINE SCREW M3X12 (W/WASHERS) (993963) 1453 RON
69 1 1 TERMINAL SUPPORT (319894) 7940 RON
*70 1 1 319805 - Indisponibil
*70 1 1 319806 - Indisponibil
*70 1 1 319807 - Indisponibil
71 1 1 BLADE HOLDER (A) (321132) 9170 RON
72 1 1 NUT M4 (BLACK) (322709) 2236 RON
73 1 1 SPECIAL BOLT M4 (322134) 2236 RON
74 1 1 CAP (321130) 1453 RON
75 1 1 LEVER (A) (321131) 6486 RON
76 1 1 SPRING (D) (321135) 2795 RON
77 1 1 HOLDER PIN (B) (321134) 6486 RON
79 1 1 PLUNGER SET NEW (329726) 32882 RON
501 1 1 318613 - Indisponibil
502 1 1 318621 - Indisponibil
503 1 1 HEX.BAR WRENCH 4MM (944458) 1229 RON
504A 1 1 PLASTIC CARRYING CASE (OLD 319815) (324313) 45968 RON
505 1 1 - Indisponibil
602 1 1 958182 - Indisponibil
603 1 1 958183 - Indisponibil
604 1 1 959611 - Indisponibil
605 1 1 958185 - Indisponibil
606 1 1 958188 - Indisponibil
607 1 1 996427 - Indisponibil
608 1 1 318611 - Indisponibil
609 1 1 318612 - Indisponibil
610 1 1 318614 - Indisponibil
611 1 1 324818 - Indisponibil
612 1 1 324819 - Indisponibil
613 1 1 318617 - Indisponibil
614 1 1 318618 - Indisponibil
615 1 1 318619 - Indisponibil
616 1 1 318620 - Indisponibil
617 1 1 318621 - Indisponibil
