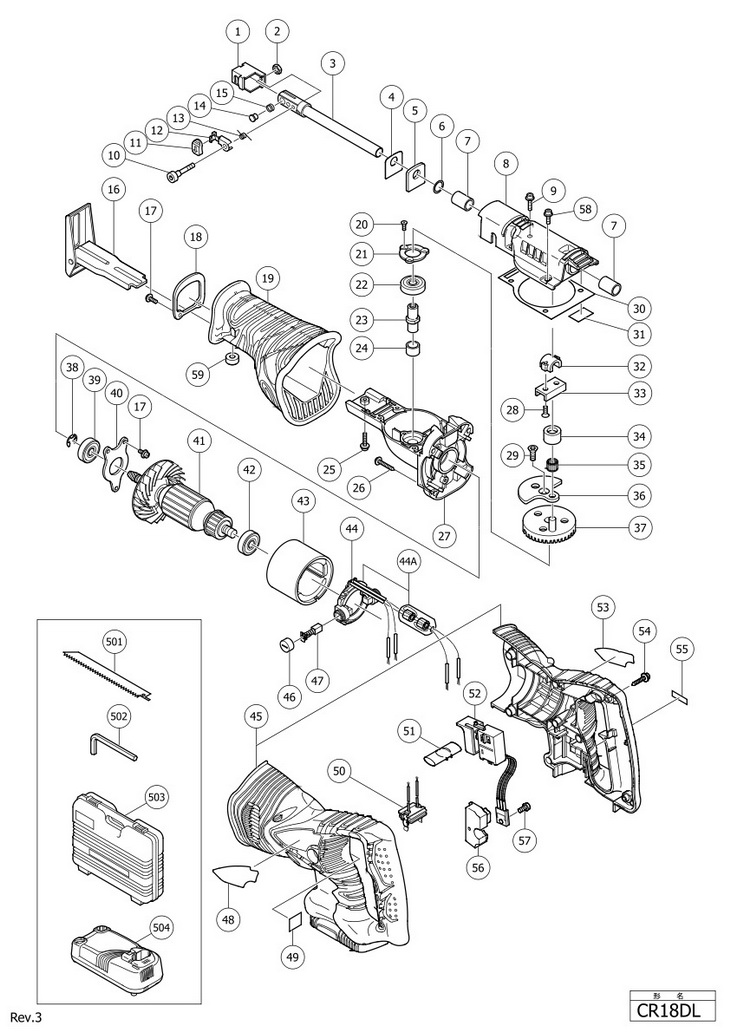

Top » Piese de schimb » PIESE HITACHI » CR18DL CR18DL [CR18DL] Click pentru a mari Imagini suplimentare Click pentru a mari LISTA DE COMPONENTE: Numar Versiune Buc. in schema Denumire Pret/buc (Tva inclus) Cumpara 1 1 1 HEX.SOCKET HD.BOLT M5X16 (305574) 1453 RON 2 1 1 BLADE HOLDER (B) (307121) 11184 RON 3 1 3 NEEDLE BEARING (A) (NK6/10T2) (984232) 9730 RON 4 1 3 PIN (305581) 1453 RON 5 1 4 HEX.SOCKET HD.BOLT M5X20 (305583) 1453 RON 6 1 1 NYLOCK HEX. SOCKET SET SCREW M8X6 (305577) 1788 RON 7 1 1 SPRING (E) (305571) 2236 RON 8 1 1 STEEL BALL D6.35 (10 PCS) (959150) 1788 RON 9 1 1 O-RING (S-18) (878885) 1453 RON 10 1 2 SEAL PLATE (305575) 2683 RON 11 1 1 SEAL PACKING (305576) 2683 RON 12 1 1 PLUNGER (305572) 8503 RON 13 1 1 PIN D6 (983564) 297 RON 14 1 1 SLEEVE (305582) 6374 RON 15 1 1 305580 (305580) 112070 RON 16 1 1 BALL PLUNGER SCREW (305563) 18118 RON 17 1 1 HEX.SOCKET SET SCREW M5X8 (938477) 1453 RON 18 1 1 UPPER COVER (305570) 30645 RON 19 1 1 SPINDLE (305565) 12862 RON 20 1 1 OUTER RING (305578) 9730 RON 21 1 1 THRUST NEEDLE BEARING (305579) 6374 RON 22 1 1 CONNECTING PIECE (305567) 6374 RON 23 1 1 GEAR (305566) 54469 RON 24 1 1 BALL BEARING 6202VVCMPS2S (6202VV) 4585 RON 25 1 1 @WASHER (A) (305719) 2236 RON 26 1 1 HEX.SOCKET HD.BOLT M5X14 (W/FLANGE) (306017) 1453 RON 27 1 1 BASE (305585) 382 RON 28 1 1 INSULATION COVER (305584) 1700 RON 29 1 1 @GEAR COVER (OLD 984096Z) (305562) 30645 RON 30 1 1 RETAINING RING FOR D12 (10 PCS) (939542) 1788 RON 31 1 1 BALL BEARING 6201DDUCMAV2S (6201DD) 4361 RON 32 1 1 @ BEARING COVER (305564) 5368 RON 33 1 1 ARMATURE 110 VOLT (360272C) 91714 RON 33 1 1 360272E (360272E) 91714 RON 34 1 1 WASHER (A) (982631) 894 RON 35 1 1 BALL BEARING 608VVMC2EPS2L (608VVM) 4025 RON 36 1 1 BEARING LOCK (931701) 1453 RON 37 1 1 MAGNET CR17Y (305559) 8388 RON 38 1 1 FAN GUIDE (305561) 382 RON 39A 1 2 HEX .HD. TAPPING SCREW D5X60 (961501) 894 RON 40 1 1 340246J (340246J) 27289 RON *40 1 1 340246E (340246E) 27289 RON *40 1 1 340246G (340246G) 27289 RON 41 1 2 BRUSH TERMINAL (930703) 2348 RON 42 1 1 996078 (996078) 27289 RON 43 1 1 @ MARK PLATE (986914) 1453 RON 44 1 1 - Indisponibil 45 1 2 HEX.SOCKET SET SCREW M4X6 (985114) 1453 RON 46 1 1 957561 - Indisponibil 47 1 2 BRUSH CAP (945161) 1453 RON 48 1 2 CARBON BRUSH (1 PAIR) (999043) 382 RON 49 1 2 BRUSH HOLDER (958900) 5368 RON 50 1 3 SEAL LOCK SCREW M4X12 (W/SP WASHER) (987203) 1453 RON 51 1 4 TAPPING SCREW D5X30 (OLD 986011) (957580) 1453 RON 52 1 1 BEARING WASHER (C) (944525) 1453 RON 53 1 1 BALL BEARING 6000VVCMPS2S (6000VV) 4025 RON 54 1 1 @WASHER (H) (953338) 2236 RON 55 1 1 SEAL LOCK FLAT HD. SCREW M5X12 (305568) 1453 RON 56 1 1 BEARING CAP (305569) 2683 RON 57 1 2 CONNECTOR 50092 (10 PCS) (OLD 939558) (959141) 382 RON 58 1 1 CONNECTOR 50091 (10 PCS) (OLD 939557) (959140) 2236 RON 59 1 1 INTERNAL WIRE (985289) 1453 RON *60 1 1 307842 (307842) 78180 RON 60A 1 1 319948 (319948) 78180 RON 61 1 1 VARIABLE RESISTOR (305699) 15434 RON 62 1 4 TAPPING SCREW D5X25 (W/FLANGE) BLACK (305558) 894 RON 63 1 1 TAPPING SCREW D4X12 (W/FLANGE) (305720) 1453 RON 65 1 1 HANDLE (B) (305560) 6374 RON 65 1 1 @ HANDLE (B) (308100) 6374 RON 66 1 2 TAPPING SCREW D4X20 (W/FLANGE) BLACK (OLD 305095) (301653) 894 RON *67 1 1 SWITCH (2P PILLAR TYPE) W/O LOCK (960280Z) 13756 RON *67 1 1 SWITCH W/SAFETY (953178) 22144 RON 68 1 4 TAPPING SCREW D4X16 (W/FLANGE) (984750) 1117 RON 69 1 1 CORD CLIP (960266) 894 RON 70 1 2 TUBE (D) (981373) 1341 RON *71 1 1 CORD ARMOR D8.2 (OLD 958049Z) (958049) 894 RON *71 1 1 CORD ARMOR D10.7 (940778) 2124 RON 72 1 1 500234Z - Indisponibil 72 1 1 500396Z - Indisponibil 72 1 1 CORD 2,5M 2 X 1.0 H05VV-F W/PLUG 13A/250V GBR (500435Z) 12638 RON 73 1 1 HANDLE (A) (305557) 6822 RON 74 1 1 @ INTERNAL WIRE (307770) 1453 RON 75 1 1 NOISE SUPPRESSOR (994273) Indisponibil Indisponibil 76 1 1 TUBE (D) (981373) 1341 RON 501 1 1 SABER SAW BLADES NO.21 (5 PCS) (FOR CR17Y) (306980) 86681 RON 502 1 1 - Indisponibil 503 1 1 CHAINVICE (305587) 132539 RON 504 1 1 @ CENTER SHAFT (305589) 37468 RON 505 1 1 ROLL PIN D4X10 (10 PCS) (949869) 2683 RON 506 1 1 CONNECTING PLATE (305591) 7269 RON 507 1 1 NEEDLE D5X19.8 (305592) 1117 RON 508 1 1 VISE BASE (305588) 40823 RON 509 1 1 ROD (305594) 12190 RON 510 1 1 BOLT (305593) 28967 RON 511 1 2 DISTANCE PIECE (990561) 2683 RON 512 1 1 CHAIN (305590) 28967 RON 513 1 1 HEX.BAR WRENCH 4MM (944458) 1229 RON 601 1 1 CHAINVICE (305587) 132539 RON 602 1 1 VISE BASE (305588) 40823 RON 603 1 1 @ CENTER SHAFT (305589) 37468 RON 604 1 1 CHAIN (305590) 28967 RON 605 1 1 CONNECTING PLATE (305591) 7269 RON 606 1 2 DISTANCE PIECE (990561) 2683 RON 607 1 1 NEEDLE D5X19.8 (305592) 1117 RON 608 1 1 BOLT (305593) 28967 RON 609 1 1 ROD (305594) 12190 RON 610 1 1 ROLL PIN D4X10 (10 PCS) (949869) 2683 RON 611 1 1 BLADE HOLDER (A) (305700) 12526 RON 613 1 1 958182 - Indisponibil 614 1 1 958183 - Indisponibil 615 1 1 959611 - Indisponibil 616 1 1 958185 - Indisponibil 617 1 1 958186 - Indisponibil 618 1 1 958187 - Indisponibil 619 1 1 958188 - Indisponibil 620 1 1 996427 - Indisponibil 621 1 1 959799 - Indisponibil 622 1 1 959800 - Indisponibil 623A 1 1 318614 - Indisponibil 624A 1 1 318613 - Indisponibil 625 1 1 CHAIN (81 LINKS) CR17Y (310314) 5952 RON Puteti cumpara CR18DL in urmatoarele variante: Ferastrau sabie Hitachi CR18DL
