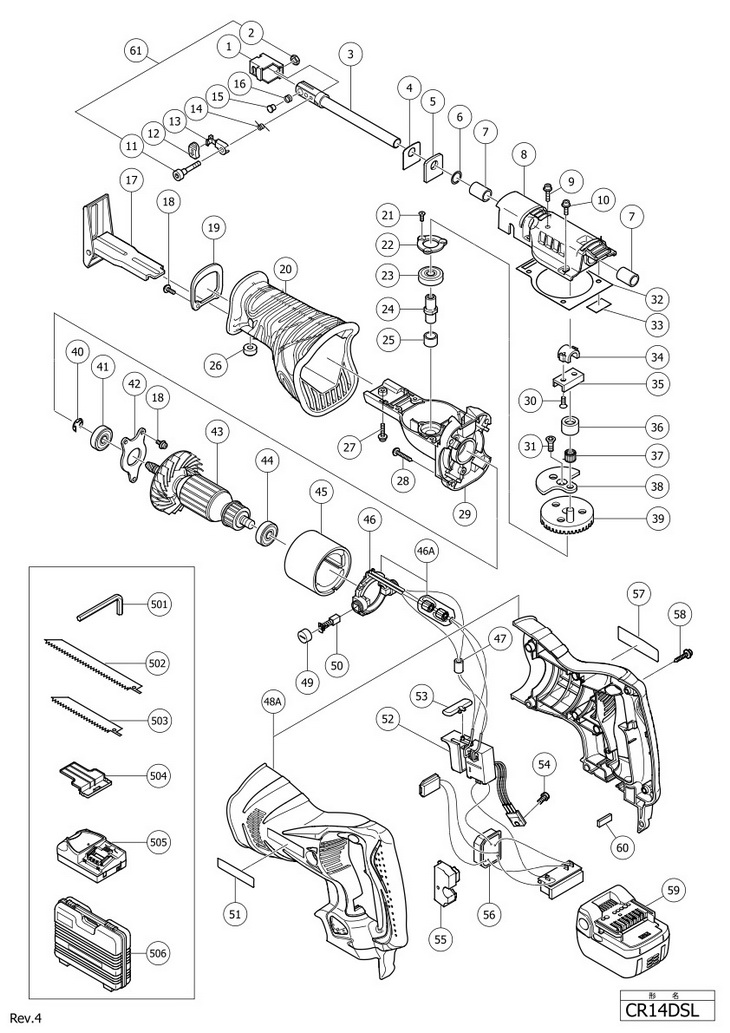

Top » Piese de schimb » PIESE HITACHI » CR14DSL CR14DSL [CR14DSL] Click pentru a mari Imagini suplimentare Click pentru a mari LISTA DE COMPONENTE: Numar Versiune Buc. in schema Denumire Pret/buc (Tva inclus) Cumpara 1 1 1 BASE (B) (321116) 6486 RON 2 1 1 FRONT COVER (C) (321125) 15881 RON 3 1 1 BLADE HOLDER (A) (321132) 9170 RON 4A 1 1 333738 (333738) 50889 RON 5A 1 1 326232 (326232) 1998 RON 6 1 1 FELT WASHER (318458) 2236 RON 7 1 1 WASHER (H) (321117) 1453 RON 8 1 1 V-RING (318459) 2236 RON 9 1 1 O-RING WASHER 6 .1 STEEL (321118) 1453 RON 10 1 1 METAL (B) (321214) 4025 RON 11 1 2 SWING ROLLER (OLD 318492) (321136) 2236 RON 12A 1 1 PIN D6 (OLD 318491) (326585) 3019 RON 13 1 1 COVER GRIP (321126) 3914 RON 14A 1 1 SPECIAL BOLT M4 SET (322708) 2795 RON 15 1 1 CAP (321130) 1453 RON 16 1 1 LEVER (A) (321131) 6486 RON 17 1 1 SPRING (D) (321135) 2795 RON 18 1 1 HOLDER PIN (B) (321134) 6486 RON 19 1 1 SPRING (B) (318483) 1453 RON 20 1 1 NYLOCK BOLT M6X35 W/FLANGE (318451) 2236 RON 21 1 1 WASHER (G) (318452) 1453 RON 22A 1 1 NYLOCK BOLT M5X12 W/FLANGE (322142) 2236 RON 23 1 1 BALL BEARING 6002DDUCMPS2S (6002DD) 4920 RON 24 1 5 SLOTTED HD.SCREW SEAL LOCK M4X10 (OLD 301936) (314430) 1453 RON 25A 1 1 SUB SHAFT (B) (322119) 2795 RON 26 1 1 RETAINING RING FOR D17 SHAFT (967261) 1453 RON 27A 1 1 329898 - Indisponibil 28 1 2 BALL BEARING 6003VVCMPS2S (6003VV) 5256 RON 29 1 1 RETAINING RING FOR D35 HOLE (10 PCS) (939556) 6822 RON 30 1 1 SECOND SHAFT (B) (321128) 12862 RON 31A 1 1 GEAR (OLD 321127) (318473) 7940 RON 32 1 1 BALL BEARING 608VVMC2EPS2L (608VVM) 4025 RON 33 1 1 INNER COVER (B) (321124) 1041 RON 34 1 1 BALL BEARING 6001VVCMPS2L (6001VV) 4361 RON *35A 1 1 ARMATURE 110-115 VOLT (360616C) 21250 RON *35A 1 1 360616U (360616U) 45968 RON *35A 1 1 ARMATURE 220-230 VOLT (OLD 360581E) (360616E) 23487 RON *35A 1 1 360616F - Indisponibil 36 1 1 FAN GUIDE (321122) 2124 RON 37 1 2 HEX .HD. TAPPING SCREW D5X60 (961501) 894 RON 37A 1 2 HD.TAPPINGSCREW D5X55 (OLD 956669) (953174) 894 RON 38A 1 1 340563H (340563H) 14874 RON *38A 1 1 340563G (340563G) 14874 RON *38A 1 1 340563J (340563J) 16441 RON *38A 1 1 340563K - Indisponibil 39 1 1 BALL BEARING 608VVMC2EPS2L (608VVM) 4025 RON 40A 1 1 HOUSING (322120) 6039 RON 41 1 2 BRUSH CAP (945161) 1453 RON 42 1 2 CARBON BRUSH (1 PAIR) (999043) 382 RON 43 1 2 BRUSH HOLDER (958900) 5368 RON 44 1 1 - Indisponibil 45 1 4 MACHINE SCREW M5X60 (OLD 943430) (307224) 1453 RON 46 1 1 - Indisponibil 47 1 5 TAPPING SCREW D4X25 (W/FLANGE) (307028) 1453 RON *48 1 1 HANDLE (B) (321140) 10065 RON *48 1 1 321141 - Indisponibil 49 1 2 TUBE (D) (981373) 1341 RON 50A 1 1 SWITCH TRIGGER (322133) Indisponibil Indisponibil *51 1 1 SWITCH (318505) 35790 RON *51 1 1 SWITCH 110 VOLT FOR GBR (318817) 22368 RON *51 1 1 318504 - Indisponibil *51 1 1 320142 - Indisponibil 52 1 2 TUBE (D) (981373) 1341 RON 53 1 1 HANDLE (A) (321139) 10065 RON 54 1 1 TERMINAL (OLD 938108Z) (938108) 1453 RON 55 1 1 NOISE SUPPRESSOR (994273) Indisponibil Indisponibil 56 1 2 TAPPING SCREW D4X16 (W/FLANGE) (984750) 1117 RON 57 1 1 CORD CLIP (OLD 994566) (937631) 894 RON *58 1 1 CORD ARMOR D8.8 (953327) Indisponibil Indisponibil *58 1 1 CORD ARMOR D10.1 (OLD 994565) (938051) 894 RON *59 1 1 500245Z - Indisponibil *59 1 1 500201Z - Indisponibil *59 1 1 500234Z - Indisponibil *59 1 1 500247Z - Indisponibil *59 1 1 500439Z - Indisponibil *59 1 1 @ CORD 2,5M 2 X 1.0 H05VV-F W/PLUG 13A/250V (OLD 500223Z) (500423Z) 12862 RON *59 1 1 500434Z - Indisponibil *59 1 1 CORD 2,5M 2 X 1.0 H05VV-F W/PLUG 13A/250V GBR (500435Z) 12638 RON *59 1 1 500237Z - Indisponibil *60 1 1 SWITCH (1P SCREW TYPE) (321960) 12973 RON *60 1 1 321961 - Indisponibil *60 1 1 321959 - Indisponibil *60 1 1 321962 - Indisponibil 61 1 2 BRUSH TERMINAL (930703) 2348 RON 62 1 1 PLUNGER (B) (NEW 333738) (321120) 14874 RON 501 1 1 HEX.BAR WRENCH 4MM (944458) 1229 RON *502 1 1 318613 - Indisponibil *502 1 1 318621 - Indisponibil 503A 1 1 PLASTIC CARRYING CASE (327054) 22368 RON 602 1 1 958182 - Indisponibil 603 1 1 958183 - Indisponibil 604 1 1 959611 - Indisponibil 605 1 1 958185 - Indisponibil 606 1 1 958188 - Indisponibil 607 1 1 318611 - Indisponibil 608 1 1 318612 - Indisponibil 609 1 1 318614 - Indisponibil 610 1 1 324818 - Indisponibil 611 1 1 324819 - Indisponibil 612 1 1 318617 - Indisponibil 613 1 1 318618 - Indisponibil 614 1 1 318619 - Indisponibil 615 1 1 318620 - Indisponibil 616 1 1 318621 - Indisponibil
