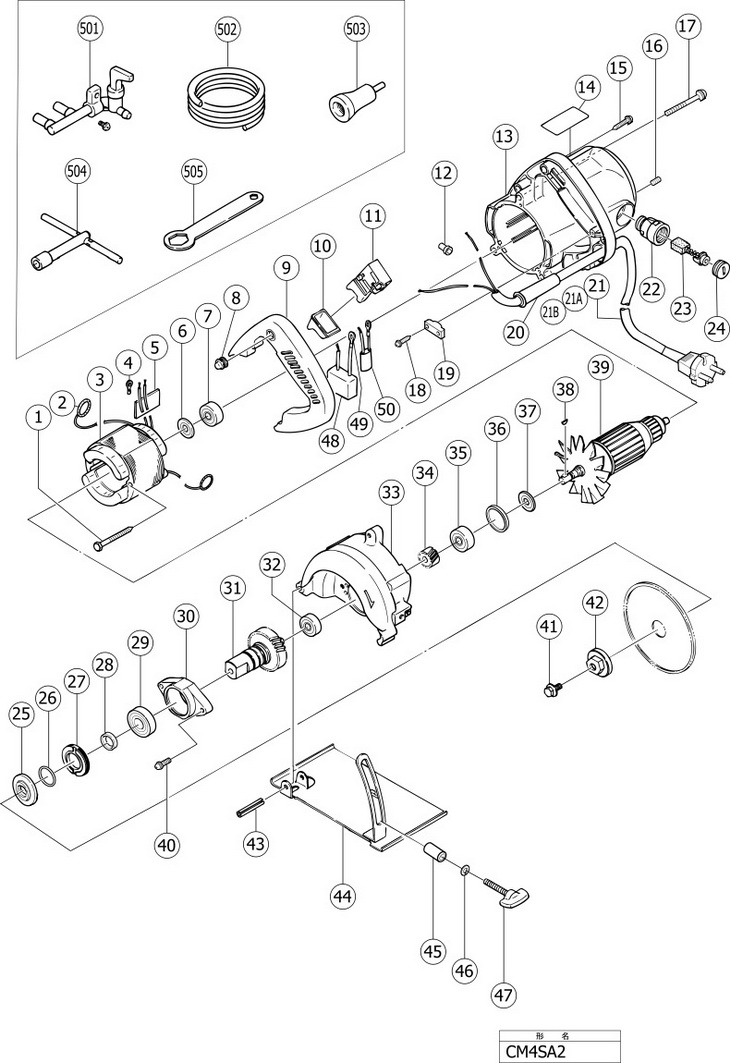

CM4SA2
[CM4SA2]
CM4SA2
Click pentru a mari
Imagini suplimentare
CM4SA2
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 2 HEX .HD. TAPPING SCREW D5X60 (961501) 894 RON
2 1 2 BRUSH TERMINAL (930703) 2348 RON
*3 1 1 340211 - Indisponibil
*3 1 1 340212E (340212E) 16329 RON
*3 1 1 340212F (340212F) 14762 RON
*3 1 1 340212G - Indisponibil
*3 1 1 340212J - Indisponibil
4 1 1 TERMINAL M4.0 (10 PCS) (930804) 297 RON
5 1 1 @ SEAL PACKING (983858) 1453 RON
6 1 1 WASHER (A) (982631) 894 RON
7 1 1 BALL BEARING 608VVMC2EPS2L (608VVM) 4025 RON
8 1 1 RUBBER COVER (B) (956866) 894 RON
9 1 1 303646 - Indisponibil
9 1 1 307823 - Indisponibil
10 1 1 @ SWITCH RUBBER COVER (303328) 2348 RON
11 1 1 SWITCH (A) (1P SCREW TYPE) W/LOCK (957747) 10065 RON
11 1 1 SWITCH (1P SCREW TYPE) W/O LOCK (981821) 10065 RON
*11 1 1 SWITCH (C) (1P SCREW TYPE) (302477) 7269 RON
12 1 1 CONNECTOR 50092 (10 PCS) (OLD 939558) (959141) 382 RON
13 1 1 303318 - Indisponibil
14 1 1 - Indisponibil
15 1 3 TAPPING SCREW D4X20 (W/FLANGE) BLACK (OLD 305095) (301653) 894 RON
16 1 2 HEX.SOCKET SET SCREW M5X8 (938477) 1453 RON
17 1 3 @ MACH.SCREW(W/WASHERS)M5X30 (998482) 781 RON
18 1 2 TAPPING SCREW D4X16 (W/FLANGE) (984750) 1117 RON
19 1 1 CORD CLIP (960266) 894 RON
*20 1 1 CORD ARMOR D8.8 (953327) Indisponibil Indisponibil
*20 1 1 CORD ARMOR D10.1 (OLD 994565) (938051) 894 RON
*21 1 1 500201Z - Indisponibil
*21 1 1 500234Z - Indisponibil
*21 1 1 500439Z - Indisponibil
21A 1 1 323974 - Indisponibil
21A 1 1 @ CORD 2,5M 2 X 1.0 H05VV-F W/PLUG 13A/250V (OLD 500223Z) (500423Z) 12862 RON
21A 1 1 CORD 2,5M 2 X 1.0 H05VV-F (OLD 500395Z) (500447Z) 5480 RON
21B 1 1 CORD 2,5M 2 X 1.0 H05VV-F W/PLUG 13A/250V GBR (500435Z) 12638 RON
22 1 2 BRUSH HOLDER (958900) 5368 RON
23 1 2 CARBON BRUSH (1 PAIR) (999043) 382 RON
24 1 2 BRUSH CAP (945161) 1453 RON
25 1 1 956879 - Indisponibil
26 1 1 O-RING (1AP-20) (944486) 1453 RON
27 1 1 303324 - Indisponibil
28 1 1 DISTANCE PIECE (303323) 2236 RON
29 1 1 BALL BEARING 6002VVCMPS2L (6002VV) 4920 RON
30 1 1 BEARING HOLDER CM4SA2 (303322) 3354 RON
31 1 1 303321 - Indisponibil
32 1 1 BALL BEARING 606ZZMC3PS2S (606ZZM) 5815 RON
33 1 1 @ GEAR COVER (303319) 10848 RON
34 1 1 PINION (303320) 6151 RON
35 1 1 BALL BEARING 629VVMC2EPS2L (629VVM) 3914 RON
36 1 1 RUBBER RING (OLD 994299) (957754) 1453 RON
37 1 1 WASHER (A) (958915) 894 RON
38 1 1 WOODRUFF KEY 2.5X8 (940220) 1788 RON
39 1 1 360399 - Indisponibil
*39 1 1 ARMATURE 220-230 VOLT (360199E) 30421 RON
*39 1 1 360199F - Indisponibil
40 1 2 303327 - Indisponibil
41 1 1 @ BOLT LEFT HAND M7X15 (303326) 894 RON
42 1 1 303325 - Indisponibil
43 1 1 ROLL PIN D6X32 (10 PCS) (949576) 488 RON
44 1 1 @ BASE (303329) 764 RON
45 1 1 @ SLEEVE (303330) 2348 RON
46 1 1 SPRING WASHER M6 (10 PCS) (949455) 1453 RON
47 1 1 WING BOLT M6X37 (303331) 1453 RON
48 1 1 NOISE SUPPRESSOR GASKET (930039) 2683 RON
49 1 2 TERMINAL (A) M3.5 (10 PCS) (960356) 297 RON
50 1 1 308093 - Indisponibil
501 1 1 @ WATER PLUG (303648) 5032 RON
502 1 1 956883 - Indisponibil
503 1 1 956885 - Indisponibil
504 1 1 BOX WRENCH 10MM (OLD 968658) (940543) 4361 RON
505 1 1 @ WRENCH (HEX. SOCKET 10/19.2MM) (941057) 4361 RON
601 1 1 306161 - Indisponibil
602 1 1 306162 - Indisponibil
603 1 1 313041 - Indisponibil
