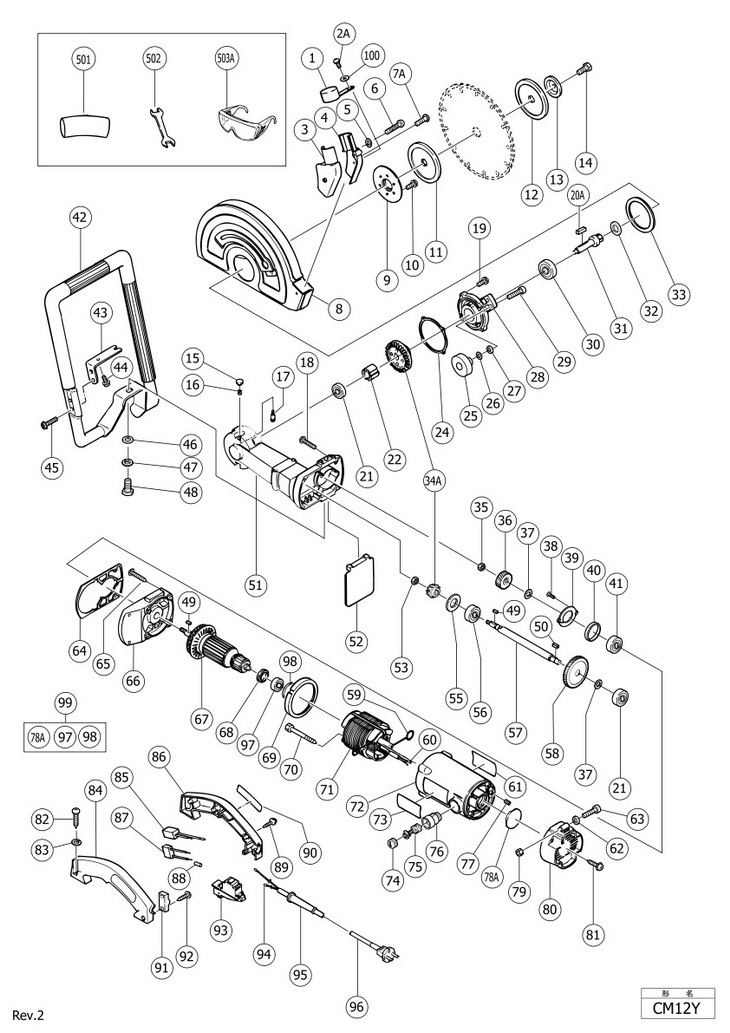

Top » Piese de schimb » PIESE HITACHI » CM12Y CM12Y [CM12Y] Click pentru a mari Imagini suplimentare Click pentru a mari LISTA DE COMPONENTE: Numar Versiune Buc. in schema Denumire Pret/buc (Tva inclus) Cumpara 1 1 1 RUBBER CAP (312314) 488 RON 2A 1 1 MACHINE SCREW M4X12 (W/WASHERS) BLACK (935196) 1453 RON 3 1 1 DUST COLLECTOR (B) (312312) 8611 RON 4 1 1 DUST COLLECTOR (A) (312311) 8611 RON 5 1 1 SPRING WASHER M4 (10 PCS) (949453) 894 RON 6 1 1 MACHINE SCREW M4X30 (10 PCS) (949224) 1788 RON 7A 1 2 MACHINE SCREW M4X12 (W/WASHERS) BLACK (935196) 1453 RON 8 1 1 WHEEL GUARD (312310) 49323 RON 9 1 1 GUARD HOLDER (312307) 488 RON 10 1 3 SEAL LOCK SCREW M5X10 (W/SP WASHER) (992038) 894 RON 11 1 1 WHEEL WASHER (B) (312327) 18789 RON 12 1 1 WHEEL WASHER (C) (312324) 1700 RON 13 1 1 WHEEL WASHER (D) (312308) 3242 RON 14 1 1 BOLT LEFT HAND M10X20 (312309) 12190 RON 15 1 1 PUSH BUTTON (306888) 894 RON 16 1 1 SPRING (306889) 894 RON 17 1 1 LOCK PIN (306890) 2012 RON 18 1 4 MACHINE SCREW M5X35 W/WASHERS (312298) 2348 RON 19 1 4 HEX.SOCKET HD.BOLT (994192) 894 RON 20A 1 1 FEATHER KEY 4X4X30 (948920) 1341 RON 21 1 2 BALL BEARING 6200VVCMPS2S (6200VV) 3466 RON 22 1 1 LOCK SLEEVE (312303) 1700 RON 24 1 1 SEAL PLATE (A) (312304) 2348 RON 25 1 1 KNOB (302458) 894 RON 26 1 1 BOLT WASHER M8 (10 PCS) (949433) 1453 RON 27 1 1 SUPER LOCK WASHER M8 (957042) 1453 RON 28 1 1 PACKING GLAND (312305) 30645 RON 29 1 1 BOLT (SQUARE) M8X30 (302457) 894 RON 30 1 1 BALL BEARING 6302DDUCMPS2S (6302DD) 6262 RON 31 1 1 SPINDLE (312302) 25612 RON 32 1 1 FELT PACKING (312306) 1453 RON 33 1 1 SPACER (312651) 6151 RON 34A 1 1 GEAR SET (OLD 306121/ 306122/306123) (332119) 14092 RON 35 1 1 U-NUT M8 (OLD 961409Z, 994311) (946228) 894 RON 36 1 1 PINION (A) (312325) 18118 RON 37 1 2 SPACE WASHER (312294) 297 RON 38 1 2 SEAL LOCK FLAT HD. SCREW M4X10 (990430) 894 RON 39 1 1 BEARING COVER (312293) 297 RON 40 1 1 RUBBER RING (B) (994208) 1117 RON 41 1 1 BALL BEARING 6301DDUCMPS2S (OLD 994272) (6301DD) 5480 RON 42 1 1 PIPE HANDLE (B) (312315) 98537 RON 43 1 1 JOINT PLATE (312316) 5591 RON 44 1 2 HEX.SOCKET HD.BOLT M6X16 (878533) 1453 RON 45 1 2 HEX.SOCKET HD.BOLT M6X30 (878877) 1453 RON 46 1 1 BOLT WASHER M12 (10 PCS) (OLD 949437Z) (949437) 2683 RON 47 1 1 SPRING WASHER M12 (10 PCS) (949463) 2236 RON 48 1 1 BOLT M12X25 (10 PCS) (949671) 382 RON 49 1 2 FEATHER KEY 3X3X10 (940533) 1453 RON 50 1 1 FEATHER KEY 4X4X15 (948919) 1453 RON 51 1 1 312297 (312297) 108715 RON 52 1 1 DUST GUARD (312313) 5591 RON 53 1 1 U-NUT (LEFT HAND) M8 (960256) 1453 RON 55 1 1 THRUST WASHER (A) (312296) 1453 RON 56 1 1 BALL BEARING 6301VVCMPS2S (6301VV) 573 RON 57 1 1 DRIVE SHAFT (312295) 27289 RON 58 1 1 FIRST GEAR (A) (315326) 27289 RON 59 1 2 BRUSH TERMINAL (OLD 958032Z) (958032) 894 RON 60 1 1 TUBE (D) (981373) 1341 RON 61 1 1 - Indisponibil 62 1 1 WASHER M6 (10 PCS) (949425) Indisponibil Indisponibil 63 1 1 MACHINE SCREW M6X35 (10 PCS) (949263) 2683 RON 64 1 1 SEAL PLATE (B) (312291) 297 RON 65 1 4 TAPPING SCREW D5X35 (W/FLANGE) (301654) 1453 RON 66 1 1 INNER COVER (312292) 44290 RON *67 1 1 360287C (360287C) 50889 RON *67 1 1 360287E (360287E) 50889 RON *67 1 1 360287F (360287F) 50889 RON 68 1 1 DUST SEAL (310998) 1453 RON 69 1 1 FAN GUIDE (306103) 2348 RON 70 1 2 HEX. HD.TAPPING SCREW D5X75 (OLD 963454Z) (984271) Indisponibil Indisponibil *71 1 1 340348 (340348) 79858 RON *71 1 1 340349E (340349E) 9354 RON *71 1 1 340349F - Indisponibil *71 1 1 340349G - Indisponibil 72 1 1 306102 (306102) 1339 RON 73 1 1 - Indisponibil 74 1 2 BRUSH CAP (940540) 1229 RON 75 1 2 CARBON BRUSH (1 PAIR) (999044) 382 RON 76 1 2 BRUSH HOLDER (OLD 974567) (980487) 4137 RON 77 1 2 HEX.SOCKET SET SCREW M5X8 (938477) 1453 RON 78A 1 1 BEARING BUSHING (313306) 1700 RON 79 1 1 NUT M6 (10 PCS) (949556) 1453 RON 80 1 1 TAIL COVER (312299) 9282 RON 81 1 4 TAPPING SCREW D5X25 (W/FLANGE) BLACK (305558) 894 RON 82 1 2 MACHINE SCREW M5X20 (10 PCS) (949241) 1788 RON 83 1 2 SPRING WASHER M5 (10 PCS) (949454) 1117 RON 84 1 1 HANDLE (A) (312300) 11519 RON 85 1 1 DIODE FOR GBR (110V) (312318) 14874 RON 86 1 1 HANDLE (B) (312301) 11519 RON 87 1 1 NOISE SUPPRESSOR (311935) 3242 RON 88 1 2 TUBE (D) (981373) 1341 RON 89 1 3 TAPPING SCREW D4X25 (304035) 894 RON 90 1 2 GRIP RUBBER (312317) 6151 RON 91 1 1 CORD CLIP (960266) 894 RON 92 1 2 TAPPING SCREW D4X16 (W/FLANGE) (984750) 1117 RON 93 1 1 TRIGGER SWITCH W/LOCK (OFF) (307650) 29750 RON 94 1 2 TUBE (D) (981373) 1341 RON 95 1 1 CORD ARMOR D10.7 (940778) 2124 RON *96 1 1 500438Z - Indisponibil *96 1 1 CORD 2.5M 2 X 2.5 W/O PLUG (500246Z) 18789 RON *96 1 1 @ CORD 2,5M 2 X 1.0 H05VV-F W/PLUG 13A/250V (OLD 500223Z) (500423Z) 12862 RON *96 1 1 500439Z - Indisponibil 97 1 1 BALL BEARING 6000VVCMPS2S (6000VV) 4025 RON 98 1 1 RUBBER RING (A) (OLD 313485) (994202) 1453 RON 99 1 1 313307 (313307) 22592 RON 100 1 1 THRUST WASHER (322270) 2236 RON 501 1 1 HOSE (312360) 6151 RON 502 1 1 WRENCH 17/19MM (974254) 573 RON 503A 1 1 875769 - Indisponibil 601 1 1 WHEEL WASHER (A) (312323) 18789 RON 602 1 1 @ CUT-OFF WHEEL METAL D300x25.4 (985608) 91714 RON 603 1 1 CUT-OFF WHEEL FOR METAL D300X22,2 (985609) 91714 RON 604 1 1 985610 - Indisponibil 605 1 1 985611 - Indisponibil 606 1 1 985618 - Indisponibil 607 1 1 985619 - Indisponibil 608 1 1 312367 - Indisponibil Puteti cumpara CM12Y in urmatoarele variante: Masina pentru taiat beton Hitachi CM12Y
