Top » Piese de schimb » PIESE HITACHI » CL10SA

CL10SA
[CL10SA]
CL10SA
Click pentru a mari
Imagini suplimentare
CL10SA
Click pentru a mari

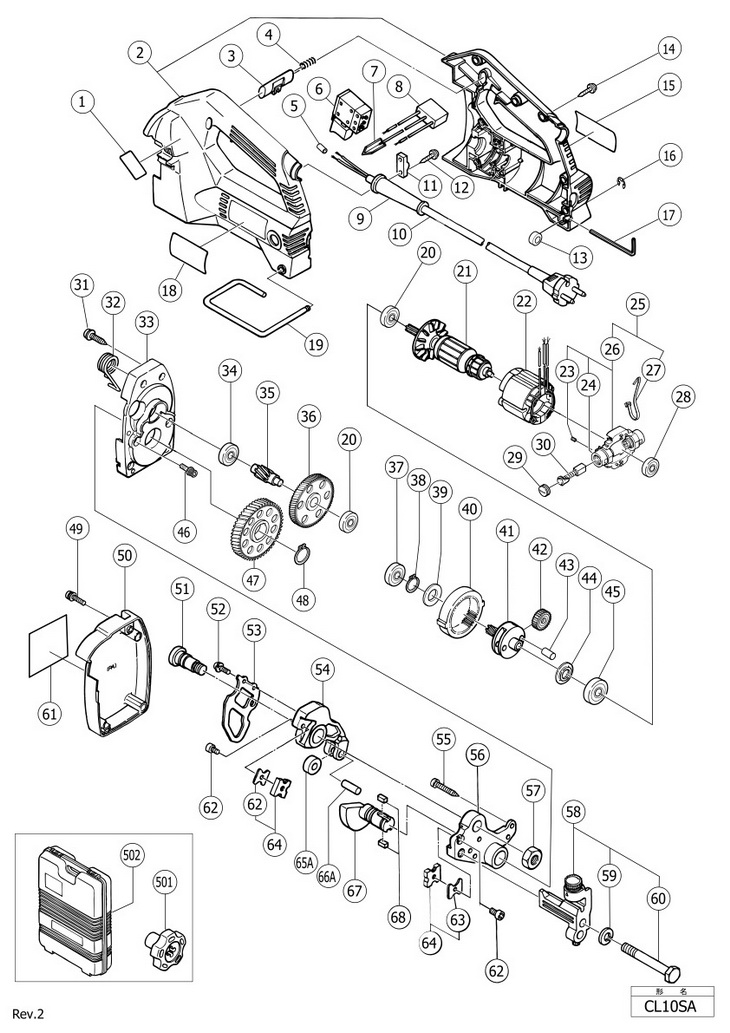

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 - Indisponibil
2 1 1 HOUSING SET (A+B) (319411) 27289 RON
3 1 1 @PUSHING BUTTON (A) (319402) 3242 RON
4 1 1 @SPRING (A) (319403) 2236 RON
5 1 2 TUBE (D) (981373) 1341 RON
6 1 1 SWITCH (319412) 25612 RON
7 1 1 EARTH TERMINAL (992635) 1453 RON
8 1 1 NOISE SUPPRESSOR (994273) Indisponibil Indisponibil
*9 1 1 CORD ARMOR D8.8 (953327) Indisponibil Indisponibil
*9 1 1 CORD ARMOR D10.1 (OLD 994565) (938051) 894 RON
*10 1 1 500235Z - Indisponibil
*10 1 1 CORD FOR SWISS (500391Z) 27513 RON
*10 1 1 CORD 5M 2 X 1,0 W/PLUG 13A/250V FOR GBR (500440Z) 13197 RON
*10 1 1 930055 - Indisponibil
11 1 1 CORD CLIP (OLD 994566) (937631) 894 RON
12 1 2 TAPPING SCREW D4X16 (W/FLANGE) (984750) 1117 RON
13 1 1 WRENCH HOLDER (307607) 1788 RON
14 1 9 TAPPING SCREW D4X20 (W/FLANGE) BLACK (OLD 305095) (301653) 894 RON
15 1 1 - Indisponibil
16 1 1 RETAINING RING (E-TYPE) FOR D4 SHAFT (968643) 2683 RON
17 1 1 HEX.BAR WRENCH 4MM (944458) 1229 RON
18 1 1 - Indisponibil
19 1 1 HOOK (OLD 307603) (319401) 5591 RON
20 1 2 BALL BEARING 608VVMC2EPS2L (608VVM) 4025 RON
21 1 1 ARMATURE 230 VOLT (360545E) 5952 RON
*21 1 1 360545C - Indisponibil
22 1 1 STATOR 230 VOLT (340490E) 40823 RON
*22 1 1 340490C - Indisponibil
23 1 2 HEX.SOCKET SET SCREW M4X4 (981478) 1453 RON
24 1 2 BRUSH HOLDER (957571) 2124 RON
25 1 1 319408 (319408) 34112 RON
26 1 1 315992 (315992) 13421 RON
27 1 2 WIRE BAND (313505) 1453 RON
28 1 1 BALL BEARING 626VVMC2ERPS2S (626VVM) 3690 RON
29 1 2 BRUSH CAP (931266) 894 RON
30 1 2 CARBON BRUSH (1 PAIR) (999021) 382 RON
31 1 4 TAPPING SCREW D5X25 (W/FLANGE) BLACK (305558) 894 RON
32 1 1 RETURN SPRING (307624) 4025 RON
33 1 1 GEAR COVER (307622) 27289 RON
34 1 1 BALL BEARING 629VVMC2EPS2L (629VVM) 3914 RON
35 1 1 THIRD PINION (319407) 11519 RON
36 1 1 SECOND GEAR (319406) 27289 RON
37 1 1 BALL BEARING 609VVMC2PS2S (609VVM) 4025 RON
38 1 1 RETAINING RING FOR D15 SHAFT(10 PCS) (939544) 2571 RON
39 1 1 WASHER (302714) 1453 RON
40 1 1 RING GEAR (310254) 5368 RON
41 1 1 SECOND PINION (319405) 37468 RON
42 1 2 IDLE GEAR (319404) 5368 RON
43 1 2 NEEDLE (307609) 6374 RON
44 1 1 WASHER (307608) 2683 RON
45 1 1 BALL BEARING 6001VVCMPS2L (6001VV) 4361 RON
46 1 3 HEX.SOCKET HD.BOLT M5X12 (998471) 1453 RON
47 1 1 FINAL GEAR (319393) 22592 RON
48 1 1 RETAINING RING FOR D18 (10 PCS) (939546) 3578 RON
49 1 2 MACHINE SCREW (W/WASHERS) M4X20 (307606) 1453 RON
50 1 1 COVER (319838) 9282 RON
51 1 1 BOLT (A) (319396) 18118 RON
52 1 2 SEAL LOCK SCREW M4X12 (W/SP WASHER) (987203) 1453 RON
53 1 1 RETURN PLATE (319398) 2236 RON
54 1 1 BRACKET (A) (319397) 83214 RON
55 1 2 TAPPING SCREW D5X35 (931875) 1453 RON
56 1 1 BRACKET (B) (319395) 129071 RON
57 1 1 LOCK NUT M12 (10 PCS) (OLD 949574Z) (949574) 297 RON
58 1 1 309180 (309180) 34112 RON
59 1 1 SPRING WASHER M10 (10 PCS) (949458) 1453 RON
60 1 1 BOLT W3/8X75 (309621) 4361 RON
61 1 1 - Indisponibil
62 1 2 SPECIAL BOLT M5X9 (998486) 3578 RON
63 1 2 SPACER M8 (10 PCS) (308779) 15098 RON
64 1 2 308564 (308564) 5952 RON
*64 1 2 CUTTER 3/8" FOR STUD CUTTER (1 PAIR) (998479) 5952 RON
65A 1 1 ROLLER (A) (OLD 319399) (327317) 4025 RON
66A 1 1 ROLLER PIN (OLD 319400) (327318) 3242 RON
67 1 1 CAM SHAFT (319394) 49323 RON
68 1 2 FEATHER KEY 5X5X10 (OLD 971957) (948015) 1453 RON
501 1 1 TRIMMER FOR M8 (308569) 23934 RON
*501 1 1 TRIMMER FOR 3/8" (308567) 23934 RON
502 1 1 CASE (319774) 30645 RON
601 1 2 308563 (308563) 5952 RON
602 1 2 SPACER M6 (10 PCS) (309181) 15098 RON
603 1 2 308565 (308565) 5952 RON
604 1 2 SPACER M10 (10 PCS) (308780) 15098 RON
605 1 2 CUTTER 3/8" FOR STUD CUTTER (1 PAIR) (998479) 5952 RON
606 1 1 TRIMMER FOR M6 (308568) 23934 RON
607 1 1 TRIMMER FOR M10 (308570) 23934 RON
608 1 1 TRIMMER FOR 3/8" (308567) 23934 RON
