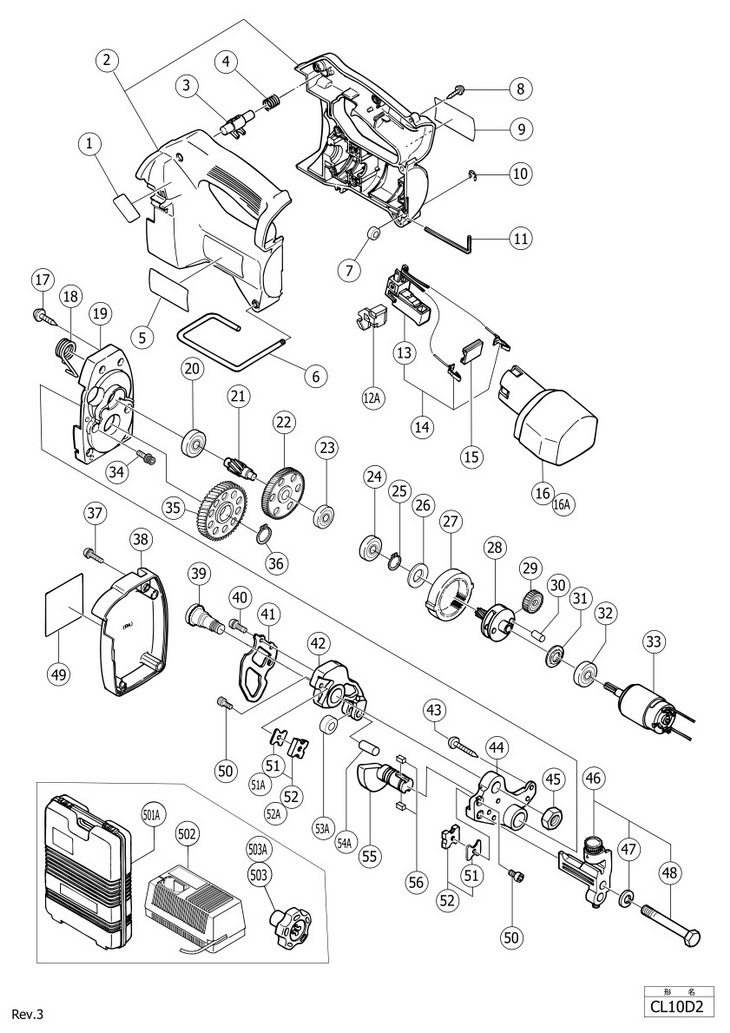

Top » Piese de schimb » PIESE HITACHI » CL10D2 CL10D2 [CL10D2] Click pentru a mari Imagini suplimentare Click pentru a mari LISTA DE COMPONENTE: Numar Versiune Buc. in schema Denumire Pret/buc (Tva inclus) Cumpara 1 1 1 - Indisponibil 2 1 1 HOUSING SET (A+B) (319416) 37468 RON 3 1 1 PUSHING BUTTON (307604) 3578 RON 4 1 1 @SPRING (319773) 2236 RON 5 1 1 - Indisponibil 6 1 1 HOOK (OLD 307603) (319401) 5591 RON 7 1 1 WRENCH HOLDER (307607) 1788 RON 8 1 9 TAPPING SCREW D4X20 (W/FLANGE) BLACK (OLD 305095) (301653) 894 RON 9 1 1 - Indisponibil 10 1 1 RETAINING RING (E-TYPE) FOR D4 SHAFT (968643) 2683 RON 11 1 1 HEX.BAR WRENCH 4MM (944458) 1229 RON 12A 1 1 SWITCH HOLDER (319839) 4025 RON 13 1 1 SWITCH (IP SOLDER TYPE) W/O LOCK (303988) 10736 RON 14 1 1 319414 (319414) 32323 RON 15 1 1 TERMINAL SUPPORT (991666) 1453 RON 16A 1 1 EB12B BATTERY 12V 2.0Ah Ni-Cd (310378) 60396 RON 17 1 4 TAPPING SCREW D5X25 (W/FLANGE) BLACK (305558) 894 RON 18 1 1 RETURN SPRING (307624) 4025 RON 19 1 1 GEAR COVER (307622) 27289 RON 20 1 1 BALL BEARING 629VVMC2EPS2L (629VVM) 3914 RON 21 1 1 THIRD PINION (319407) 11519 RON 22 1 1 SECOND GEAR (319406) 27289 RON 23 1 1 BALL BEARING 608VVMC2EPS2L (608VVM) 4025 RON 24 1 1 BALL BEARING 609VVMC2PS2S (609VVM) 4025 RON 25 1 1 RETAINING RING FOR D15 SHAFT(10 PCS) (939544) 2571 RON 26 1 1 WASHER (302714) 1453 RON 27 1 1 RING GEAR (310254) 5368 RON 28 1 1 SECOND PINION (319405) 37468 RON 29 1 2 IDLE GEAR (319404) 5368 RON 30 1 2 NEEDLE (307609) 6374 RON 31 1 1 WASHER (307608) 2683 RON 32 1 1 BALL BEARING 6001VVCMPS2L (6001VV) 4361 RON 33 1 1 MOTOR (319413) 28967 RON 34 1 3 HEX.SOCKET HD.BOLT M5X12 (998471) 1453 RON 35 1 1 FINAL GEAR (319393) 22592 RON 36 1 1 RETAINING RING FOR D18 (10 PCS) (939546) 3578 RON 37 1 2 MACHINE SCREW (W/WASHERS) M4X20 (307606) 1453 RON 38 1 1 COVER (319838) 9282 RON 39 1 1 BOLT (A) (319396) 18118 RON 40 1 2 SEAL LOCK SCREW M4X12 (W/SP WASHER) (987203) 1453 RON 41 1 1 RETURN PLATE (319398) 2236 RON 42 1 1 BRACKET (A) (319397) 83214 RON 43 1 2 TAPPING SCREW D5X35 (931875) 1453 RON 44 1 1 BRACKET (B) (319395) 129071 RON 45 1 1 LOCK NUT M12 (10 PCS) (OLD 949574Z) (949574) 297 RON 46 1 1 309180 (309180) 34112 RON 47 1 1 SPRING WASHER M10 (10 PCS) (949458) 1453 RON 48 1 1 BOLT W3/8X75 (309621) 4361 RON 49 1 1 - Indisponibil 50 1 2 SPECIAL BOLT M5X9 (998486) 3578 RON 51 1 2 SPACER M8 (10 PCS) (308779) 15098 RON 51A 1 2 SPACER M10 (10 PCS) (308780) 15098 RON 52 1 2 308564 (308564) 5952 RON 52A 1 2 308565 (308565) 5952 RON 53A 1 1 ROLLER (A) (OLD 319399) (327317) 4025 RON 54A 1 1 ROLLER PIN (OLD 319400) (327318) 3242 RON 55 1 1 CAM SHAFT (319394) 49323 RON 56 1 2 FEATHER KEY 5X5X10 (OLD 971957) (948015) 1453 RON 501A 1 1 CASE (319774) 30645 RON 502 1 1 - Indisponibil 503 1 1 TRIMMER FOR M8 (308569) 23934 RON 503A 1 1 TRIMMER FOR M10 (308570) 23934 RON 601 1 2 308563 (308563) 5952 RON 602 1 2 SPACER M6 (10 PCS) (309181) 15098 RON 603 1 2 308565 (308565) 5952 RON 604 1 2 SPACER M10 (10 PCS) (308780) 15098 RON 605 1 2 CUTTER 3/8" FOR STUD CUTTER (1 PAIR) (998479) 5952 RON 606 1 1 TRIMMER FOR M6 (308568) 23934 RON 607 1 1 TRIMMER FOR M10 (308570) 23934 RON 608 1 1 TRIMMER FOR 3/8" (308567) 23934 RON
