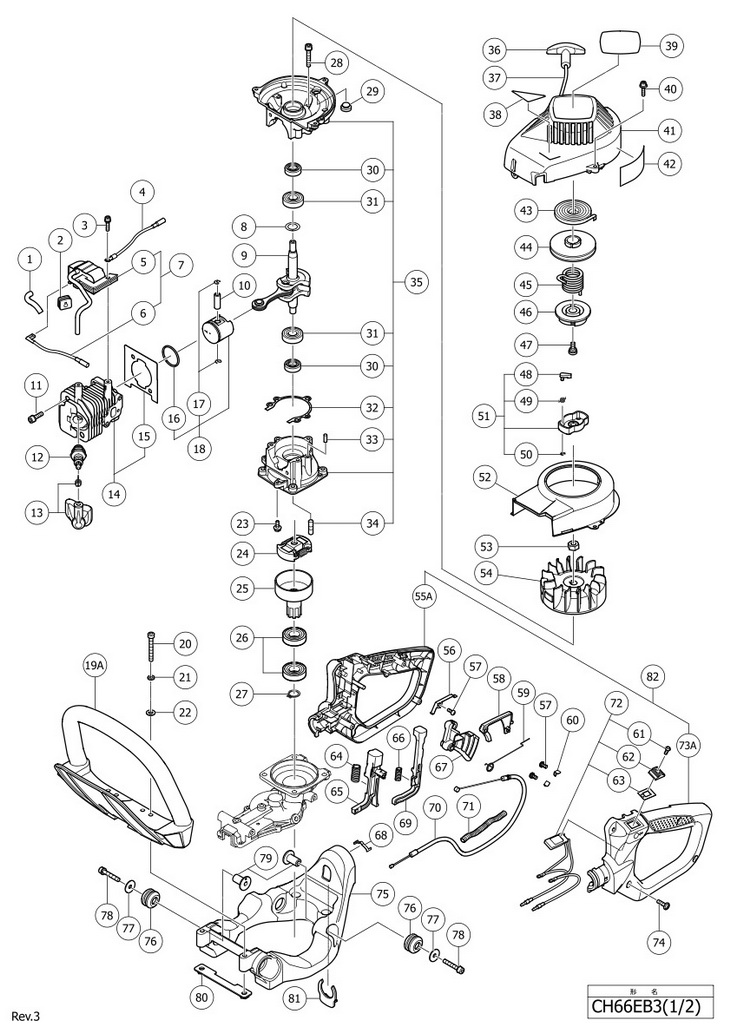

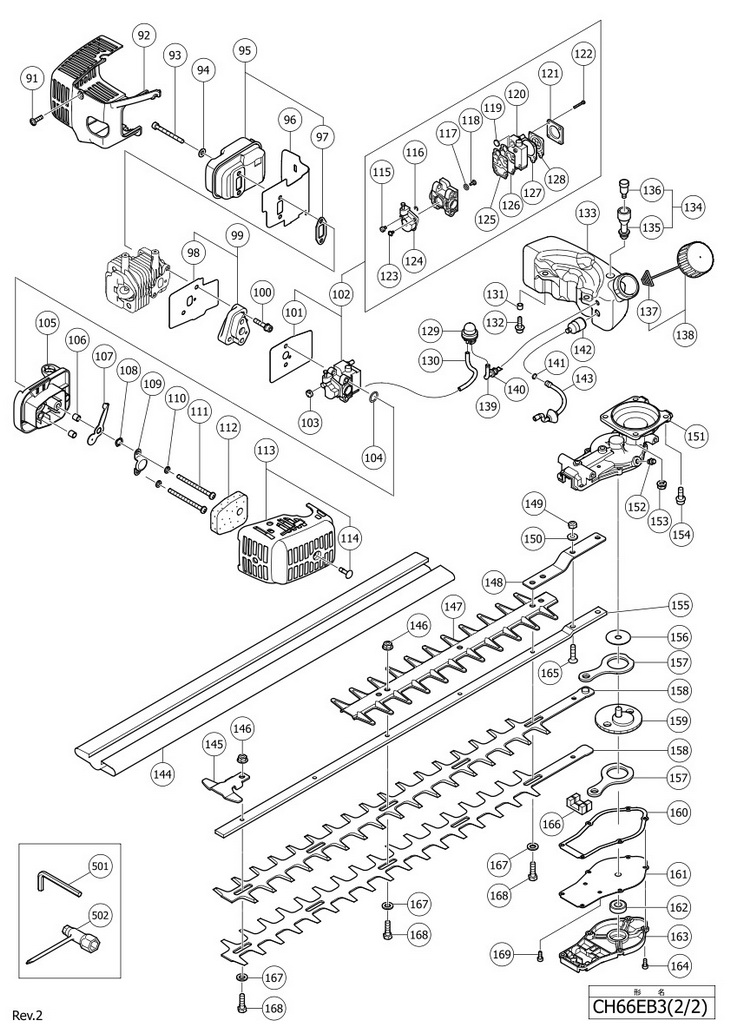

Top » Piese de schimb » PIESE HITACHI » CH66EB3 CH66EB3 [CH66EB3] Click pentru a mari Imagini suplimentare Click pentru a mari Click pentru a mari LISTA DE COMPONENTE: Numar Versiune Buc. in schema Denumire Pret/buc (Tva inclus) Cumpara 1 1 1 INSULATOR TUBE 50L (OLD 250-06500-20) (6684597) 1229 RON 2 1 1 GROMMET (OLD 203-0604A-20) (6688050) 1229 RON 3 1 2 HEX. HOLE BOLT M4X18/WS (OLD 994-64040-184) (6684599) 1229 RON 4 1 1 CORD (OLD 274-51705-80) (6688477) 2236 RON 5 1 1 6687702 - Indisponibil 6 1 1 CORD 200M (OLD 178-51705-80) (6687918) 2460 RON 7 1 1 6687353 - Indisponibil *8 1 1 GEAR SHAFT SHIM 0.20 (OLD 330-00200-23) (6684604) 1229 RON *8 1 1 GEAR SHAFT SHIM 0.30 (OLD 330-00200-24) (6684605) 1229 RON 9 1 1 CRANK SHAFT COMP (OLD 046-06621-80) (6686208) 18789 RON 10 1 1 PISTON PIN (OLD 037-06500-20) (6686015) 1229 RON 11 1 2 HEX. HOLE BOLT M5X18/S (OLD 994-61050-184) (6684586) 1229 RON 12 1 1 SPARK PLUG BPMR6A (OLD 018-06540-21) (6685086) 3130 RON 13 1 1 6687476 (6687476) 3242 RON 14 1 1 CYLINDER SET (OLD 001-0650A-90) (6685480) 18789 RON 15 1 1 CYLINDER GASKET (OLD 017-06500-20) (6685744) 1229 RON 16 1 1 PISTON RING (OLD 041-00601-21/ 6686117) (6686118) 3242 RON 17 1 2 PISTON PIN CIRCLIP (OLD 039-00601-20) (6684590) 1229 RON 18 1 1 PISTON SET (OLD 030-0650A-90) (6685892) 10513 RON 19B 1 1 6699079 - Indisponibil 20 1 2 HEX. HOLE BOLT 5X40 (OLD 990-51050-403) (6695054) 1229 RON 21 1 2 SPRING WASHER 5 (OLD 992-10050-062) (6684834) 1229 RON 22 1 2 WASHER M5 (OLD 992-01050-061) (6684918) 1229 RON 23 1 2 BOLT 4X12PS (OLD 994-25040-128) (6695441) 1229 RON 24 1 1 6688494 (6688494) 5815 RON 25 1 1 CLUTCH DRUM COMP. (OLD 288-33180-80) (6688570) 5927 RON 26 1 2 BALL BEARING 6002Z, 32MM/OD (OLD 999-61600-202) (6695538) 4025 RON 27 1 1 STOP RING C-15, OUTER (OLD 993-50015-002) (6695285) 1229 RON 28 1 3 HEX. SOCKET HD. BOLT M5X30 S (OLD 994-61050-304) (6684786) 1229 RON 29 1 1 ANTI-VIBE RUBBER (OLD 599-00601-20) (6691822) 1229 RON 30 1 2 OIL SEAL TB 12227 (OLD 999-66122-200/6695624) (6684607) Indisponibil Indisponibil 31 1 2 6684608 - Indisponibil 32 1 1 CRANKCASE GASKET (OLD 090-06500-20) (6686720) 1229 RON 33 1 2 KNOCK PIN 4X12 (OLD 999-05041-203) (6695521) 1229 RON 34 1 2 STUD BOLT 6X22 (OLD 100-02100-20) (6686771) 1229 RON 35 1 1 6686574 (6686574) 19684 RON 36 1 1 STARTER HANDLE (OLD 785-06410-20) (6693237) 1229 RON 37 1 1 ROPE 3X890 (OLD 783-0651H-20) (6693172) 2236 RON 38 1 1 - Indisponibil 39 1 1 - Indisponibil 40 1 3 HEX.HOLE BOLT 4X18PS (OLD 994-63040-184) (6695502) 1229 RON 41 1 1 FAN CASE COMP. (OLD 112-0651H-80) (6687014) 8835 RON 42 1 1 - Indisponibil 43 1 1 RECOIL SPRING (OLD 780-06097-20) (6684675) 3578 RON 44 1 1 STARTER ROPE REEL (OLD 774-0651H-20) (6693072) 3690 RON 45 1 1 DUMPER SPRING (OLD 758-0651H-20) (6684677) 3242 RON 46 1 1 CAM PLATE (OLD 759-0651H-20) (6684678) 2348 RON 47 1 1 SET SCREW (OLD 839-03045-20) (6684679) 1229 RON 48 1 2 STARTER PAWL (OLD 788-0651H-20) (6684685) 2236 RON 49 1 2 STARTER PAWL SPRING (OLD 790-06097-20) (6684684) 2236 RON 50 1 2 STOP RING E-5 (OLD 993-55050-000) (6684683) 1229 RON 51 1 1 6684681 (6684681) 4137 RON 52 1 1 DEFLECTOR (OLD 132-06602-20) (6687209) 3914 RON 53 1 1 HEX.NUT M8 (OLD 991-01080-011) (6684612) 1229 RON 54 1 1 MAGNETO ROTOR COMP. (OLD 155-21549-80) (6687396) 10513 RON 55A 1 1 HANDLE (A) NEW FEB (6698868) 4025 RON 56 1 1 EARTH TERMINAL (6696350) 1453 RON 57 1 3 TAPPING SCREW D3 (696352) 1453 RON 58 1 1 TRIGGER LOCKOUT (6696344) 1453 RON 59 1 1 THROTTLE LEVER SPRING (6696345) 1453 RON 60 1 2 TAB TERMINAL (6696355) 1453 RON 61 1 1 SCREW 3X10 (OLD 994-31030-101) (6684913) 1229 RON 62 1 1 BUTTON STOP (OLD 258-11650-20) (6688366) 1229 RON 63 1 1 STOP BUTTON MARK (OLD 925-33160-20) (6694588) 1229 RON 64 1 1 SPRING (A) (6696348) 1453 RON 65 1 1 LOCK LEVER (6696346) 1453 RON 66 1 1 SPRING (B) (6696349) 1453 RON 67 1 1 THROTTLE LEVER (6696343) 1453 RON 68A 1 1 6698784 - Indisponibil 69 1 1 RELEASE LEVER (6696347) 1453 RON 70A 1 1 THROTTLE WIRE COMP. (OLD 6696351) (6698828) 3019 RON 71 1 1 PROTECTION TUBE 150L (OLD 164-07015-01) (6687524) 1229 RON 72 1 1 6696354 (6696354) 6822 RON 73A 1 1 HANDLE (B) NEW FEB (6698869) 3690 RON 74 1 4 TAPPING SCREW D4X16 (W/FLANGE) BLACK (305812) 894 RON 75 1 1 FRAME CH66EB3/CH78EC3 (6696363) 5815 RON 76 1 4 DAMPER B (OLD 266-32750-20/6688412) (6688412) 1229 RON 77 1 4 BRAKE SHAFT WASHER (OLD 368-32057-20) (6689680) 1229 RON 78 1 4 HEX. SOCKET HD. BOLT M5X30 S (OLD 994-61050-304) (6684786) 1229 RON 79 1 4 DAMPER COLLAR B (OLD 276-32710-20) (6688485) 1229 RON 80 1 1 HANDLE SUPPORT COMP. (OLD 040-33160-80) (6686111) 2236 RON 81 1 1 CLIP (6696359) 1453 RON 82 1 1 HANDLE SET (A+B) NEW MAR (6698870) 6151 RON 91 1 1 TAPPING SCREW D4.5X16 (OLD 990-72045-164) (6684636) 1229 RON 92 1 1 MUFFLER PROTECTOR (OLD 738-06500-20) (6692795) 4137 RON 93 1 2 HEX. SOCKET HD. BOLT M5X50 (OLD 990-51050-503) (6685114) 1229 RON 94 1 2 WASHER 5 (OLD 992-01050-011) (6684661) 1229 RON 95 1 1 MUFFLER SET (OLD 704-06504-91) (6692477) 6262 RON 96 1 1 HEAT SHIELD (OLD 133-06500-20) (6687252) 2236 RON 97 1 1 MUFFLER GASKET (OLD 737-06500-20) (6692744) 1229 RON 98 1 1 INTAKE PIPE GASKET (OLD 403-06500-20) (6689891) 1229 RON 99 1 1 CARB. INSULATOR SET,SPARE (OLD 404-06500-90) (6689966) 4137 RON 100 1 2 HEX. HOLE BOLT 5X25WS (OLD 994-64050-254) (6695515) 1229 RON 101 1 1 CARBURETOR GASKET (OLD 402-06500-20) (6689839) 1229 RON *102 1 1 CARBURETOR SET, WYL120 (OLD 455-0651A-90) (6690487) 30645 RON *102 1 1 CARBURETOR SET WYL112 (OLD 455-06504-90) (6690482) 32211 RON 103 1 1 SWIVEL CAP (OLD 560-07120-20) (6684628) 105 RON 104 1 1 O-RING P-15 (OLD 999-67015-000) (6695670) 105 RON 105 1 1 CLEANER BODY COMP. (OLD 423-06500-81) (6690119) 3242 RON 106 1 2 COLLAR 7.5 (OLD 470-06500-20) (6690804) 1229 RON *107 1 1 CHOKE VALVE (OLD 528-0650T-20) (6691274) 2236 RON *107 1 1 CHOKE VALVE (OLD 528-06500-20) (6691272) 2236 RON 108 1 1 WAVE WASHER 8 (OLD 992-04080-031) (6684658) 1229 RON 109 1 1 BLOW OVER CHECK BOARD (OLD 476-01700-20) (6690843) 1229 RON 110 1 2 S.WASHER 5 (OLD 992-10050-012/6695214) (6684662) 1229 RON 111 1 2 6684660 - Indisponibil 112 1 1 CLEANER SPONGE (OLD 446-06500-21) (6690364) 1229 RON 113 1 1 6690415 (6690415) 382 RON 114 1 1 SPECIAL SCREW (OLD 380-0637C-20) (6689737) 1229 RON 115 1 1 SWIVEL (OLD 539-25120-20) (6684697) 2460 RON 116 1 1 STOP RING (OLD 489-25100-20) (6684696) 1229 RON 117 1 1 O-RING (OLD 550-25100-20) (6684695) 2236 RON *118 1 1 MAIN JET #34.5 (OLD 599-200BW-34) (6691888) 382 RON *118 1 1 MAIN JET #40 (OLD 599-2000W-40) (6691845) 3242 RON 119 1 1 INLET SCREEN (OLD 578-25007-20/6691460) (6684700) 2236 RON 120 1 1 PUMP BODY COMP. (OLD 575-25147-80) (6691430) 16888 RON 121 1 1 DIAPHRAGM COVER (OLD 476-25004-20) (6685222) 3242 RON 122 1 4 SET SCREW (OLD 548-25101-20) (6691312) 1229 RON 123 1 2 THROTTLE SET SCREW (OLD 548-25140-20) (6684698) 2236 RON 124 1 1 THROTTLE VALVE COMP. (OLD 488-25145-80) (6684883) 9730 RON 125 1 1 PUMP GASKET (OLD 577-25100-20) (6691457) 4249 RON 126 1 1 PUMP DIAPHRAGM (OLD 576-25100-20/6696325) (6684693) 3242 RON 127 1 1 DIAPHRAGM PACKING (OLD 475-25038-20) (6685220) 2236 RON 128 1 1 METERING DIAPHRAGM COMP. (OLD 474-25001-80/6690826) (6690827) 5591 RON 129 1 1 PRIMING PUMP COMP. (OLD 442-25143-80) (6685139) 3578 RON 130 1 1 FUEL PIPE 2.5X4X80 (OLD 700-02504-08) (6692347) 1229 RON 131 1 2 COLLAR 5.8 (OLD 659-00801-20) (6692244) 1229 RON 132 1 2 HEX. HOLE BOLT 5X18PS (OLD 994-63050-185) (6695505) 1229 RON *133 1 1 TANK (6696360) 4025 RON *133 1 1 TANK (FOR HE SPEC.)NEW (6696361) 4025 RON 134 1 1 6691389 (6691389) 6039 RON 135 1 1 AIR VENT PIPE (OLD 565-04410-20) (6691395) 3578 RON 136 1 1 6692171 (6692171) 3578 RON 137 1 1 6684625 - Indisponibil *138 1 1 6691763 (6691763) 4585 RON *138 1 1 6691714 (6691714) 3242 RON 139 1 1 FUEL PIPE 2.5X4X70 (OLD 700-02504-07) (6692346) 1229 RON 140 1 1 RETURN GROMMET (OLD 534-32710-20) (6684627) 105 RON 141 1 1 CLIP.6.3 DIA. (OLD 680-00731-20) (6684619) 1229 RON 142A 1 1 PUMP FILTER NEW JAN (6698874) 7493 RON 143A 1 1 FUEL PIPE (A) (OLD 6685309) (6698715) 6151 RON 144 1 1 CUTTER COVER (OLD 138-33171-20/6687300) (6687302) 5256 RON 145 1 1 GUARD PLATE (OLD 135-33191-20) (6687275) 2236 RON 146 1 4 FLANGE NUT 6 (OLD 991-82060-001) (6695170) 1229 RON 147 1 1 PROTECTION PLATE (OLD 136-33160-20) (6687285) 5815 RON 148 1 1 SUPPORT PLATE (OLD 462-33290-20) (6690762) 2460 RON 149 1 3 NUT 6 UPS-P (OLD 991-87060-001) (6695175) 1229 RON 150 1 3 WASHER 6 (OLD 992-01060-011) (6684639) 1229 RON 151 1 1 GEAR CASE COMP. (OLD 300-33290-81 & 6695770) (6688684) 7940 RON 152 1 1 GREASE NIPPLE COMP. (OLD 300-32250-80) (6688643) 1229 RON 153 1 2 SPRING NUT 6 (OLD 994-40060-011) (6695475) 1229 RON 154 1 2 HEX. HOLE BOLT 6X18/S (OLD 994-61060-184) (6695495) 1229 RON 155 1 1 CUTTER GUIDE 734L M6 (OLD 122-33248-20) (6687147) Indisponibil Indisponibil 156 1 1 GUIDE PLATE (OLD 075-33160-20) (6686612) 1229 RON 157 1 2 CAM ROD (OLD 101-33190-20) (6686811) 3578 RON 158 1 2 CUTTER A (696.5L) (OLD 120-33168-21/6687085) (6687086) 22592 RON 159 1 1 GEAR 2 COMP. (OLD 292-33194-80) (6688625) 14092 RON 160 1 1 GEAR CASE GASKET (OLD 303-33160-20) (6688909) 1229 RON 161 1 1 GEAR CASE COVER (OLD 630-33165-20) (6692101) 382 RON 162 1 1 BALL BEARING 608 ZZ C3 (OLD 999-61608-013/6696514) (6695547) 2460 RON 163 1 1 GEAR CASE B (OLD 301-33183-21) (6688846) 4585 RON 164 1 6 HEX. HOLE BOLT M4X12/S (OLD 994-61040-124) (6684595) 1229 RON 165 1 2 HEX. HOLE FLUSH BOLT 6X25 (OLD 990-52060-255) (6695075) 1229 RON 166 1 2 GREASE SEAL A (OLD 085-33160-20) (6686654) 1229 RON 167 1 5 WASHER 7 BLACK (OLD 129-33202-20) (6687187) 1229 RON 168 1 5 FIXING BOLT A M6 (OLD 124-32287-20) (6687158) 1229 RON 169 1 2 HEX. HOLE BOLT 4X10S (OLD 994-61040-104) (6695484) 1229 RON 170 1 1 6698931 - Indisponibil 501 1 1 HEX. BAR WRENCH 4MM (OLD 813-20000-20) (6684813) 105 RON 502 1 1 COMBI BOX SPANNER 10X19 ,PLUS (OLD 036-29331-50) (6685997) 3242 RON
