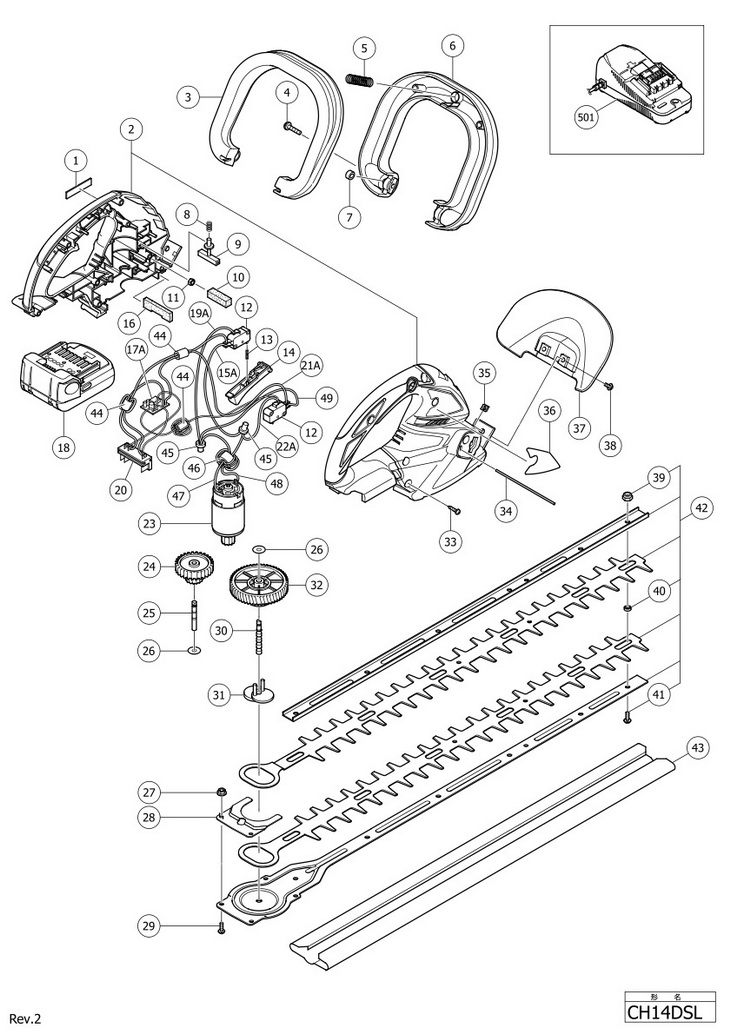

Top » Piese de schimb » PIESE HITACHI » CH14DSL CH14DSL [CH14DSL] Click pentru a mari Imagini suplimentare Click pentru a mari LISTA DE COMPONENTE: Numar Versiune Buc. in schema Denumire Pret/buc (Tva inclus) Cumpara 1 1 1 HITACHI LABEL (330719) 2795 RON 2 1 1 HOUSING SET (A+B) (333330) 12190 RON 3 1 1 SUB HANDLE (A) (333338) 4025 RON 4 1 2 MACHINE SCREW M5X30 (W/WASHERS) (880561) 1453 RON 5 1 1 SPRING (C) (333341) 1453 RON 6 1 1 SUB HANDLE (B) (333339) 4473 RON 7 1 2 COLLAR (333340) 1453 RON 8 1 1 SPRING (D) (333344) 1453 RON 9 1 1 PUSH PIN (333343) 1453 RON 10 1 2 PACKING (333760) 1453 RON 11 1 2 NUT M5 (BLACK) (302012) 1453 RON 12 1 2 SWITCH (333325) 3019 RON 13 1 1 SPRING (B) (324307) 2236 RON 14 1 1 TRIGGER (333761) 1453 RON 15 1 2 INTERNAL WIRE BROWN (333768) 1453 RON 15A 1 1 334613 - Indisponibil 16 1 1 @ DUST FELT (996678) 1453 RON 17 1 1 PRINTED CIRCUIT BOARD (333762) 8723 RON 17A 1 1 334618 - Indisponibil 18 1 1 329877 - Indisponibil 19 1 1 INTERNAL WIRE BLACK (333769) 1453 RON 19A 1 1 334610 - Indisponibil 20 1 1 BATTERY TERMINAL (331399) 2795 RON 21 1 1 INTERNAL WIRE RED (333770) 1453 RON 21A 1 1 334619 - Indisponibil 22 1 1 INTERNAL WIRE RED (323166) 1453 RON 22A 1 1 334614 - Indisponibil 23 1 1 MOTOR DC 14.4 VOLT (333322) 8388 RON 24 1 1 FIRST GEAR (333334) 8723 RON 25 1 1 SHAFT (B) (329832) 2236 RON 26 1 2 WASHER D15 (329835) 2236 RON 27 1 4 @ FLANGE NUT M4 (996683) 1453 RON 28 1 1 SPACER (325624) 2236 RON 29 1 4 MACHINE SCREW M4X16 BLACK (W/SP. WASHER) (696997) 2236 RON 30 1 1 SHAFT (C) (333335) 2795 RON 31 1 1 CRANK CAM (333780) 6486 RON 32 1 1 FINAL GEAR (333336) 4025 RON 33 1 8 TAPPING SCREW D4X20 (W/FLANGE) BLACK (OLD 305095) (301653) 894 RON 34 1 1 SHAFT (D) (333342) 1453 RON 35 1 2 NUT M4 (330056) 2236 RON 36 1 1 - Indisponibil 37 1 1 PROTECTOR (330879) 5480 RON 38 1 2 MACHINE SCREW M4X12 BLACK (W/WASHER) (333781) 1453 RON 39 1 6 NYLON NUT M5 (333772) 2795 RON 40 1 6 DISTANCE PIECE (333775) 3019 RON 41 1 6 MACHINE SCREW M5X14 (W/SP. WASHER) (333773) 1453 RON 42 1 1 333776 (333776) 23375 RON 43 1 1 BLADE CASE (333347) 4025 RON 44 1 3 FERRITE CORE (318247) 1453 RON 45 1 2 CONNECTOR 50092 (10 PCS) (OLD 939558) (959141) 382 RON 46 1 1 334379 - Indisponibil 47 1 1 334615 - Indisponibil 48 1 1 334616 - Indisponibil 49 1 1 334617 - Indisponibil 501 1 1 - Indisponibil
