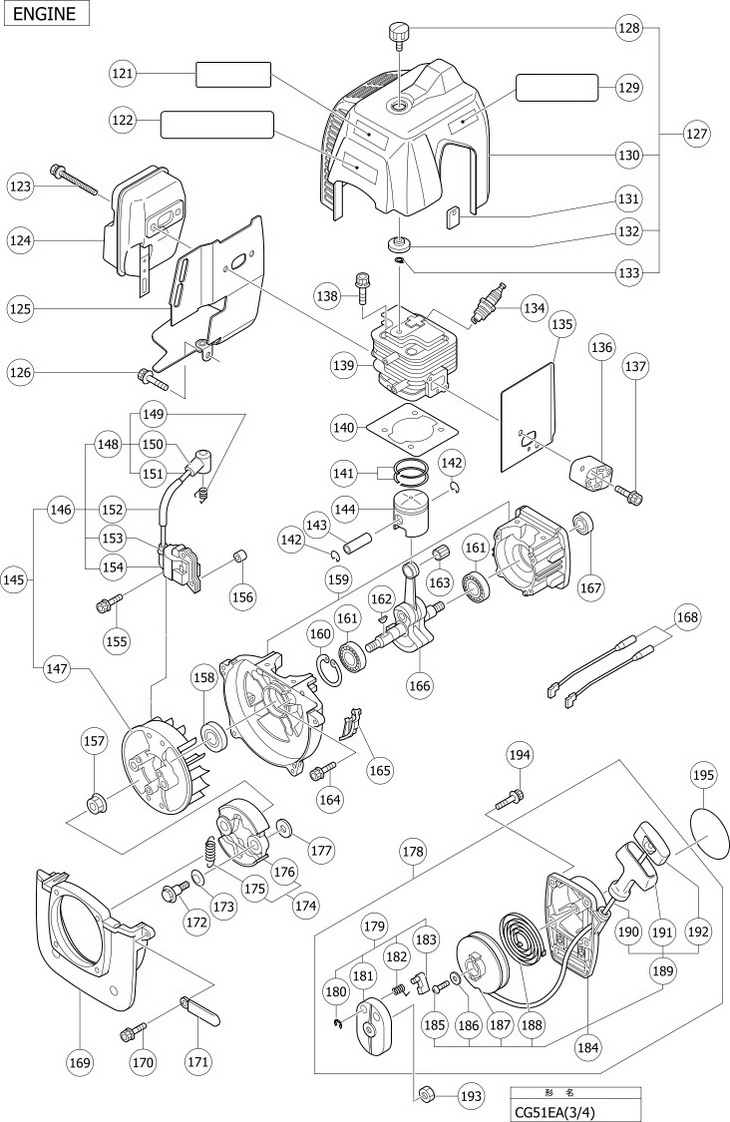

Top » Piese de schimb » PIESE HITACHI » CG51EA CG51EA [CG51EA] Click pentru a mari Imagini suplimentare Click pentru a mari Click pentru a mari Click pentru a mari Click pentru a mari LISTA DE COMPONENTE: Numar Versiune Buc. in schema Denumire Pret/buc (Tva inclus) Cumpara 1 1 1 683239 (683239) 21921 RON 2 1 1 683217 (683217) 73035 RON 3 1 2 683219 - Indisponibil 4 1 1 SNAP RING H35 (683220) 2236 RON 5 1 1 DRIVESHAFT TUBE ADAPTER (683224) 25612 RON 6 1 1 BUFFER (B) (683222) 5368 RON 7 1 1 BUFFER (A) (683221) 8052 RON 8 1 1 WASHER (683223) 3242 RON 9 1 1 BEARING CASE (683218) 22144 RON 10 1 4 SCREW (W/SP.WASHER) M5 X 15 (683131) 2236 RON 11 1 4 BOLT (W/SP. WASHER) M6 X 20 (683240) 2236 RON 12 1 1 BOLT M6X30 WW (683225) 2236 RON 13 1 1 CLUTCH DRUM (683226) 13197 RON 14 1 1 683236 (683236) 62969 RON 15 1 1 TROTTLE TRIGGER (683238) 54469 RON 16 1 1 HANDLE B D19 R (683237) 8611 RON 17 1 1 683230 (683230) 15322 RON 18 1 4 BOLT M6X25 WSW (683231) 2236 RON 19 1 2 BOLT M6X30 WW (683225) 2236 RON 20 1 1 683233 (683233) 22592 RON 21 1 1 HANDLE A D19 L (683234) 12638 RON 22 1 1 HANDLE GRIP NEW (683235) 9730 RON 23 1 1 683002 (683002) 12638 RON 24 1 1 683244 (683244) 64647 RON 25 1 1 BALL BEARING NEW (683246) 5927 RON 26 1 1 SNAP RING (683170) 2236 RON 27 1 1 DRIVESHAFT TUBE ADAPTER NEW (683247) 22144 RON 28 1 1 BEARING CASE NEW (683245) 22592 RON 29 1 1 CLUTCH DRUM (683248) 12638 RON 30 1 4 BOLT NEW (683254) 2236 RON 31 1 1 683251 (683251) 20467 RON 32 1 4 SCREW M5 X 28 SW (682990) 2236 RON 33 1 1 LOOPE HANDLE (682988) 16440 RON 34 1 4 NUT M5 (10 PCS) (949555) 1453 RON 35 1 1 683250 (683250) 2683 RON 36 1 1 BOLT M5 X 15 (682986) 2236 RON 37 1 1 THROTTLE TRIGGER (683249) 28967 RON 38 1 1 683229 (683229) 5927 RON 39 1 1 BOLT M5 X 15 WSW (682999) 2236 RON *40 1 1 DRIVE SHAFT (683227) 20691 RON *40 1 1 683253 (683253) 17112 RON *41 1 1 DRIVE SHAFT TUBE (683228) 49323 RON *41 1 1 683252 (683252) 45968 RON 42 1 1 - Indisponibil 43 1 1 - Indisponibil 44 1 1 683352 - Indisponibil 45 1 2 WIRE GUIDE (683232) 2236 RON 46 1 1 683241 (683241) 14763 RON 47 1 2 BOLT M6X30 SW (682994) 1229 RON 48 1 1 BRACKET (683242) 2012 RON 49 1 1 THREADED BRACKET (683243) 5368 RON 50 1 5 NUT M5 (10 PCS) (949555) 1453 RON 51 1 5 PLANE WASHER M5 (683000) 2236 RON 52 1 1 682995 (682995) 5815 RON 53 1 2 BOLT M5 X 25 W (682997) 2236 RON 54 1 5 BOLT M5 X 15 WSW (682999) 2236 RON 55 1 1 COVER EXTENTION (682998) 573 RON 56 1 1 STRING CUTTER (682996) 4025 RON 57 1 2 SPRING WASHER M5 (10 PCS) (949454) 1117 RON 58 1 2 NUT M5 (10 PCS) (949555) 1453 RON 71 1 1 BOLT M6X12 (683268) 2236 RON *72 1 1 683255 (683255) 127394 RON *72 1 1 683269 (683269) 127394 RON 73 1 1 BOLT M8 X 22 WSW L.H. (683018) Indisponibil Indisponibil 74 1 1 STABILIZER (683267) 4025 RON 75 1 1 CLAMPING WASHER (683266) 10289 RON 76 1 1 BOSS ADAPTER (683265) 15993 RON 77 1 1 OIL SEAL (683261) 4025 RON 78 1 1 COLLAR (683260) 4025 RON 79 1 1 SNAP RING (683170) 2236 RON 80 1 1 BALL BEARING (683259) 5368 RON 81 1 1 BLADE SHAFT (683258) 18789 RON 82 1 1 BALL BEARING (683154) 16441 RON *83 1 1 BOLT M8X10 (683150) 2236 RON *83 1 1 BOLT (683271) 2236 RON 84 1 1 BOLT M6X30 WW (683225) 2236 RON *85 1 1 GEAR CASE (683256) 39145 RON *85 1 1 GEAR CASE (683270) 27289 RON 86 1 1 BALL BEARING (683262) 5368 RON 87 1 1 BALL BEARING (683263) 5368 RON 88 1 1 SNAP RING (683264) 2236 RON 89 1 1 SNAP RING H26 (683128) 2236 RON 90 1 1 GEAR SET (683257) 22144 RON 121 1 1 - Indisponibil 122 1 1 - Indisponibil 123 1 2 CAP SCREW (683279) 3242 RON 124 1 1 MUFFLER (683277) 22144 RON 125 1 1 GASKET COMPLETE (683278) 8388 RON 126 1 1 CAP SCREW (683033) 2236 RON 127 1 1 683280 (683280) 22144 RON 128 1 1 KNOB (683282) 4025 RON 129 1 1 CAUTION LABEL (B) NEW (683351) 3242 RON 130 1 1 TOP COVER (683281) 17559 RON 131 1 1 GROMMET (683181) 2236 RON 132 1 1 SPACER (683283) 3242 RON 133 1 1 SNAP RING (683284) 2236 RON 134 1 1 SPARK PLUG BPMR6Y (683068) 5368 RON 135 1 1 PLATE (683276) 3242 RON 136 1 1 INSULATOR (683275) 6374 RON 137 1 2 CAP SCREW (683029) 2236 RON 138 1 4 CAP SCREW (683274) 2236 RON 139 1 1 CYLINDER (683347) 110393 RON 140 1 1 GASKET (683273) 2236 RON 141 1 2 PISTON RING (683349) 5591 RON 142 1 2 CLIP PISTON (683294) 2236 RON 143 1 1 PISTON PIN (683292) 5368 RON 144 1 1 PISTON (683348) 20691 RON 145 1 1 683303 (683303) 100215 RON 146 1 1 683305 (683305) 61179 RON 147 1 1 ROTOR (683304) 39145 RON 148 1 1 683307 (683307) 12190 RON 149 1 1 CONNECTOR (683061) 3242 RON 150 1 1 PLUG CAP (683060) 4025 RON 151 1 1 CORD (683308) 2236 RON 152 1 1 TUBE (683309) 2236 RON 153 1 1 CAP (683062) 2236 RON 154 1 1 COIL (683306) 49323 RON 155 1 2 CAP SCREW (683067) 2236 RON 156 1 2 SPACER (683066) 2236 RON 157 1 1 NUT (683310) 2236 RON 158 1 1 OIL SEAL (683287) 4025 RON 159 1 1 CRANK CASE (683285) 54469 RON 160 1 1 SNAP RING H35 (683220) 2236 RON 161 1 2 BALL BEARING (683286) 6598 RON 162 1 1 WOODRUFF KEY (683064) 2236 RON 163 1 1 NEEDLE BEARING (683293) 7269 RON 164 1 4 CAP SCREW (683289) 2236 RON 165 1 1 SCREEN (683328) 2236 RON 166 1 1 CRANK SHAFT (683295) 107037 RON 167 1 1 OIL SEAL (683288) 3242 RON 168 1 2 LEAD (683311) 3242 RON 169 1 1 COOLING COVER (683302) 18789 RON 170 1 4 CAP SCREW (683087) 2236 RON 171 1 1 CLAMP SCREW (683088) 2236 RON 172 1 2 CLUTCH BOLT (683301) 4025 RON 173 1 2 WAVE WASHER (683300) 2236 RON 174 1 1 683296 (683296) 23934 RON 175 1 1 SPRING CLUTCH (683298) 5368 RON 176 1 2 CLUTCH SHOE (683297) 11967 RON 177 1 2 WASHER (683299) 2236 RON 178 1 1 683312 (683312) Indisponibil Indisponibil 179 1 1 683322 (683322) 14763 RON 180 1 1 E-RING (683326) 2236 RON 181 1 1 PULLEY (683325) 11184 RON 182 1 1 RETURN SPRING (683324) Indisponibil Indisponibil 183 1 1 RATCHET (683323) Indisponibil Indisponibil 184 1 1 683313 (683313) Indisponibil Indisponibil 185 1 1 SCREW (683321) Indisponibil Indisponibil 186 1 1 WASHER (683320) Indisponibil Indisponibil 187 1 1 PULLEY (683319) Indisponibil Indisponibil 188 1 1 SPIRAL SPRING (683318) Indisponibil Indisponibil 189 1 1 683314 (683314) 10289 RON 190 1 1 ROPE (683316) 4025 RON 191 1 1 STARTER KNOB (683315) 5368 RON 192 1 1 CAP (683317) 3242 RON 193 1 1 NUT (683327) 2236 RON 194 1 4 CAP SCREW (683163) 2236 RON 195 1 1 - Indisponibil 221 1 1 GASKET (683346) 2236 RON 222 1 1 683329 (683329) 117215 RON 223 1 1 SCREW (683199) 6374 RON 224 1 1 NUT (683083) 2236 RON 225 1 2 SCREW (683197) 5368 RON 226 1 1 BRACKET (683198) 7828 RON 227 1 1 SWIVEL (683102) 5368 RON 228 1 1 WASHER (683201) 2236 RON 229 1 1 RING (683101) 2236 RON 230 1 1 FRAME (683200) 6151 RON 231 1 1 O-RING (683090) 4025 RON 232 1 1 MAIN JET (683330) 765 RON 233 1 1 GASKET (683092) 5368 RON 234 1 1 DIAPHRAGM (683093) 6151 RON 235 1 1 PUMP BODY (683094) 35790 RON 236 1 1 GASKET (683095) 5368 RON 237 1 1 DIAPHRAGM METERRING (683331) 14763 RON 238 1 1 PURGE BODY (683097) 11743 RON 239 1 1 PRIMER PUMP (683098) 5591 RON 240 1 1 PUMP COVER (683099) 6374 RON 241 1 4 SCREW (683100) 2236 RON 242 1 1 683332 (683332) 37468 RON 243 1 2 SLEEVE (683334) 3242 RON 244 1 1 AIR CLEANER CASE (683333) 765 RON 245 1 1 CHOKE VALVE (683208) 573 RON 246 1 1 WASHER (683206) 3242 RON 247 1 1 PLATE (683335) 5368 RON 248 1 2 ELEMENT (683336) 7828 RON 249 1 1 AIR CLEANER COVER (683337) 6151 RON 250 1 2 CAP SCREW (683338) 2236 RON 251 1 1 CLIP (683122) 2236 RON 252 1 1 683339 (683339) 39145 RON 253 1 1 683341 (683341) 1232 RON 254 1 1 683342 (683342) 6374 RON 255 1 1 FUEL PIPE (683343) 3242 RON 256 1 1 GROMMET (683118) 4025 RON 257 1 1 RETURN PIPE (683120) 2236 RON 258 1 1 FUEL FILTER (683344) 6374 RON 259 1 1 CLIP (683122) 2236 RON 260 1 1 BREATHER (683115) 7828 RON 261 1 1 FUEL TANK (683340) 20691 RON 262 1 1 683113 (683113) 6374 RON 263 1 1 PACKING (683114) 2236 RON 264 1 2 PAD (683216) 2236 RON 265 1 1 PAD (683345) 2236 RON 501 1 1 BLADE COVER (683155) 4025 RON 502 1 1 CUTTER BLADE 255MM-D25.4 NT4 (683156) 5814 RON 503 1 1 NYLON HEAD SEMI-AUTOMATIC 4" M8X1.25 LH (683020) 8499 RON 504 1 1 BOX SPANNER (683021) 5368 RON 505 1 1 DOUBLE-ENDED WRENCH (683022) 3242 RON 506 1 1 LEVER HANDLE (683023) 2236 RON 507 1 1 HEX.BAR WRENCH 5MM (944459) 1788 RON 601 1 1 682975 - Indisponibil
